| Specifications |
|---|
| SoC | - Rockchip RK3288. Quad-core Cortex-A17 @ 1.8GHz
- 28nm HKMG process |
| GPU | - Mali-T764 GPU, supports AFBC
- Support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3 |
| Memory | 1GB/2GB LPDDR3 |
| Storage | - 4GB/8GB/16GB/32GB eMMC
- MicroSD slot
- M.2 SSD socket |
| Power | 5V/3A DC input jack |
| USB | 3x USB2.0 Host, 1x USB2.0 OTG |
| Audio | ES8388 Audio codec. 3.5mm jack for Audio input/output |
| PWR&Battery | 10-pin connector. Support 3.7V Li-Battery (Requires external battery adapter board) |
| Display | - HDMI 2.0 for 4K@60Hz with HDCP 1.4/2.2
- 40-pin header for LVDS
- 26-pin MIPI DSI
- mini Display Port (miniDP) |
| Connectivity | - Gigabit Ethernet port (RJ45) via Realtek RTL8211E

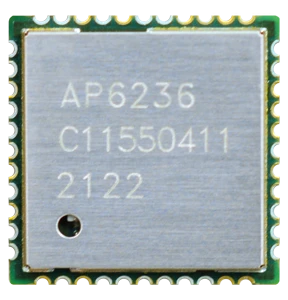

- 802.11b/g/n WiFi (2.4GHz) + Bluetooth 4.0
- Optional 4G module (with GPS) via mini PCIe socket + SIM card slot |
| IR | Support IR in |
| UART | On-board SP3232 (RS-232 Transceiver).
1x 4-pin connector for RS232(UART1), 1x 3pin connector for debug (UART2); |
| RS485 | 1x 3-pin RS485 |
| CAN | 1x 2-pin CAN |
| GPIO | 1x 14-pin connector for MEMS Module |
| Buttons | 3x Buttons for Recover, Power and Reset |
| RTC | Real Time Clock, powered by external lithium battery (CR1220) |
| POE | 8-pin connector for POE Module |
| Camera (optional) | 1x MIPI CSI (26-pin header + 24pin FPC connector) |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 135 x 90 mm; CPU module - 60 x 46 mm |
