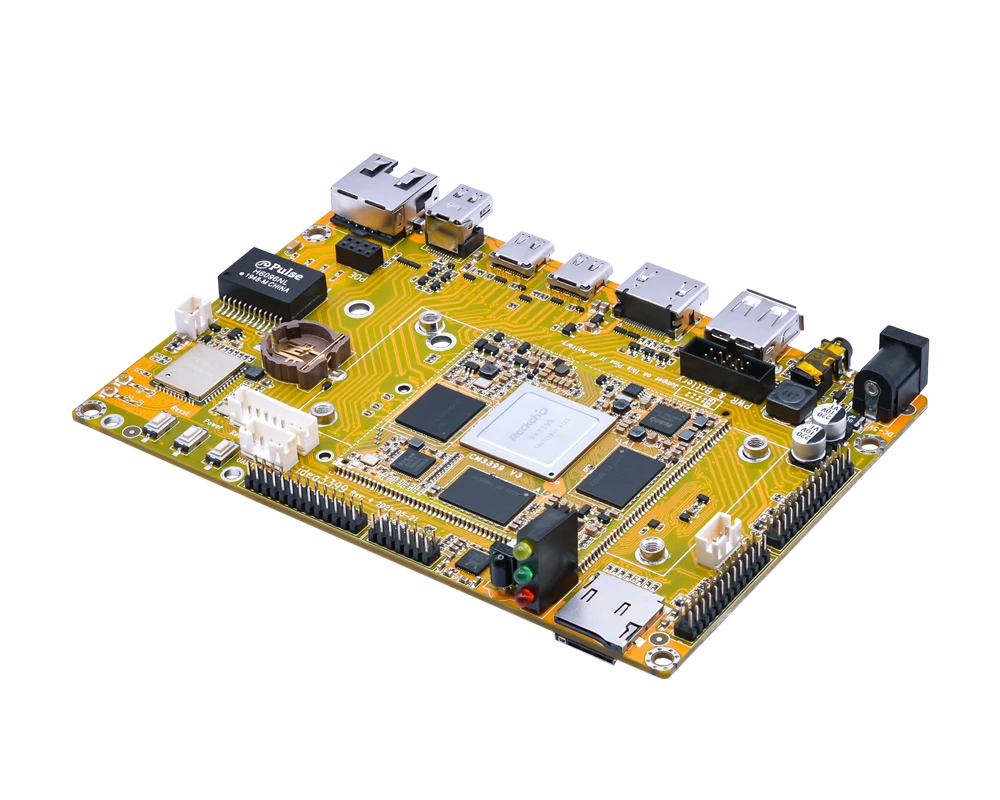

| Specifications |
|---|

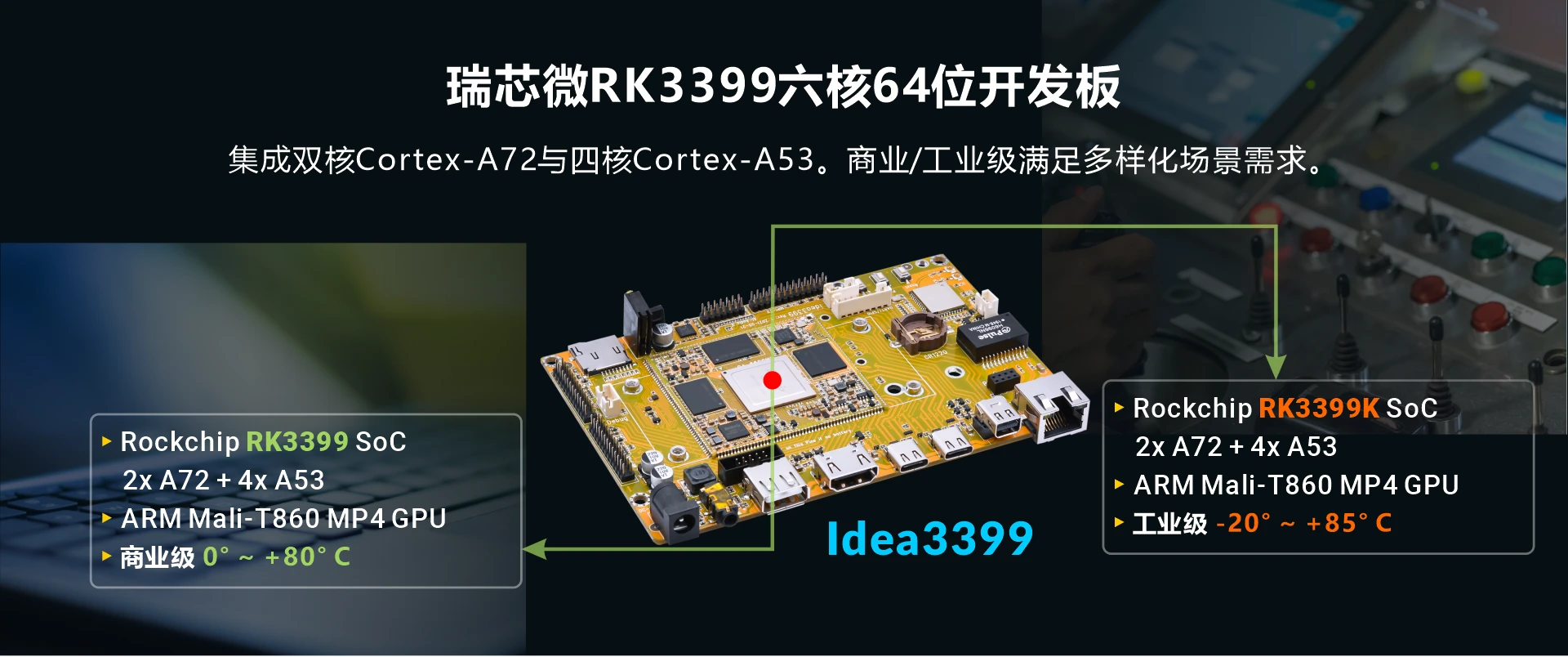

| SoC | Rockchip RK3399. Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
28nm HKMG process
1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster |
| GPU | ARM Mali-T860MP4 with support for OpenGL ES1.1/2.0/3.0/3.1/3.2, OpenCL1.2, DirectX11.1 etc. |
| Memory | 1GB/2GB/4GB |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
Micro SD Card slot
M.2 socket |
| Power | 5V/3A DC input jack
3.7V Li-Battery, 10-pin connector |

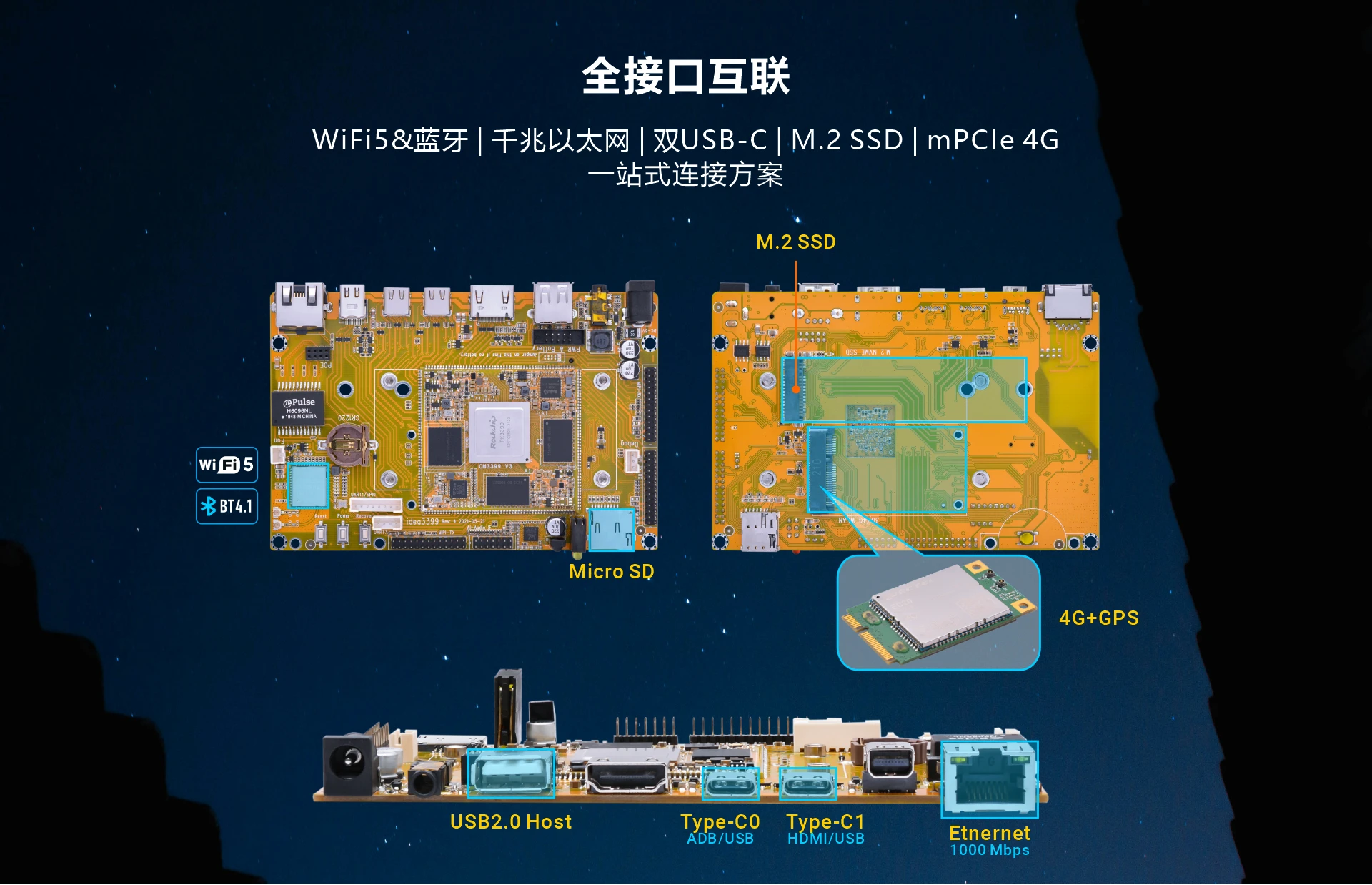

| Connectivity | 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211E controller

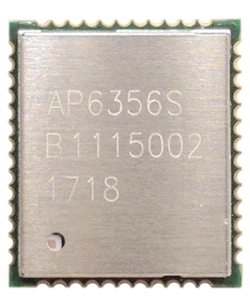

2.4G/5GHz WiFi (802.11 a/b/g/n/ac) with Bluetooth 4.1
mPCIe socket with Nano SIM card port to support 4G&GPS module |

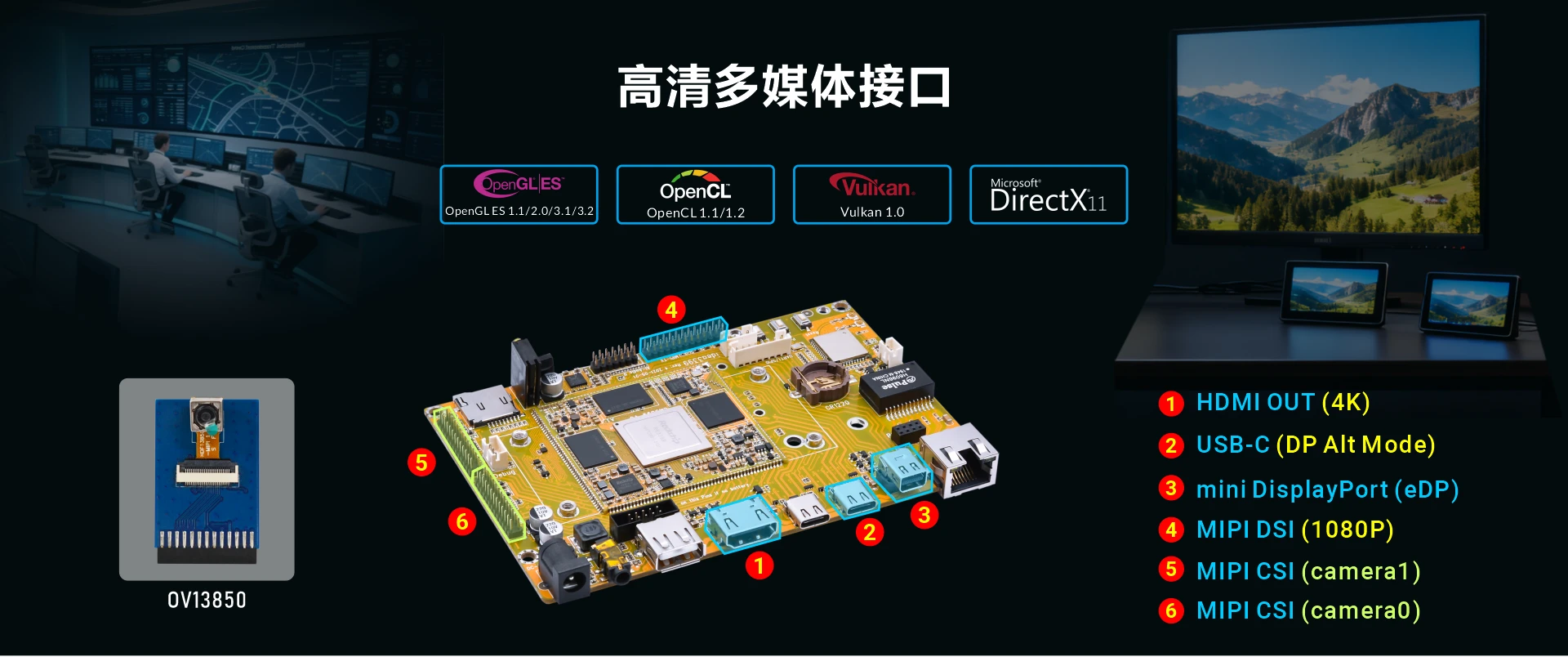

| Display | mini Display Port
HDMI2.0, up to 4K@60Hz
MIPI DSI, up to 1080@60Hz |
| Audio | Realtek ALC5651 Audio Codec.
3.5mm jack for headphone;
14-pin header for MIC Array. |
| USB | 1x USB2.0 Host, 2x USB3.0 Type-C |
| Camera (optional) | 2x MIPI camera. 26-pin header |
| IR | IR in |
| UART | 4-wire UART1(Multiplexed signal with Ethernet), 1x 8pin connector (J13);
3-wire UART2, 1x 3pin connector. For debug;
4-wire UART3(Multiplexed signal with Ethernet), 1x 4pin connector |
| SPI | 8-pin connector (J13) |
| Buttons | 3x Buttons for Recover, Power and Reset |
| RTC | 3V battery, CR1220 |
| POE | 8-pin connector. Requires separate PoE adapter |
| Operating Temperature | 0° to + 70° C |
| Dimensions | 135 x 90 mm |
