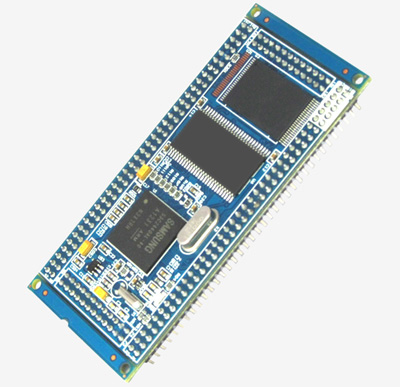

核心板

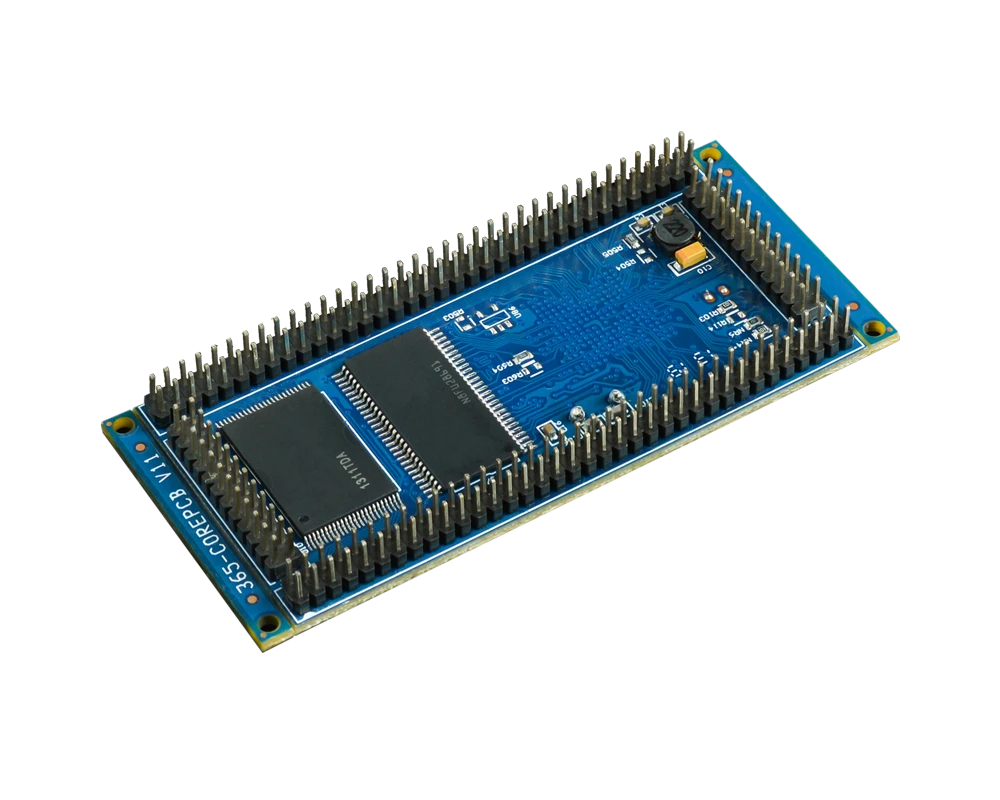

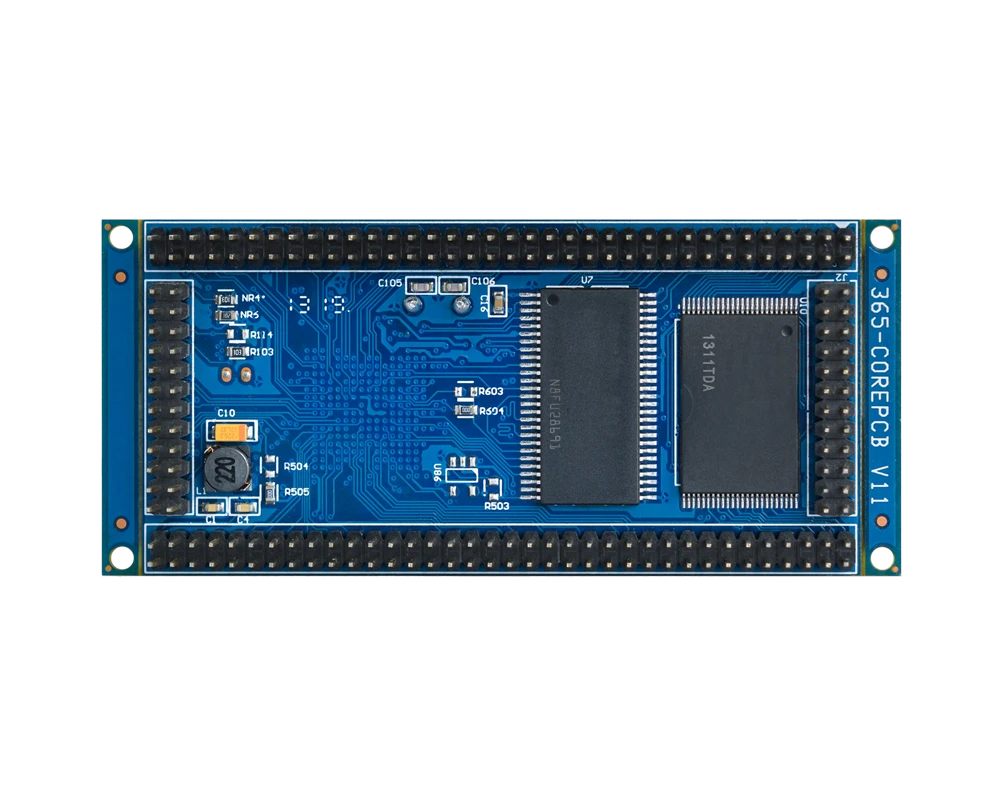

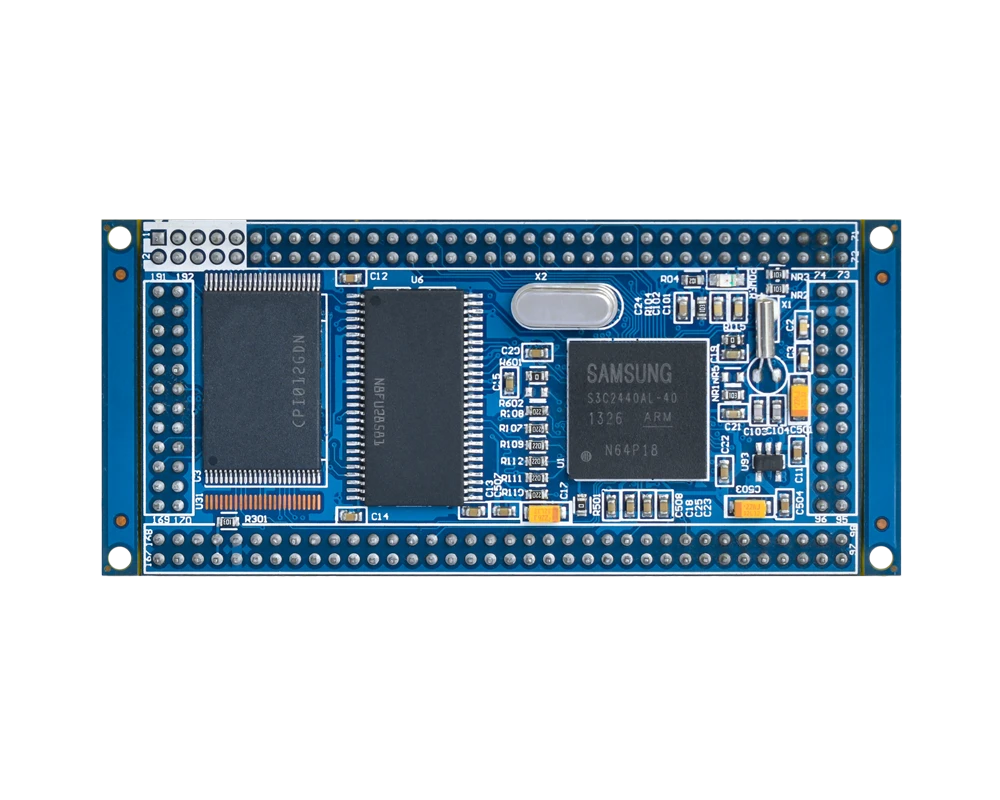

MINI2440
Highlight

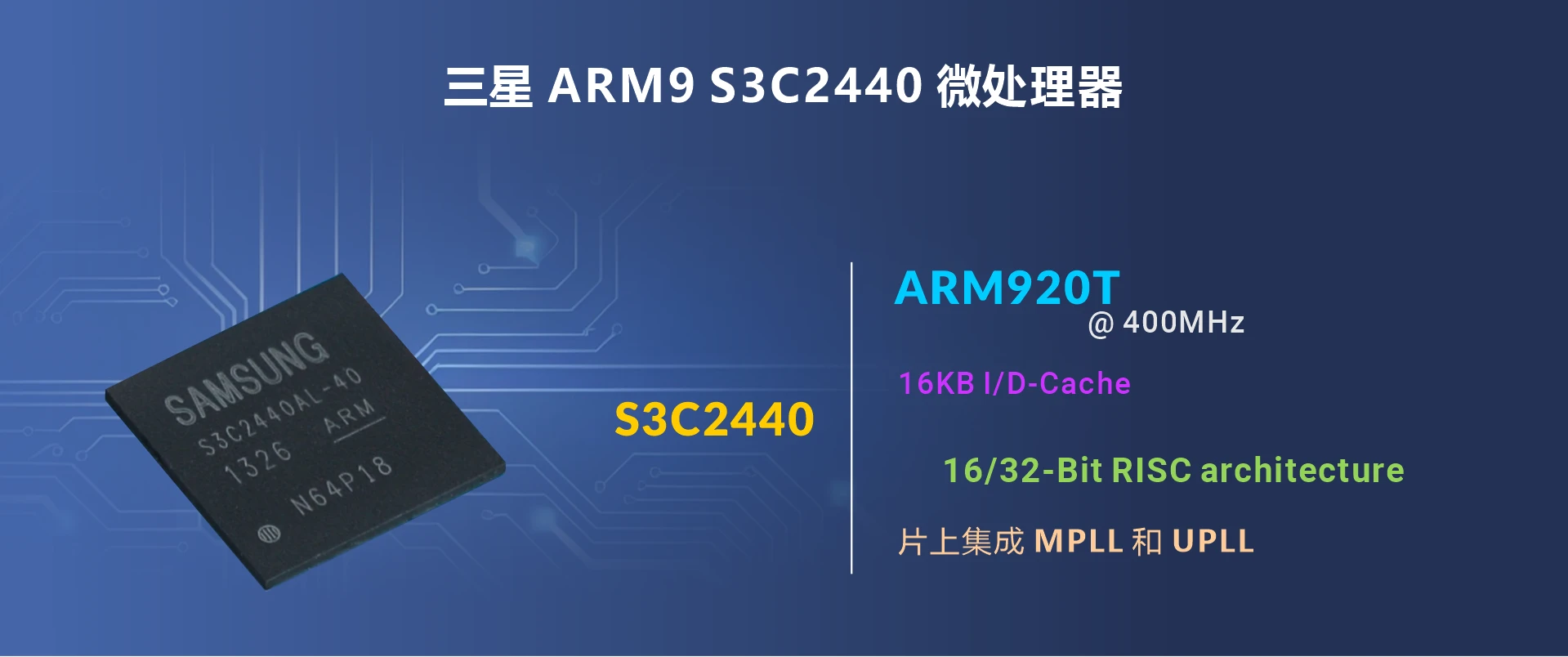

处理器: Samsung ARM9 S3C2440A ARM920T, 400MHz

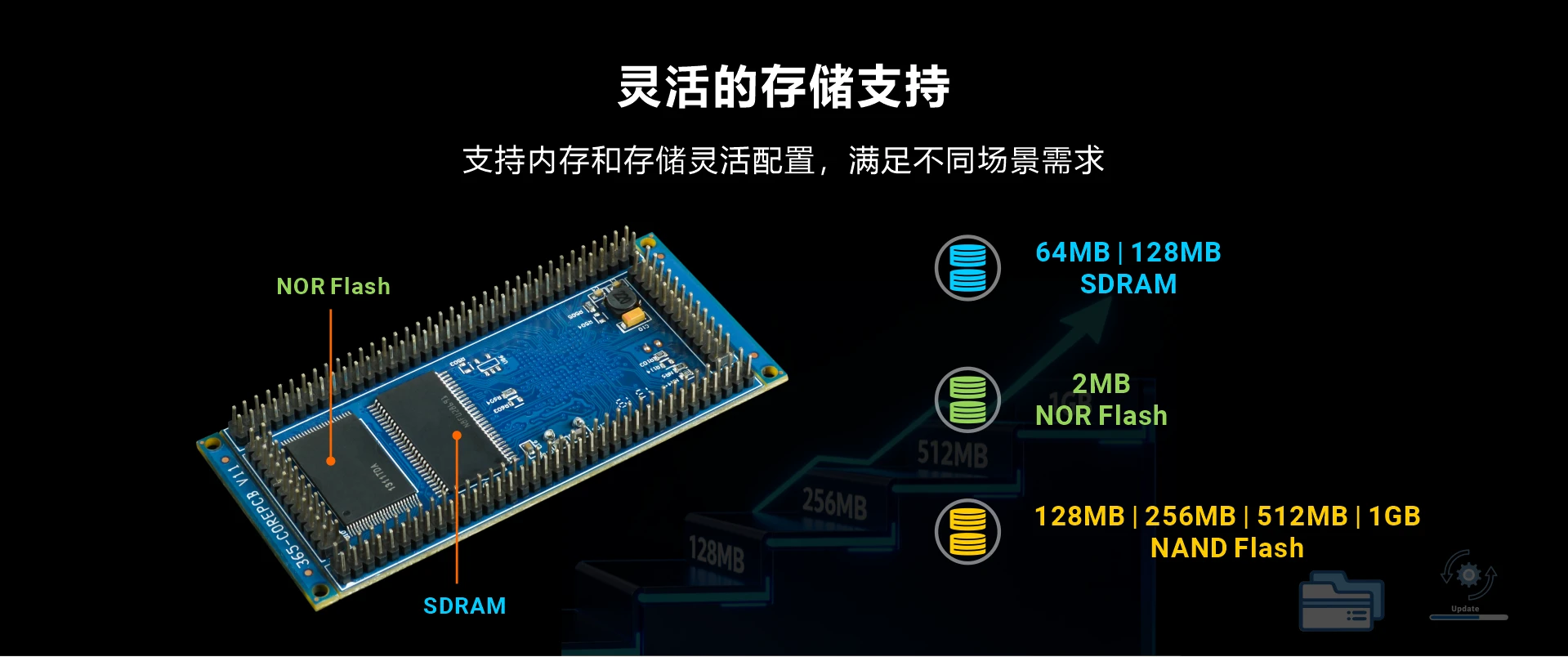

内存: 64MB/128MB
NOR Flash: 2MB
存储: 128MB/256MB/512MB/1GB

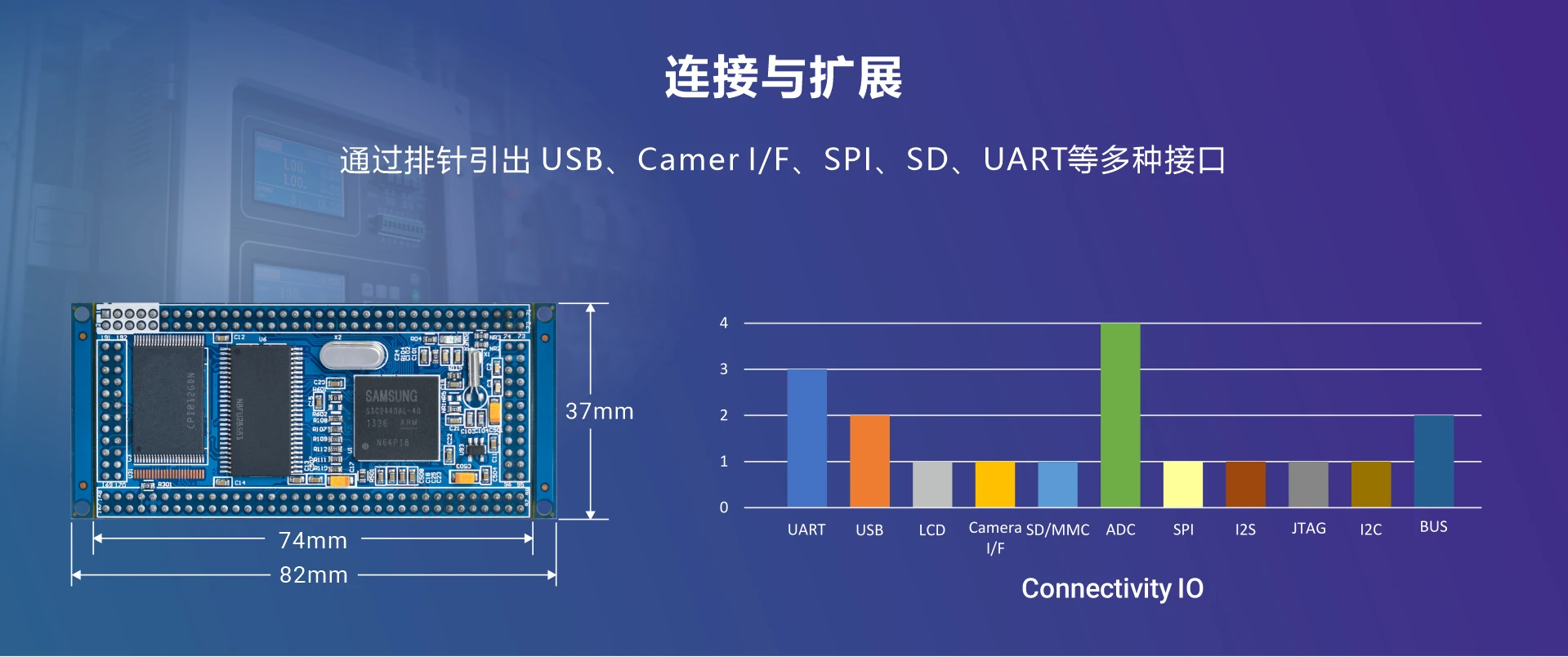

引出信号: 3x UART, 2x USB1.1 Host, RGB, Camera I/F, SD, ADC, SPI, JTAG, I2S, I2C, GPIO
操作系统: Linux 2.6.25/30, Windows CE6.0
尺寸规格: 74 x 37 mm
连接方式: 板对板连接。2x 72-pin and 2x 24-pin, 2.0mm间距排针
工作温度: 0° to + 70° C
| Specifications | |
|---|---|
| SoC | Samsung ARM9 S3C2440A ARM920T, 400MHz |
| Memory | 64MB/128MB SDRAM |
| Storage | 128MB/256MB/512MB/1GB NAND Flash |
| Supply Voltage | DC 3.3V |
| Pin out | 3x UART, 2x USB1.1 Host（or 1x USB1.1 Device, 1x USB1.1 Host), RGB, Camera I/F, SD, 4x ADC IN, SPI, JTAG, I2S, I2C, GPIO, etc. |
| Dimensions | 74 x 37 mm |
| Weight | 20.4 gram |
| PCB Layer | 6 |
| Operating Temperature | 0° to + 70° C |
| Connectors | 2x 72-pin and 2x 24-pin, 2.0mm pitch Pin Header |
| Application | PDA, Handheld device, System Control |

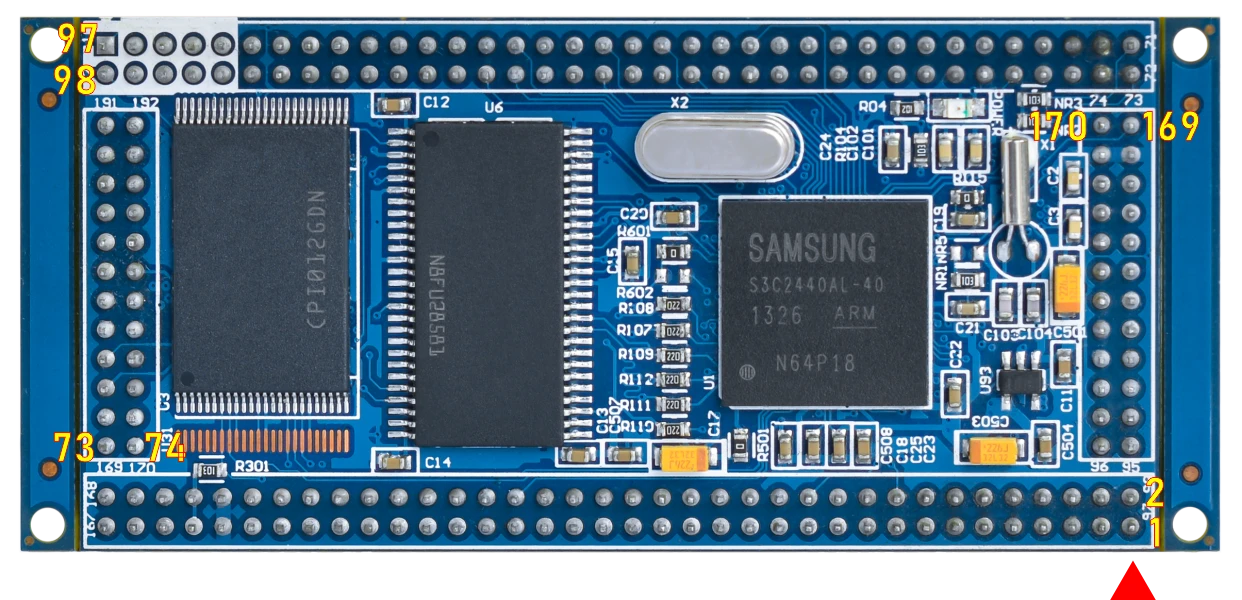

| Pin Definition | |||||||
|---|---|---|---|---|---|---|---|
| Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
| 1 | DATA6 | 2 | DATA7 | 3 | ADDR7 | 4 | ADDR8 |
| 5 | ADDR5 | 6 | ADDR6 | 7 | ADDR3 | 8 | ADDR4 |
| 9 | ADDR1 | 10 | ADDR2 | 11 | DATA30 | 12 | DATA31 |
| 13 | DATA28 | 14 | DATA29 | 15 | DATA26 | 16 | DATA27 |
| 17 | DATA24 | 18 | DATA25 | 19 | DATA22 | 20 | DATA23 |
| 21 | DATA20 | 22 | DATA21 | 23 | DATA18 | 24 | DATA19 |
| 25 | DATA16 | 26 | DATA17 | 27 | nTRST | 28 | nRESRT |
| 29 | TDO | 30 | TDI | 31 | TCK | 32 | TMS |
| 33 | RXD2/nCTS1/ GPH7 | 34 | TXD2/nRTS1/GPH6 | 35 | RXD1/GPH5 | 36 | TXD1/GPH4 |
| 37 | RXD0/GPH3 | 38 | TXD0/GPH2 | 39 | nRTS0/GPH1 | 40 | nCTS0/GPH0 |
| 41 | EINT0/GPF0 | 42 | EINT1/GPF1 | 43 | EINT2/GPF2 | 44 | EINT3/GPF3 |
| 45 | EINT4/GPF4 | 46 | EINT5/GPF5 | 47 | EINT6/GPF6 | 48 | EINT7/GPF7 |
| 49 | EINT8/GPG0 | 50 | EINT11/nSS1/GPG3 | 51 | EINT14/SPIMOSI1/ GPG6 | 52 | EINT13/SPIMISO1/ GPG5 |
| 53 | EINT19/TCLK1/ GPG11 | 54 | EINT15/SPICLK1/ GPG7 | 55 | EINT18/nCTS1/ GPG10 | 56 | EINT9/GPG1 |
| 57 | EINT20/GPG12 | 58 | VDD_RTC | 59 | DP1/PDP0 | 60 | AIN3 |
| 61 | DN1/PDN0 | 62 | AIN2 | 63 | DN0 | 64 | AIN1 |
| 65 | DP0 | 66 | AIN0 | 67 | EINT13/SPIMISO1/ GPG5 | 68 | EINT10/nSS0/GPG2 |
| 69 | SPICLK0/GPE13 | 70 | SPIMOSI0/GPE12 | 71 | EINT22/GPG14 | 72 | EINT21/GPG13 |
| 73 | Vref | 74 | EINT23/GPG15 | 75 | OM2 | 76 | OM3 |
| 77 | OM0 | 78 | OM1 | 79 | EINT16/GPG8 | 80 | SDDAT2/GPE9 |
| 81 | SDDAT3/GPE10 | 82 | SDCMD/GPE6 | 83 | SDCLK/GPE5 | 84 | SDDAT0/GPE7 |
| 85 | SDDAT1/GPE8 | 86 | UEXTCLK/GPH8 | 87 | TCLK0/GPB4 | 88 | CDCLK/ GPE2 |
| 89 | I2SLRCK/ GPE0 | 90 | I2SSCLK/ GPE1 | 91 | TOUT3/GPB3 | 92 | TOUT2/GPB2 |
| 93 | I2SSDI/ GPE3 | 94 | I2SSDO/ GPE4 | 95 | EINT12/LCD_PWREN/ GPG4 | 96 | XP/AIN7 |
| 97 | XM/AIN6 | 98 | YP/AIN5 | 99 | YM/AIN4 | 100 | VCLK/GPC1 |
| 101 | VLINE/GPC2 | 102 | VFRAME/GPC3 | 103 | VM/GPC4 | 104 | IICSCL/GPE14 |
| 105 | IICSDA/GPE15 | 106 | VD23/nSS0/GPD15 | 107 | VD22/nSS1/GPD14 | 108 | VD21/ GPD13 |
| 109 | VD20/ GPD12 | 110 | VD19//GPD11 | 111 | VD18/SPICLK1/GPD10 | 112 | VD17/SPIMOSI1/ GPD9 |
| 113 | VD16/SPIMISO1/ GPD8 | 114 | VD15/GPD7 | 115 | VD14/GPD6 | 116 | VD13/ GPD5 |
| 117 | VD12/GPD4 | 118 | VD11/GPD3 | 119 | VD10/GPD2 | 120 | VD9/GPD1 |
| 121 | VD8/GPD0 | 122 | VD7/GPC15 | 123 | VD6/GPC14 | 124 | VD5/GPC13 |
| 125 | VD4/GPC12 | 126 | VD3/GPC11 | 127 | VD2/GPC10 | 128 | VD1/GPC9 |
| 129 | VD0/GPC8 | 130 | nXDACK0/GPB9 | 131 | nXDREQ0/GPB10 | 132 | nXBACK/GPB5 |
| 133 | nXBREQ/GPB6 | 134 | nXDACK1/GPB7 | 135 | nXDREQ1/GPB8 | 136 | TOUT1/GPB1 |
| 137 | TOUT0/GPB0 | 138 | CAMRESET/GPJ12 | 139 | CAMVSYNC/GPJ9 | 140 | CAMHREF/GPJ10 |
| 141 | CAMPCLK/GPJ8 | 142 | CAMCLKOUT/ GPJ11 | 143 | CAMDATA0/GPJ0 | 144 | CAMDATA1/GPJ1 |
| 145 | CAMDATA2/GPJ2 | 146 | CAMDATA3/GPJ3 | 147 | CAMDATA4/GPJ4 | 148 | CAMDATA5/GPJ5 |
| 149 | CAMDATA6/GPJ6 | 150 | CAMDATA7/GPJ7 | 151 | nWAIT | 152 | nGCS1/GPA12 |
| 153 | nGCS2/GPA13 | 154 | nGCS3/GPA14 | 155 | nGCS4/GPA15 | 156 | nGCS5/GPA16 |
| 157 | nGCS7 | 158 | nBE1 | 159 | GND | 160 | GND |
| 161 | 3.3V | 162 | 3.3V | 163 | DATA8 | 164 | DATA9 |
| 165 | DATA10 | 166 | DATA11 | 167 | DATA12 | 168 | DATA13 |
| 169 | DATA14 | 170 | DATA15 | 171 | ADDR24 /GPA9 | 172 | ADDR0/GPA0 |
| 173 | nWE | 174 | nOE | 175 | ADDR20/GPA5 | 176 | ADDR19/GPA4 |
| 177 | ADDR18/GPA3 | 178 | ADDR17/GPA2 | 179 | ADDR16/GPA1 | 180 | ADDR15 |
| 181 | ADDR14 | 182 | ADDR13 | 183 | ADDR12 | 184 | ADDR11 |
| 185 | ADDR10 | 186 | ADDR9 | 187 | DATA0 | 188 | DATA1 |
| 189 | DATA2 | 190 | DATA3 | 191 | DATA4 | 192 | DATA5 |
| OS | Item | Feature | Description |
|---|---|---|---|
| Linux 2.6.25 Linux 2.6.30 | Bootloader | Boot | Start up system, supporting one Key to update Bootloader, Kernel, Yaffs, NK.bin and one Key to configure parameters of Linux. Also can be configured the board booting from Yaffs or NFS |
| Tftp | Support tftp transmitting protocol | ||
| File system | Yaffs | ||
| Kernel | Support writing kernel image into nand flash and kernel parameter setting | ||
| Etc. | Support via USB and Serial Interface to download application to flash debug | ||
| Kernel | Version | Linux 2.6.25.8 | |
| File system | CRAMFS/RAMFS/EXT2/FAT32/NFS/YAFFS/YAFFS2 | ||
| Serial device | 3x serial ports | ||
| Ethernet | 10/100 Mbps Ethernet. DM9000 | ||
| RTC | RTC driver | ||
| USB Host | USB Host, USB Slave driver | ||
| LEDs | 4x LEDs driver | ||
| Buttons | User buttons | ||
| Language | Multi-language Support | ||
| LCD | Coming with driver for 3.5", 4.3", 7" and 10.4" TFT LCD (resolution 800*600) | ||
| Touch panel | Touch panel driver | ||
| SD/MMC card | SD/MMC card driver | ||
| Sound | UDA1341 | ||
| CMOS Camera | CMOS Camera driver | ||
| USB Camera | The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD | ||
| GPRS Module | Using GPRS Module to dial-up to Ethernet, the speed is up to 90Kbit/s | ||
| CDMA Module | Using CDMA Module to dial-up to Ethernet, the speed is up to 90Kbit/s | ||
| Printer | Thermal Printer GP-586OIII | ||
| Embedded GUI | Qt/Embedded | Qtopia 1.7.0 and Qtopia 2.2.0 | |
| Application | Servfox | The application is running under Console platform, it controls the USB Camera by internet and displays the picture taken by camera on the LCD. It can be taken as net monitor when the application works with USB Camera. | |
| Spcacat | It is a camera picture capture application under Console platform | ||
| Snapshot | It is a LCD picture capture application under Console platform | ||
| Rz and sz | It is a application that transfer and receive file by serial port | ||
| Madplay | It is a MP3 player | ||
| Network protocol | TCP/IP | TCP/IP protocol | |
| Telnet | Telnet server, telnet remote login | ||
| File transfer | FTP Client/server | ||
| Web server | boa web server | ||
| USB port supported Devices | U-disk, portable hard-disk, USB mouse, USB Keyboard, USB HUB, USB Camera and so on. | ||
| Command commands | cat, chmod, discard, echo, flashfsd, flashwrite, free, genhtml, hostname, init, kill, loader, ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | ||
| Tools | Busybox1.2.0 and busybox1.13 (provided in the CD-ROM) | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| WinCE 6.0 | Bootloader | stepldr | Copy Eboot to SDRAM to jump to Eboot |
| Eboot | Ethernet bootloader for wince, support downloading image through USB device port. supporting one Key to update Bootloader, Kernel, Yaffs, NK.bin and one Key to configure parameters of Linux | ||
| Driver (source Code) | Serial device | 3x serial ports | |
| Ethernet | DM9000 | ||
| USB Host | USB Host driver, supporting USB ActiveSync | ||
| USB Device | USB Device driver | ||
| RTC | Real time keeping | ||
| Buttons | User buttons | ||
| LCD | Coming with driver for 3.5", 4.3", 7" and 10.4" TFT LCD (resolution 800*600) | ||
| USB Camera | The chip of USB Camera is Vimicro 301p, the USB Camera is collecting dynamic picture and showing on the LCD | ||
| WIFI | USB WiFi | ||
| ADC | ADC driver | ||
| Touch Screen | Touch Screen driver | ||
| Audio | UDA1341 | ||
| SD/MMC card | Block devices drivers | ||
| Others | Support MediaPlayer, IE browser, saving Register change, MFC, NET2.0 and so on. |
