| OS | Item | Feature | Description |
|---|
| Linux 4.1.15 | Bootloader | Boot | u-boot 2015.04 |
|---|
| Boot mode | Boot from eMMC |
| Download | Download via USB OTG |
| Kernel | Version | Linux4.1.15 |
| File system format | Support ext2, ext3, ext4, fat, jeffs2, UBIFS, nfs, etc. Boardcon only provides ext4, R/W file system. |
| Serial | Support |
| RTC | Support |

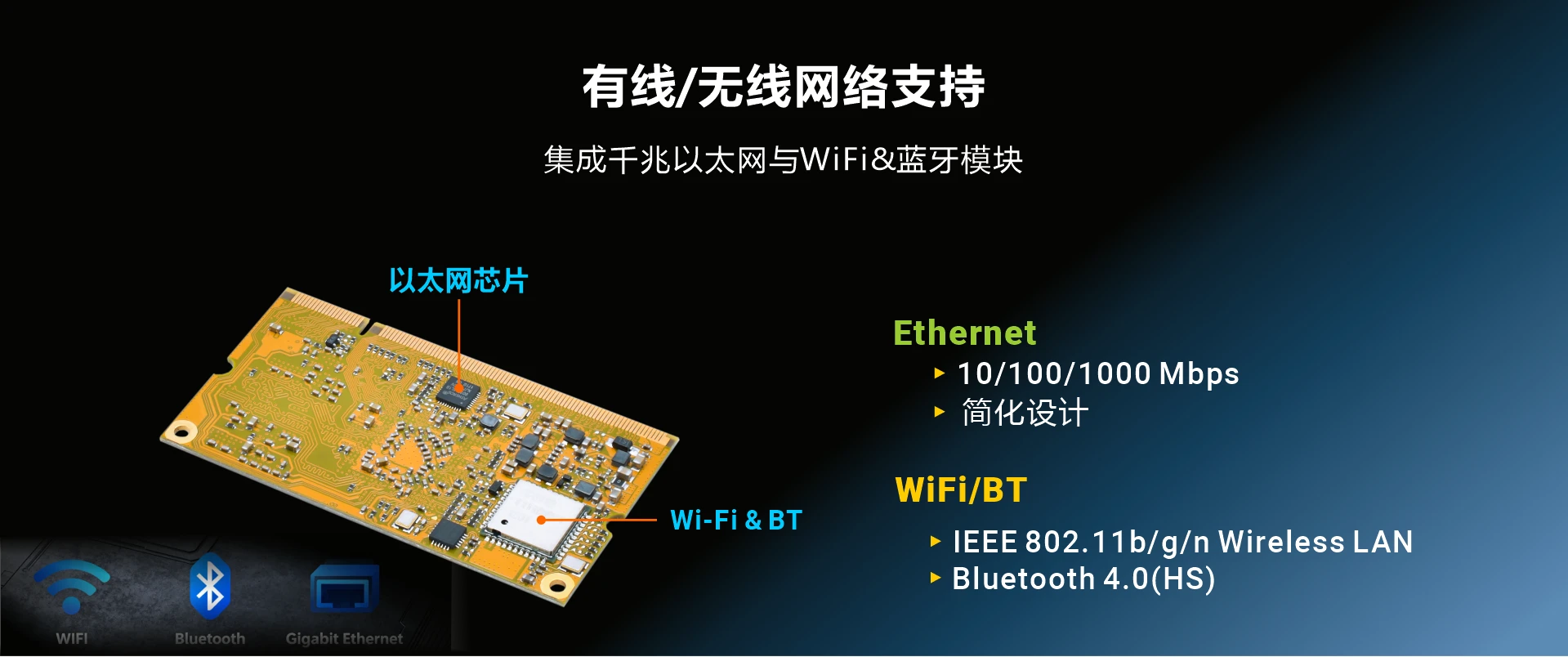

| Ethernet | 10/100/1000 Mbps Ethernet |
| CAN | 2x CAN |
| USB host | USB2.0 HOST |
| USB OTG | USB2.0 OTG |
| LCD | 4.3-/ 7-inch LCD, 6-/ 9.7-inch EPDC |

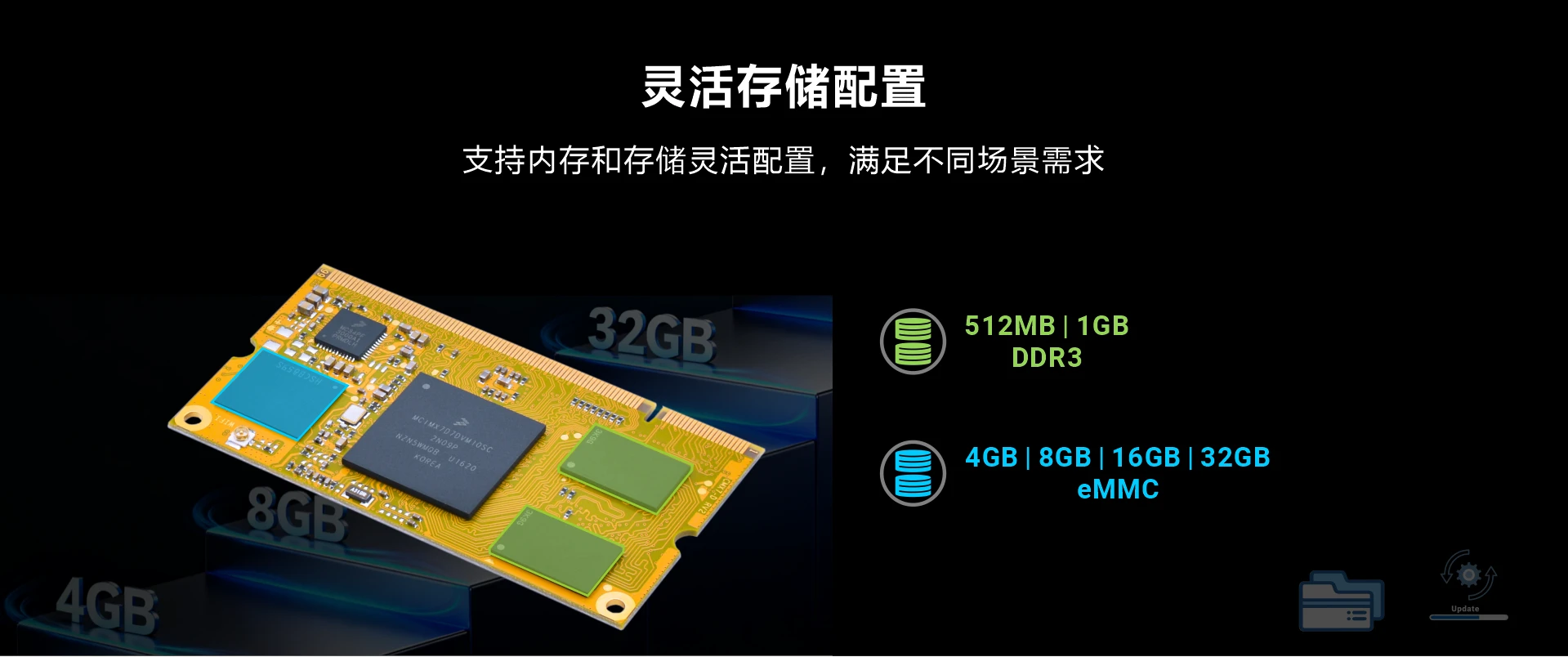

| eMMC | eMMC5.0 |
| MMC/SD | MMC mode. Support Micro SD card slot |
| GPIO | Support |
| Button | Support |
| Audio I/O | Audio out, 2x MIC |
| WiFi | Wireless - 2.4GHz, 802.11 a/b/g/n |
| HDMI | Support |
| 3G moudle | MU709s-2 |
| Embedded GUI | Qt/Embedded | rootfs_nogpu.tar.bz2 |
| File system | TCP/IP | TCP/IP protocol |
| Network ping | Check the network |
| Ifconfig, route | For network configuration and related service application |
| Basic tool | linux common cammands | cat, chmod, echo, free, init, kill, ls, mkdir, mount, ps, reboot, rm, insmod, lsmod, rmmod, dd, df, aplay |
| Tools | DNW, CRT, MFGTOOLS.RAR, VMWARE7.0 |
