| Specifications |
|---|
| SoC | Rockchip RK3568 Quad-core Cortex-A55, up to 2.0GHz |
| GPU | ARM Mali-G52 GPU with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 1 TOPS |
| Memory | 2GB/4GB/8GB with ECC support |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
1x Micro SD slot
2x SATA3.0
1x M.2 (PCIe3.0) |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB2.0 OTG; 1x USB3.0 Host |
| Connectivity | Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller
2.4G WiFi (802.11b/g/n) with Bluetooth 4.2
mPCIe socket with Nano SIM card port to support 4G model |
| Serial Port | 1x Serial port for debug, 3-pin connector
4x UART: 2x TTL (4-pin connector), 2x RS232 (DB9)
1x RS485&CAN, 6-pin connector |
| Display | 4-Lane MIPI-DSI (Default) or LVDS
HDMI 2.0, up to 4096 x 2160
eDP with backlight |
| Audio | 3.5mm audio I/O jack |
| Camera | 4x AHD Cameras |
| Other features | RTC with battery connector, GPIO, SPI, PDM, Recovery |
| Operating Temperature | 0° to + 70° C |

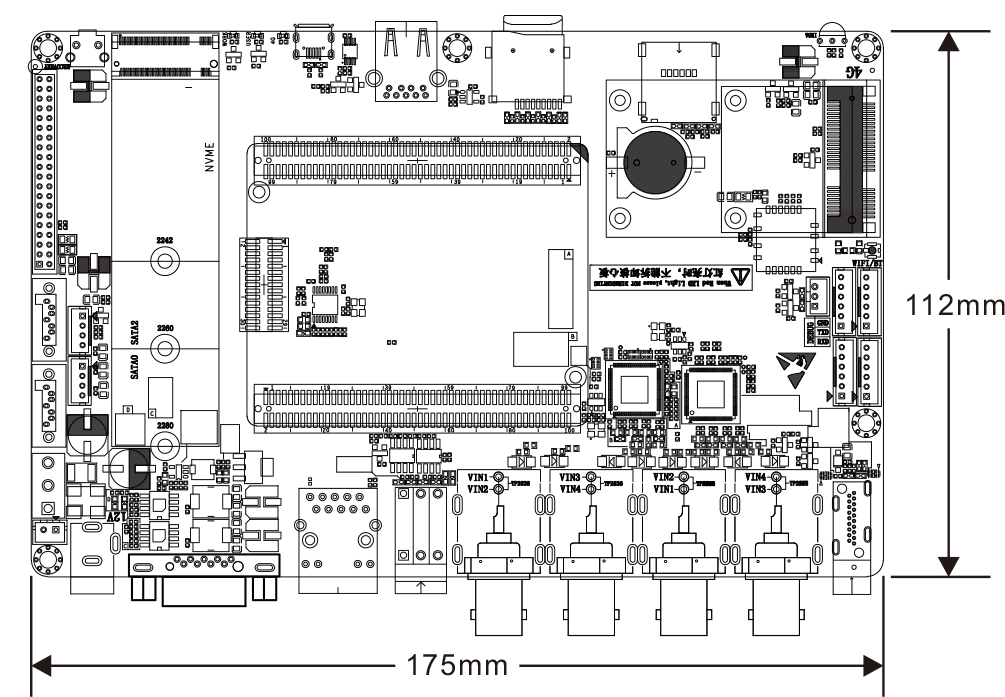

| Dimension | Based board - 175 x 112 mm; CPU module - 70 x 58 mm |
