| Specifications |
|---|
| SoC | Rockchip RK3576 Octa-core ARM processor.
4x Cortex-A72 cores @ 2.2 GHz, 4x Cortex-A53 cores @ 1.8 GHz |
| MCU | Single core ARM Cortex-M0 at 400MHz |
| NPU | 6 TOPS |
| GPU | ARM Mali G52 MC3 with support for OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory | 4GB/8GB |
| Storage | 32GB/64GB/128GB eMMC
Micro SD slot
M.2 socket for SSD (optional. multiplexed with 4G module) |
| Power Supply | 5V/3A DC input jack |
| USB | USB3.0 Host |

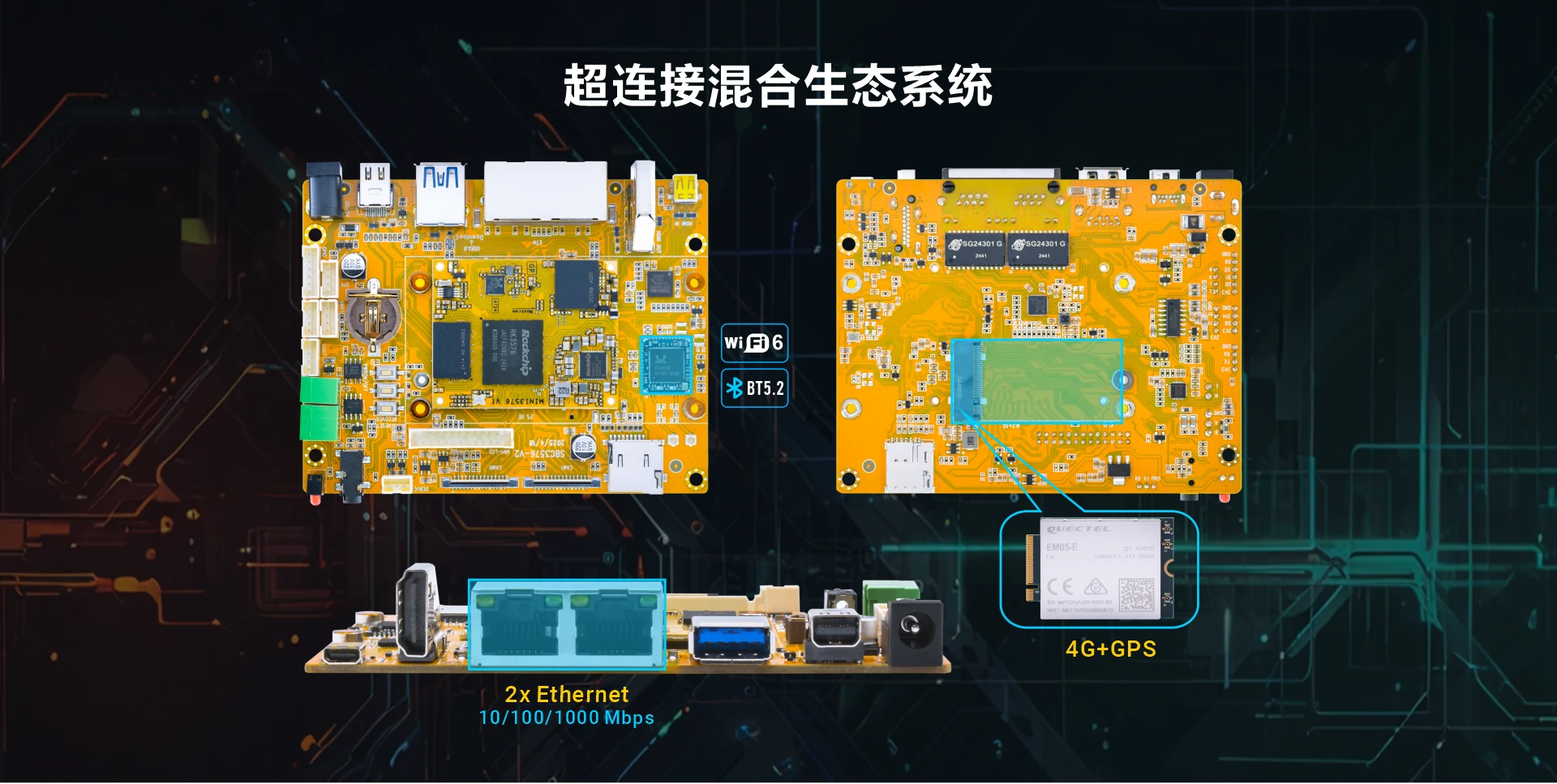

| Connectivity | 2x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac/ax) with Bluetooth 5.2
M.2 socket with Nano SIM card port to support 4G/5G LTE Module |
| Serial Port | 2x UART, 4-pin connector
1x Debug, 3-pin connector
1x RS485 |

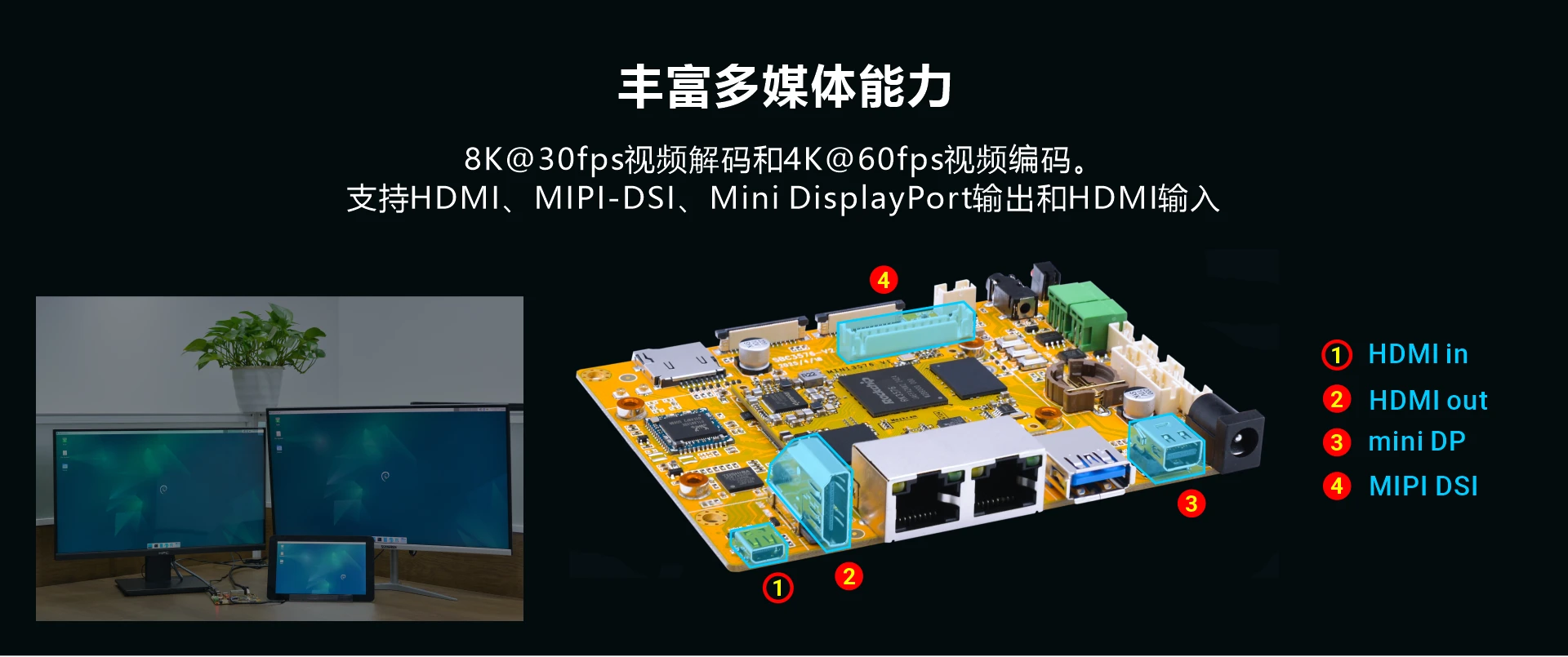

| Video Output | HDMI2.1, up to 4Kp120
4-lane MIPI DSI, up to 2Kp60
DP1.4, up to 4Kp120 |

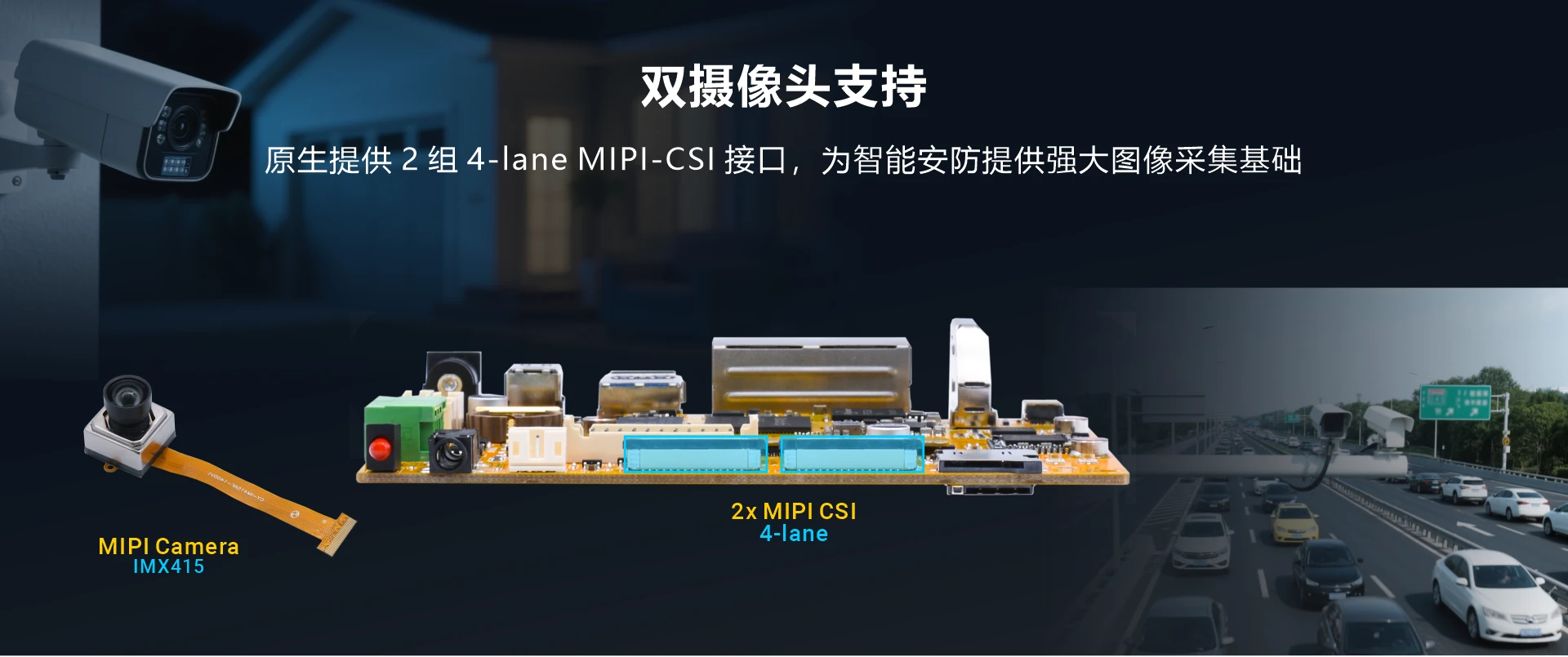

| Video Input | - HDMI IN (HDMI to MIPI CSI)
- 2x 4-lane MIPI CSI |
| Audio | 3.5mm audio jack for input and output
1x Speaker, 4-pin connector |
| Keys | Reset, Recovery, Power |
| Other features | RTC with battery connector, CAN, GPIO |
Operating Temperature
| 0° to + 70° C |

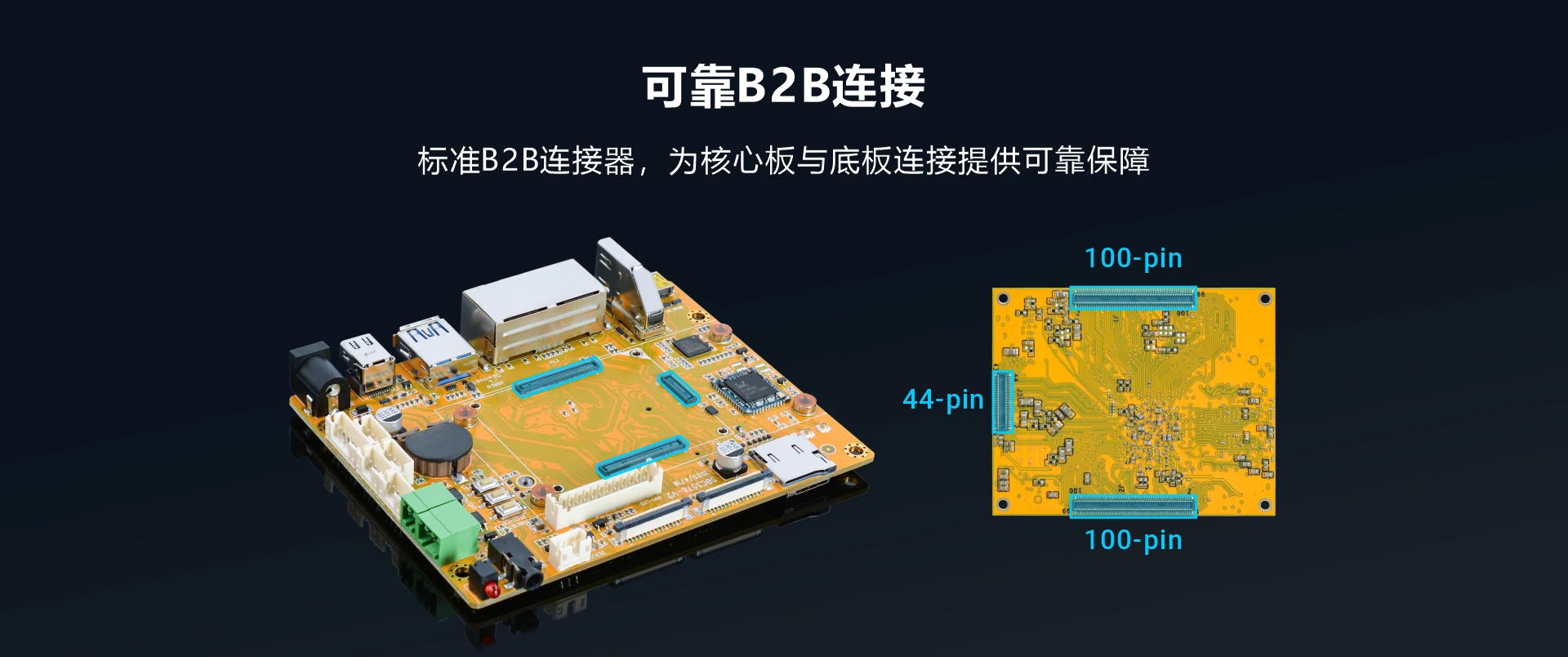

| Dimension | Based board - 110.0 x 85.0mm; CPU module - 50.0 x 40.0mm |
