核心板
CM1126B-P
Highlight

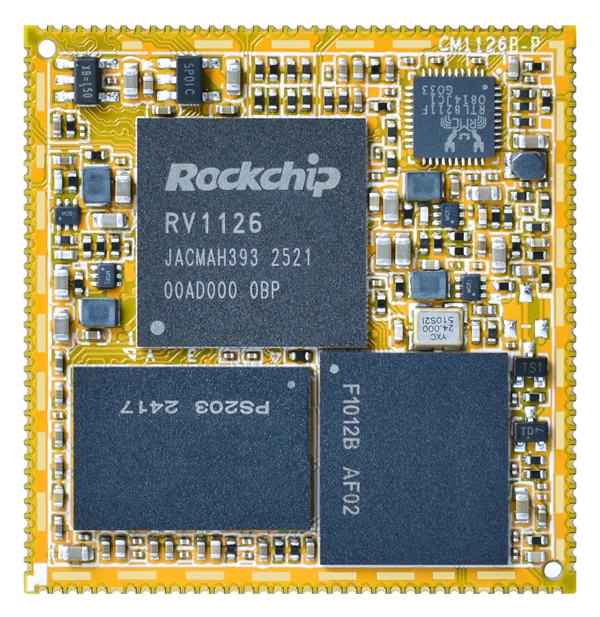

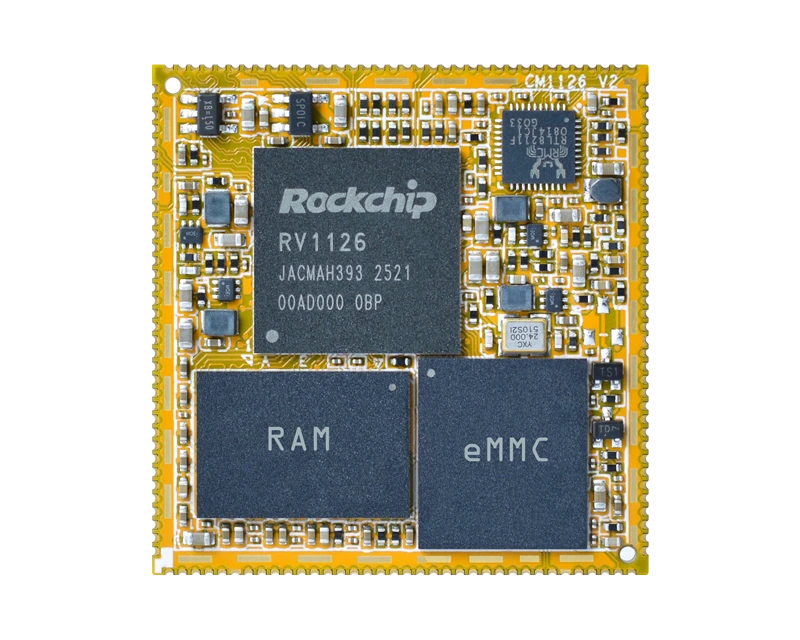

处理器: Rockchip RV1126B-P. Quad-core Cortex-A53 @ 1.6GHz
NPU: 3 TOPS
内存: 2GB/4GB
存储: 8GB/16GB/32GB/64GB/128GB/256GB
引出信号: 2x UART, USB2.0 HOST, USB2.0 OTG, 2x MIPI CSI, MIPI DSI, RGB, GbE, SDMMC, SDIO, CAN, SPI, ADC, I2S, PDM, I2C, PWM, GPIO, etc.
操作系统: Debian 12, Buildroot
尺寸规格: 35 x 34 mm
连接方式: 144-pin, 0.9mm间距邮票孔
工作温度: -20° to + 85° C
