开发板

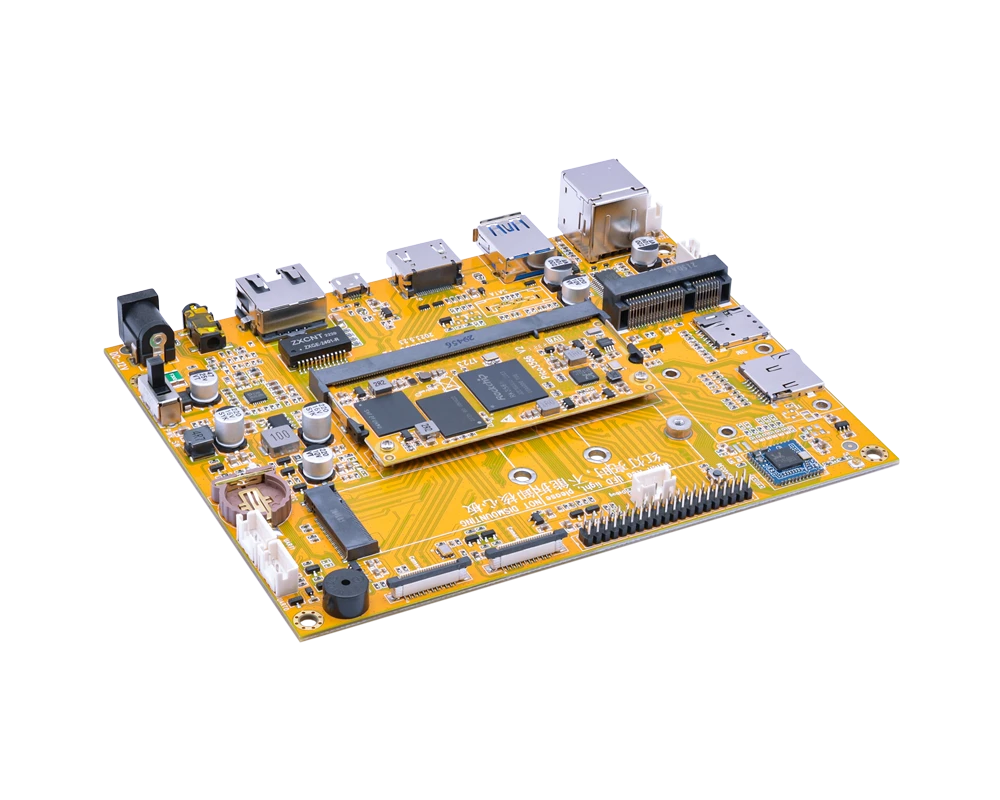

SBC3566
Highlight

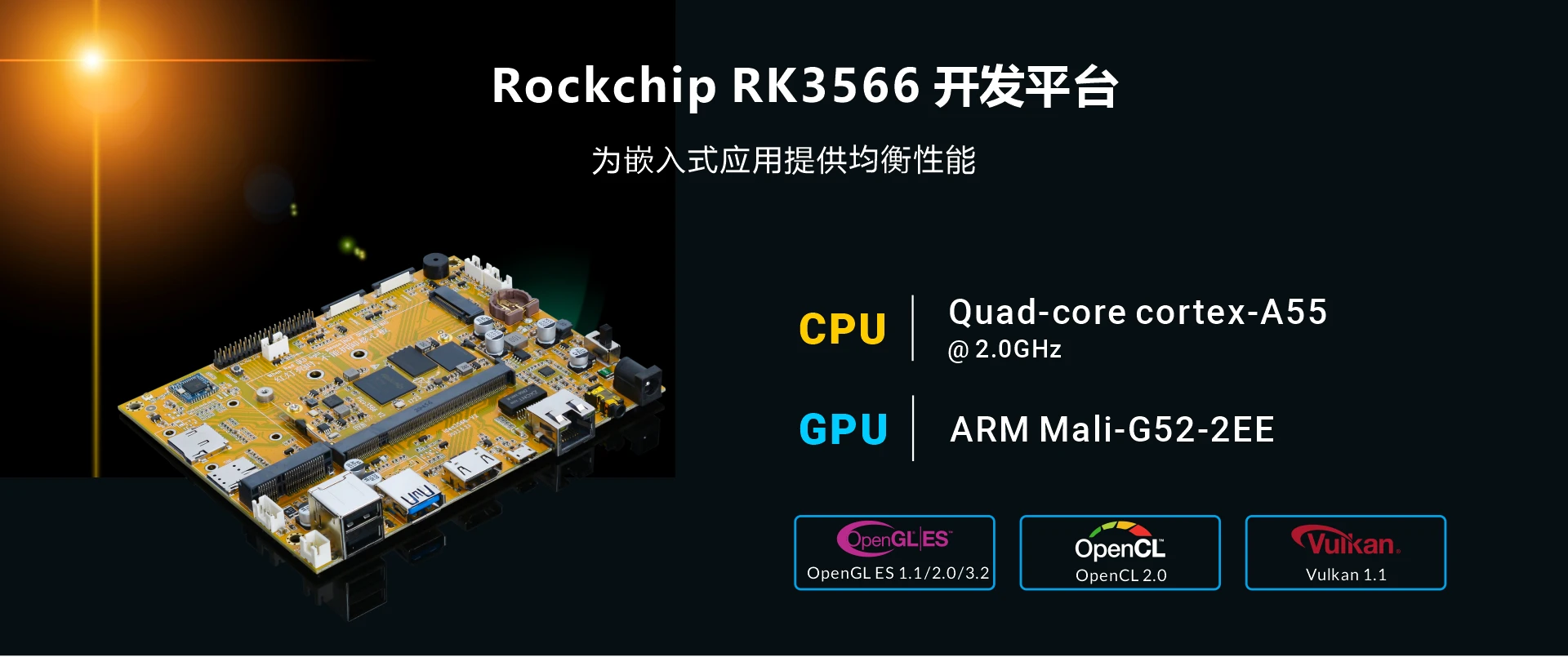

处理器: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
NPU: 1 TOPS
内存: 2GB/4GB/8GB
存储: 8GB/16GB/32GB/64GB/128GB

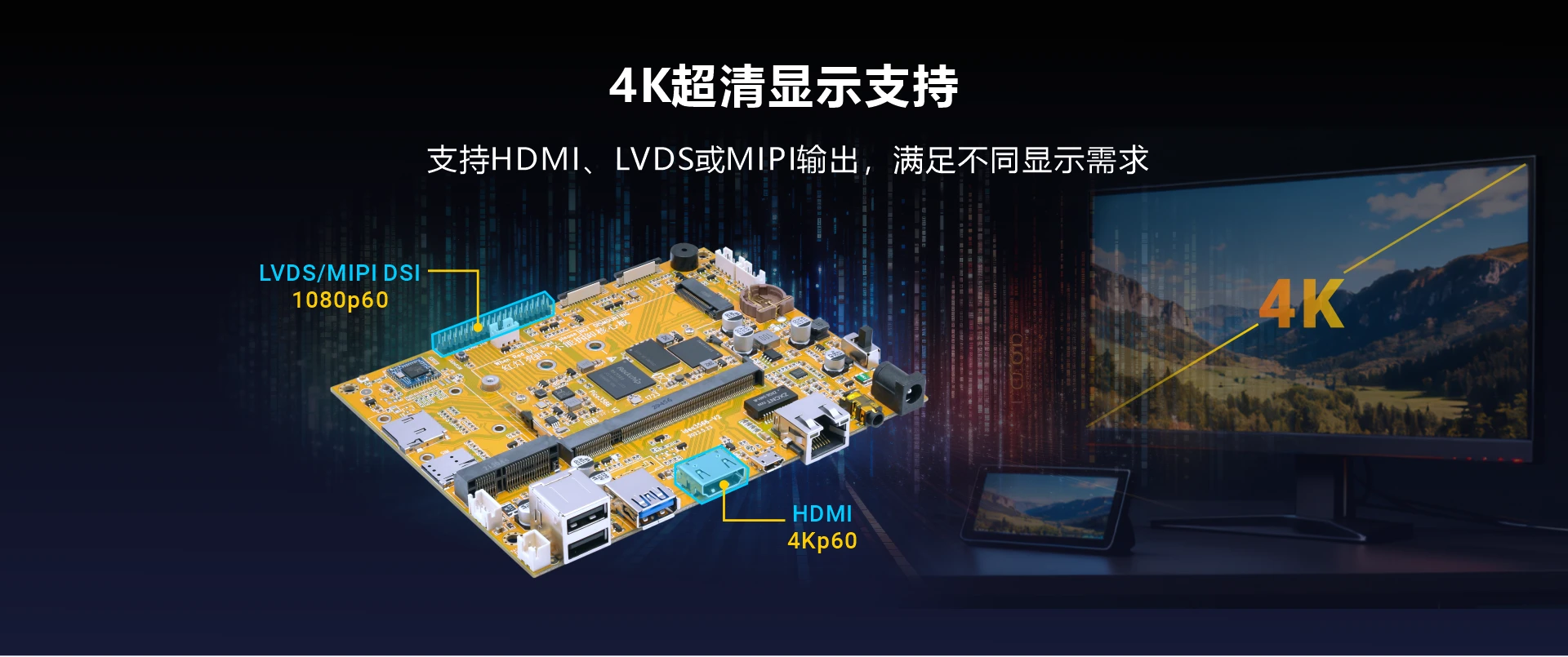

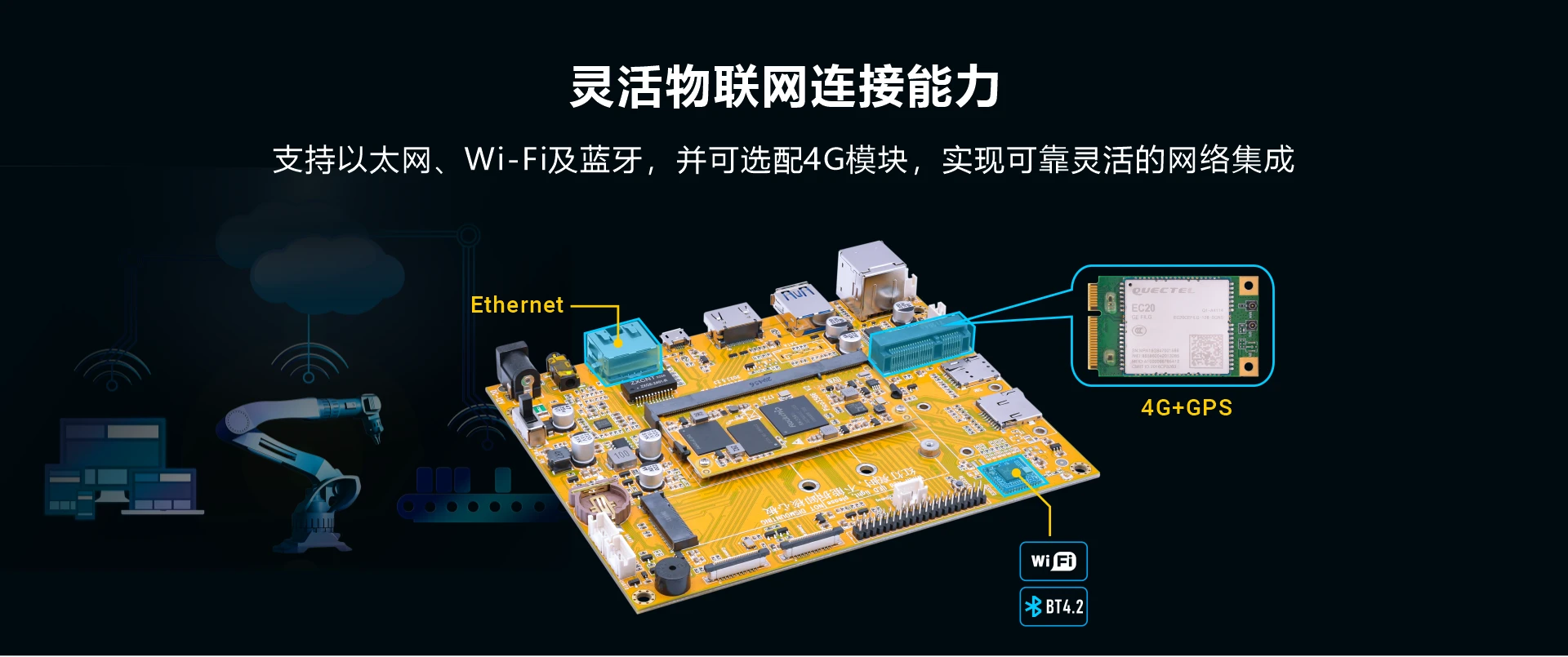

接口: MIPI DSI, 2x MIPI CSI, HDMI, 3x USB2.0 Host, USB3.0, USB2.0 OTG, Gigabit Ethernet, SDMMC, 2x UART, Debug, mPCIe, SSD, etc.
操作系统: Android 12, Debian 11
尺寸规格: 140 x 110 mm
连接器: 200-pin SODIMM edge connector
工作温度: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
OV13850
PureCel™ image sensor
1.12 μm x 1.12 μm pixel
optical size of 1/3.06"
13.2MP at 30 fps -
10.1-inch LVDS
1280 x 800 pixels
16.7M colors
LVDS interface
