| Specifications |
|---|
| SoC | Rockchip RK3326-S Quad-core Cortex-A35 @ 1.5GHz |
| GPU | ARM G31-2EE with support for OpenGL ES 1.1/2.0/3.2, DirectX 11 FL9_3, OpenCL 2.0 and Vulkan 1.0 |
| Memory | 1GB/2GB/4GB LPDDR4 |
| Storage | 8GB/16GB/32GB/64GB/128GB eMMC
MicroSD card slot (Multiplexed with Debug serial port) |
| Power Supply | 5V/3A DC input jack
4.2V Lion Battery connector |
| USB | 1x USB OTG 2.0 (Multiplexed with USB Host/Ethernet/4G model)
2x USB Host 2.0 |

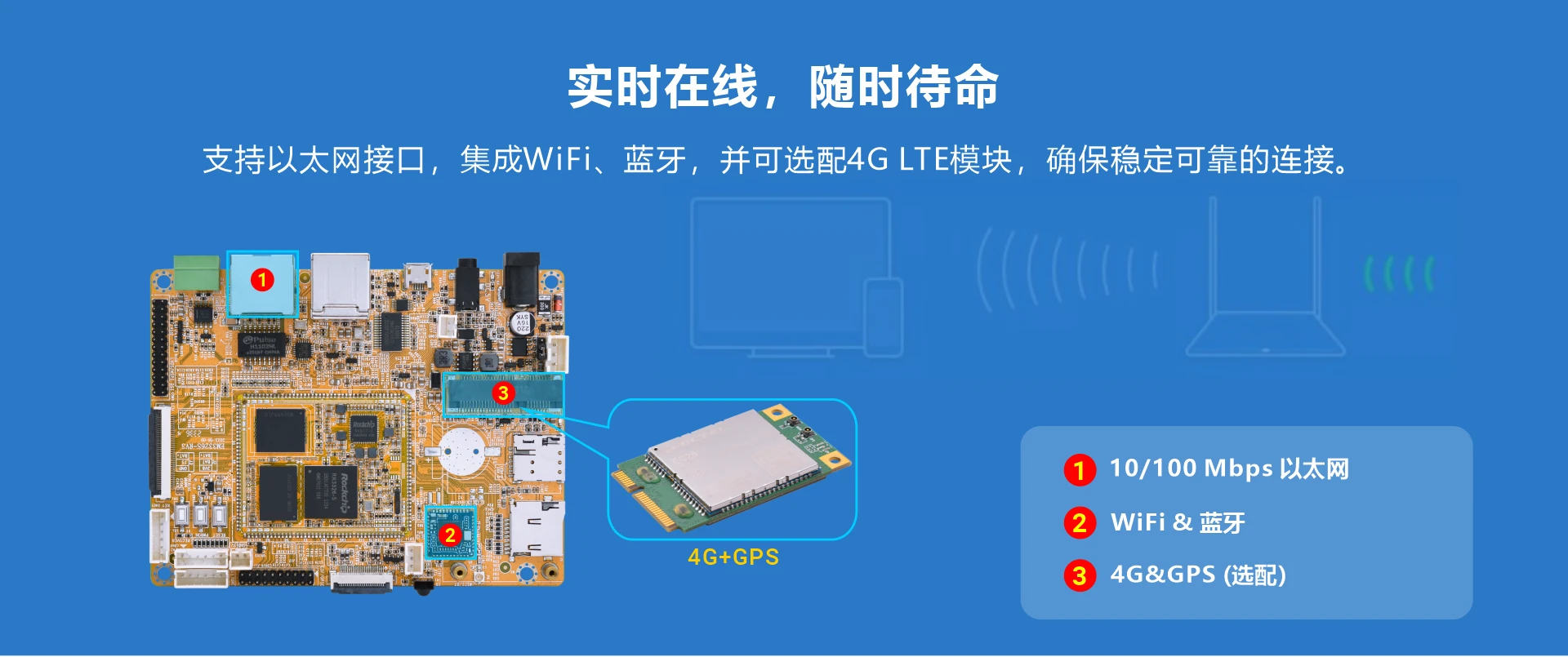

| Connectivity | 10/100 Mbps Ethernet RJ45 port via Realtek RTL8152B controller
2.4G WiFi (802.11b/g/n) with Bluetooth 4.2
PCIe socket with Nano SIM card port to support 4G module |
| Serial port | 1x Serial port for debug (Multiplexed with SD), 3-pin connector
1x RS485, 3-pin connector |
| Display | 1x LVDS/MIPI_DSI, 26-pin header
1x RGB, 40-pin FPC connector |
| Audio | 3.5mm Audio in/out jack
Speaker (2-pin connector) |
| Camera(optional) | 1x 4-lane MIPI_CSI, 24-pin FPC connector
1x 8bits DVP I/F, 20-Pin header |
| Keys | Recover, Power, Reset |
| Other features | RTC battery, GPIO, SPI, ADC, IR, 5V_OUT |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 110 x 85 mm; CPU module - 45 x 37 mm |
