| Specifications |
|---|

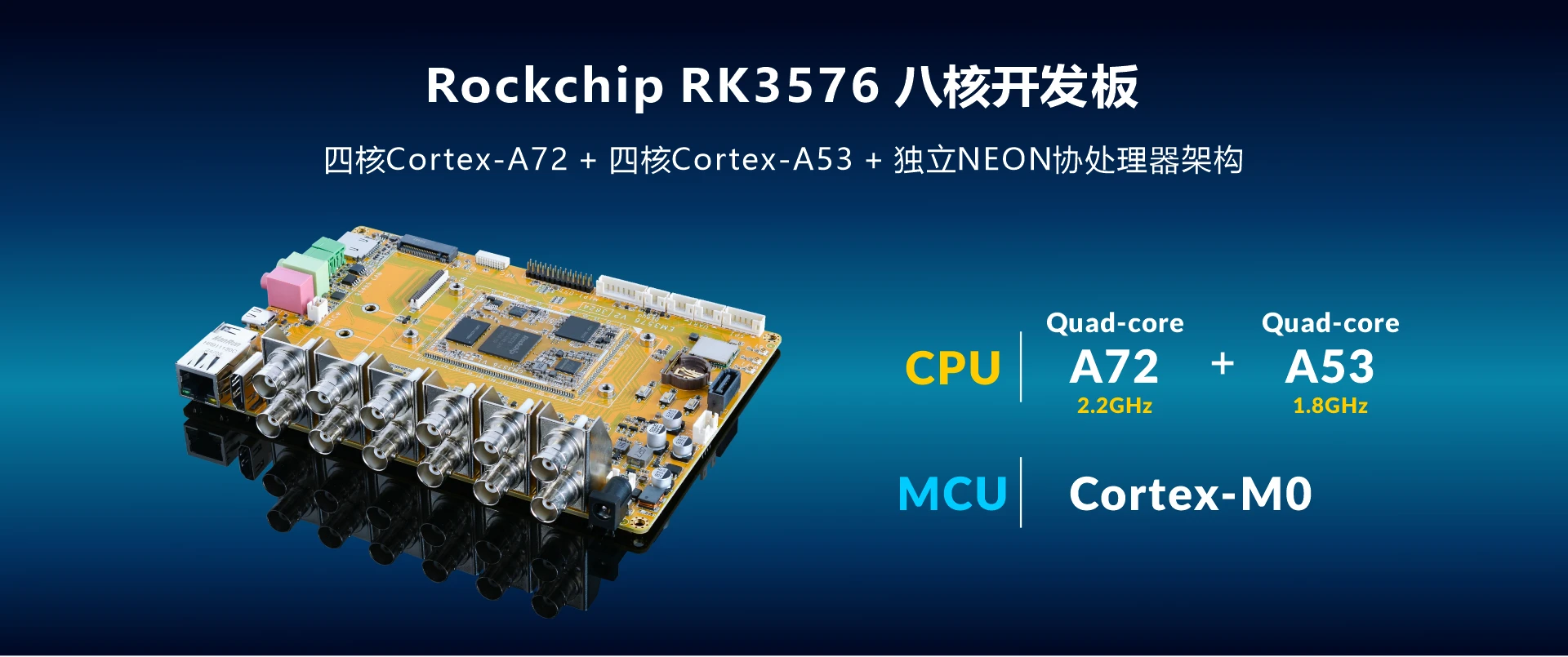

| SoC | Rockchip RK3576 octa-core ARM processor.
4x Cortex-A72 cores @ 2.2GHz, 4x Cortex-A53 cores @ 1.8GHz |
| MCU | Single core ARM Cortex-M0 |
| NPU | 6 TOPS |
| GPU | ARM Mali G52 MC3 with support for OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.0, Vulkan 1.1 |
| Memory | 4GB/8GB) |

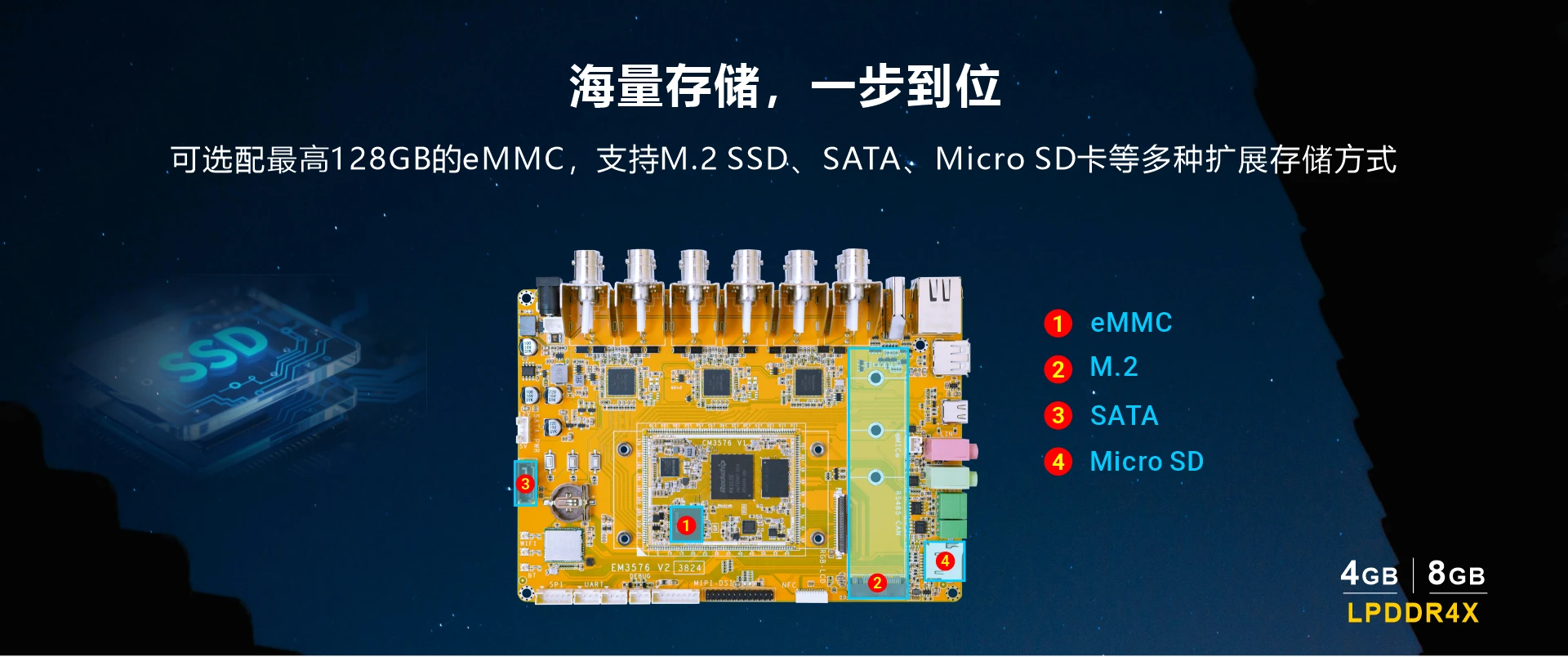

| Storage | 32GB/64GB/128GB eMMC
Micro SD slot
M.2 socket
SATA3.1 socket* |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB2.0 Host*, 1x USB3.2 Type-C |
| Connectivity | 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac) with Bluetooth 5.0
1x NFC, 10-pin connector |
| Serial Port | 2x UART(multiplexed with RGB), 4-pin connector
1x Debug, 3-pin connector
1x RS485 |

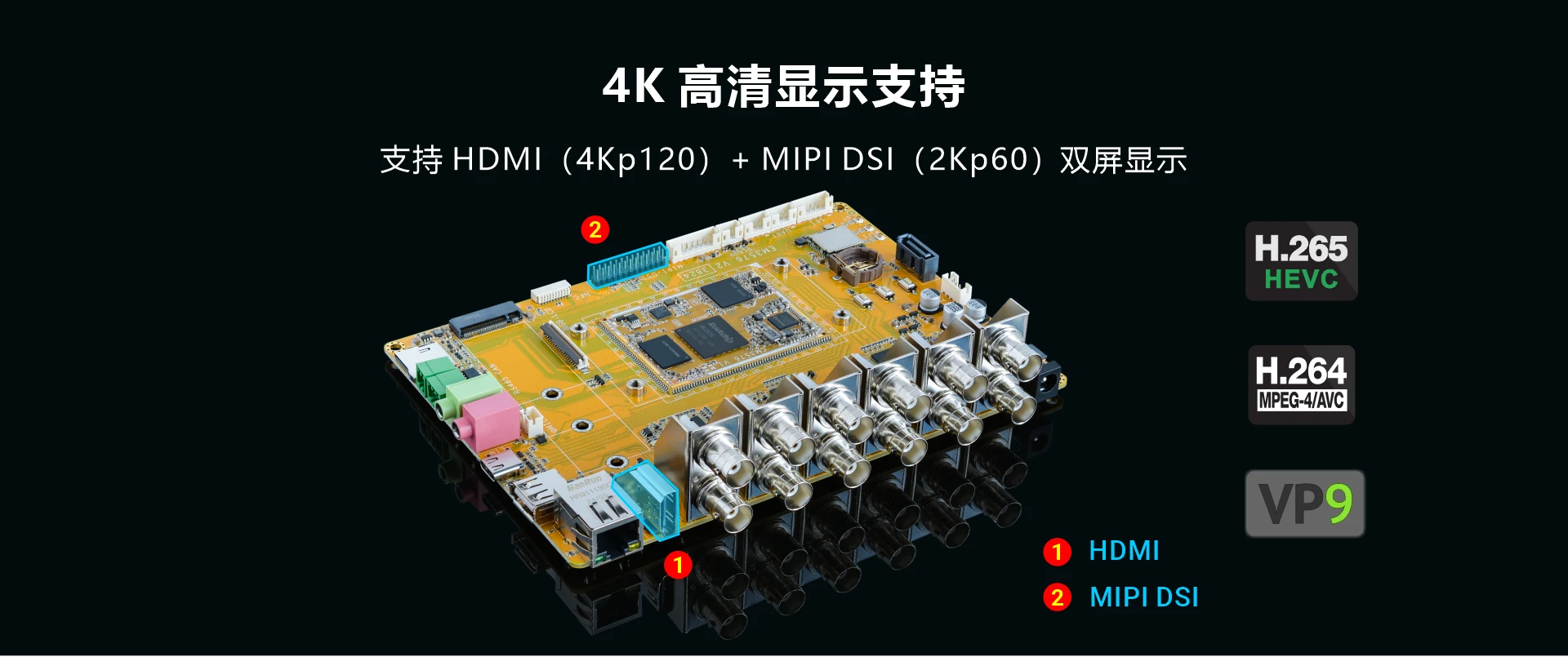

| Display | HDMI2.1, up to 4Kp120
4-lane MIPI DSI, up to 2Kp60
RGB (multiplexed with SPI & 2x UART) |
| Audio | 2x 3.5mm audio jack for Line in/Line out
1x MIC, 2-pin connector |

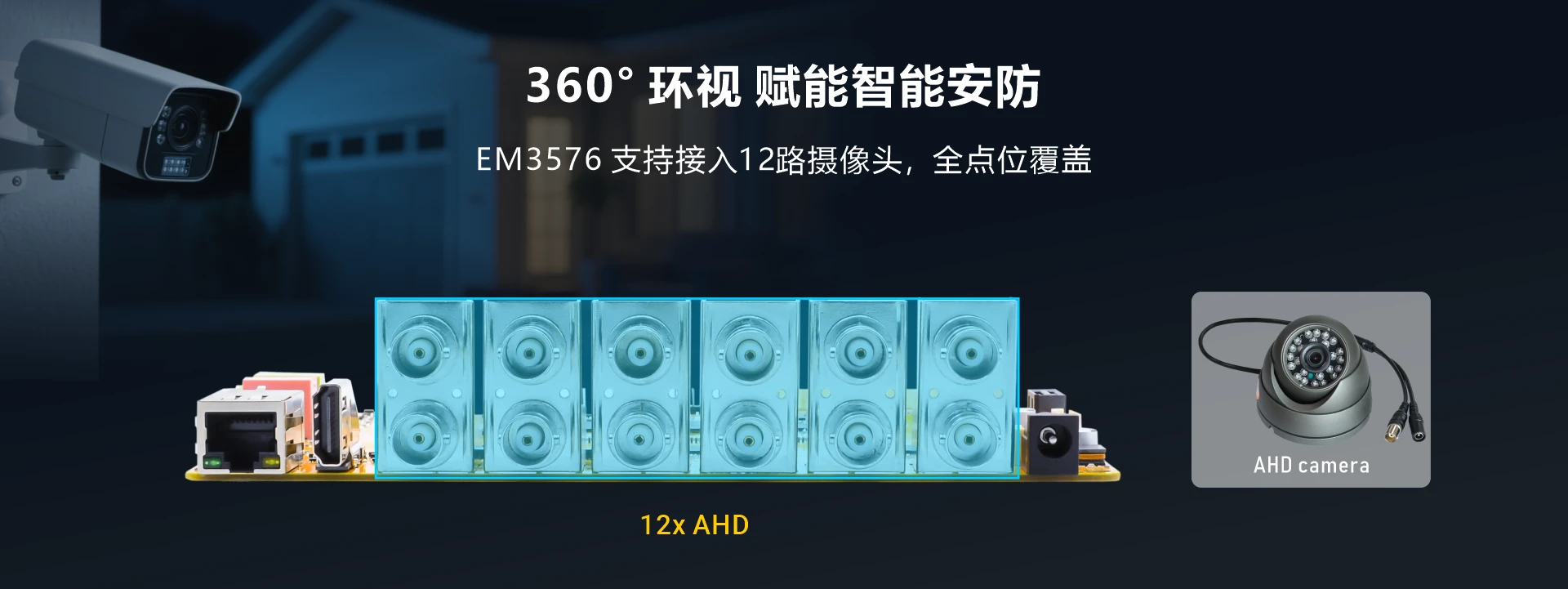

| Camera | 12x AHD Camera, BNC connector |
| Keys | Reset, Recovery, Power |
| Other features | RTC with battery connector, CAN, SPI(multiplexed with RGB), GPIO(1x I2C, 3x GPIO) |
Operating Temperature
| 0° to + 70° C |
| Dimensions | Based board - 170 x 120 mm; CPU module - 57.5 x 44.0 mm |
| * SATA and USB2.0 Host cannot be used simultaneously |
