| Specifications |
|---|
| SoC | Allwinner T527. Octa-core ARM Cortex-A55, up to 1.8GHz
RISC-V core @ 200MHz |
| NPU(optional) | 2 TOPS |
| GPU | ARM Mali-G57 MC1 GPU with support for OpenGL ES 3.2/2.0/1.1, Vulkan 1.1/1.2/1.3, OpenCL 2.2 |
| Memory | 2GB/4GB |
| Storage | 32GB/64GB/128GB eMMC
MicroSD card slot
M.2 socket (optional. Multiplexed with 4G module) |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB2.0 device/Host(USB0), 1x USB2.0 Host(USB2) |
| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
2.4G WiFi(802.11b/g/n) with Bluetooth 4.2
M.2 socket with Nano SIM card port to support 4G LTE Module |
| Serial Port | 2x Serial port for debug
1x RS232
1x RS485 |

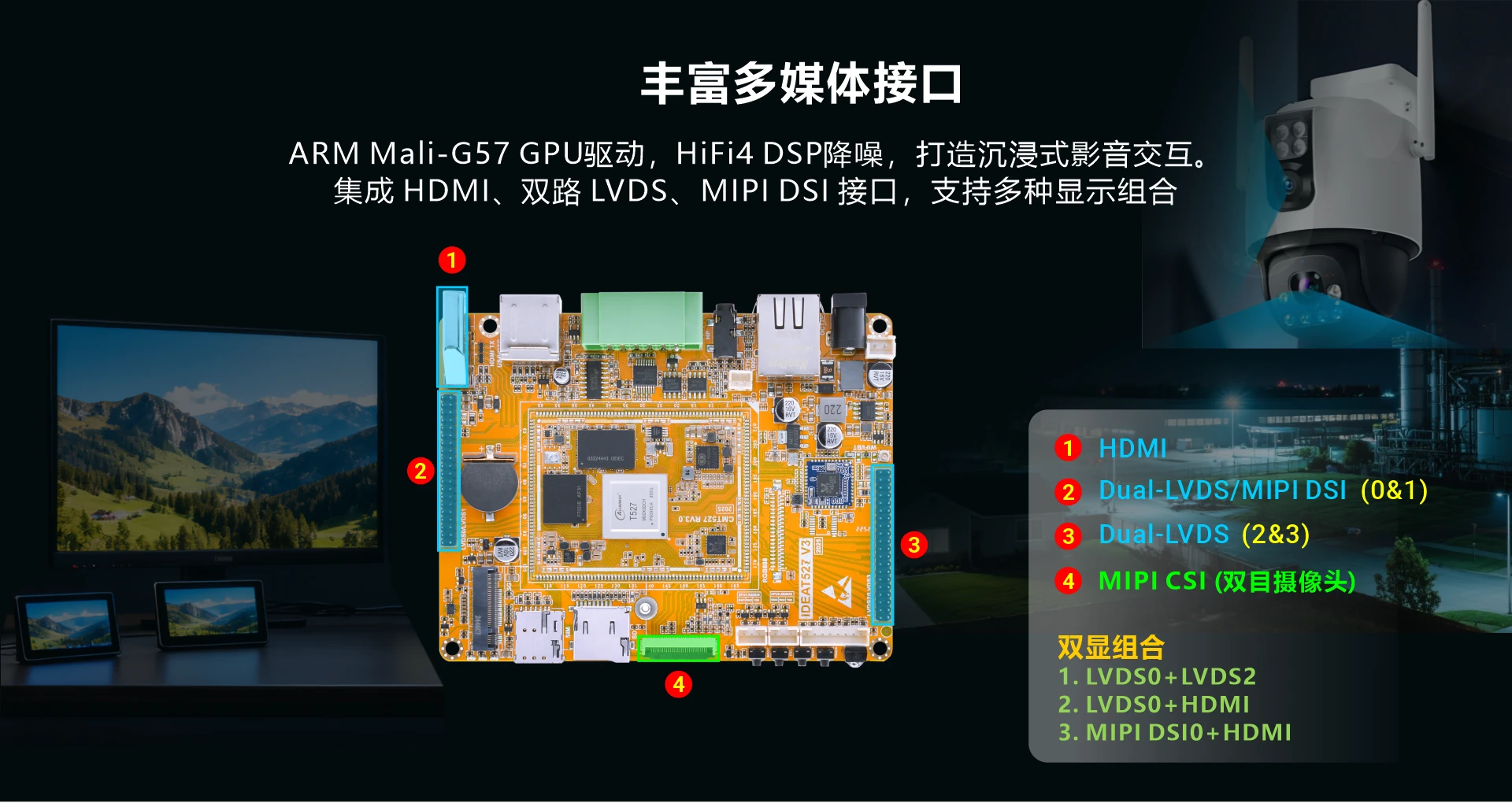

| Display | 2x Dual-LVDS (0&1, 2&3), 40-pin header
1x MIPI DSI (multiplexed with LVDS 0&1), 40-pin header
1x HDMI 2.0 |
| Audio | 1x 3.5mm audio jack for Audio in/out
2x Speaker |
| Camera | Dual-Monocular, FPC connector |
| Keys | Power, Reset, FEL |
| Other features | RTC with battery connector, IR, ADC, CAN BUS |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 120 x 92 mm; CPU module - 56.0 x 42.5 mm |
