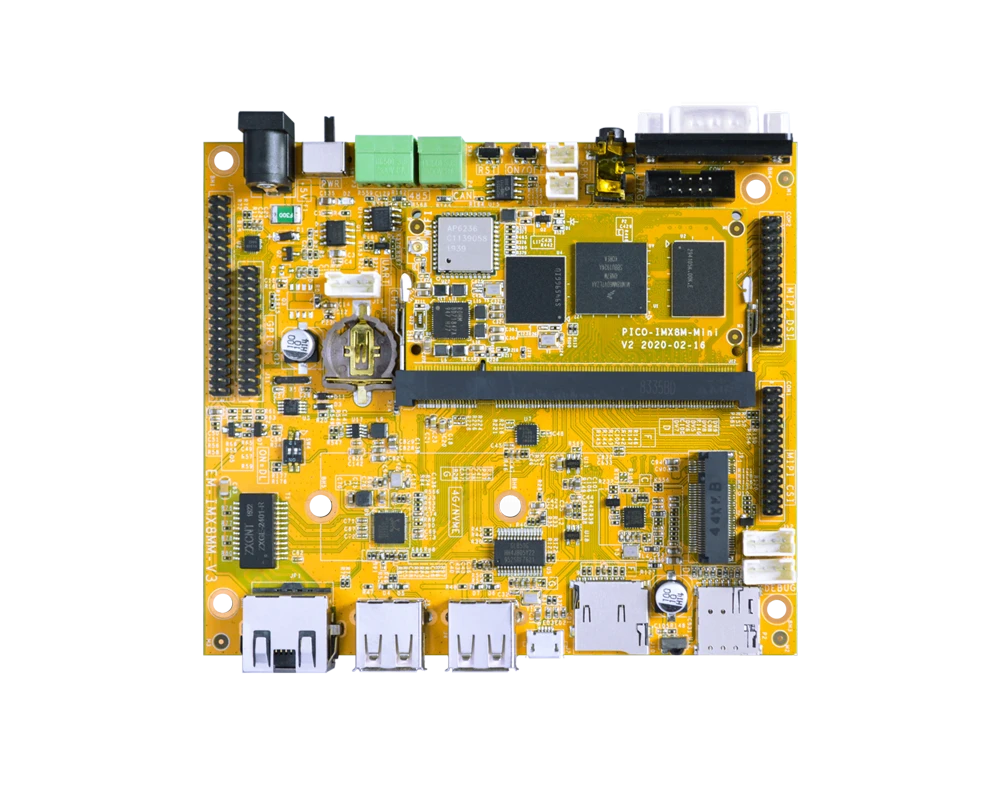

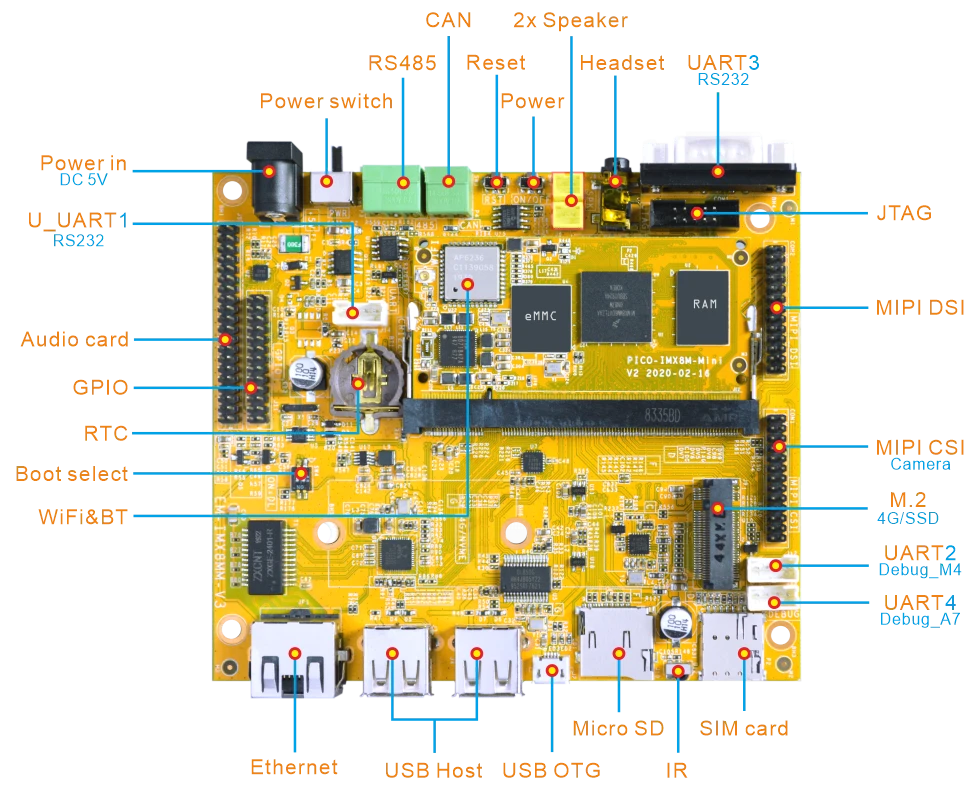

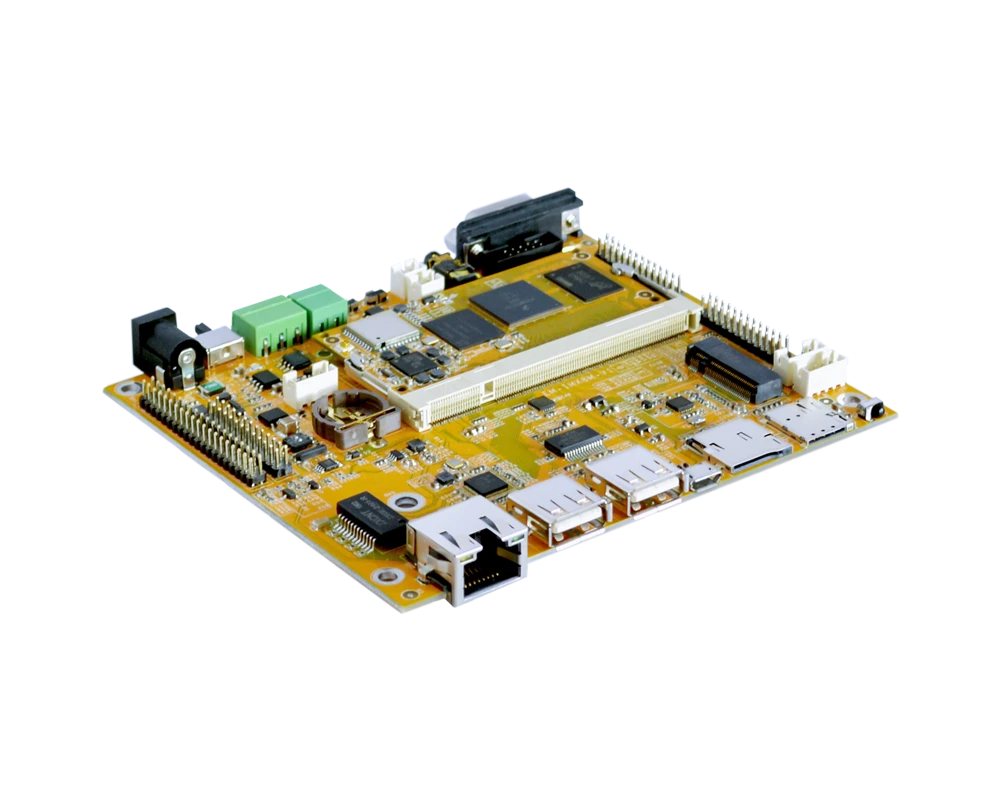

| Specifications |
|---|

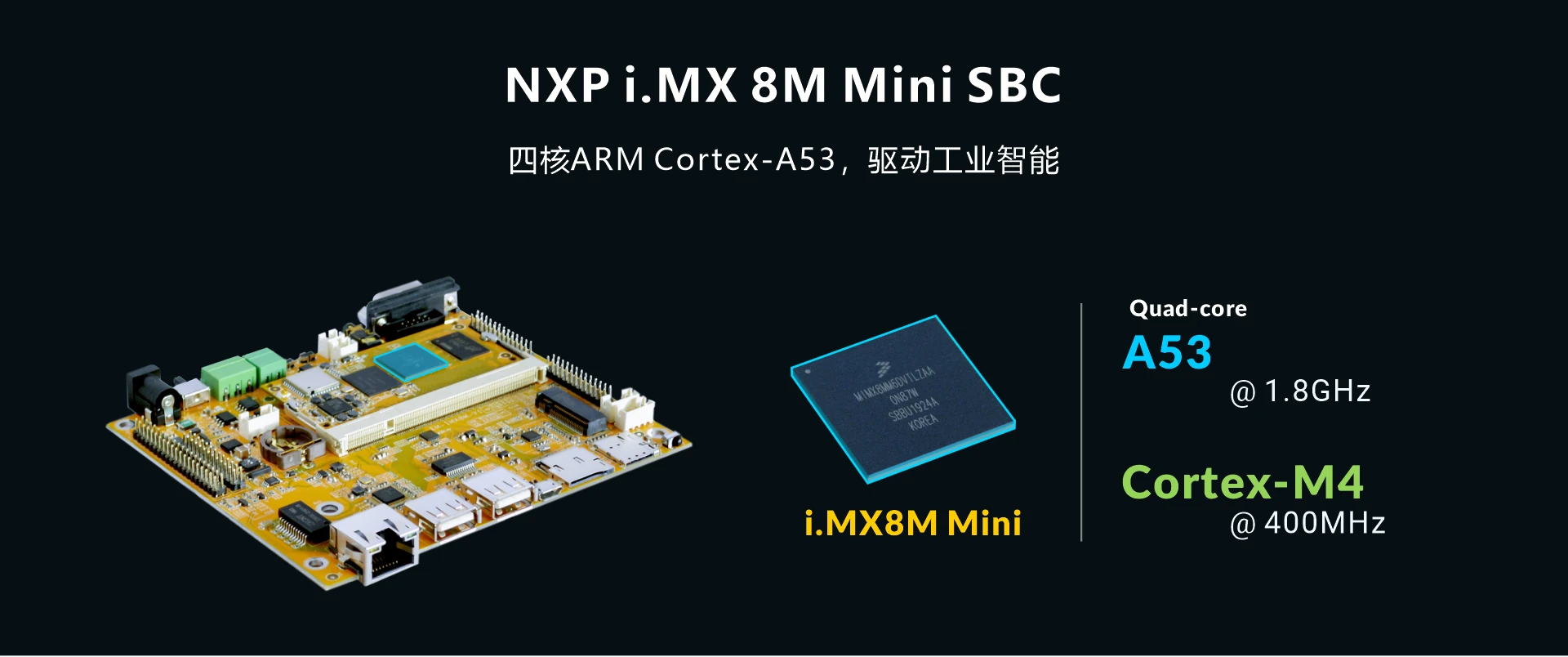

| SoC | NXP i.MX 8M Mini, 4x ARM Cortex-A53 @ 1.8GHz
1 MB L2 cache
ARM Cortex-M4F @ 400MHz |
| GPU | GCNanoUltra for 3D acceleration (1x shader, OpenGL ES 2.0)
GC320 for 2D acceleration |
| Memory | 1GB/2GB/4GB LPDDR4 |
| Storage | - 8GB/16GB/32GB/64GB/128GB eMMC
- Micro SD socket
- M.2 socket for SSD (multiplexed with 4G module) |
| Power Management | ROHM BD71847 |
| Power Input | DC 5V/3A |
| USB | 1x USB 2.0 OTG, micro-USB connector
2x USB 2.0 Host, type-A connector |
| UART | 1x RS232(DB9), 3x UARTs(4-pin connector) |

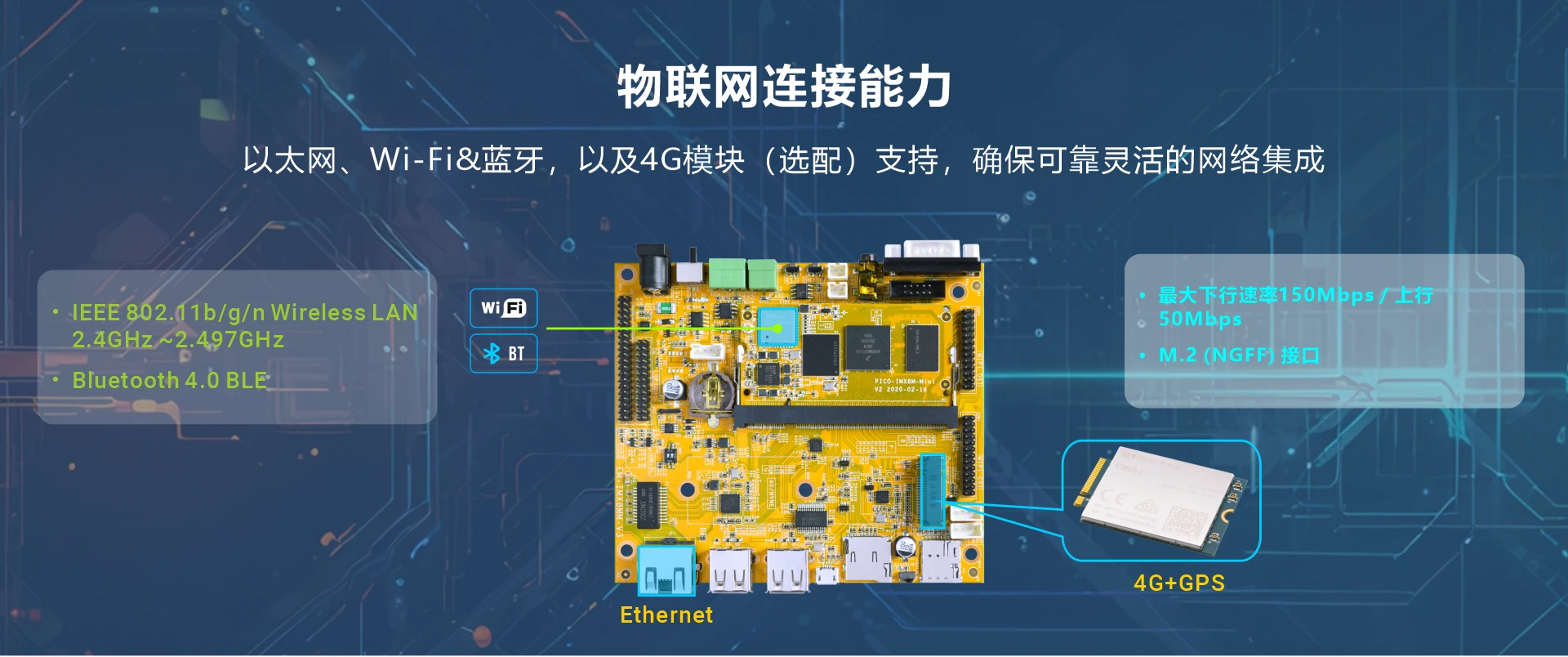

| Connectivity | - 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211E controller
- 802.11b/g/n WiFi, Bluetooth 4.0. AP6236 module
- M.2 socket with Nano SIM card port to support 4G LTE Module |
| Audio | WM8960 audio codec. 3.5mm audio jack, 2x 2-pin header for Speaker |
| Expand Audio interface | 8bit RX and 8bit TX SAI interface, 40-pin header (J5) |
| Display | MIPI-DSI, 4 data lanes, up to 1920 x 1080 @60Hz, 26-pin header (CON2) |
| RTC | Real time clock, powered by external battery |
| JTAG | JTAG debug interface, 10-pin header |
| CAN | 2-Pin connector (P4) |

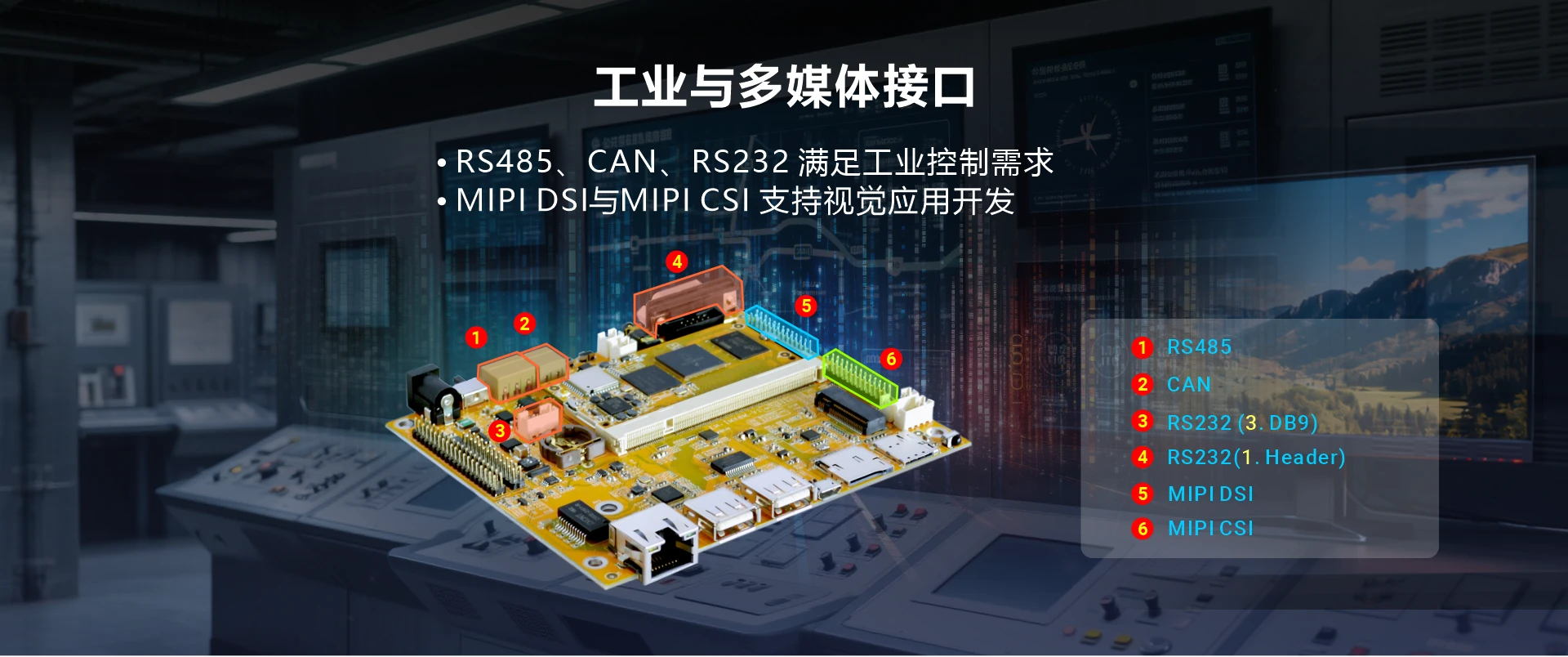

| RS485 | Compatible 9-bit data format, 3-pin connector (P3) |
| Buttons | Reset (SW2), Power (SW3), Boot Mode (SW4) |
| Expand interface | 2x I2C, 1x SPI, 6x GPIO. 26-pin header (J11) |
| Camera | MIPI-CSI, 4 data lanes, 26-pin header (CON1) |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Baseboard - 118.6 x 102.3 mm; Core board - 67.6 x 34.3 mm |
