首页 > 产品 > 卡片电脑 > CompactIMX6

卡片电脑

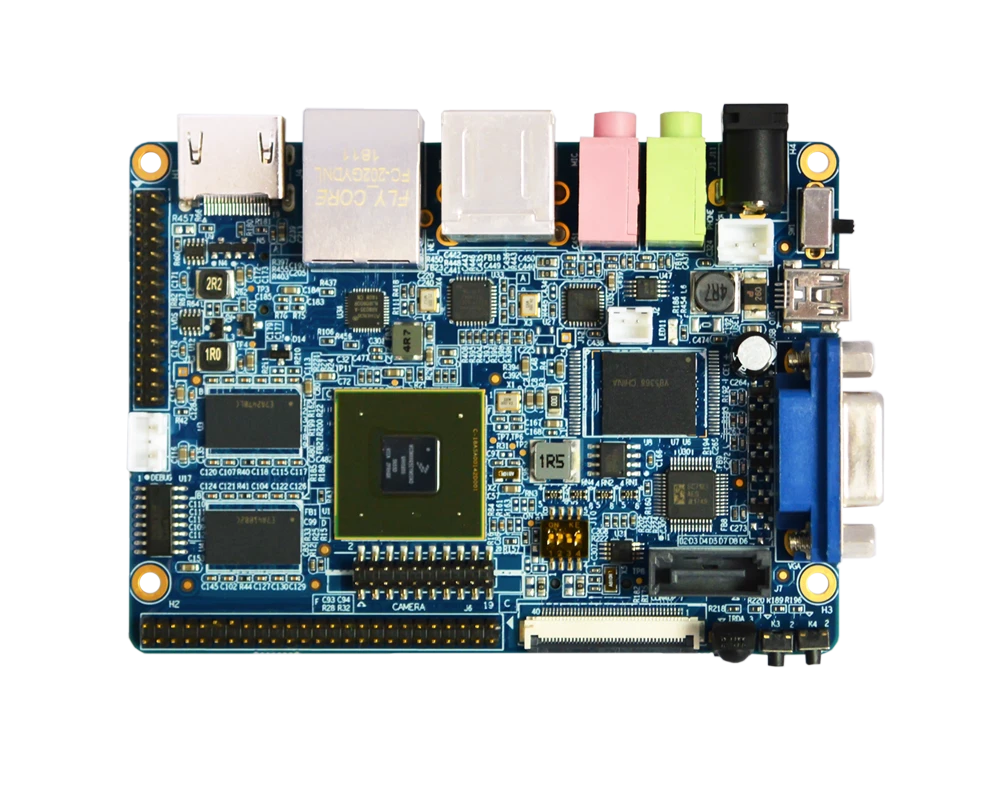

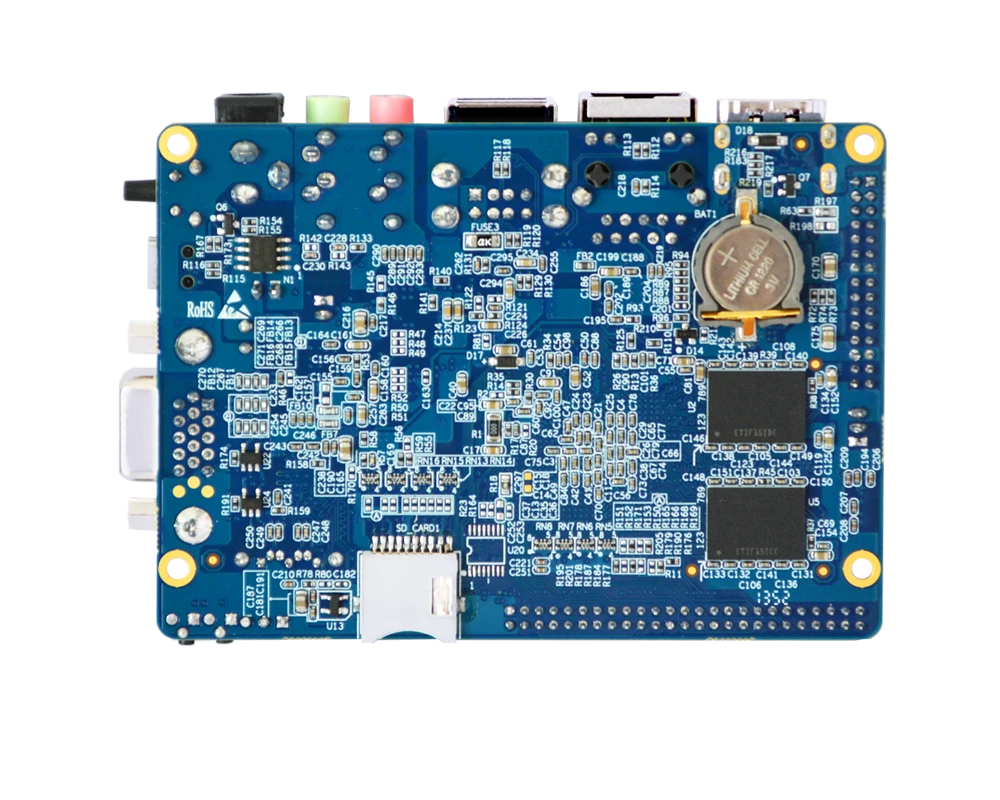

CompactIMX6

Highlight

处理器: Freescale/NXP i.MX6Q quad-core ARM® Cortex™-A9 CPU @ 1.2GHz
内存: 1GB/2GB
存储: 4GB/8GB/16GB/32GB

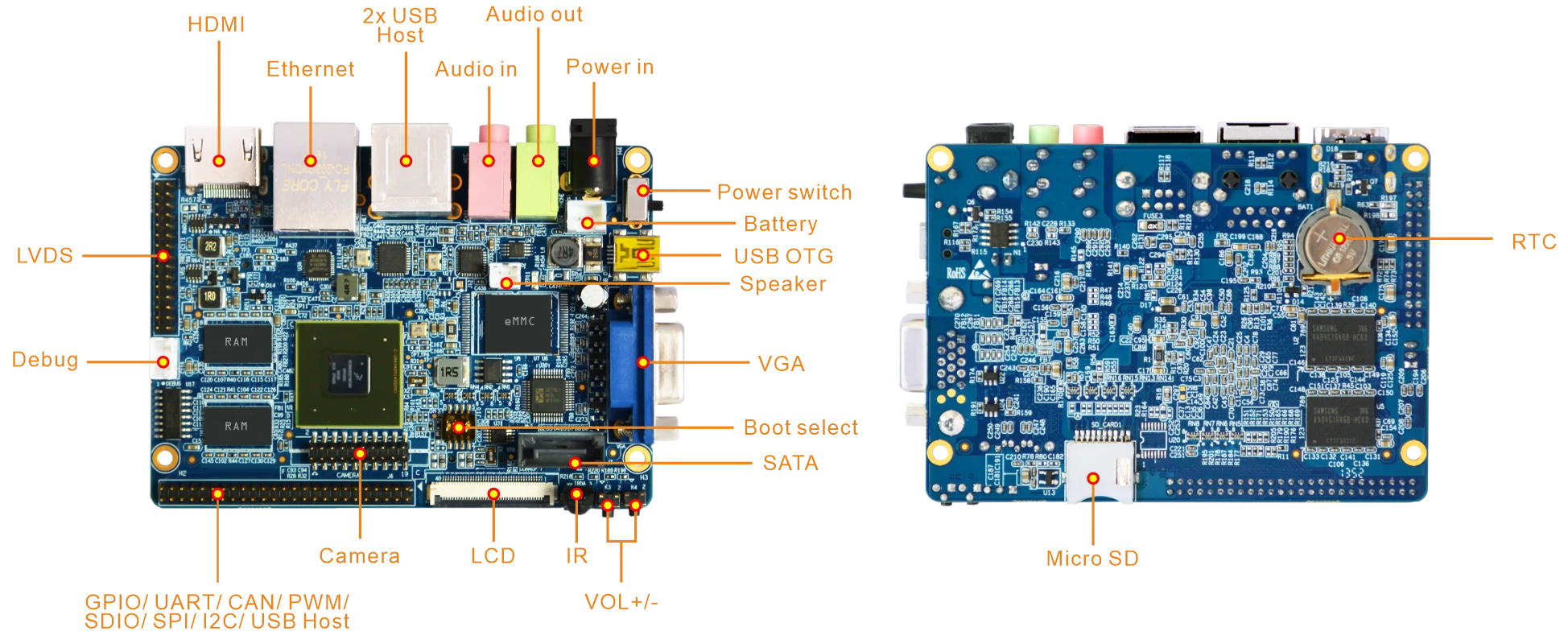

接口: 2x USB Host, USB OTG, UART(RS232), HDMI, VGA, Audio, SPK, Ethernet, LCD, LVDS, RTC, Micro SD, SATA, Camera, Battery connector
操作系统: Android 6.0, Linux 4.1
尺寸规格: 100 x 72 mm
工作温度: 0° to + 70° C

联系我们

概述硬件软件资源支持配件

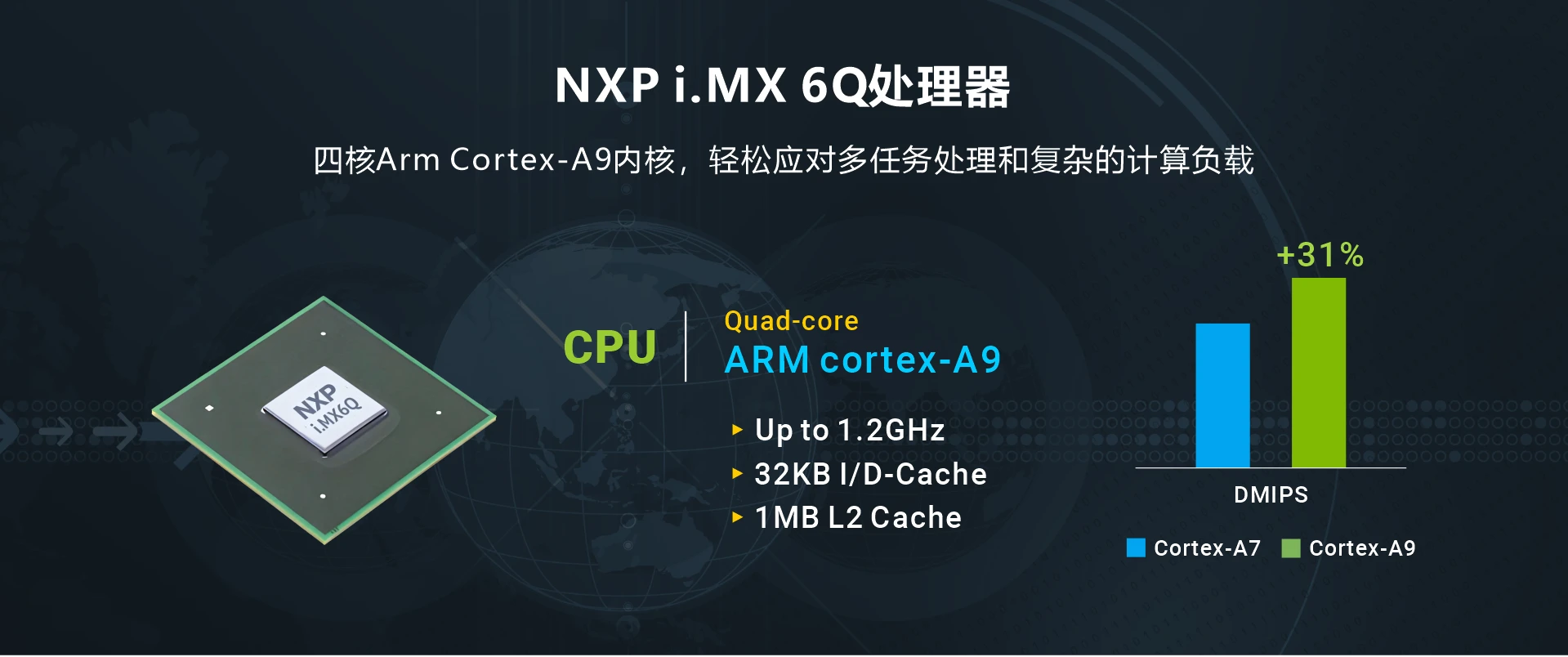

Overview_CompactIMX6_soc

Overview_CompactIMX6_GPU

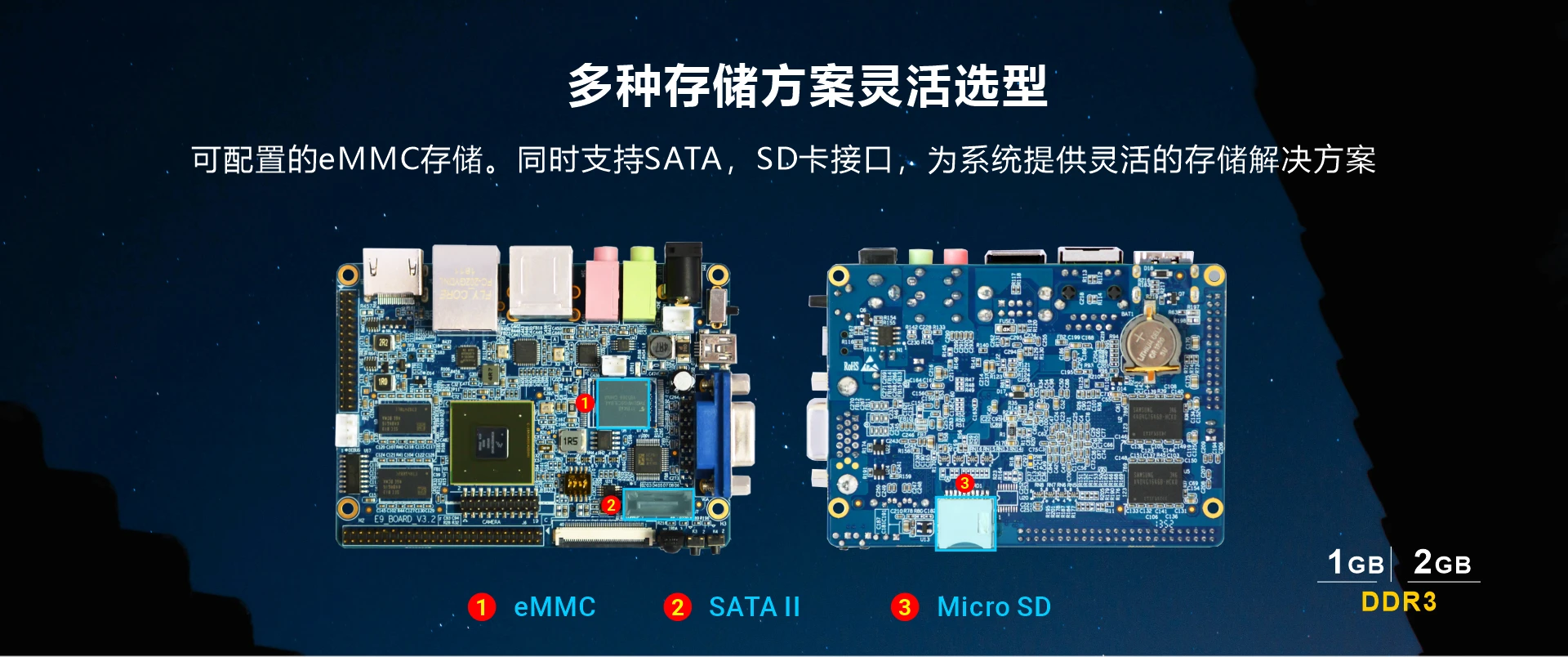

Overview_CompactIMX6_memory

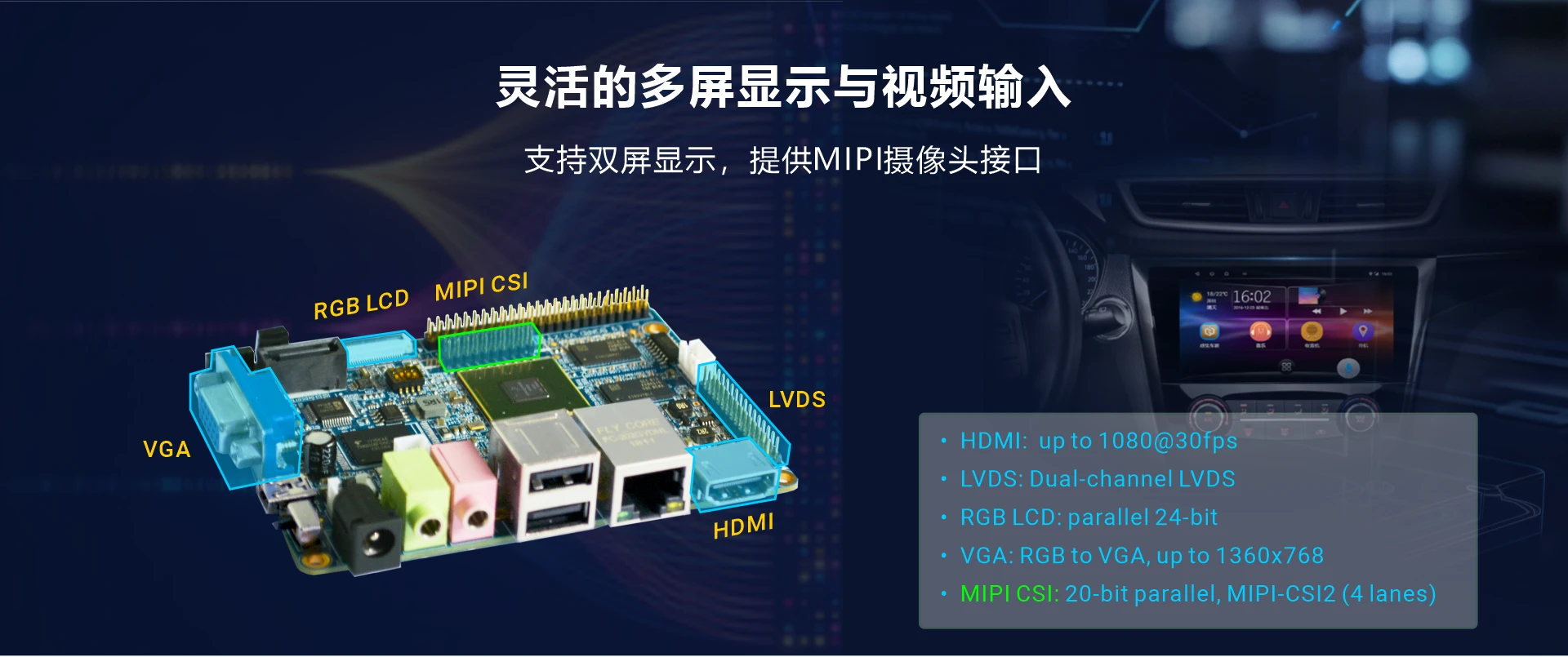

Overview_CompactIMX6_Multimedia

Overview_CompactIMX6_OS

Specifications
CPU	Freescale/NXP i.MX6Q ARM Cortex-A9 Quad-core, up to 1.2GHz
Memory	1GB/2GB DDR3, 1066MHz
Storage	- 4GB/8GB/16GB/32GB eMMC - Micro SD slot - SATA-II Interface (3Gbit/s, not for Single-Core CPU)
Power	12V/2A
USB	2 x USB2.0 Host, 2-ch Extendable USB Host, 1 x USB2.0 OTG
Speaker	1W. 2-pin connector
HDMI	HDMI V1.4, 1080p@30fps
VGA	Max resolution 1360 x 768
Audio	3.5mm Audio jack. SGTL5000 audio codec
Ethernet	10/100/1000Mbps Ethernet, RJ45 Interface. AR8035 controller
COM	1x Three-wire RS232 serial port (debug) 3x Extendable Serial ports
LCD	40pin FPC interface, support capacitive/ resistive touch screen
LVDS	Dual-CH LVDS
RTC	Real Time Clock, powered by external lithium battery
Camera(optional)	CMOS camera interface
IrDA	Infrared remote control
User button	2x User buttons, for Volume control
User LED	4x User LEDs
Expandable Interface	2x USB Host, 15x GPIO, 2x CAN, 3x UART,1x I2C, 1x SPI, 1x SDIO, 2x PWM
Dimensions	100 x 72 x 20 mm

OS	Item	Feature	Description
Android 6.0	Bootloader	Uboot-2015	Main functions: 1. Multi-boot mode 2. USB download Image 3. SD Card offline burning 3. One-key to burn single/multiple file 4. EXT4 File System burning 5. MFG Tools support WindowsXP/Vist/Windows7 6. Multiple display devices selection 7. Multiple resolutions selection 8. boot logo 9. TFTP starup mode
Kernel and drivers	Version	Linux 4.1.15
Drivers	RTC, 5"/7" /10.1" LCD with capacitive/resistance Touch Screen, LVDS, eMMC, Watchdog, I/O, User keys, SPI, I2C, PWM, USB Host, USB Device, Audio, UARTs, Ethernet, WiFi, VGA, IPU, VPU, HDMI, 2D&3D Acceleration, SATA, IR, TF/SD/MMC
File System	File System	EXT4/NFS/FAT32/NTFS File System
Cross compiler version	arm-linux-gcc-5.3.1
Debug Tools	SecureCRT.exe, Ubuntu16.04

OS	Item	Feature	Description
Linux	Bootloader	Boot	u-boot 2015
Boot mode	Boot from eMMC/SD
Download	Download via USB OTG
Kernel	Version	Linux 4.1.15
File system format	Default support EXT4/NFS/FAT32/NTFS.
WatchDog	Support
UART	Support
RTC	Support
Ethernet	10/100/1000Mbps Ethernet, AR8035
SPI	Support
I2C	Support
User key	Support
LCD&TP	Support
LVDS	Support
VGA	Support
USB Host	Support
USB Device	Support
USB-to-Serial	Support
TF/SD/MMC	Support
eMMC	Support
Audio	SGTL5000
3G	Support
SATA	SATA II, 3.0Gbps
Embedded GUI	Qt/Embedded	qt 5.5
File system	TCP/IP	TCP/IP protocol
Network ping	Check the network
Ifconfig, route	For network configuration and related service application
Cross compiler Environmen	arm-fsl-linux-gnueabi-gcc-5.3.1
