| Specifications |
|---|

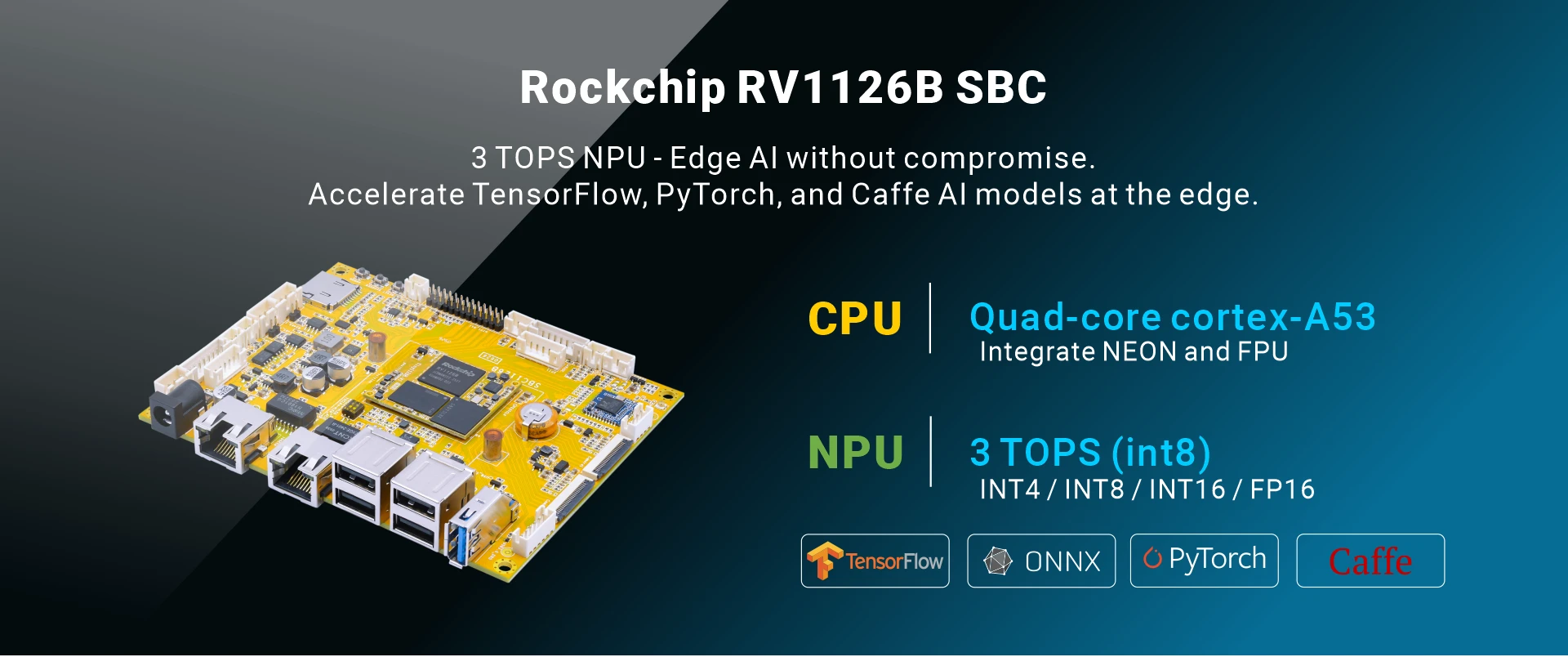

| SoC | Rockchip RV1126B Quad-core Cortex-A53 @ 1.6GHz |
| NPU | 3 TOPS for INT8.
Support INT4, INT8, INT16, FP16 |
| Memory | 2GB/4GB LPDDR4 |
| Storage | - 8GB/16GB/32GB/64GB/128GB/256GB eMMC
- MicroSD card slot |
| Power Supply | - 12V/3A DC input jack
- 7.4V Li-battery, 3-pin connector |
| USB | - 1x USB3.0 DRD (Dual-Role Device)
- 4x USB2.0 Host, dual-USB-AF |
| Connectivity | - 1x 10/100M Ethernet RJ45 port
- 1x 10/100/1000M Ethernet RJ45 port, 外置千兆PHY (RTL8211F)
- 2.4G WiFi(802.11b/g/n) with Bluetooth 4.2
注：RV1126B仅有一个以太网控制器(GMAC)，网口二选一 |
| Serial Port | - 1x Debug, 3-pin connector
- 1x UART (4), 6-pin connector
- 2x RS485, 3-pin connector |
| Display | 1x MIPI DSI, 1920x1080@60fps, 26-pin header |

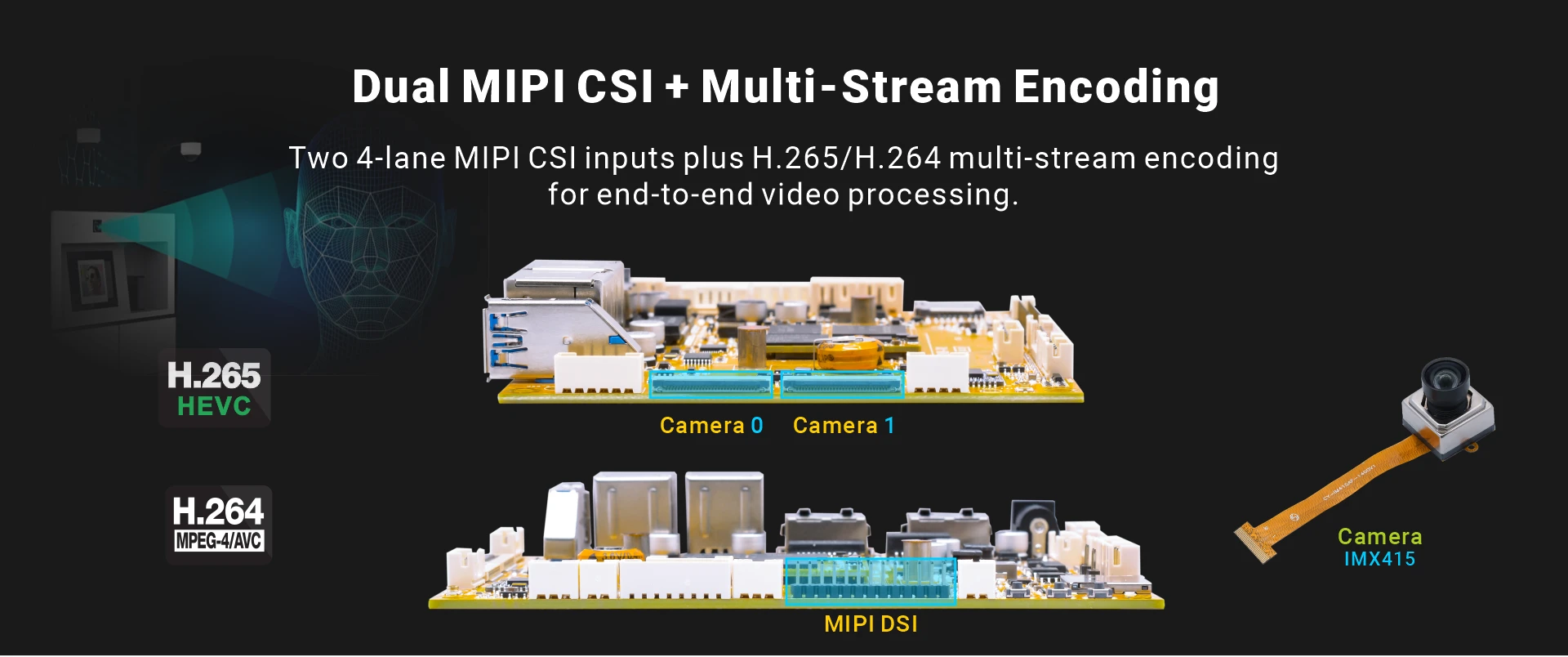

| Camera | 2x 4-lane MIPI CSI, 30-pin FPC connector |
| Audio | - 1x MIC, 2-pin connector
- 1x Speaker, 2-pin connector |
| Keys | Reset, Recovery, Power on |
| Other features | - Supercap-powered RTC
- 2x CAN, 2-pin connector
- 6x GPIO, 4-/6-pin connector
- 6x ADC, 8-pin connector
- 1x SPI(SPI1_M2), 6-pin connector
- IR, 3-pin connector
- 1x I2S(I2S1_M2), 8-pin connector |
| Operating Temperature | 0° to + 70° C |
| Dimension | Base board - 120 x 95 mm; CPU module - 34 x 30 mm |
