开发板

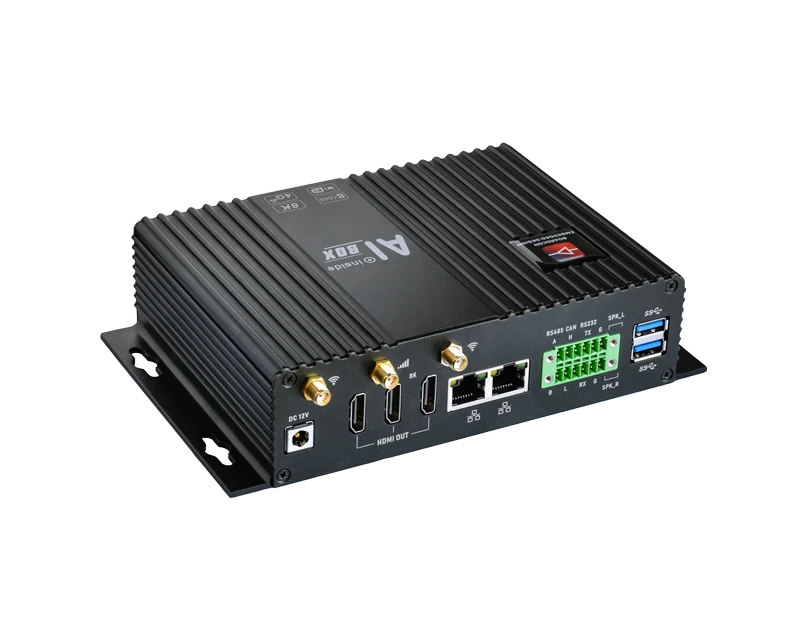

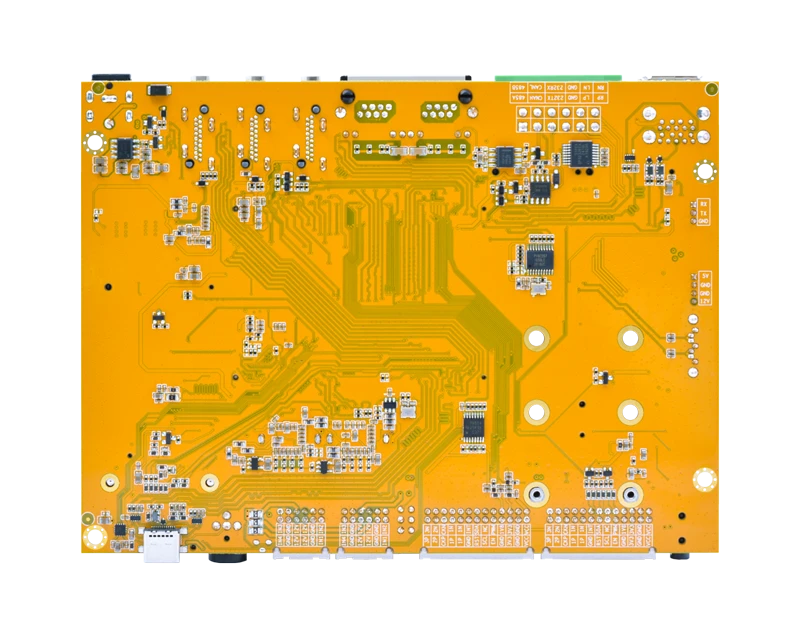

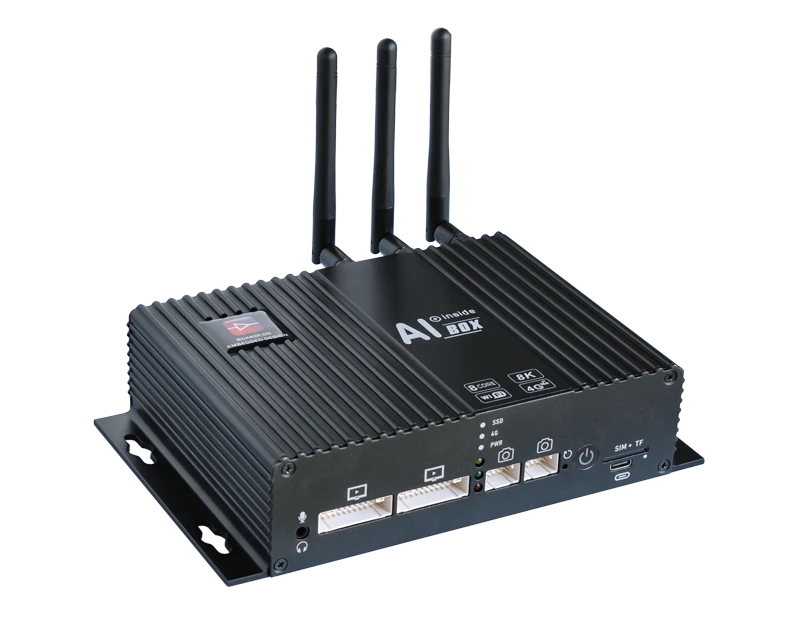

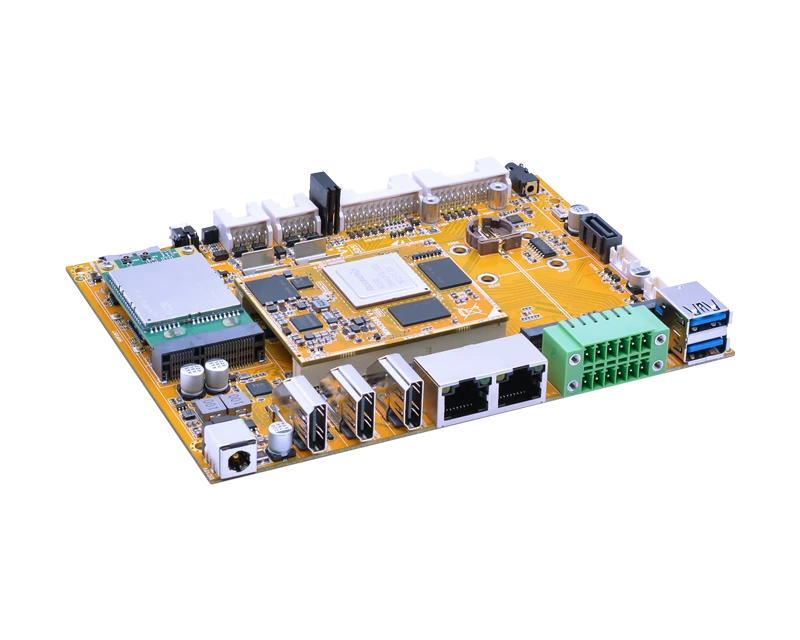

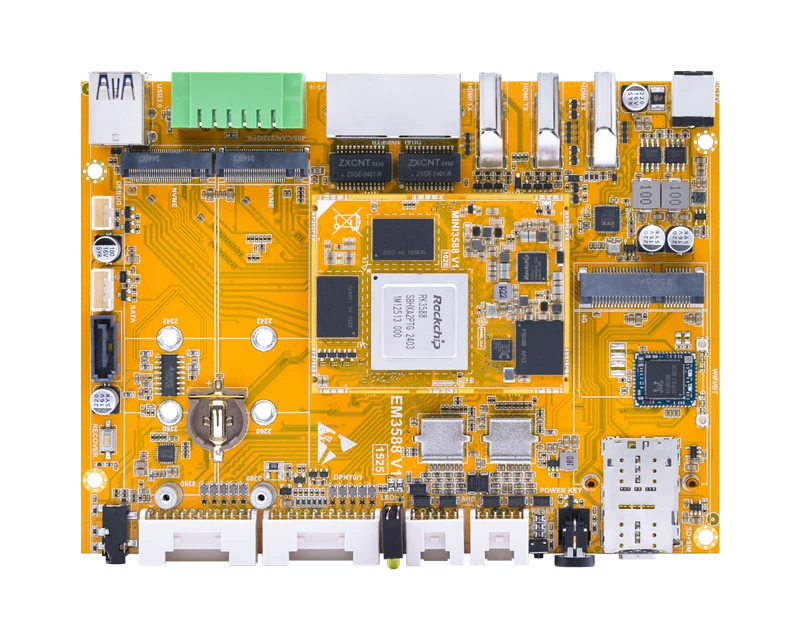

EM3588
Highlight
处理器: Rockchip RK3588. 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
NPU: 6 TOPS
内存: 8GB/16GB

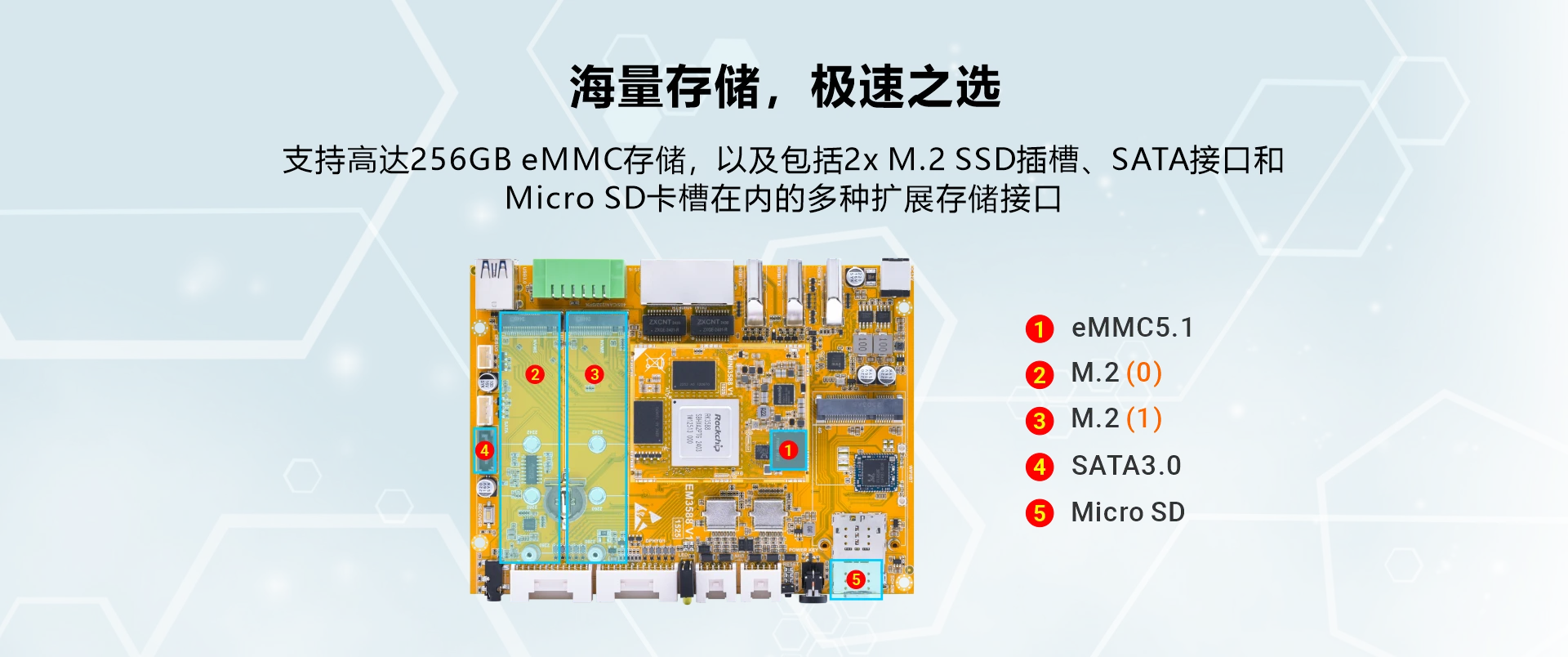

存储: 32GB/64GB/128GB/256GB

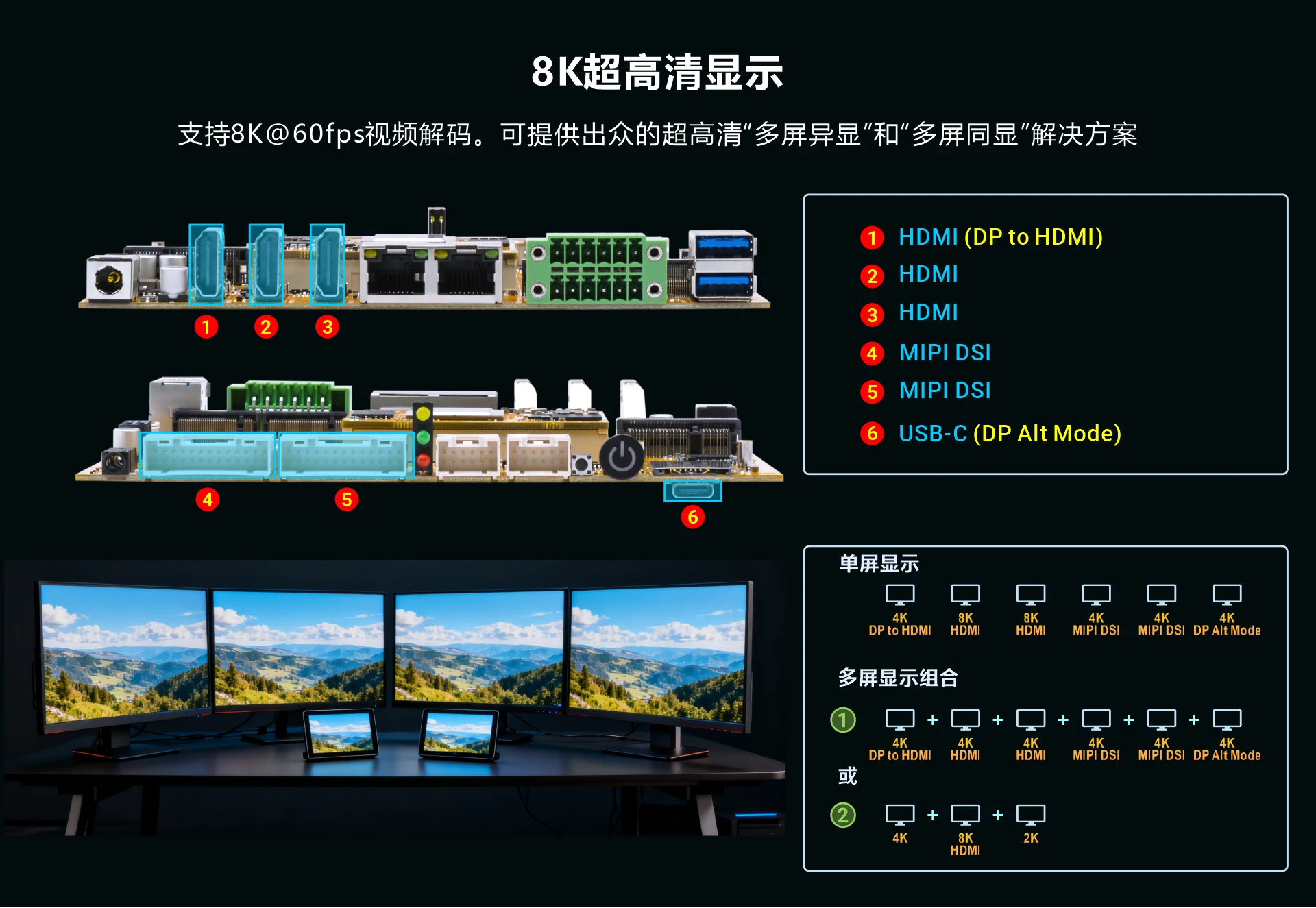

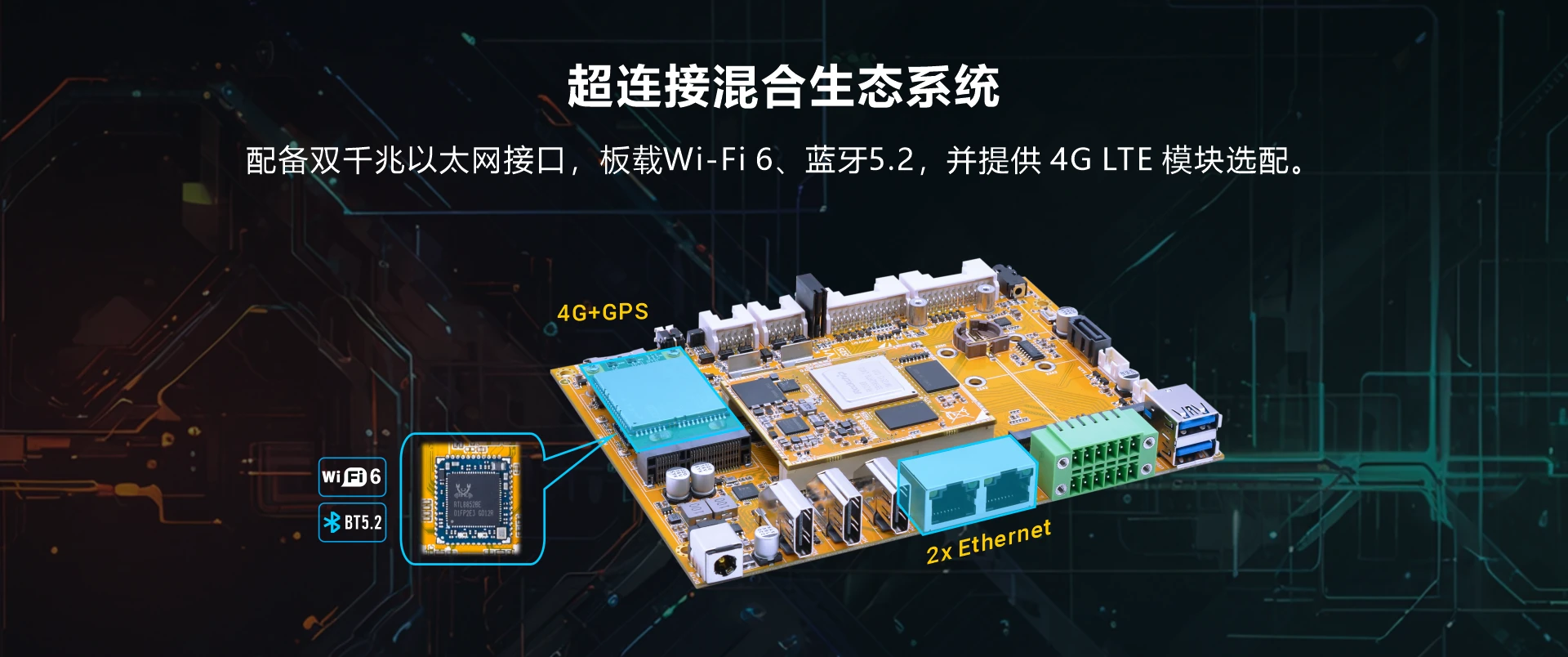

接口: RS232, Debug, 2x USB3.0 Host, USB3.1 Type-C, 2x Ethernet, RS485, CAN, 2x Speaker, Headset, 8x AHD, mPCIe, Micro SD, 3x HDMI, 2x MIPI DSI, 2x M.2 (PCIe3.0), SATA3.0
操作系统: Android 14, Debian 12, Buildroot
尺寸规格: 155 x 115 mm
工作温度: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI Interface -
SW-MA2024HP
CMOS image sensor
1920×1080@30fps
3.6mm Type 1/3"
BNC interface
