| Specifications |
|---|
| SoC | Rockchip RK3576 Octa-core ARM processor.
4x Cortex-A72 cores @ 2.2 GHz, 4x Cortex-A53 cores @ 1.8 GHz |
| MCU | Single core ARM Cortex-M0 |
| NPU | 6 TOPS |
| GPU | ARM Mali G52 MC3 with support for OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.0, Vulkan 1.1 |
| VPU | 8K@30fps or 4K@120fps H.265/HEVC, VP9, AV1, AVS2 video decoder
4K@60fps H.264/AVC video decoder
4K@60fps H.264, H.265 video encoder |
| Memory | 4GB/8GB LPDDR5 |

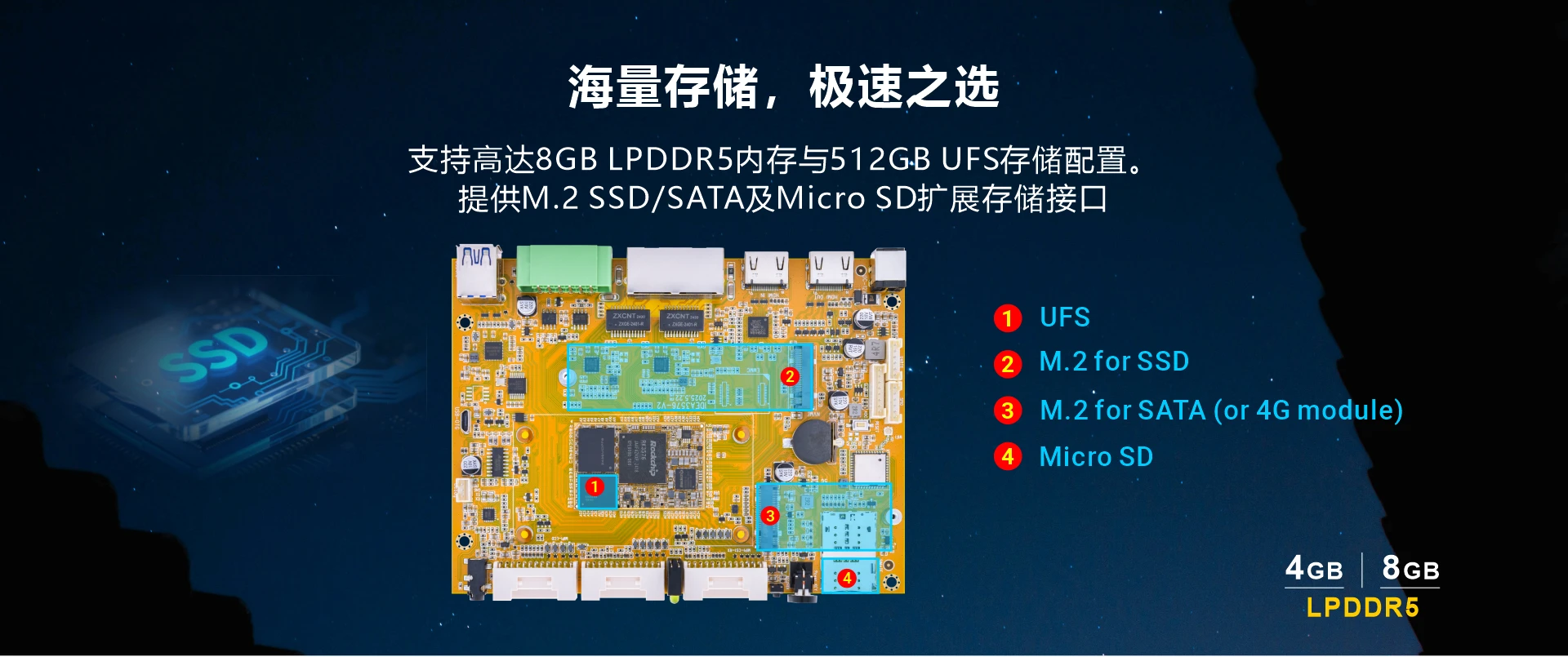

| Storage | - 32GB/64GB/128GB/256GB/512GB UFS. Optional eMMC on baseboard if UFS unused.
- Micro SD slot
- M.2 (M-key) socket for NVMe SSD
- M.2 (B-key) socket for SATA (optional. multiplexed with 4G module) |
| USB | 1x USB2.0 OTG, 2x USB3.0 Host. USB2.0 OTG is multiplexed with USB3.0 Host |

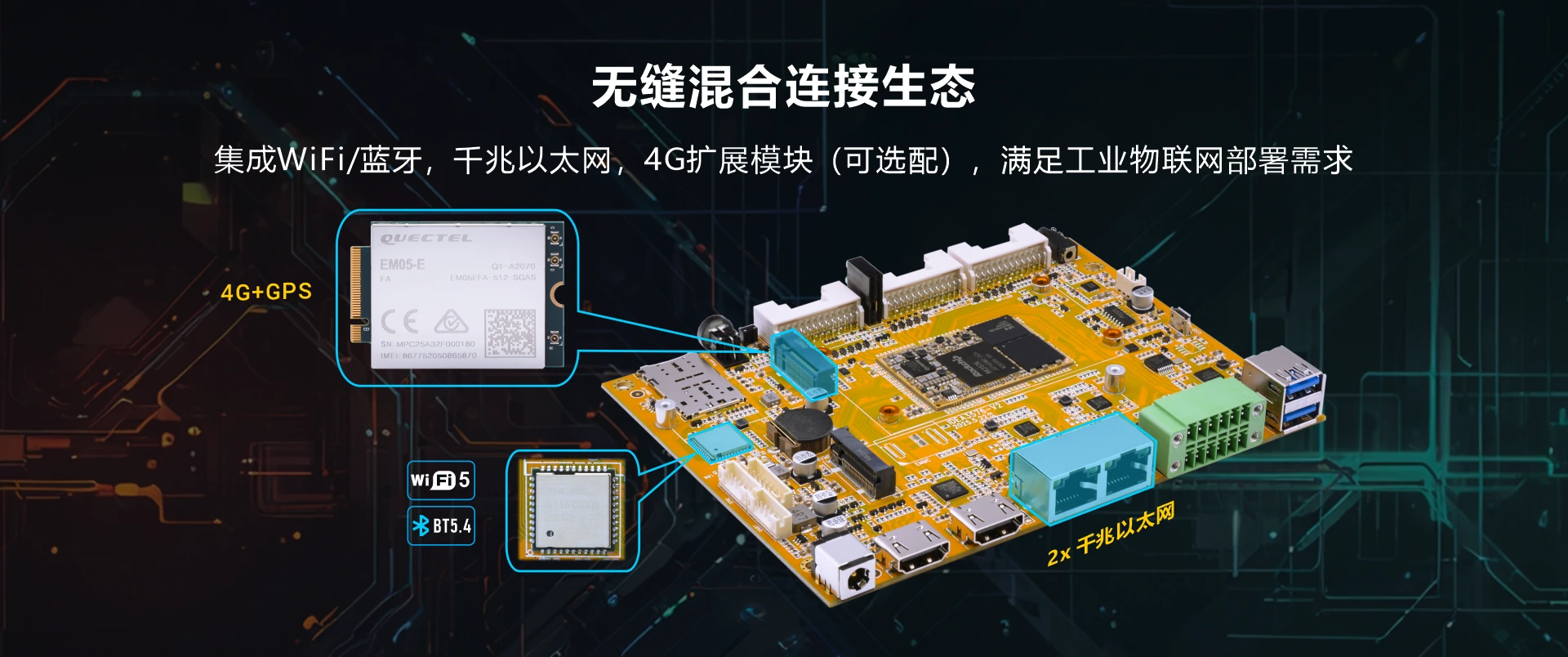

| Connectivity | 2x 10/100/1000 Mbps Ethernet RJ45 ports via Realtek RTL8211F-CG controller

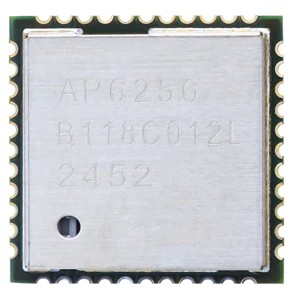

2.4G/5G 1T1R WiFi (802.11a/b/g/n/ac) with Bluetooth 5.4
M.2 socket with Nano SIM card port to support 4G LTE Module |
| Serial Port | 1x Debug, 3-pin connector
1x RS232, 12-pin pluggable terminal block
1x UART(TTL), 6-pin connector
1x RS485, 12-pin pluggable terminal block |

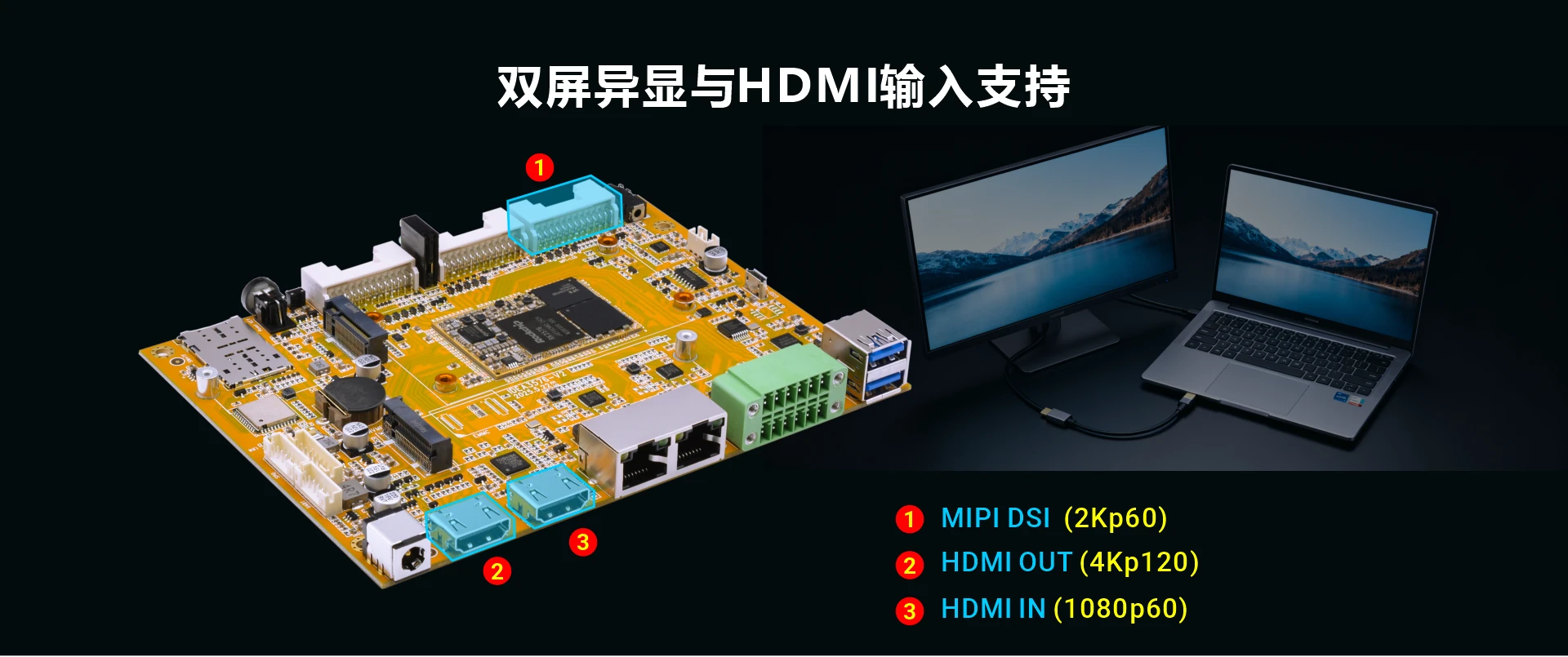

| Video | Output | HDMI 2.1, up to 4Kp120
MIPI DSI, up to 2Kp60 |

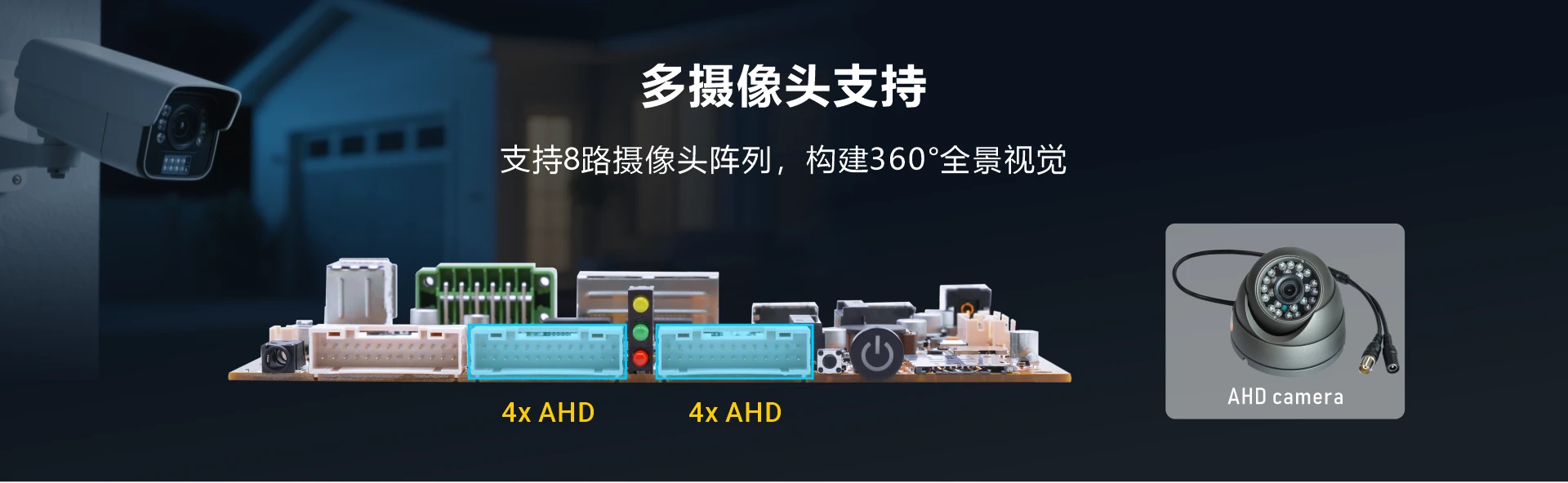

| Input | 1x HDMI IN (HDMI to MIPI CSI)
2x 4-lane MIPI CSI |
| Audio | 3.5mm audio I/O jack
2x Speaker via 12-pin pluggable terminal block
8-channel audio via HDMI |
| Keys | Power, Reset, Recovery |
| Other features | RTC with battery connector, 1x CAN, 1x SPI, 5x ADC |
Operating Temperature
| 0° to + 70° C |
| Dimensions | Based board - 155 x 115 mm; CPU module - 40 x 30 mm |
