首页 > 产品 > 开发板 > MINI210S

开发板

MINI210S

Highlight

处理器: Samsung ARM Cortex-A8 S5PV210AH, 1GHz
内存: 512MB
存储: 1GB
接口: 4x UART, USB2.0 Host, USB2.0 OTG, HDMI, LCD, Ethernet, Audio out, MIC, Keypad, Camera, SD, GPIO, JTAG, MIPI, SDIO WiFi, etc.
操作系统: Android 2.3/4.0, Linux+QT, WinCE6.0
尺寸规格: 110 x 110 mm
工作温度: 0° to + 70° C

联系我们

概述硬件软件资源支持配件

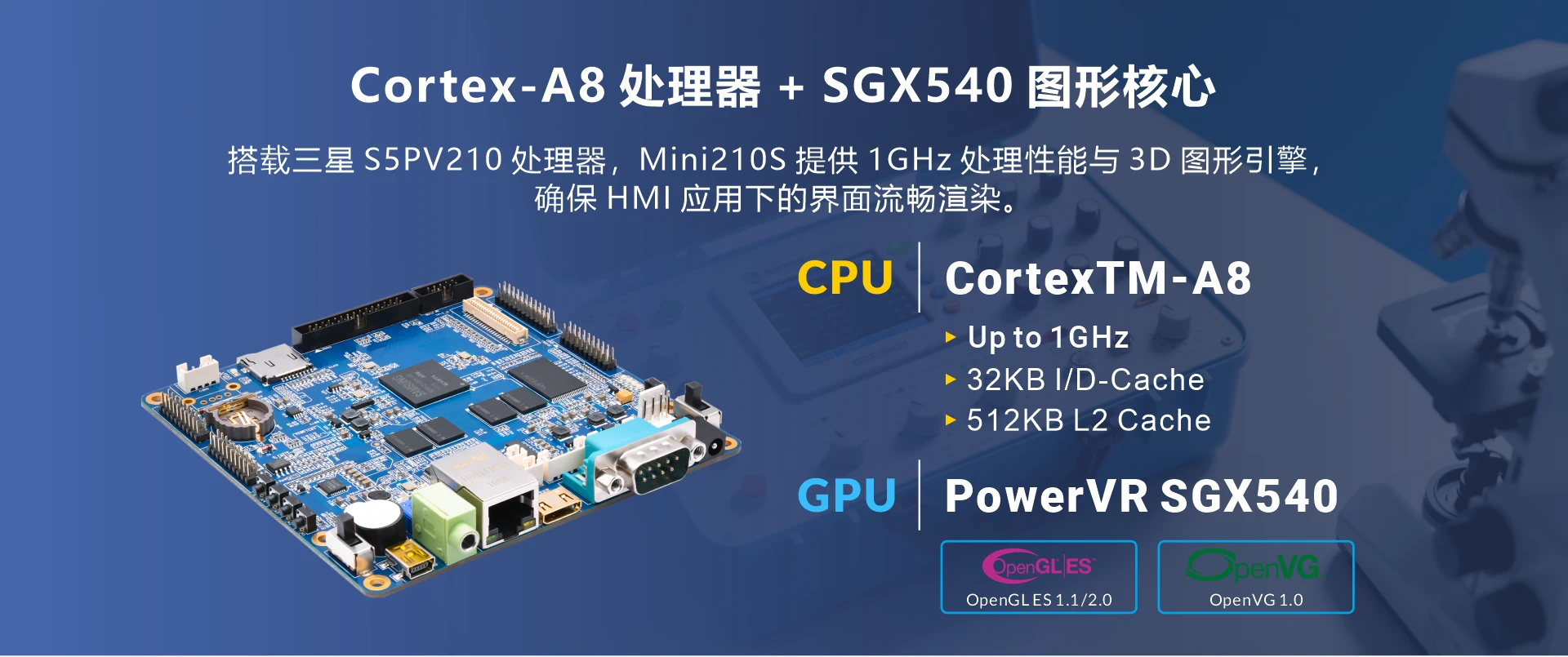

Overview_MINI210S_SoC

Overview_MINI210S_multimedia

Overview_MINI210S_IO

Overview_MINI210S_OS

OS	Item	Feature	Description
Android 4.0.3	Superboot210	Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process
	Kernel and drivers	Kernel version	Linux 3.0.8
	Kernel and drivers	Drivers	Watchdog, RTC, LED, User key, SPI, I2C, PWM, ADC, LCD&TP(4.3"/ 5"/ 7"/ 8"/ 10"), backlight, USB HOST, USE Device, SD, UART, WiFi, Audio, Ethernet (DM9000), FIMC, JPEG, MFC, CMOS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G
	File System	format	YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32
	Embedded GUI	Android4.0	Browser, Calculator, Calendar, Camera, Clock, Email, Gallery, Message, Phone, Mediaplayer, Music, Record, ES File Explorer, etc.
	Network protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
	Cross-compiler	arm-linux-gcc-4.5.1-v6-vfp

OS	Item	Feature	Description
Linux 3.0.8	Superboot-210	Main functions: 1. Flash and install (YAFFS2) system via SD card 2. Detect booting mode (SD/NAND) 3. Display LCD info, hardware configurations, installation process
	Kernel	Version	Linux kernel 3.0.8
	Kernel	Driver	Watchdog, RTC, LED, Use key, SPI, I2C, PWM, ADC, TP, Backlight, LCD(4.3"/ 5"/ 7"/ 8"/ 10"), USB HOST, USB Device, SD, WiFi, Audio, Ethernet, FIMC, JPEG, MFC, COMS Camera, HDMI, 2D/3D accelerometer, USB-to-UART, USB 3G
	File System	format	YAFFS2/CRAMFS/NFS/UBIFS/NFS/FAT32
	Embedded GUI	Qt/Embedded	Qtopia 2.2.0, Qt/Embedded-4.7.0, Qt-Extended-4.4.4
	Application	Clock, Phone, Message, Camera, Record, Browser, SMPlayer, Music, Calculator, Terminal, File Manager, etc.

OS	Item	Feature	Description
WinCE6.0 R3	Superboot210	Functions: 1. Read file from the SD card (FAT format), and the file path can be customized 2. Flash NK.bin via SD card 3. Change Boot Logo via SD card 4. Display LCD info, hardware configurations, installation process 5. Detect booting mode (SD/NAND)
	System	Drivers	RTC, Watchdog, MLC/SLC Nand, LCD, TP, Backlight, UART, Ethernet (DM9000), Audio (WM8960), SD, USB HOST, LED, User key, PWM, ADC, SPI, I2C, HDMI
	Application	HDMI, LED Control, User-key Test, Recorder, Network Configuration Utility, PWM Buzzer, Serial Assistant, Backlight, etc.
	Development Environment	Visual Studio 2005
