开发板

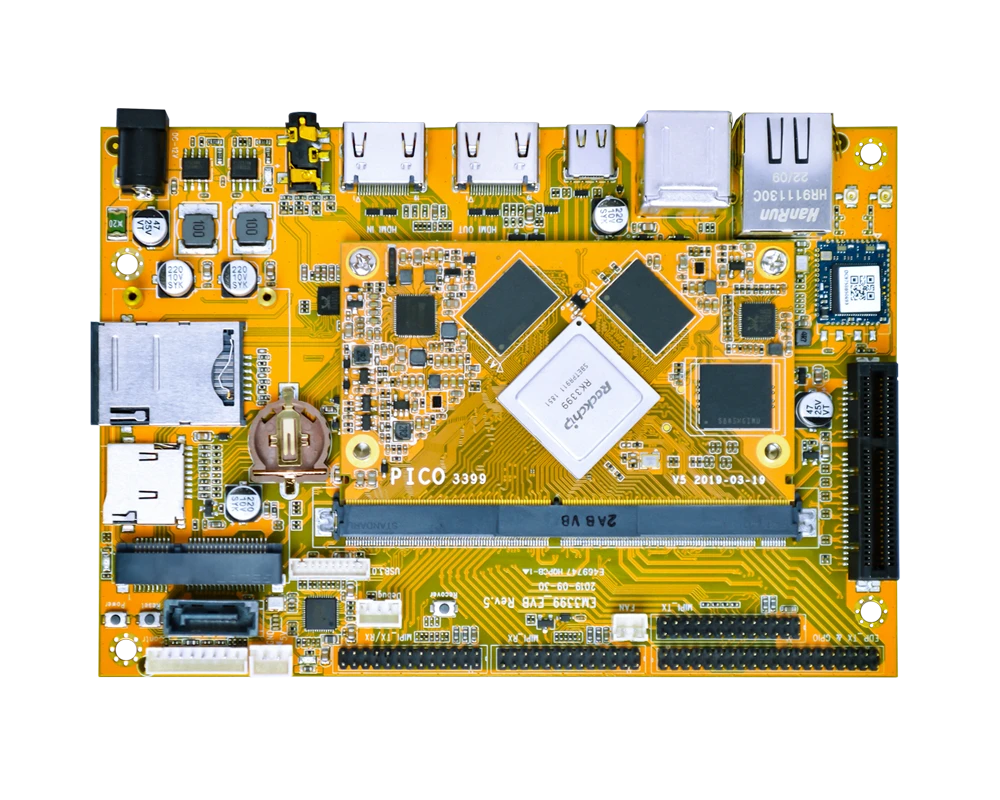

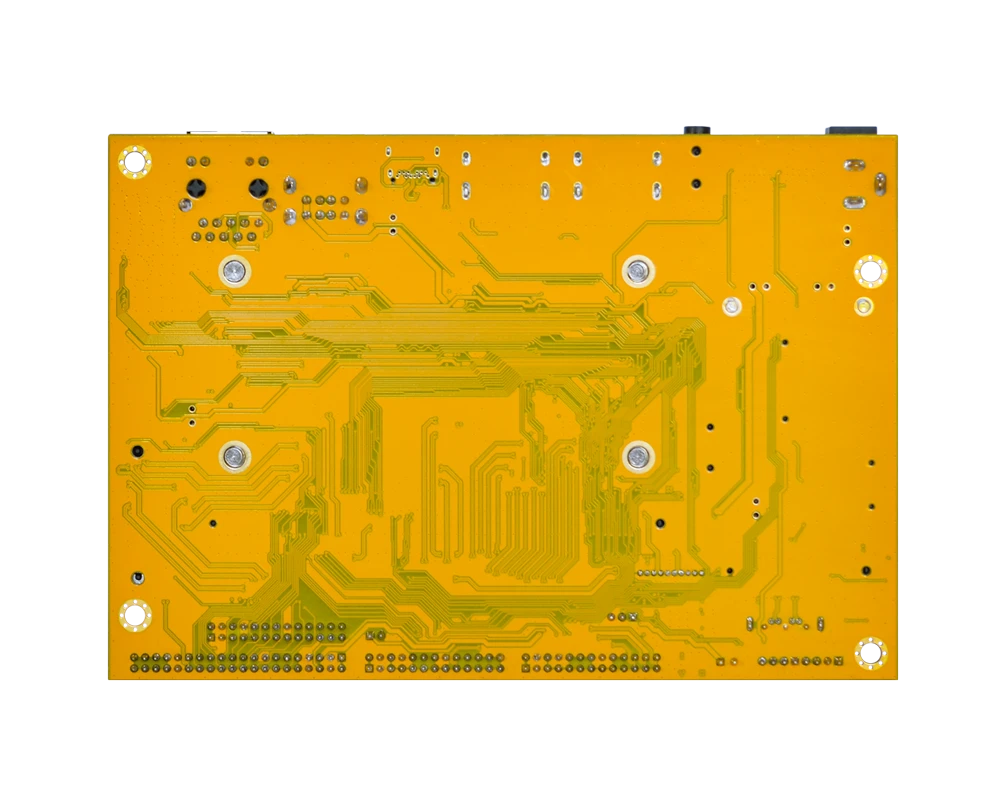

EM3399
Highlight
处理器: Rockchip RK3399. Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @ 1.4GHz
内存: 1GB/2GB/4GB
存储: 8GB/16GB/32GB/64GB/128GB

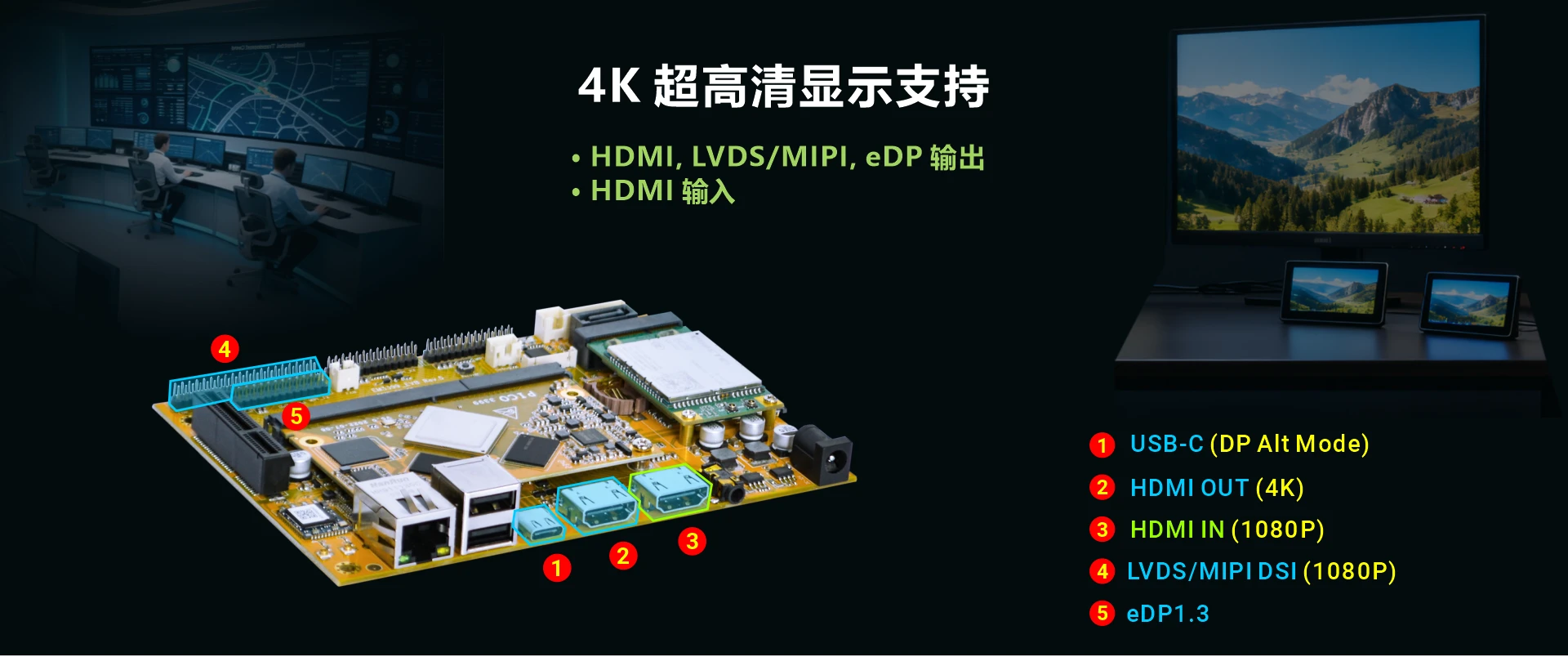

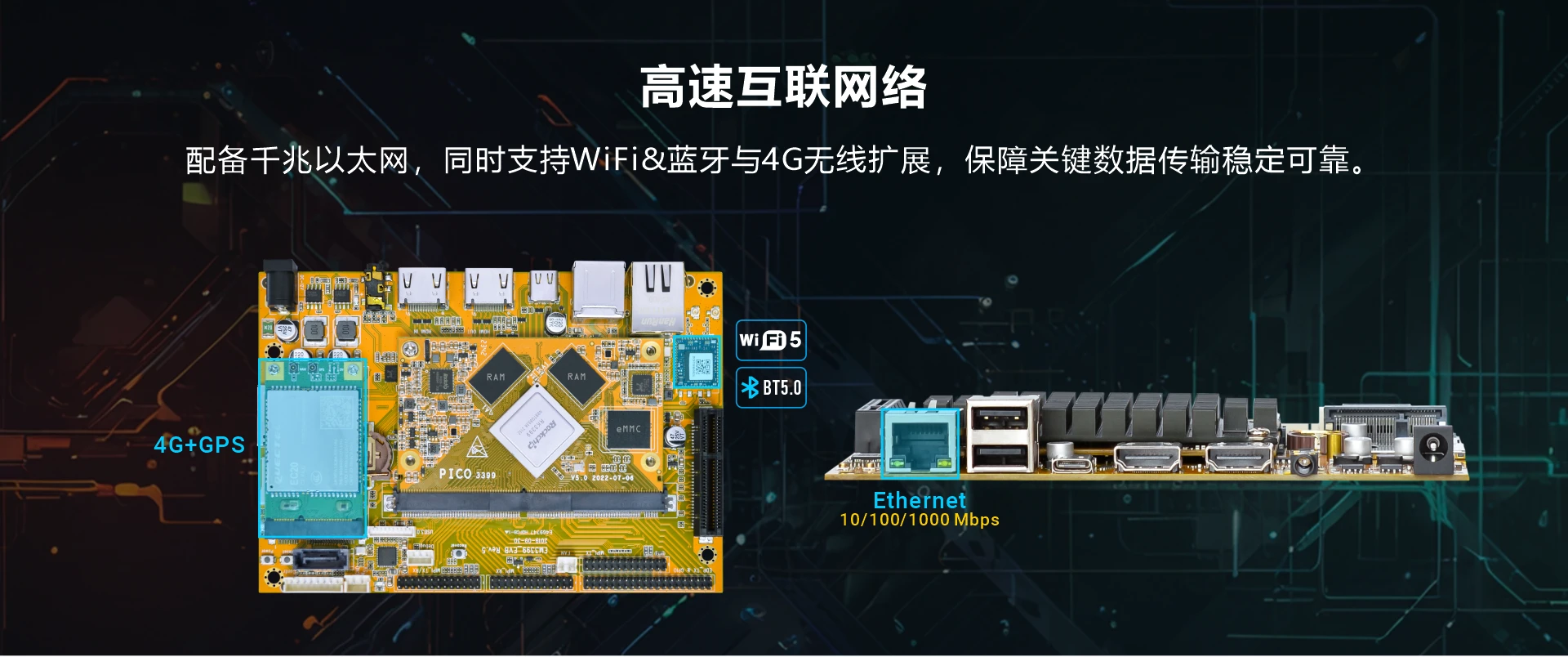

接口: 2x USB2.0 Host, Type-C, Debug, MIPI DSI/CSI, eDP, GbE, HDMI in, HDMI out, Audio, Micro SD, mPCIe(3G/4G/SATA), PCI-E x4, SIM slot
操作系统: Android 11, Debian 11, Buildroot
尺寸规格: 145 x 100 mm
工作温度: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI Interface -
OV13850-1
PureCel™ image sensor
1.12 μm x 1.12 μm pixel
optical size of 1/3.06"
13.2MP at 30 fps -
15.6-inch eDP
1920 x 1080 Pixels
16.7M colors
eDP1.2 interface
