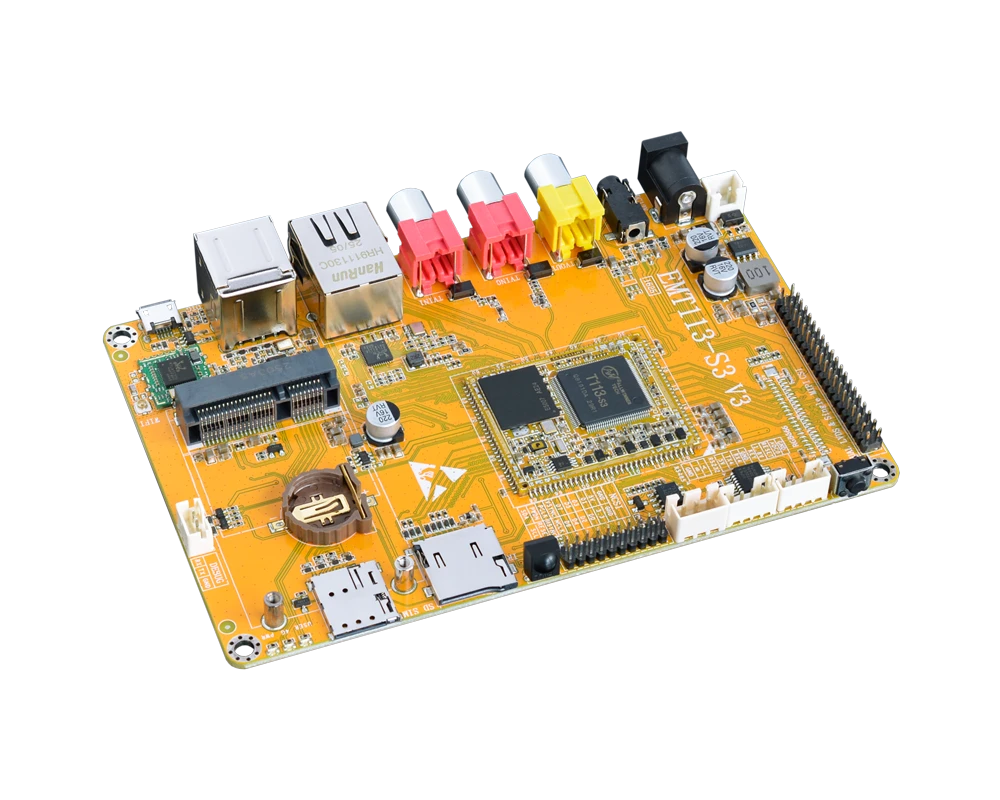

| Specifications |
|---|

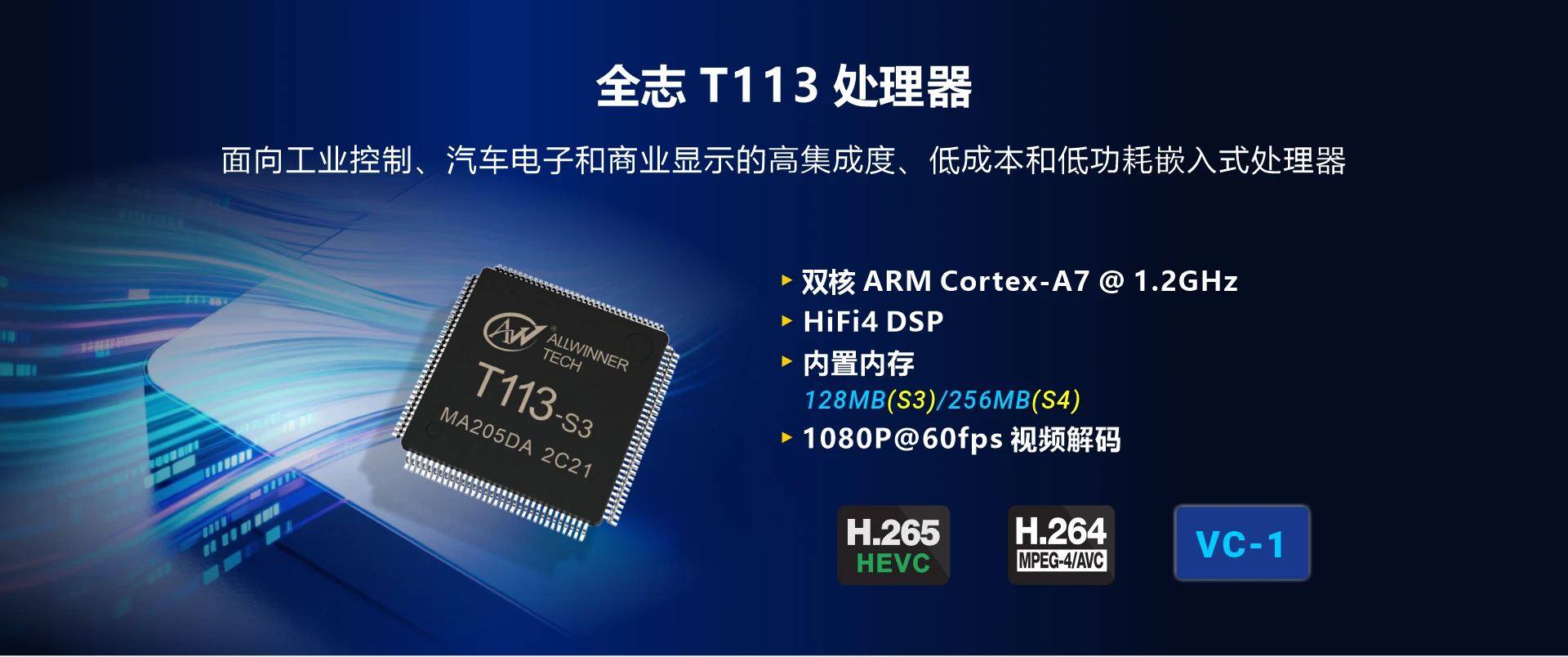

| SoC | Allwinner T113-S3/T113-S4. Dual-core ARM Cortex-A7 @ 1.2GHz |
| DSP | Single-core HiFi4 |
| Memory | 128MB(T113-S3) or 256MB(T113-S4) DDR3 |
| Storage | 8GB/16GB/32GB eMMC
MicroSD card slot |
| Power Supply | DC 12V/3A |
| USB | 1x USB2.0 OTG, Micro USB
2x USB2.0 Host, Dual-USB AF |

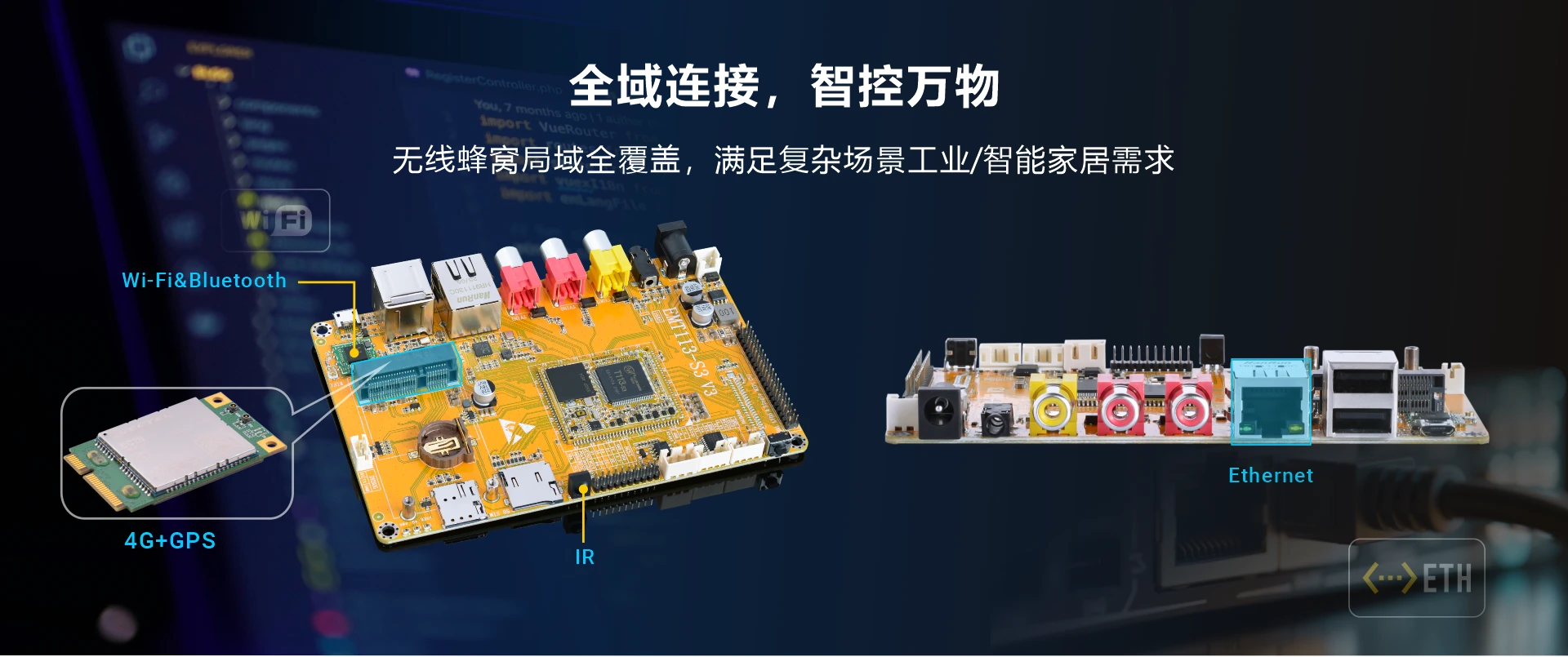

| Connectivity | 1x 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller

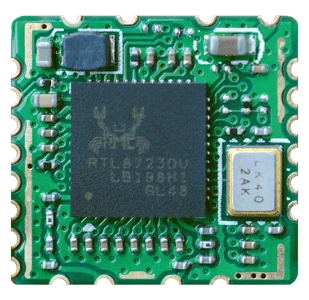

2.4G WiFi (802.11b/g/n) with Bluetooth 4.2
Mini PCIe socket with Nano SIM card port to support 4G LTE Modem |

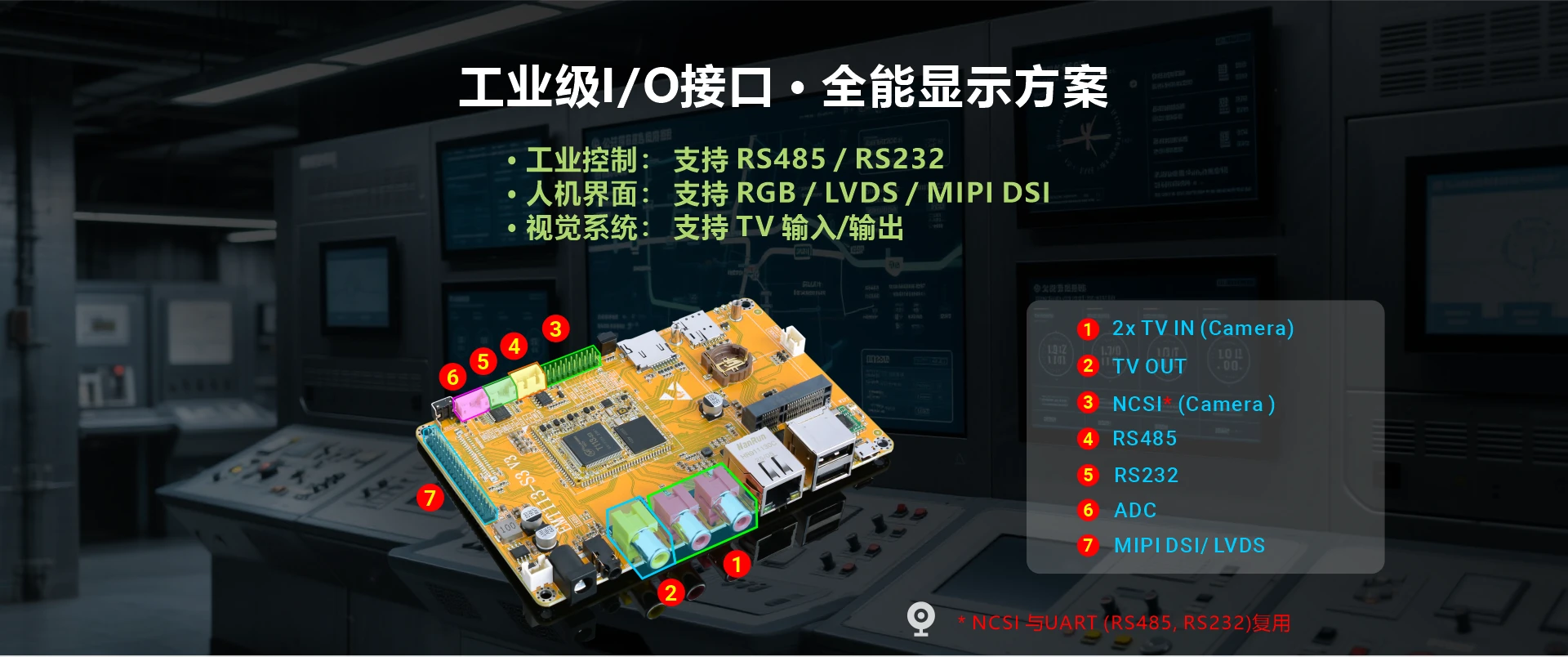

| Serial Port | 1x Debug (TTL), 3-pin connector
1x UART (RS232), 4-pin connector
1x RS485, 3-pin connector |
| Display | RGB (multiplexed with LVDS1), 40-pin FPC connector

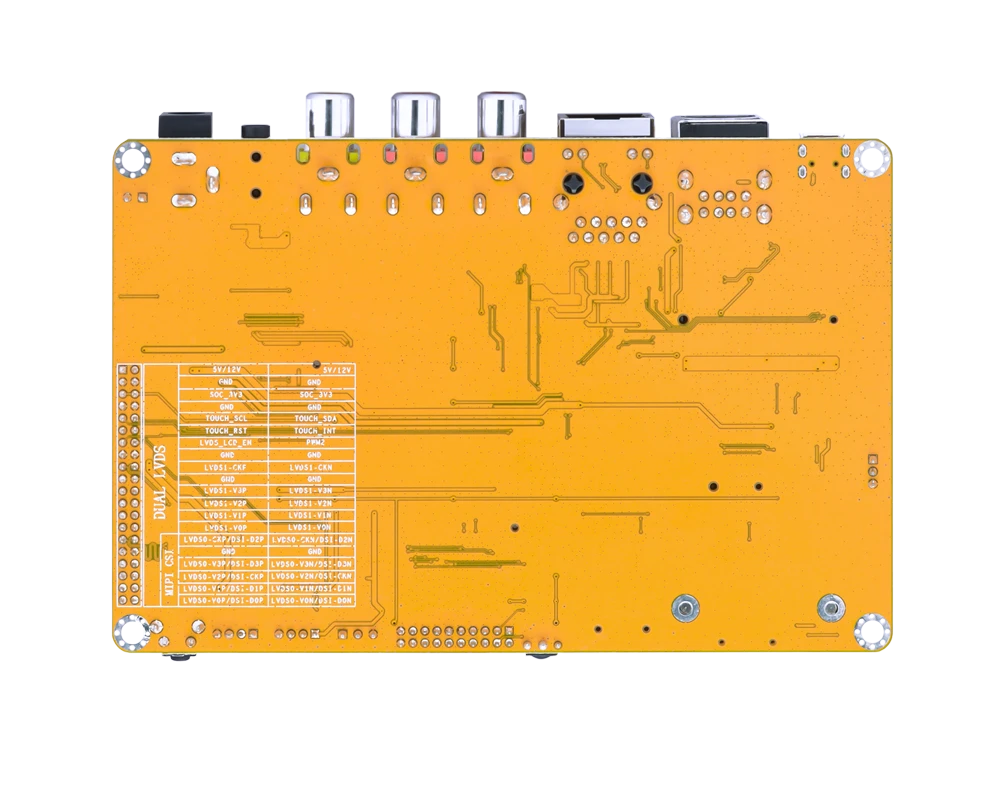

MIPI DSI/ Dual-LVDS, 40-pin Header
TV out, RCA connector |
| Audio | 3.5mm audio jack for Audio in/out |
| Video in | 1x Parallel CSI, 20-pin header
2x TV in, RCA connector |
| Keys | Reset, FEL |
| Other features | RTC with battery connector, IR, GPADC |
| Operating Temperature | 0° to + 70° C |

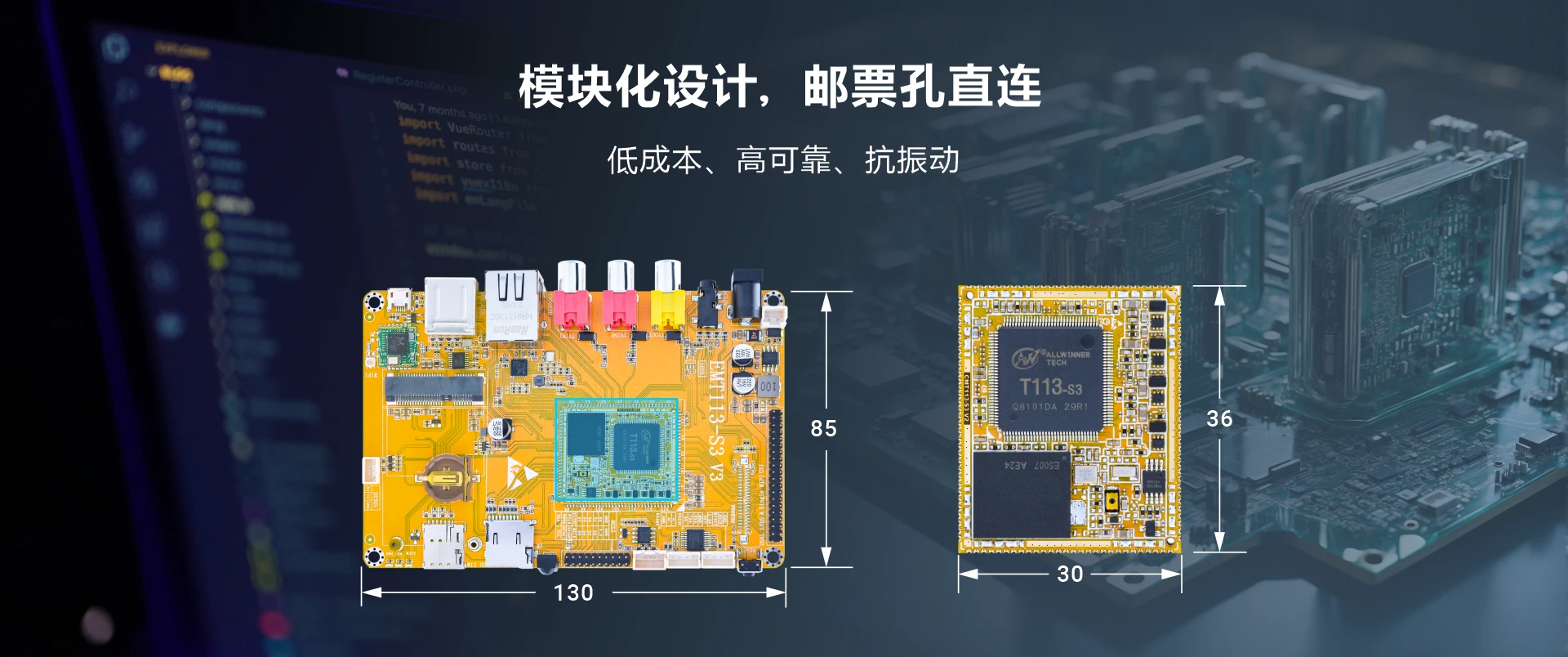

| Dimensions | Based board - 130 x 85 mm; CPU module - ndash; 36 x 30 mm |
