| Specifications |
|---|
| SoC | Freescale/NXP i.MX6 UltraLite applications processor with a 528MHz ARM Cortex-A7 core |
| RAM | 512MB DDR3L |
| Storage | 4GB eMMC |
| Serial Port | 2x UARTs, lead out from CON1 |
| CAN | 1x CAN, lead out from CON1 |
| ACC | 1x ACC, lead out from CON1 |
| USB | 1x USB2.0 OTG, 1x USB2.0 Host |
| Audio codec | WM8960G chip;
1x 3.5 mm headset (Black), for calls;
1x 3.5 mm headphone (Green), for Audio output. |

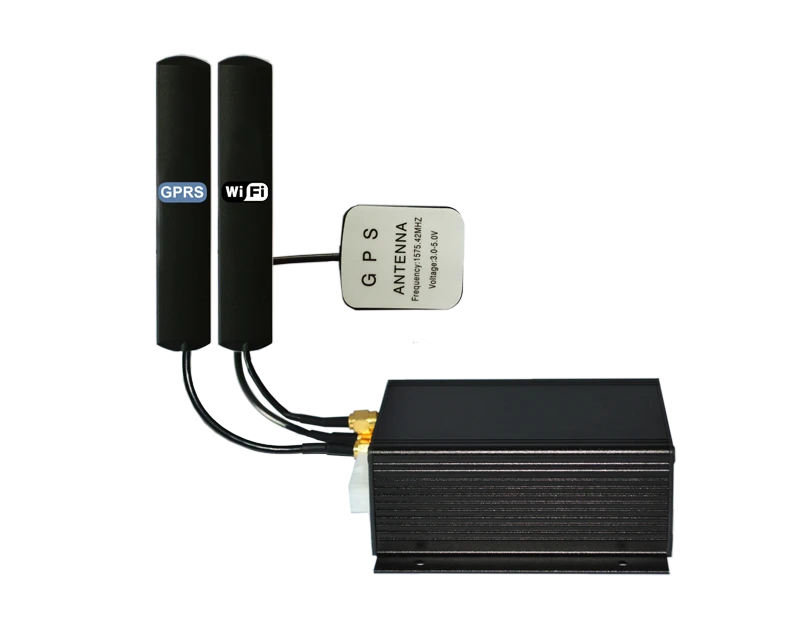

| WiFi | On-board WiFi module with Antenna, 802.11 b/g/n |
| GPS | On-board GPS module with Antenna |

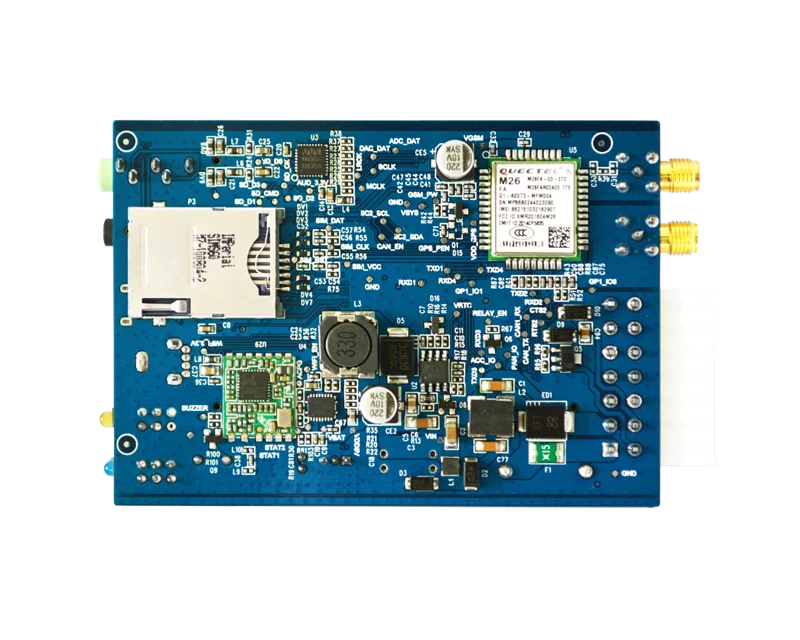

| GPRS&SIM card | On-board GPRS module and standard SIM card slot, supports calls and Internet access |
| Others | 1x Boot mode select connector |
| Lithium battery | 1x 3pin interface, support 3.7V 1200mA lithium battery |

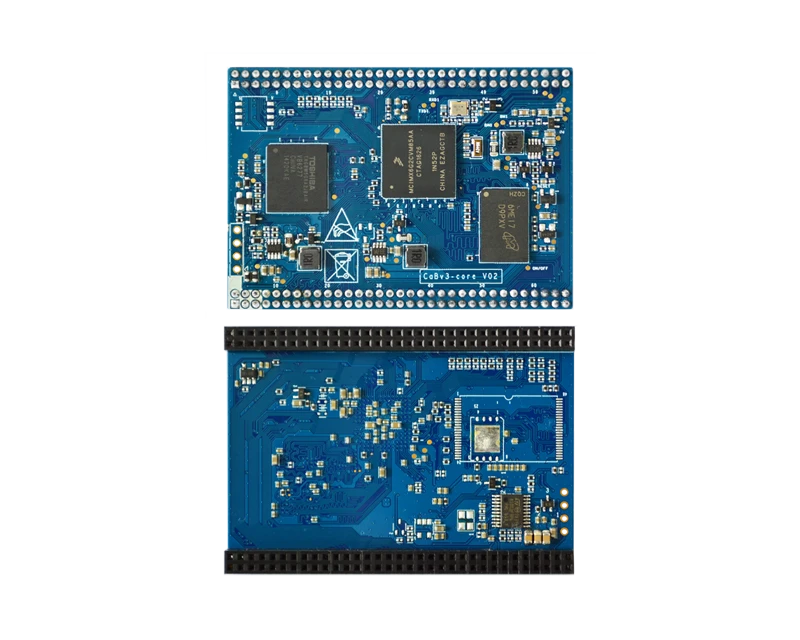

| STM8S003F3 | Debug interface. Lead out from core board, use for debugging watchdog, uart, etc |

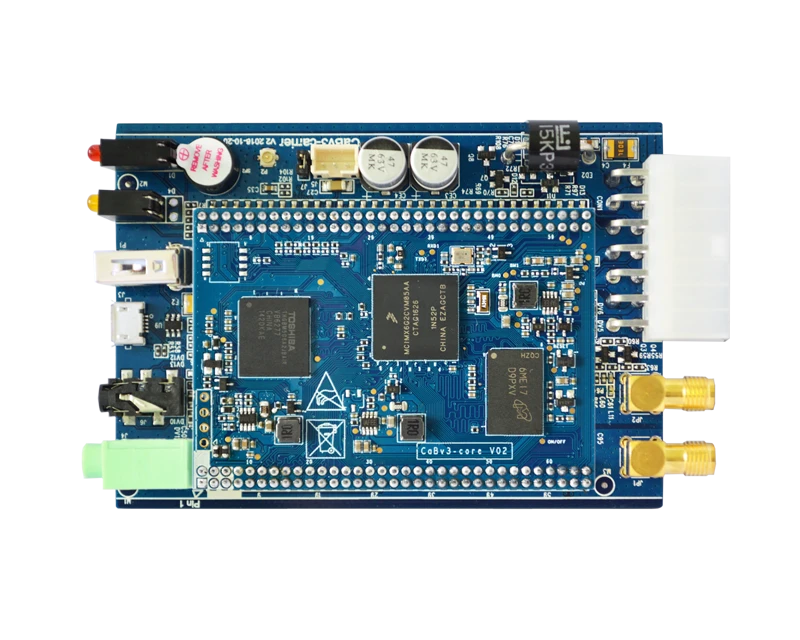

| Dimension | Baseboard - 95 x 67 mm; CPU Board - 66 x 47 mm |
| Power input | 6V ~ 55V (Typical power adapter: 12V@2A ) |
