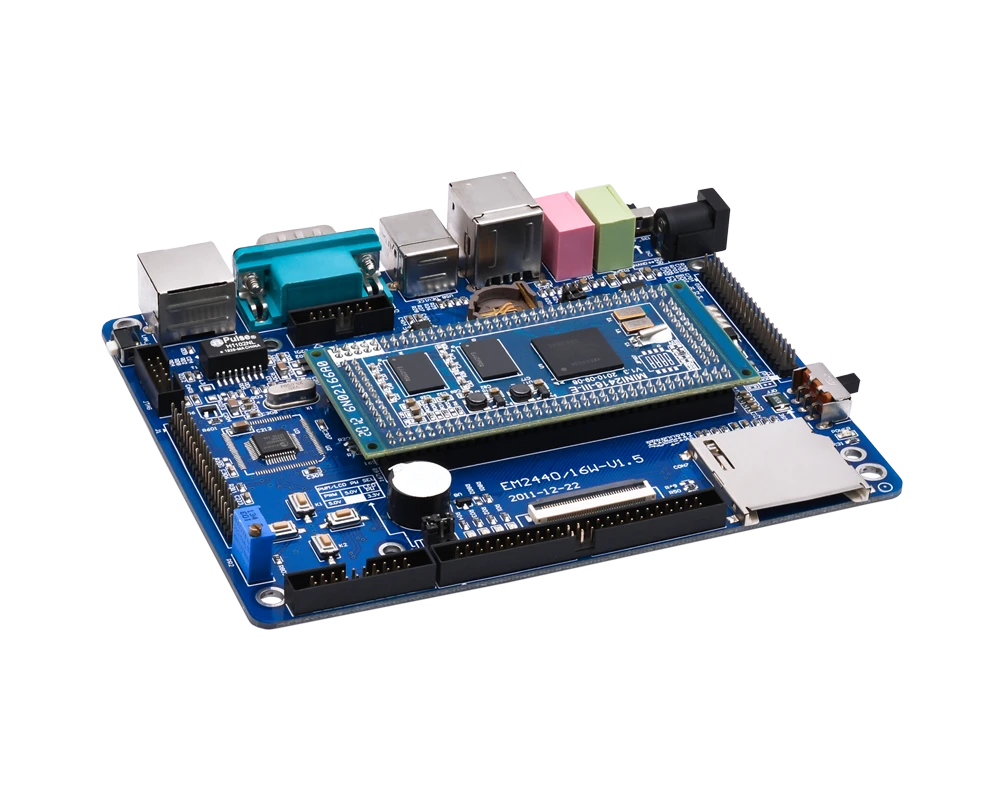

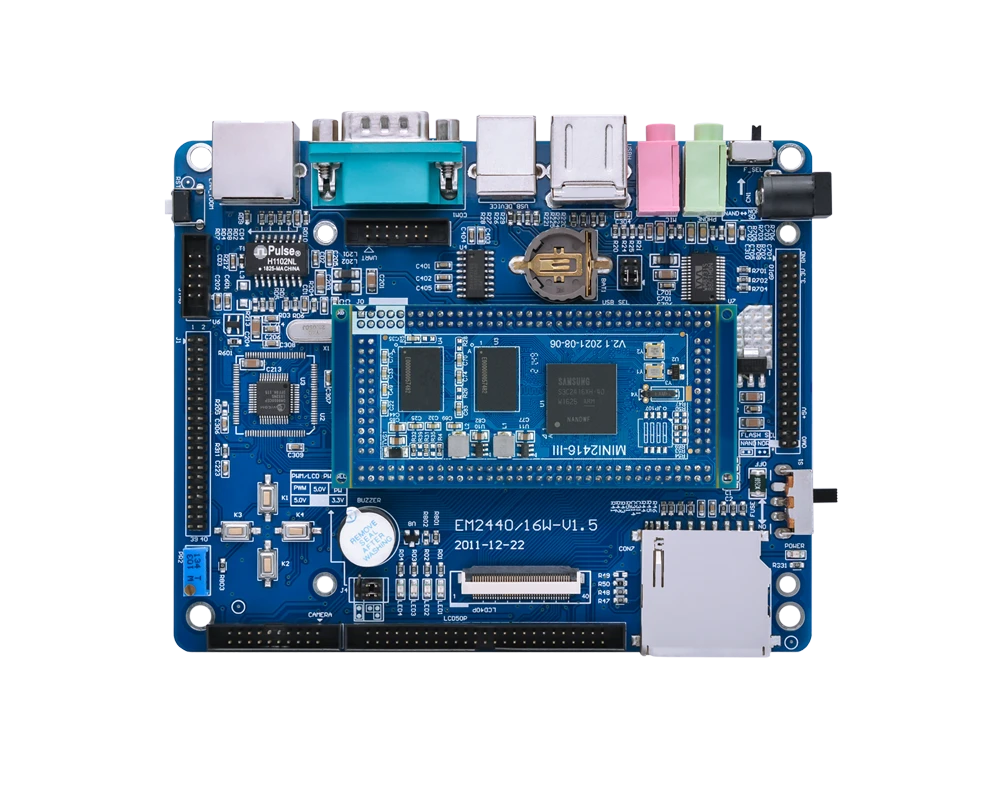

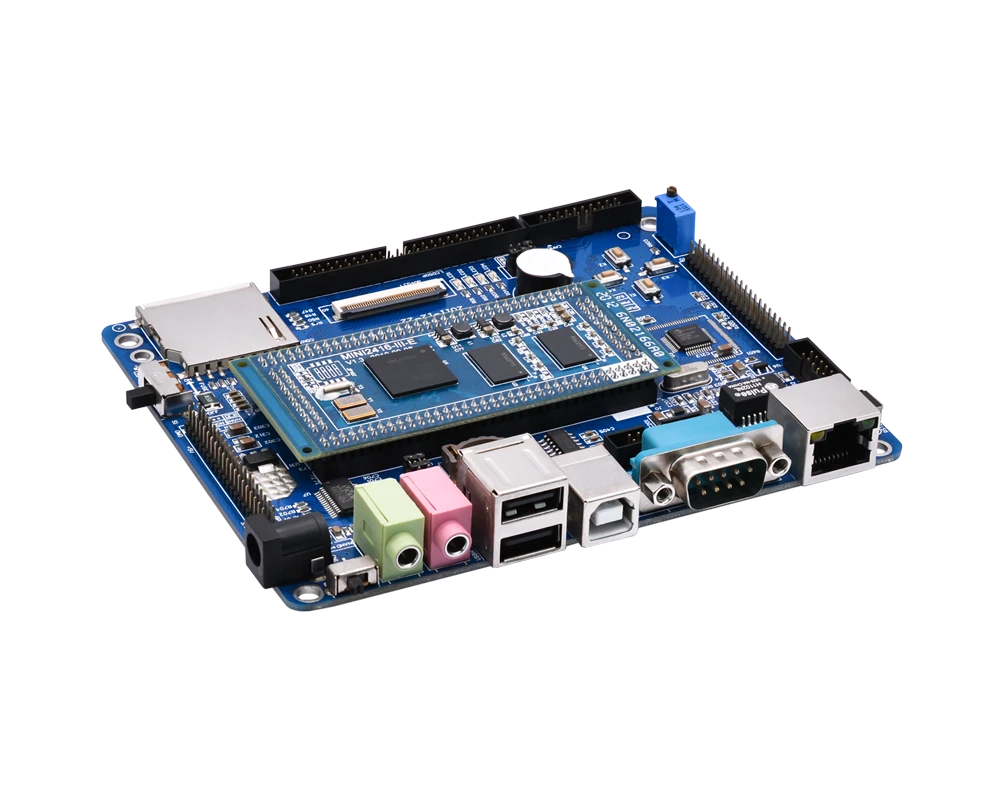

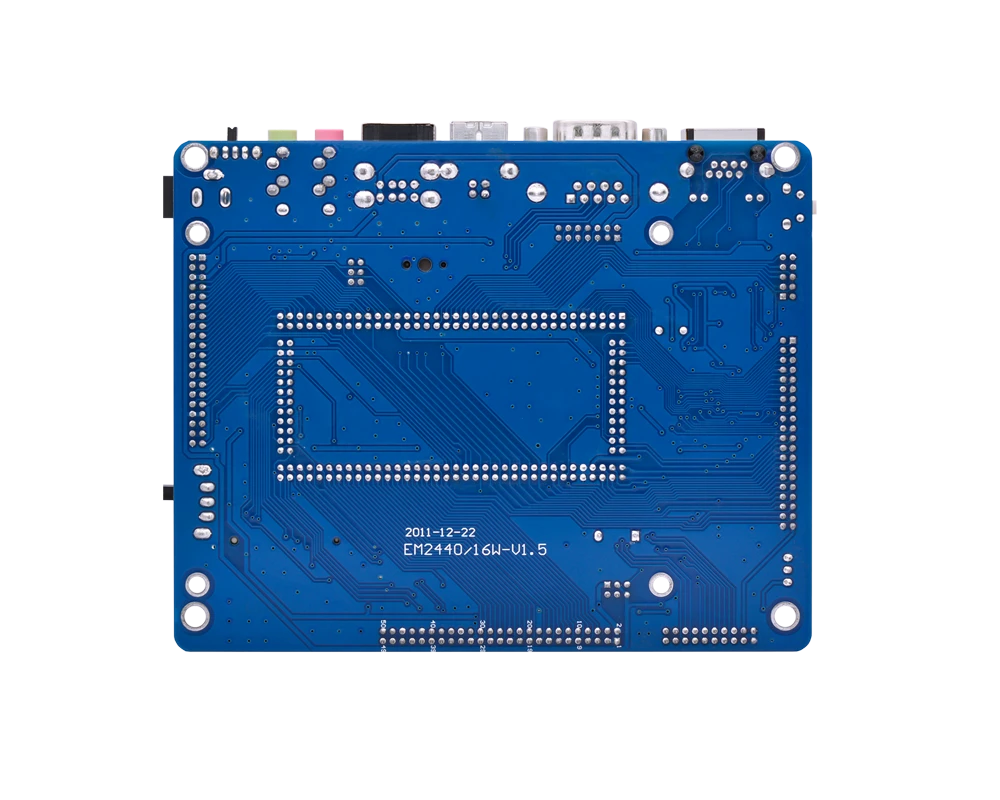

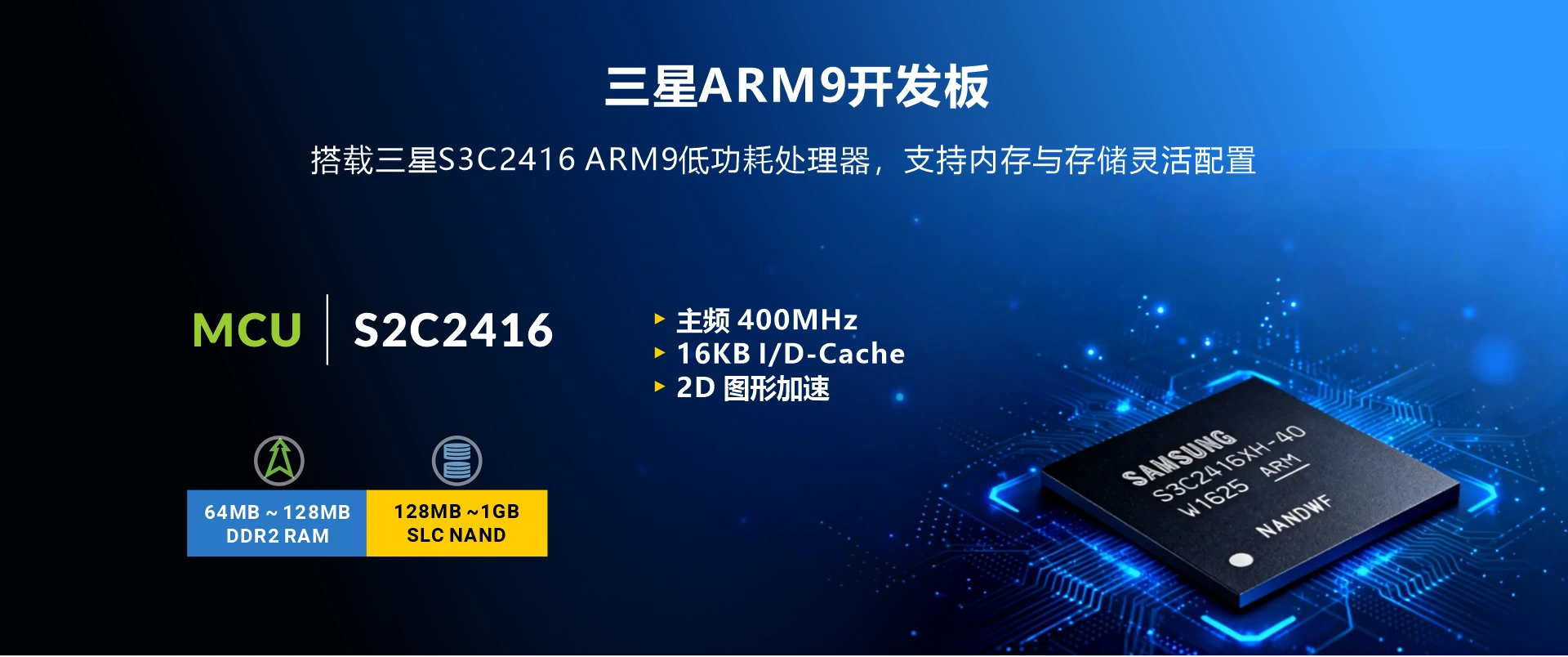

| Specifications |
|---|
| SoC | Samsung ARM9 S3C2416X 400MHz with separate 16KB instruction and 16KB data caches, 2D Accelerator |
| RAM | 64MB/128MB DDR2 |
| Storage | - 256MB/512MB/1GB/2GB NAND Flash
- SD/MMC card socket |
| CPU Power | 3.3V power supply for CPU board |

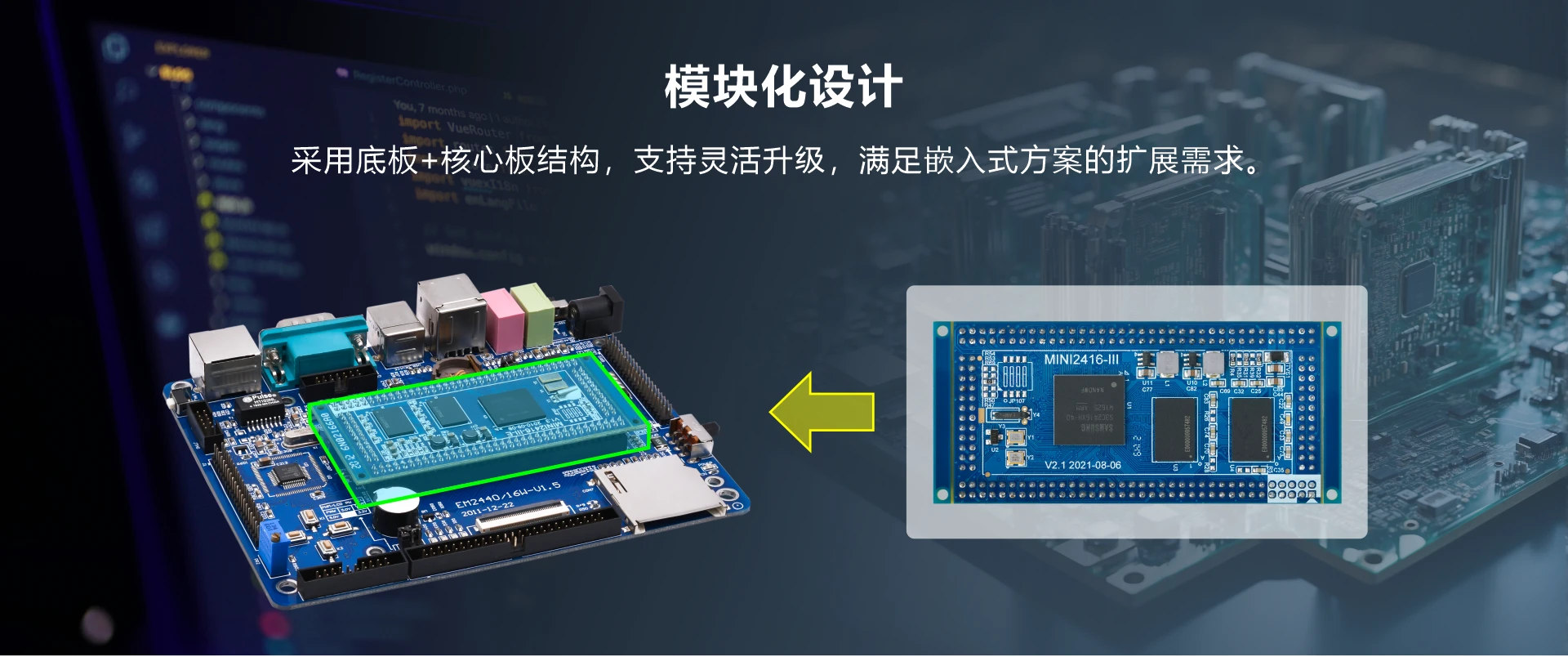

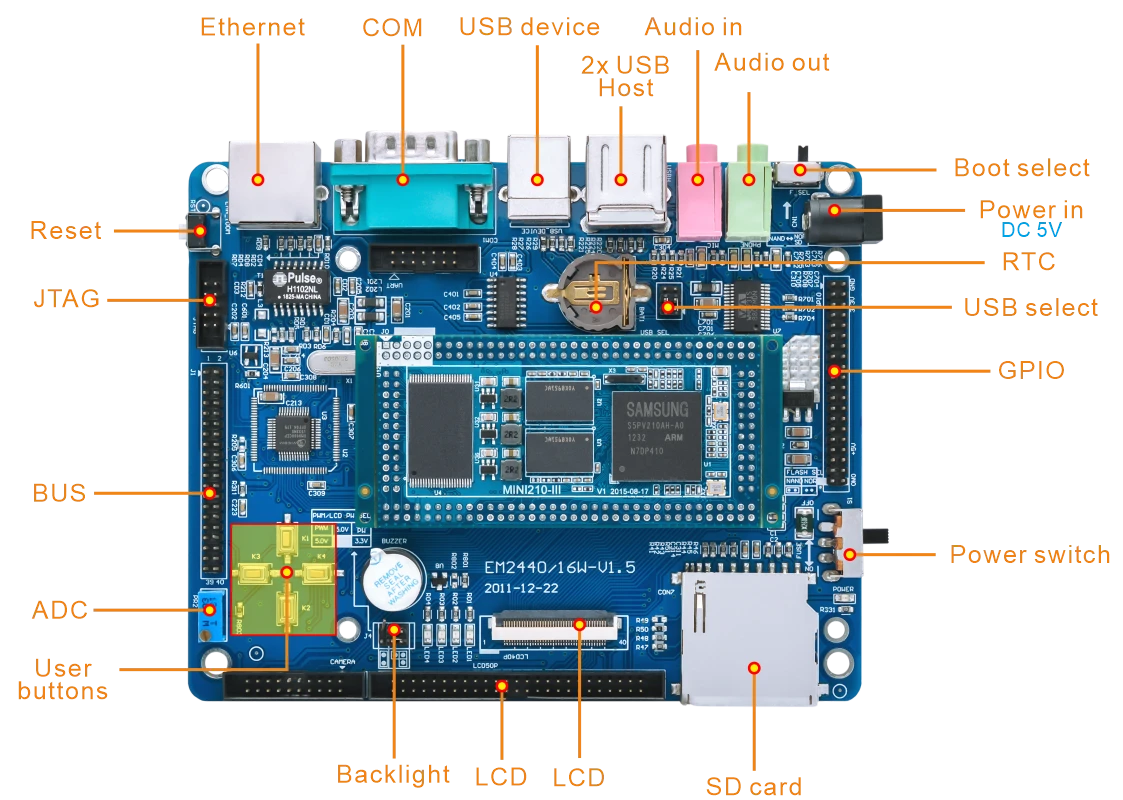

| Connector | DC-2.0mm pitch board-to-board connectors |

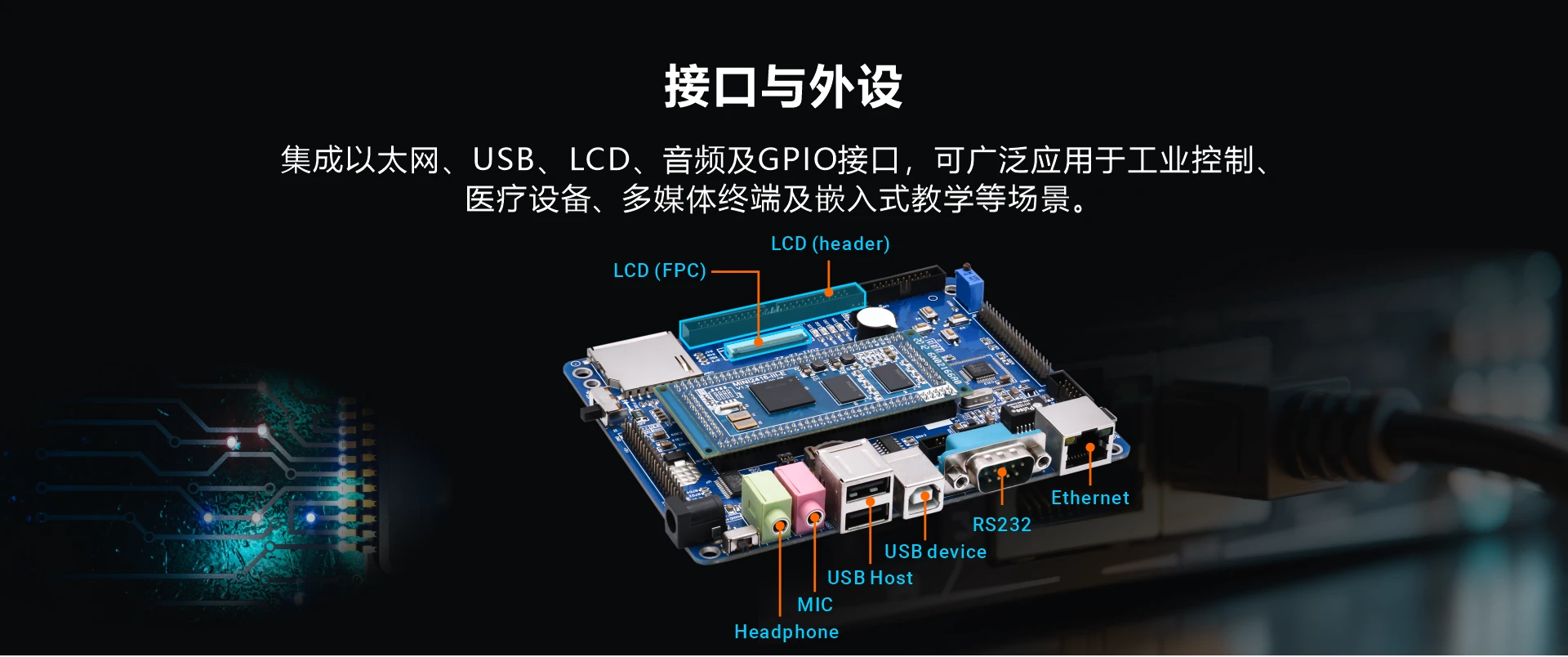

Serial Ports
(UARTs) | - COM-0 - RS232, five-wire DB9 RS232 serial port
- COM-1 - RS232, three-wire available via 2mm pitch 3 pins
- COM-2 - RS232, three-wire available via 2mm pitch 3 pins |
| LCD | 4.3-/ 7- inch TFT LCD with resistor touch screen |
| Ethernet | 10/100 Mbps Ethernet RJ45 port via DM9000EP/DM9000CEP controller |
| USB | 2x USB1.1 Host (or 1x USB1.1 Host, 1x USB2.0 Device) |
| JTAG | 2mm pitch 10-pin JTAG Port |
| Audio codec | WM8731 Audio chip. 3.5mm jack for audio input/output |
| ADC | Adjustable resistor is connected with pins of ADC to check analog/digital change |
| RTC | Real Time Clock, powered by external lithium battery |
| Buzzer | On-board PWM function test unit |
| GPIO | 1 x 40-pin GPIO Expansion Connector |
| BUS | 1 x 40-pin BUS extended interface |
| LED | 4 x Status LED |
| Buttons | 4x User Buttons |
| Power Supply | 5V/2A DC input jack |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 131 x 105 mm; CPU module - 74 x 37 mm |
