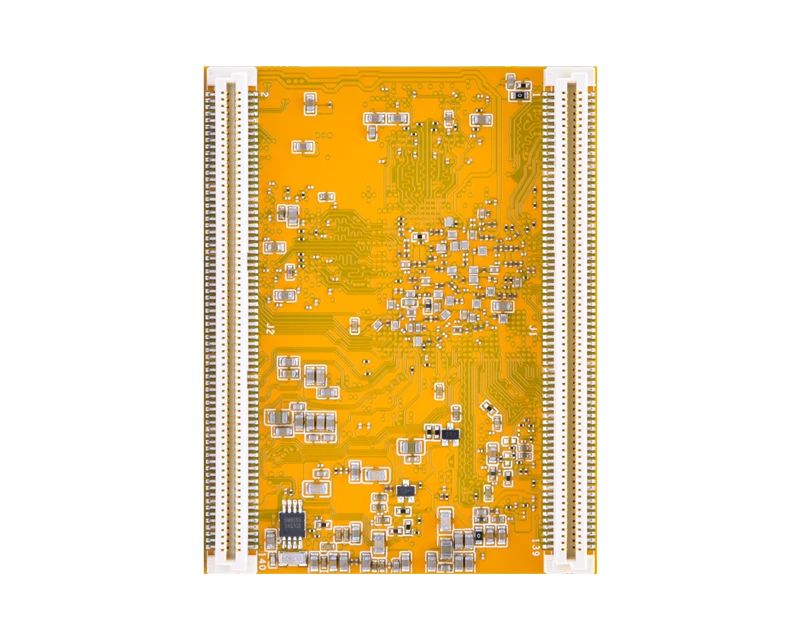

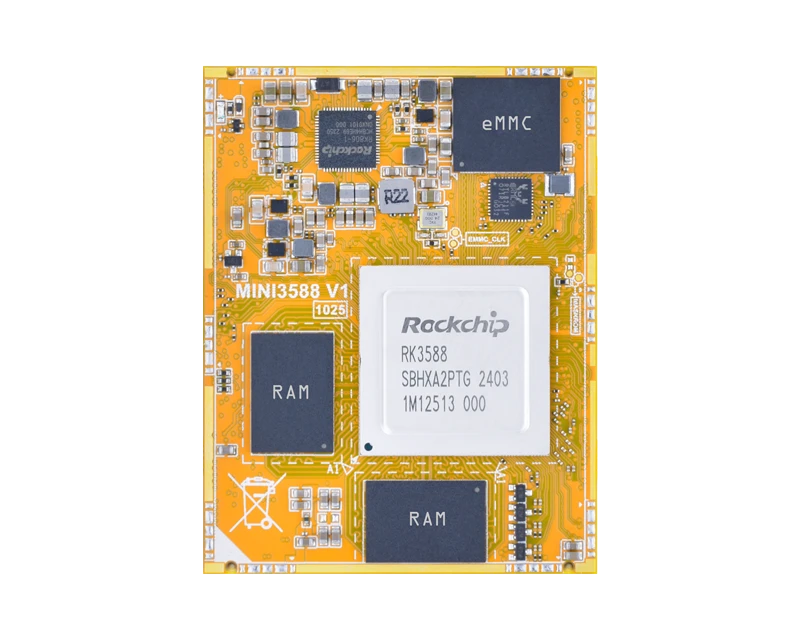

核心板
MINI3588
Highlight
支持工业级/商业级
处理器: Rockchip RK3588(J). 4x Cortex-A76 cores @ 2.4GHz + 4x Cortex-A55 cores @ 1.8GHz
NPU: 6 TOPS
内存: 8GB/16GB
存储: 32GB/64GB/128GB/256GB
引出信号: 3x UART, USB3.1 Type-C, 2x USB2.0 Host, USB3.0 Host, 2x MIPI DPHY TX/RX, eDP, HDMI, 2x MIPI CSI, SDMMC, 2x PCIe3.0, 2x PCIe2.1/SATA3.0, 2x Ethernet, CAN, SPDIF_TX, ADC, PWM, PDM, I2C, I2S, GPIO, etc.
操作系统: Android 14, Debian 12, Buildroot
尺寸规格: 62 x 48 mm
连接方式: 板对板连接。2x 140-pin, 0.8mm间距板对板连接器
工作温度: 商业级 0° to + 80° C; 工业级 -40° to +85° C
| Specifications | |
|---|---|
| Product Grade | Commercial: MINI3588 Industrial: MINI3588J |
| SoC | Rockchip RK3588/RK3588J. 4x Cortex-A76 cores @ 2.4GHz, 4x Cortex-A55 cores @ 1.8GHz |
| GPU | ARM Mali G610 MP4. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPS. Support int4/int8/int16/FP16/BF16/TF32 acceleration |
| Video Codec | VP9 / H.265 / AVS2 decoder, 8K@60fps H.264 / H.265 encoder, 8K@30fps |
| Memory | 8GB/16GB LPDDR4X |
| Storage | - 32GB/64GB/128GB/256GB - Supports SDMMC interface |
| Supply Voltage | DC 5V |
| Ethernet | 1x Gigabit PHY, 1x RGMII/RMII |
| Display | 1x HDMI TX up to 8K@60Hz 1x eDP TX up to 4K@60Hz 1x DP TX (and USB3.0 Combo) up to 8K@30Hz 2x MIPI D/C PHY TX |
| Audio | 1x PDM, 1x I2S, 2x SPDIF_TX |
| Camera | 2x 4-lane MIPI CSI 2x MIPI D/C PHY RX |
| USB | 2x USB 2.0 Host 1x USB 3.0 Host 1x USB 3.1 Type-C |
| PCIe/SATA | 2x PCIe2.1/SATA3.0 2x PCIe3.0 |
| Connectivity | 4x UART, 1x CAN, 5x I2C, 3x PWM |
| PCB Layer | 10 |
| Dimensions | 62 x 48 mm |
| Weight | 20.6 gram |
| Operating Temperature | Commercial: 0° to + 70° C Industrial: -40° to +85° C |
| Connectors | 2x 140-pin, 0.8mm pitch Board-to-Board Connectors (Receptacle) |
| Application | Smart cameras, Robotics, Digital signage, IoT gateways |
| Pin Definition | |||||||
|---|---|---|---|---|---|---|---|
Pin | Signal | Pin | Signal | Pin | Signal | Pin | Signal |
| 1 | SDMMC0_D1 | 2 | GND | 1 | GND | 2 | HDMI0_TX2P |
| 3 | SDMMC0_D0 | 4 | eDP1_TX_AUXN | 3 | HDMI0_TX1P | 4 | HDMI0_TX2N |
| 5 | SDMMC0_CLK | 6 | eDP1_TX_AUXP | 5 | HDMI0_TX1N | 6 | HDMI0_CLKP |
| 7 | SDMMC0_CMD | 8 | eDP1_TX3N | 7 | HDMI0_TX0P | 8 | HDMI0_CLKN |
| 9 | SDMMC0_D3 | 10 | eDP1_TX3P | 9 | HDMI0_TX0N | 10 | GND |
| 11 | SDMMC0_D2 | 12 | eDP1_TX0N | 11 | PCIE30X1_1_WAKEn_M1_L | 12 | HDMITX0_CEC_M0 |
| 13 | TYPEC1_USB20_OTG_DP | 14 | eDP1_TX0P | 13 | PCIE30X1_1_PERSTn_M1_L | 14 | HDMITX0_SDA_M0 |
| 15 | TYPEC1_USB20_OTG_DM | 16 | eDP1_TX1N | 15 | PCIE30x1_1_CLKREQn_M1_L | 16 | HDMITX0_SCL_M0 |
| 17 | USB20_HOST1_DP | 18 | eDP1_TX1P | 17 | SPDIF0_TX_M1 | 18 | SPDIF1_TX_M1 |
| 19 | USB20_HOST1_DM | 20 | eDP1_TX2N | 19 | SATA0_ACT_LED_M0 | 20 | SATA1_ACT_LED_M0 |
| 21 | USB20_HOST0_DP | 22 | eDP1_TX2P | 21 | USB_OTG_PWREN_H_GPIO4_A7 | 22 | PWM9_M2 |
| 23 | USB20_HOST0_DM | 24 | GND | 23 | GPIO4_B0_d | 24 | GPIO3_A6_d |
| 25 | GND | 26 | TYPEC0_SSRX1N | 25 | RECOVERY_SARADC_VIN1 | 26 | UART0_RX_M2 |
| 27 | DP1_TX3P | 28 | TYPEC0_SSRX1P | 27 | SARADC_VIN5 | 28 | UART0_TX_M2 |
| 29 | DP1_TX3N | 30 | TYPEC0_SSTX1N | 29 | GND | 30 | I2C5_SCL_M0 |
| 31 | DP1_TX2P | 32 | TYPEC0_SSTX1P | 31 | PWM15_IR_M1 | 32 | I2C5_SDA_M0 |
| 33 | DP1_TX2N | 34 | TYPEC0_SSRX2N | 33 | GPIO4_B2_U | 34 | GND |
| 35 | DP1_TX1P | 36 | TYPEC0_SSRX2P | 35 | PCIE30X4_WAKEn_M2_L | 36 | PCIE30X2_PERSTn_M2 |
| 37 | DP1_TX1N | 38 | TYPEC0_SSTX2N | 37 | PCIE30X4_CLKREQn_M2_L | 38 | PCIE30x2_CLKREQn_M2 |
| 39 | DP1_TX0P | 40 | TYPEC0_SSTX2P | 39 | PCIE30X4_PERSTn_M2_L | 40 | PCIE30X2_WAKEn_M2 |
| 41 | DP1_TX0N | 42 | GND | 41 | UART7_RX_M1 | 42 | GPIO3_B2_d |
| 43 | DP1_AUXP | 44 | MIPI_DPHY1_TX_D0N | 43 | UART7_TX_M1 | 44 | SATA_CP_POD |
| 45 | DP1_AUXN | 46 | MIPI_DPHY1_TX_D0P | 45 | CAN0_TX_M0 | 46 | GPIO3_B7_d |
| 47 | TYPEC0_USB20_OTG_DM | 48 | MIPI_DPHY1_TX_D1N | 47 | CAN0_RX_M0 | 48 | GPIO3_B7_d |
| 49 | TYPEC0_USB20_OTG_DP | 50 | MIPI_DPHY1_TX_D1P | 49 | GND | 50 | UART2_RX_M0_DEBUG |
| 51 | TYPEC0_USB20_OTG_ID | 52 | MIPI_DPHY1_TX_D2N | 51 | MIPI_CAM3_CLKO_M0_1V8 | 52 | UART2_TX_M0_DEBUG |
| 53 | TYPEC0_USB20_VBUSDET | 54 | MIPI_DPHY1_TX_D2P | 53 | MIPI_CAM4_CLKO_M0_1V8 | 54 | I2C6_SDA_M0 |
| 55 | TYPEC0_SBU1/DP0_AUXP | 56 | MIPI_DPHY1_TX_CLKN | 55 | MIPI_CAM2_CLKO_M0_1V8 | 56 | I2C6_SCL_M0 |
| 57 | TYPEC0_SBU2/DP0_AUXN | 58 | MIPI_DPHY1_TX_CLKP | 57 | PDM1_CLK0_M1_1V8 | 58 | DP1_HPDIN_M0 |
| 59 | MIPI_DPHY1_RX_D0N | 60 | MIPI_DPHY1_TX_D3N | 59 | PDM1_SDI0_M1_1V8 | 60 | SDMMC_DET_1V8 |
| 61 | MIPI_DPHY1_RX_D0P | 62 | MIPI_DPHY1_TX_D3P | 61 | PDM1_SDI1_M1_1V8 | 62 | HDMITX1_HPDIN_M0_1V8 |
| 63 | MIPI_DPHY1_RX_D1N | 64 | MIPI_DPHY0_TX_D0P | 63 | PDM1_SDI2_M1_1V8 | 64 | HDMITX0_HPDIN_M0_1V8 |
| 65 | MIPI_DPHY1_RX_D1P | 66 | MIPI_DPHY0_TX_D0N | 65 | PDM1_SDI3_M1_1V8 | 66 | I2S0_SDI0_1V8 |
| 67 | GND | 68 | MIPI_DPHY0_TX_D1P | 67 | PDM1_CLK1_M1_1V8 | 68 | I2S0_SDO2_SDI3_1V8 |
| 69 | MIPI_DPHY1_RX_CLKN | 70 | MIPI_DPHY0_TX_D1N | 69 | I2C2_SDA_M4_1V8 | 70 | I2S0_SDI1_1V8 |
| 71 | MIPI_DPHY1_RX_CLKP | 72 | MIPI_DPHY0_TX_CLKP | 71 | I2C2_SCL_M4_1V8 | 72 | I2S0_SDO0_1V8 |
| 73 | MIPI_DPHY0_RX_D0P | 74 | MIPI_DPHY0_TX_CLKN | 73 | I2C4_SDA_M3_1V8 | 74 | I2S0_SDO3_SDI2_1V8 |
| 75 | MIPI_DPHY0_RX_D0N | 76 | MIPI_DPHY0_TX_D2P | 75 | I2C4_SCL_M3_1V8 | 76 | I2S0_SDO1_1V8 |
| 77 | MIPI_DPHY0_RX_D1P | 78 | MIPI_DPHY0_TX_D2N | 77 | I2C3_SCL_M0_1V8 | 78 | I2S0_LRCK_RX_1V8 |
| 79 | MIPI_DPHY0_RX_D1N | 80 | MIPI_DPHY0_TX_D3P | 79 | I2C3_SDA_M0_1V8 | 80 | I2S0_LRCK_TX_1V8 |
| 81 | MIPI_DPHY0_RX_CLKP | 82 | MIPI_DPHY0_TX_D3N | 81 | GND | 82 | I2S0_MCLK_1V8 |
| 83 | MIPI_DPHY0_RX_CLKN | 84 | GND | 83 | PCIE30_PORT1_REFCLKN_IN | 84 | I2S0_SCLK_TX_1V8 |
| 85 | GND | 86 | MIPI_CSI1_RX_CLK1P | 85 | PCIE30_PORT1_REFCLKP_IN | 86 | I2S0_SCLK_RX_1V8 |
| 87 | MIPI_CSI1_RX_CLK0P | 88 | MIPI_CSI1_RX_CLK1N | 87 | PCIE30_PORT1_TX1N | 88 | GND |
| 89 | MIPI_CSI1_RX_CLK0N | 90 | MIPI_CSI1_RX_D3P | 89 | PCIE30_PORT1_TX1P | 90 | PCIE20_2_REFCLKN |
| 91 | MIPI_CSI1_RX_D1P | 92 | MIPI_CSI1_RX_D3N | 91 | PCIE30_PORT1_TX0N | 92 | PCIE20_2_REFCLKP |
| 93 | MIPI_CSI1_RX_D1N | 94 | MIPI_CSI1_RX_D2P | 93 | PCIE30_PORT1_TX0P | 94 | USB30_2_SSTXN |
| 95 | MIPI_CSI1_RX_D0P | 96 | MIPI_CSI1_RX_D2N | 95 | PCIE30_PORT1_RX1N | 96 | USB30_2_SSTXP |
| 97 | MIPI_CSI1_RX_D0N | 98 | MIPI_CSI0_RX_CLK1P | 97 | PCIE30_PORT1_RX1P | 98 | USB30_2_SSRXN |
| 99 | GND | 100 | MIPI_CSI0_RX_CLK1N | 99 | PCIE30_PORT1_RX0N | 100 | USB30_2_SSRXP |
| 101 | PHY_MDI3- | 102 | MIPI_CSI0_RX_D3P | 101 | PCIE30_PORT1_RX0P | 102 | PCIE20_1_REFCLKN |
| 103 | PHY_MDI3+ | 104 | MIPI_CSI0_RX_D3N | 103 | GND | 104 | PCIE20_1_REFCLKP |
| 105 | PHY_MDI2- | 106 | MIPI_CSI0_RX_D2P | 105 | PCIE30_PORT0_REFCLKN_IN | 106 | PCIE20_1_RXN/SATA30_1_RXN |
| 107 | PHY_MDI2+ | 108 | MIPI_CSI0_RX_D2N | 107 | PCIE30_PORT0_REFCLKP_IN | 108 | PCIE20_1_RXP/SATA30_1_RXP |
| 109 | PHY_MDI1- | 110 | MIPI_CSI0_RX_CLK0P | 109 | PCIE30_PORT0_TX1N | 110 | PCIE20_1_TXN/SATA30_1_TXN |
| 111 | PHY_MDI1+ | 112 | MIPI_CSI0_RX_CLK0N | 111 | PCIE30_PORT0_TX1P | 112 | PCIE20_1_TXP/SATA30_1_TXP |
| 113 | PHY_MDI0- | 114 | MIPI_CSI0_RX_D1P | 113 | PCIE30_PORT0_TX0N | 114 | PCIE20_0_REFCLKN |
| 115 | PHY_MDI0+ | 116 | MIPI_CSI0_RX_D1N | 115 | PCIE30_PORT0_TX0P | 116 | PCIE20_0_REFCLKP |
| 117 | PHY_LED1/CFG_LDO0 | 118 | MIPI_CSI0_RX_D0P | 117 | PCIE30_PORT0_RX1N | 118 | PCIE20_0_TXN/SATA30_0_TXN |
| 119 | PHY_LED2/CFG_LDO1 | 120 | MIPI_CSI0_RX_D0N | 119 | PCIE30_PORT0_RX1P | 120 | PCIE20_0_TXP/SATA30_0_TXP |
| 121 | GND | 122 | GND | 121 | PCIE30_PORT0_RX0N | 122 | PCIE20_0_RXN/SATA30_0_RXN |
| 123 | GMAC1_TXCLK | 124 | GMAC1_RXDV_CRS | 123 | PCIE30_PORT0_RX0P | 124 | PCIE20_0_RXP/SATA30_0_RXP |
| 125 | GMAC1_TXEN | 126 | GMAC1_RXCLK | 125 | GND | 126 | GND |
| 127 | GMAC1_TXD0 | 128 | GMAC1_RXD0 | 127 | RESET_L | 128 | VCC_1V8 |
| 129 | GMAC1_TXD1 | 130 | GMAC1_RXD1 | 129 | VCC_RTC | 130 | RTC32KOUT_WIFI |
| 131 | GMAC1_TXD2 | 132 | GMAC1_RXD2 | 131 | VCC_3V3 | 132 | PWR_EN |
| 133 | GMAC1_TXD3 | 134 | GMAC1_RXD3 | 133 | GND | 134 | GND |
| 135 | GMAC1_MDIO | 136 | GMAC1_MCLKINOUT | 135 | VCC_SYS | 136 | VCC_SYS |
| 137 | GMAC1_MDC | 138 | UART3_RX_M2 | 137 | VCC_SYS | 138 | VCC_SYS |
| OS | Item | Feature | Description |
|---|---|---|---|
| Android 14 | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.18.113.bin |
| Kernel | Version | Linux 6.1.99 | |
| Drivers | eMMC | eMMC5.1 | |
| LCD | 2x 10.1-inch MIPI LCD, 1280 x 800 | ||
| HDMI | - 2x HDMI2.1, up to 8K@60fps - 1x DP to HDMI2.0, up to 4K@60fps | ||
| Audio | - Headphone input/ output - 2x Speaker | ||
| USB | - 2x USB3.0 Host - 1x USB3.1 Type-C (ADB/USB3.0/DP) | ||
| Ethernet | 2x Ethernet, 10/100/1000 Mbps | ||
| Camera | 8x AHD | ||
| 4G&GPS | EC20 module | ||
| WiFi&BT | - 2T2R 802.11a/b/g/n/ac/ax - Bluetooth5.2 | ||
| SATA | SATA3.0 | ||
| SD | MicroSD | ||
| SerialPort | - 1x Debug (TTL) - 1x UART (RS232) | ||
| RS485 | support | ||
| CAN | support | ||
| RTC | HYM8563 | ||
| Keys | Recovery, Reset, Power/Sleep/Wake_up | ||
| Cross-compiler Environment | Ubuntu 22.04/openjdk11.0.4 | ||
| Tools | Debug | SecureCRT, ADB | |
| upgrade | AndroidTool.exe | ||
| OS | Item | Feature | Description |
|---|---|---|---|
| Debian 12 Buildroot | Boot | U-Boot 2017.09 | rk3588_spl_loader_v1.18.113.bin |
| Kernel | Version | Linux 6.1.99 | |
| Drivers | eMMC | eMMC5.1 | |
| LCD | 2x 10.1-inch MIPI LCD, 1280 x 800 | ||
| HDMI | - 2x HDMI2.1, up to 8K@60fps - 1x DP to HDMI2.0, up to 4K@60fps | ||
| Audio | - Headphone input/ output - 2x Speaker | ||
| USB | - 2x USB3.0 Host - 1x USB3.1 Type-C (ADB/USB3.0/DP) | ||
| Ethernet | 2x Ethernet, 10/100/1000 Mbps | ||
| Camera | 8x AHD | ||
| 4G&GPS | EC20 module | ||
| WiFi&BT | - 2T2R 802.11a/b/g/n/ac/ax - Bluetooth 5.2 | ||
| SATA | SATA3.0 | ||
| SD | Micro SD | ||
| Serial Port | - 1x Debug (TTL) - 1x UART (RS232) | ||
| RS485 | support | ||
| CAN | support | ||
| RTC | HYM8563 | ||
| Keys | Recovery, Reset, Power/Sleep/Wake_up | ||
| Cross-compiler Environment | Ubuntu 22.04 | ||
| Tools | Debug | SecureCRT, ADB | |
| upgrade | AndroidTool.exe | ||
-
