处理器: Allwinner H6. Quad-core ARM Cortex-A53, 1.5GHz

内存: 1GB/2GB

存储: 4GB/8GB/16GB/32GB/64GB/128GB

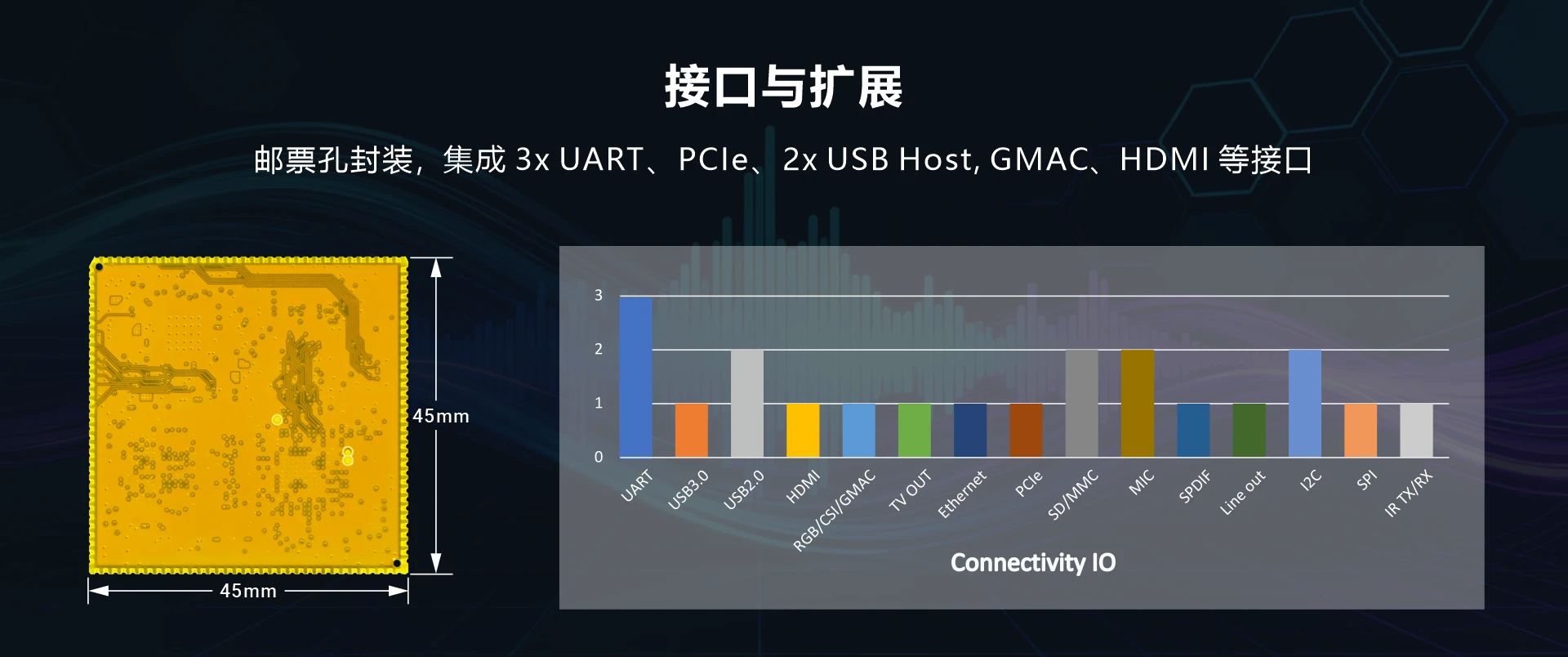

引出信号: 3x UART, USB3.0 Host, USB2.0 Host, USB2.0 OTG, HDMI TX, RGB/CSI/GMAC, CVBS, Ethernet, PCIe, SDIO, SDMMC, MIC, SPDIF, Line out, I2C, SPI, ADC, PWM, IR, GPIO, etc.

操作系统: Android 7.0

尺寸规格: 45 x 45 mm

连接方式: 138-pin, 1.25mm间距邮票孔

工作温度: -20° to +70° C
