| Specifications |
|---|
| SoC | Rockchip RV1126B-P. Quad-coreCortex-A53 @ 1.6GHz |
| NPU | 3 TOPS |
| Memory | 2GB/4GB |
| Storage | 8GB/16GB/32GB/64GB/128GB/256GB eMMC
MicroSD card slot |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB2.0 OTG, 1x USB2.0 Host |

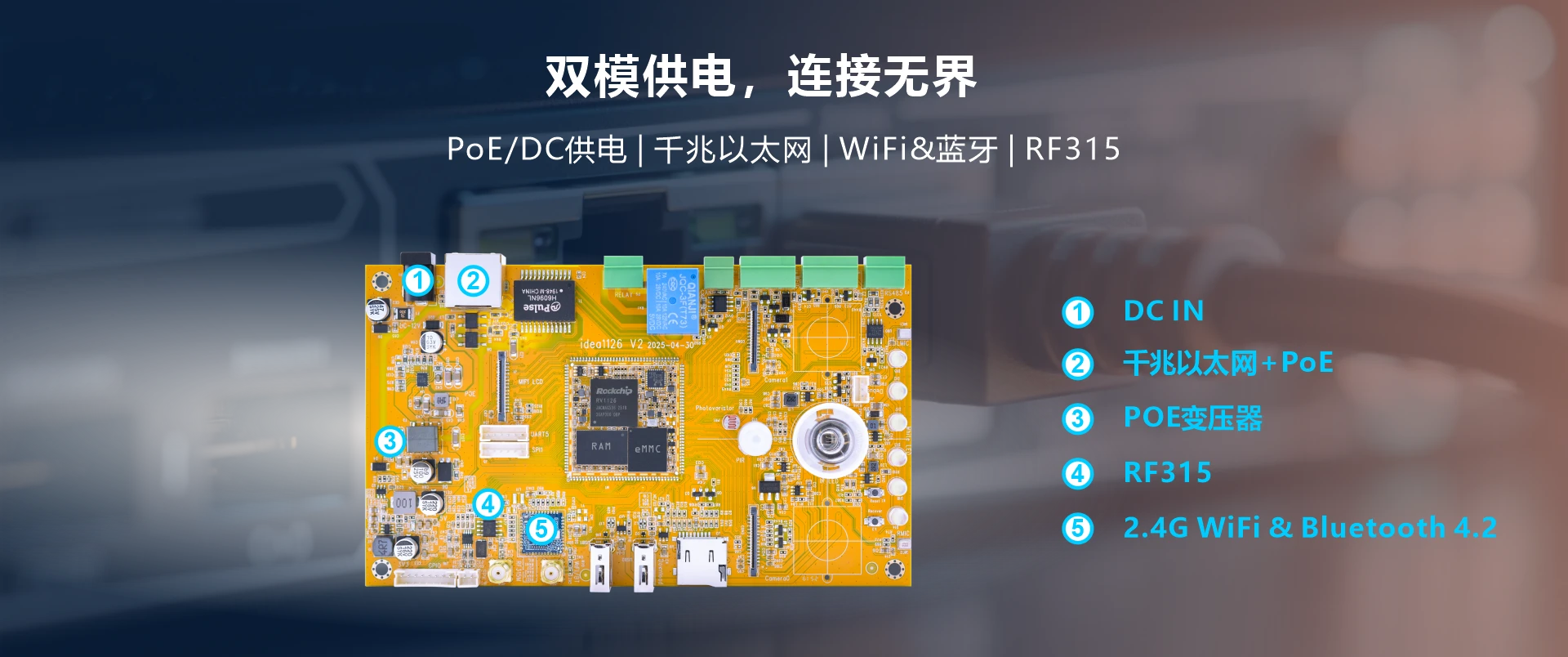

| Connectivity | Gigabit Ethernet RJ45 ports via Realtek RTL8211F-CG controller
2.4G WiFi (802.11b/g/n) with Bluetooth 4.2 |
| Serial | 1x Serial port for debug, 3-pin connector
1x UART, 4-pin connector
1x RS485, 3-pin connector |
| Display | MIPI DSI, 26-pin header |
| Audio | 1x Speaker (2-pin connector), 2x Digital MEMS MIC |

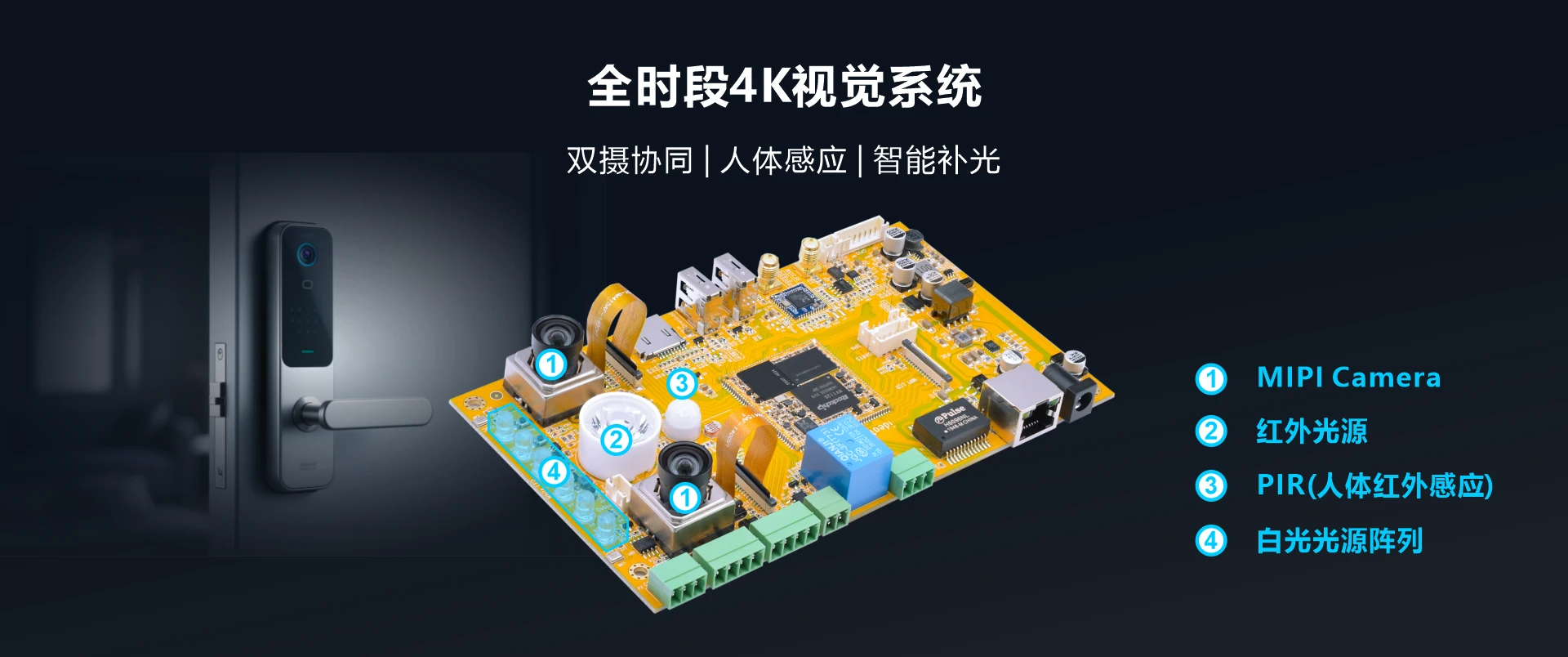

| Camera(optional) | 2x MIPI Cameras, 24-pin FPC connector |
| Keys | Recover, Power |
| Other features | RTC battery, GPIO, SPI, CAN, PIR, IR LED, White LED, Relay, Wiegand, Photovaristor |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board - 162 x 95 mm; CPU module - 35 x 34 mm |
