| Specifications |
|
|---|
| SoC | Rockchip RK3576 Octa-core ARM processor.
4x Cortex-A72 cores @ 2.2GHz, 4x Cortex-A53 cores @ 1.8GHz |
|
| MCU | Single core ARM Cortex-M0 |
|
| NPU | 6 TOPS |
|
| GPU | ARM Mali G52 MC3 with support for OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.0, Vulkan 1.1 |
|

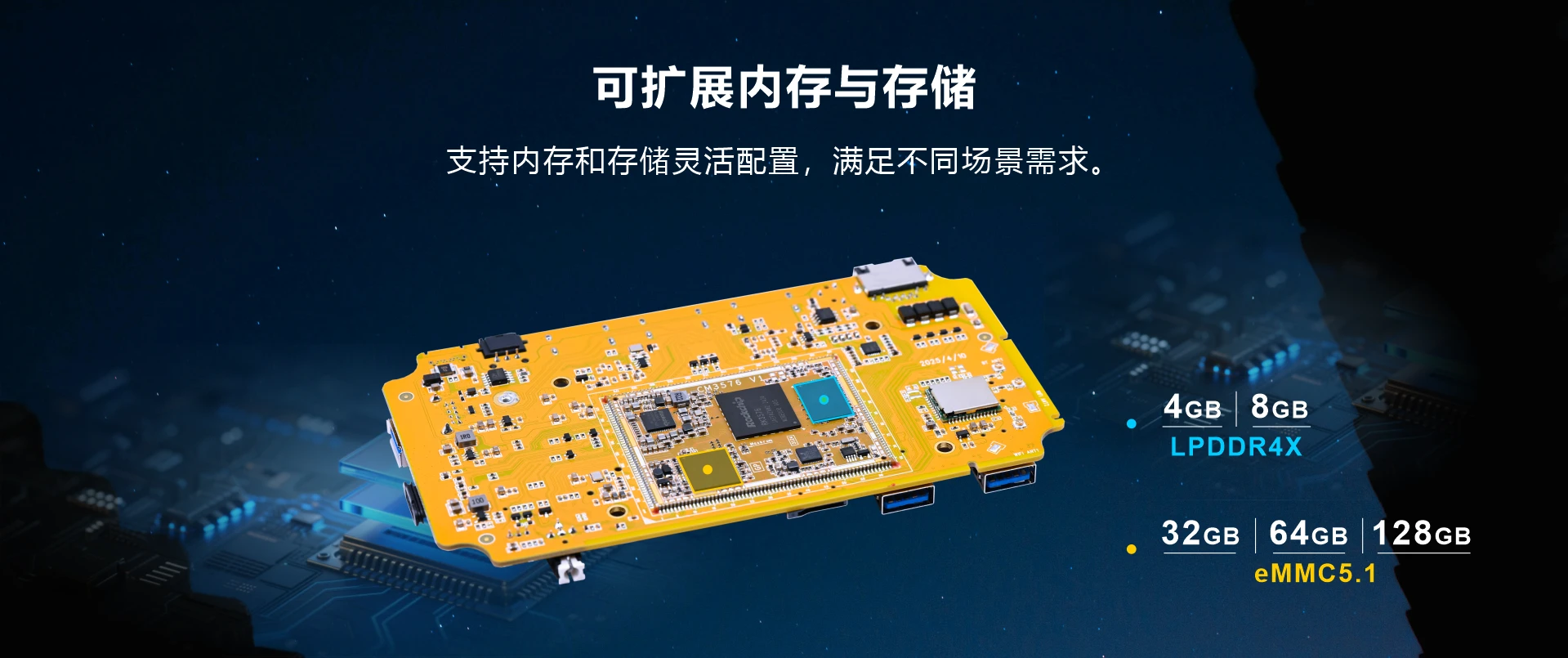

| Memory | 4GB/8GB |
|
| Storage | - 32GB/64GB/128GB eMMC
- Micro SD slot
- M.2 socket |
|
| Power Supply | 12V DC via USB-C connector (minimum 3A) |
|

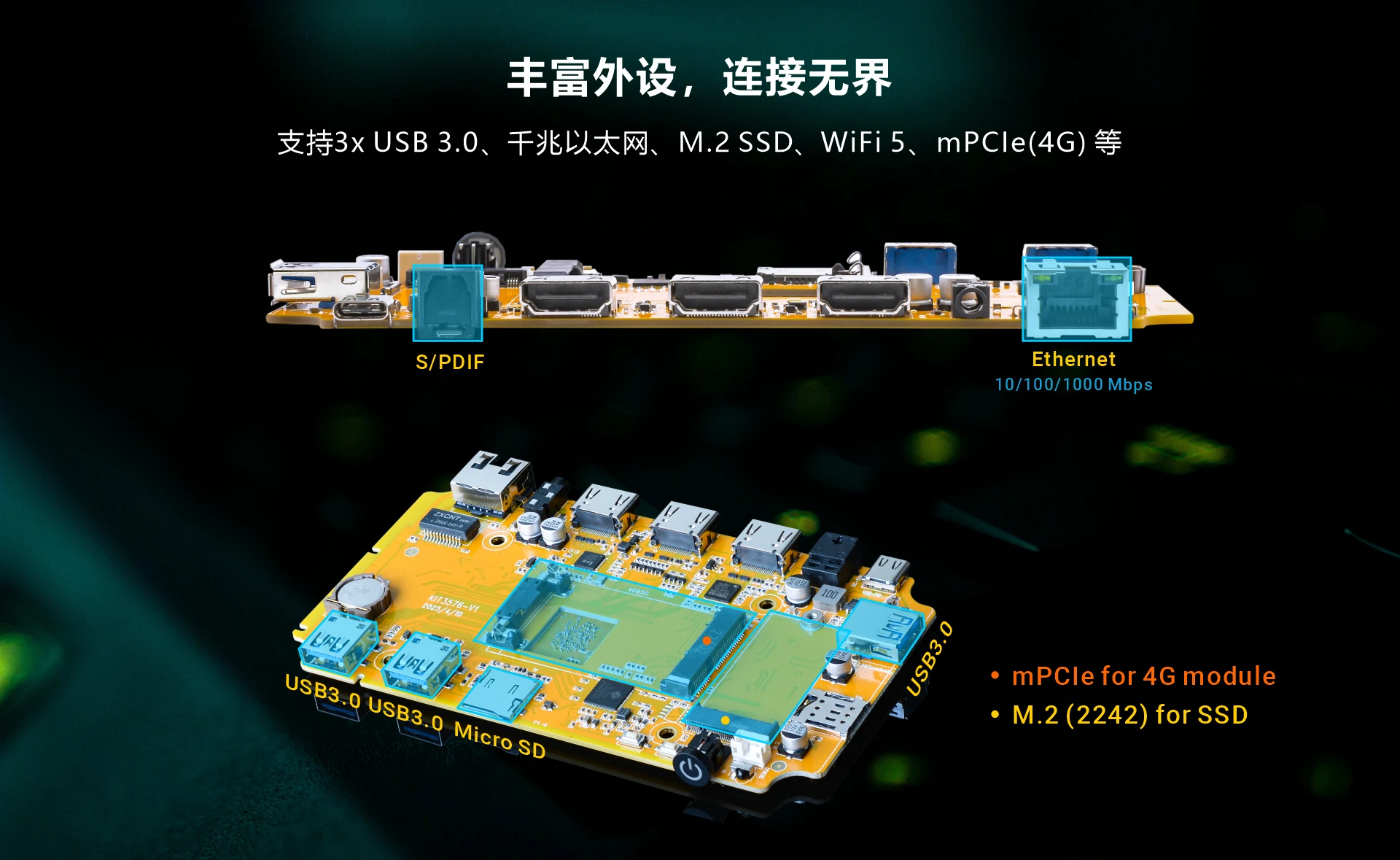

| USB | - 2x USB 3.0 Host, Type-A
- 1x USB OTG/Host (Type-A, USB 3.0) |
|
| Connectivity | - 10/100/1000 Mbps Ethernet RJ45 port via Realtek RTL8211F-CG controller
- 2.4G/5G 2T2R WiFi (802.11a/b/g/n/ac) with Bluetooth 5.0
- mPCIe socket with Nano SIM card port to support 4G LTE Module |
|
| Serial Port | Debug, 3-pin connector |
|

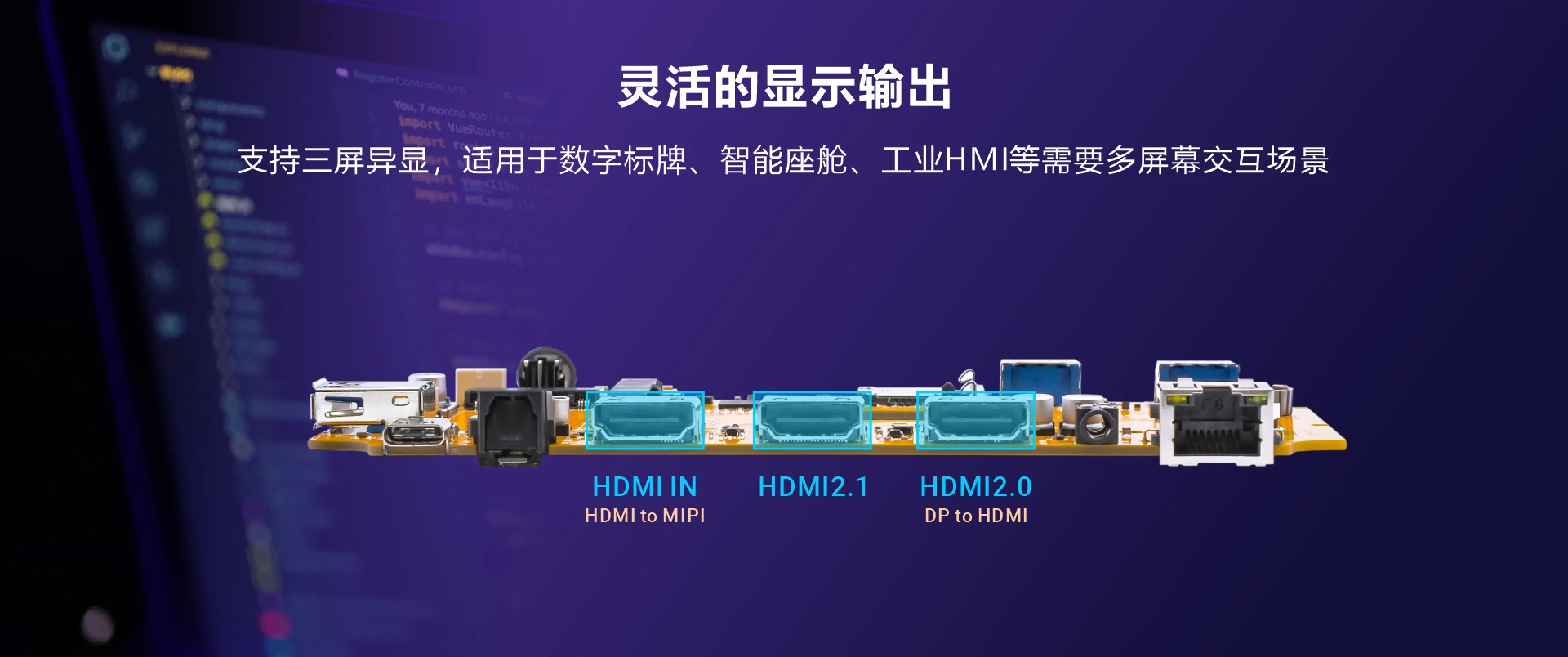

| Video | Output | HDMI2.1, up to 4Kp120
DP to HDMI2.0 |
|
| Input | HDMI IN (HDMI to MIPI CSI) |
|
| Audio | 3.5mm audio jack for Audio out
S/PDIF out
8-channel audio via HDMI |
|
| Keys | Reset, Recovery, Power |
|
| Other features | RTC with battery connector, IR |
|
| Operating Temperature | 0° to + 70° C |
|

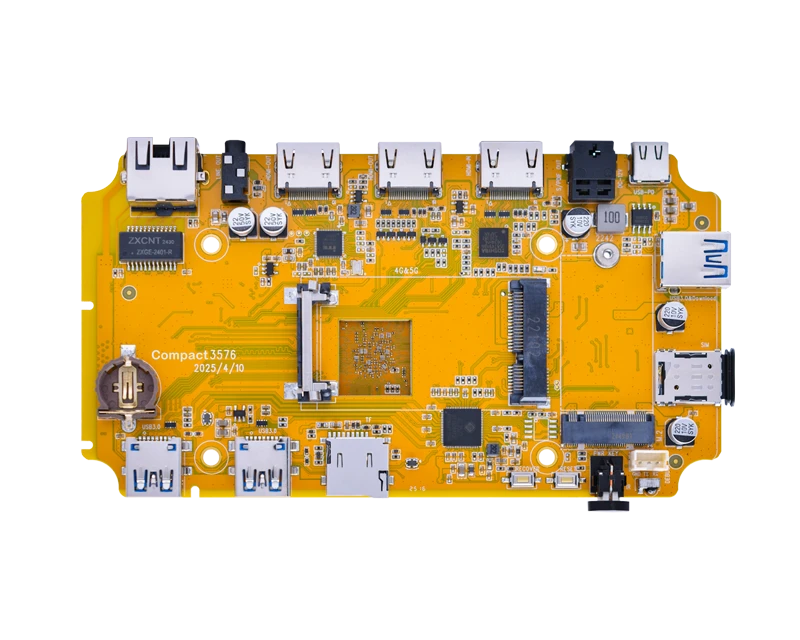

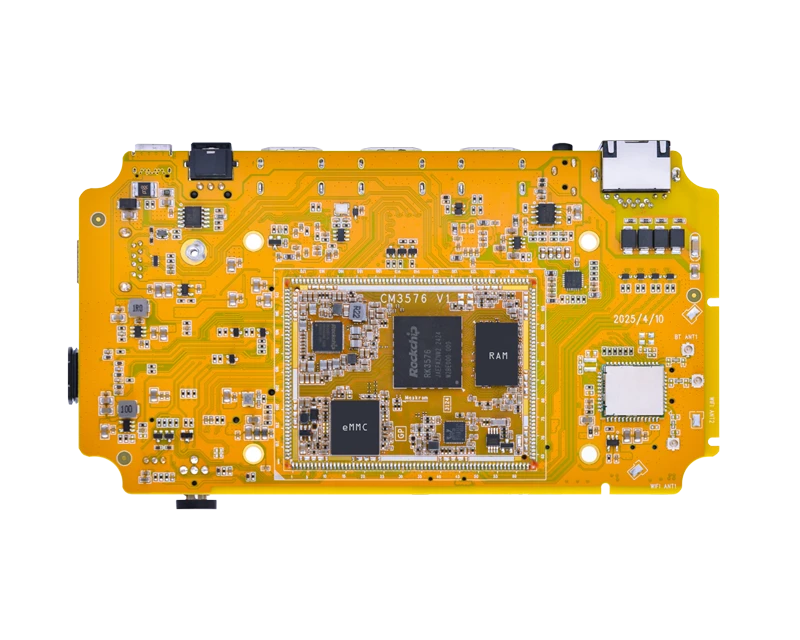

| Dimensions | Based board – 152.5 x 83 mm; CPU module – 57.5 x 44.0 mm |
|
