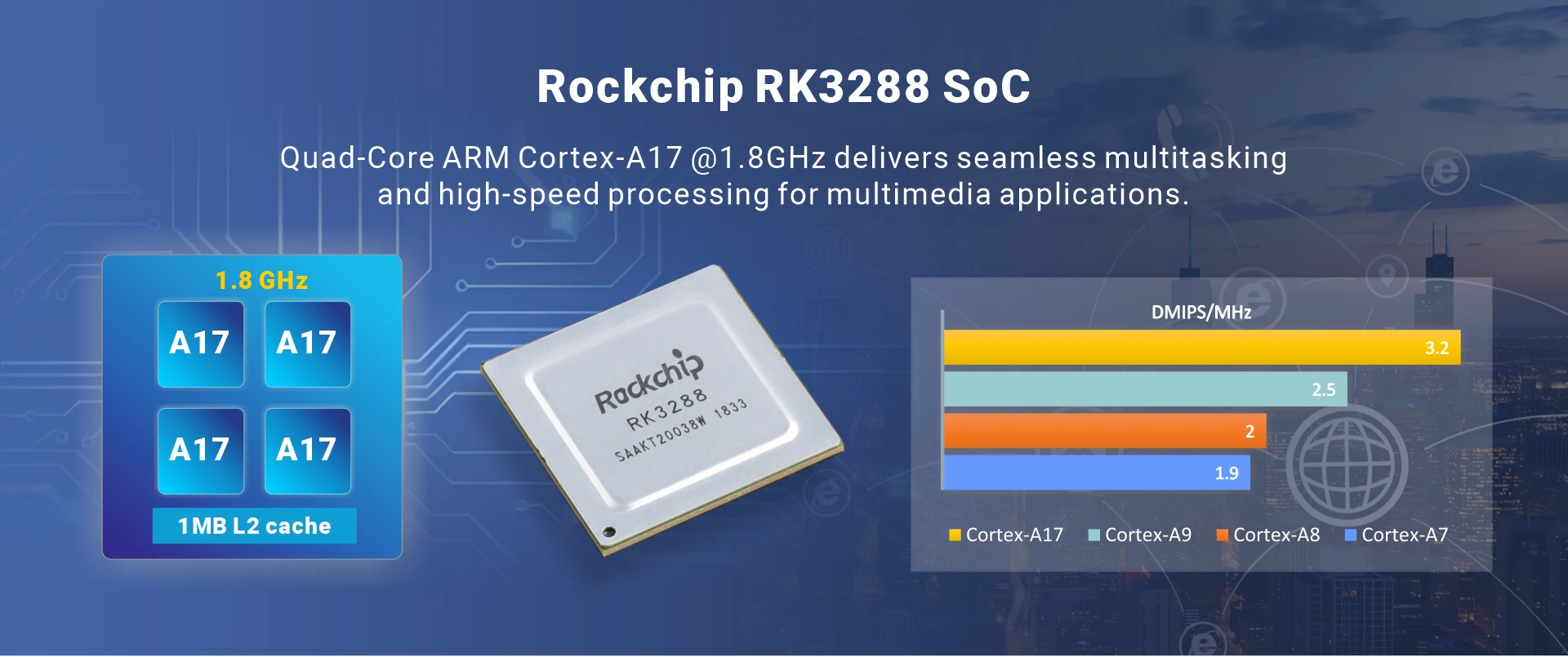

Processor: Rockchip RK3288(K). Quad-core ARM Cortex-A17, 1.8GHz

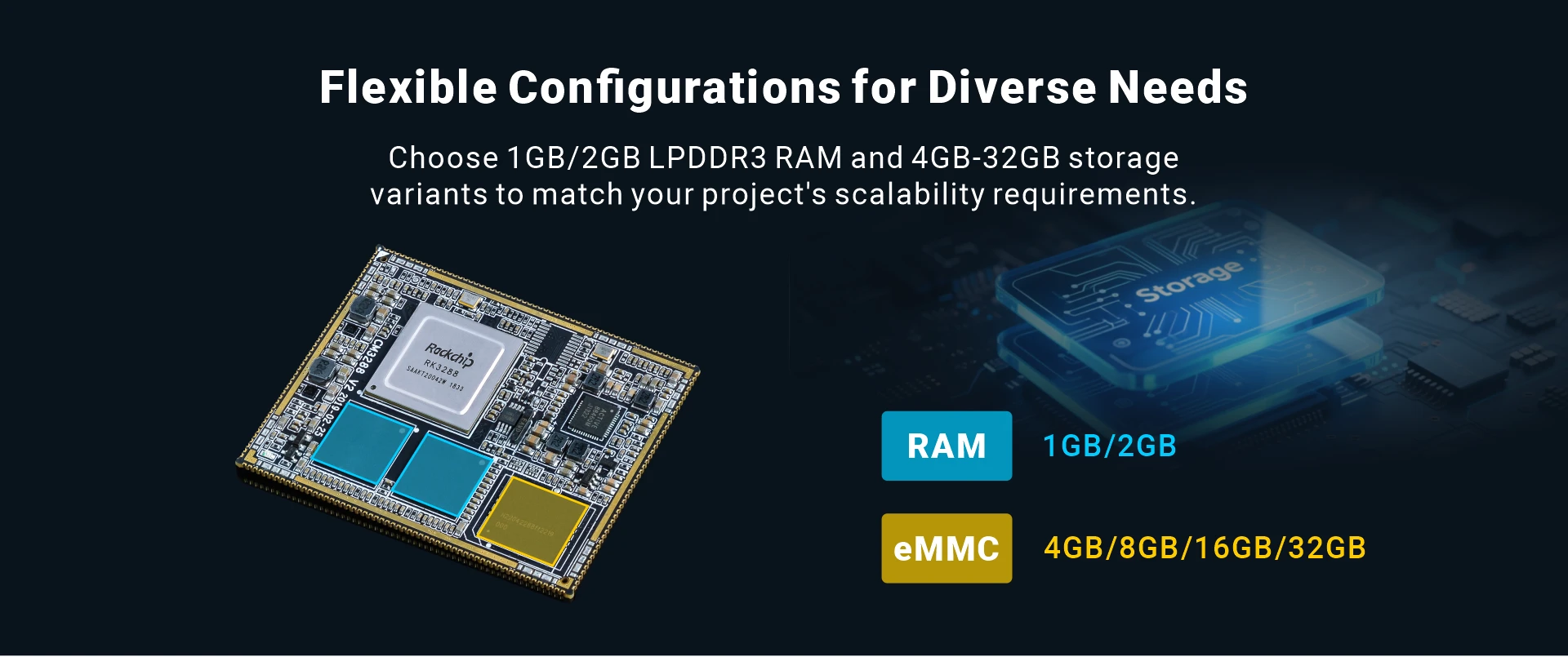

RAM: 1GB/2GB

Storage: 4GB/8GB/16GB/32GB

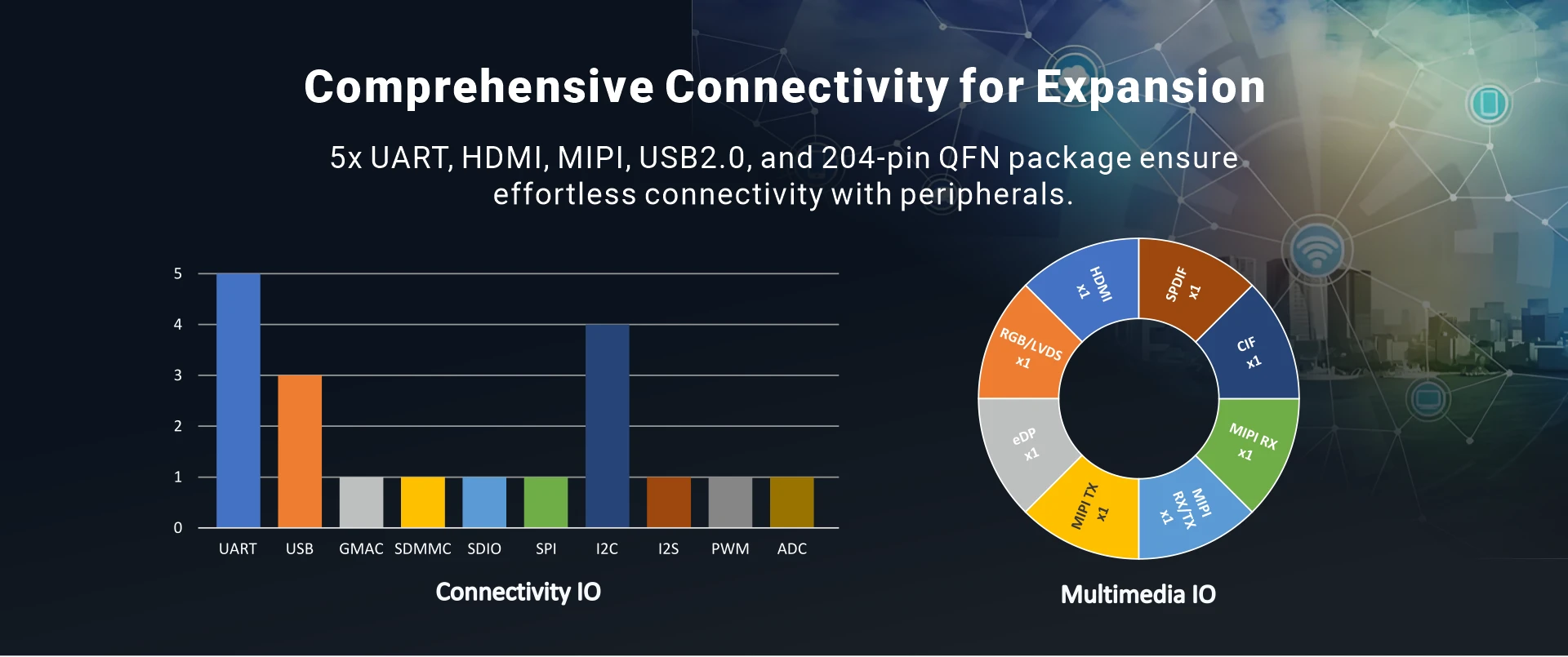

Pin out: 5x UART, 2x USB2.0 Host, USB2.0 OTG, RGB/LVDS, MIPI RX, MIPI TX, MIPI TX/RX, eDP, HDMI TX, CIF, GbE, SDIO, SDMMC, SPI, I2C, I2S, PWM, ADC, SPDIF, GPIO, etc.

Operating System: Android 9, Android 7.1.2

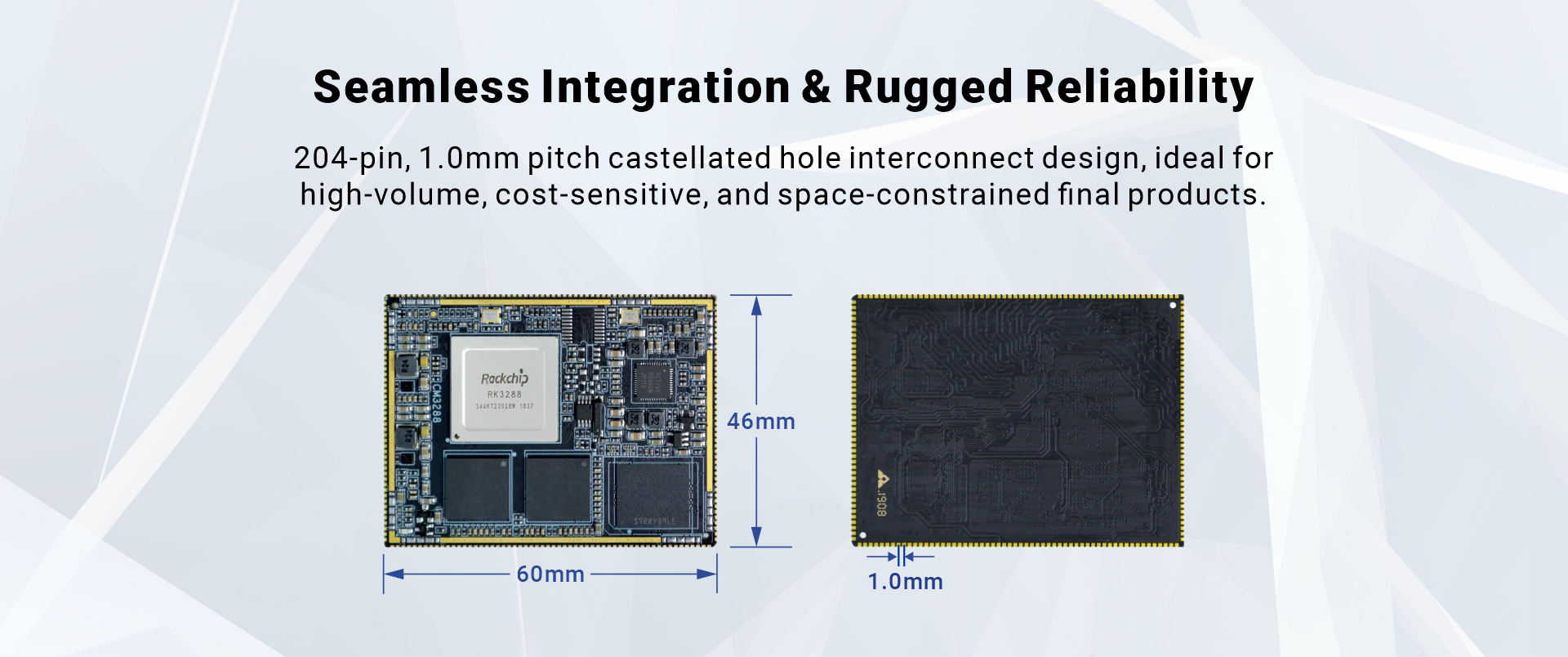

Dimensions: 60 x 46 mm

Package: 204-pin, 1.0mm pitch QFN

Operating Temperature: Commercial 0° to + 80° C; Extended Commercial -20° to +85° C
