Single Board Computer
EM3568
Highlight

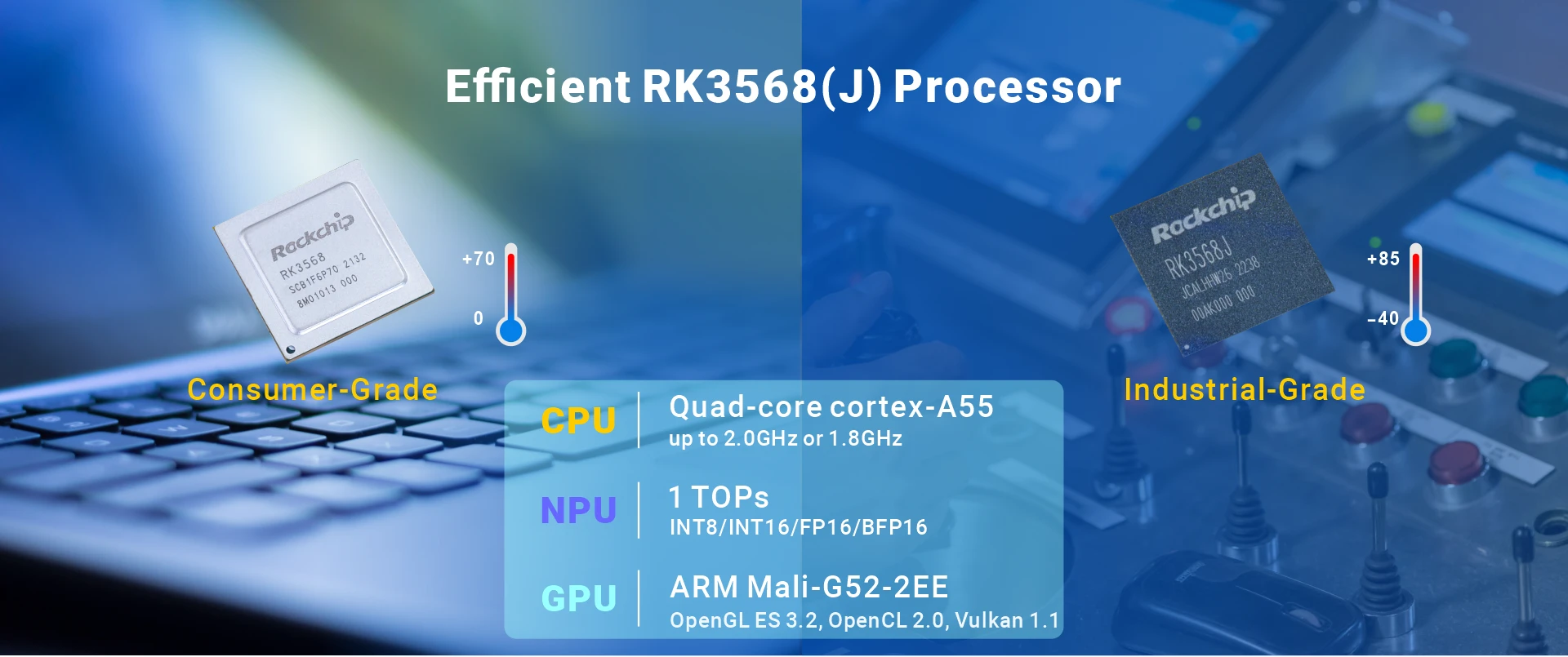

Processor: Rockchip RK3568. Quad-core Cortex-A55, up to 2.0GHz
NPU: 1 TOPS
RAM: 1GB/2GB/4GB/8GB
Storage: 8GB/16GB/32GB/64GB/128GB

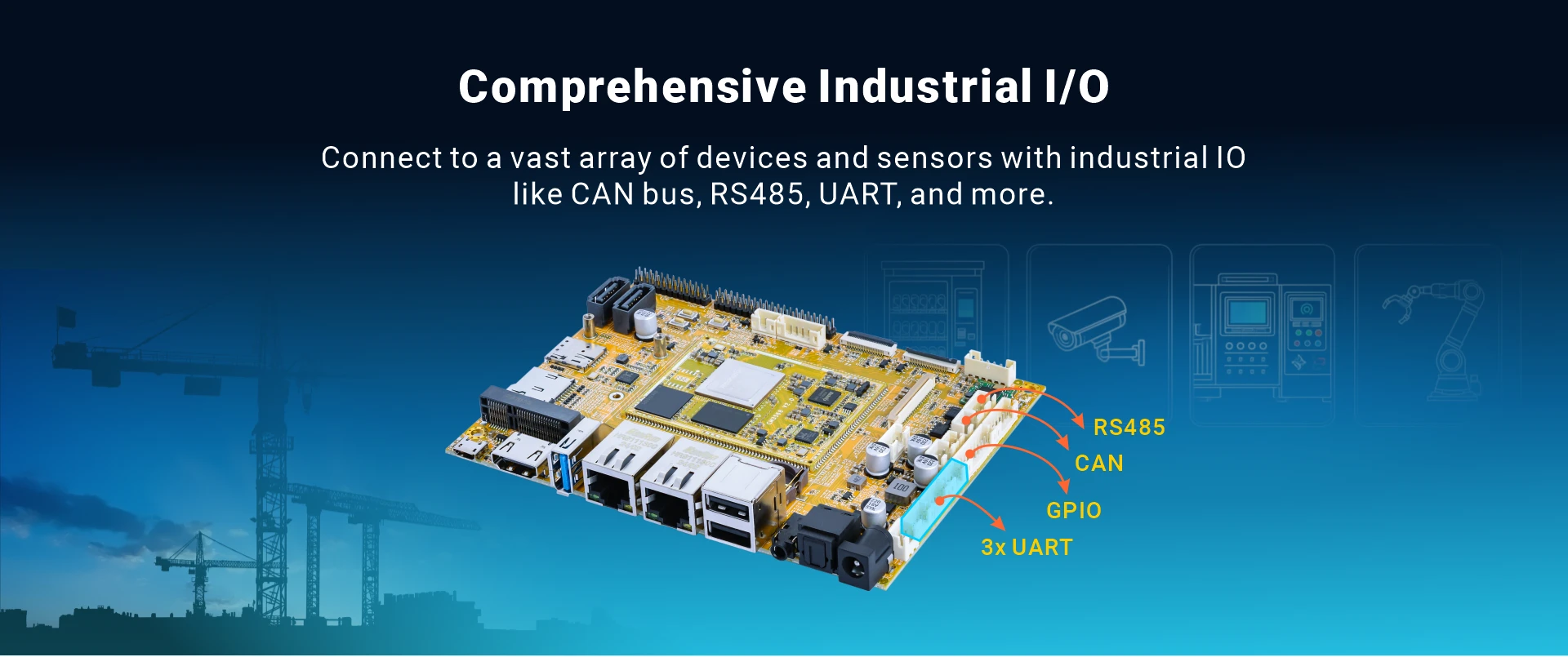

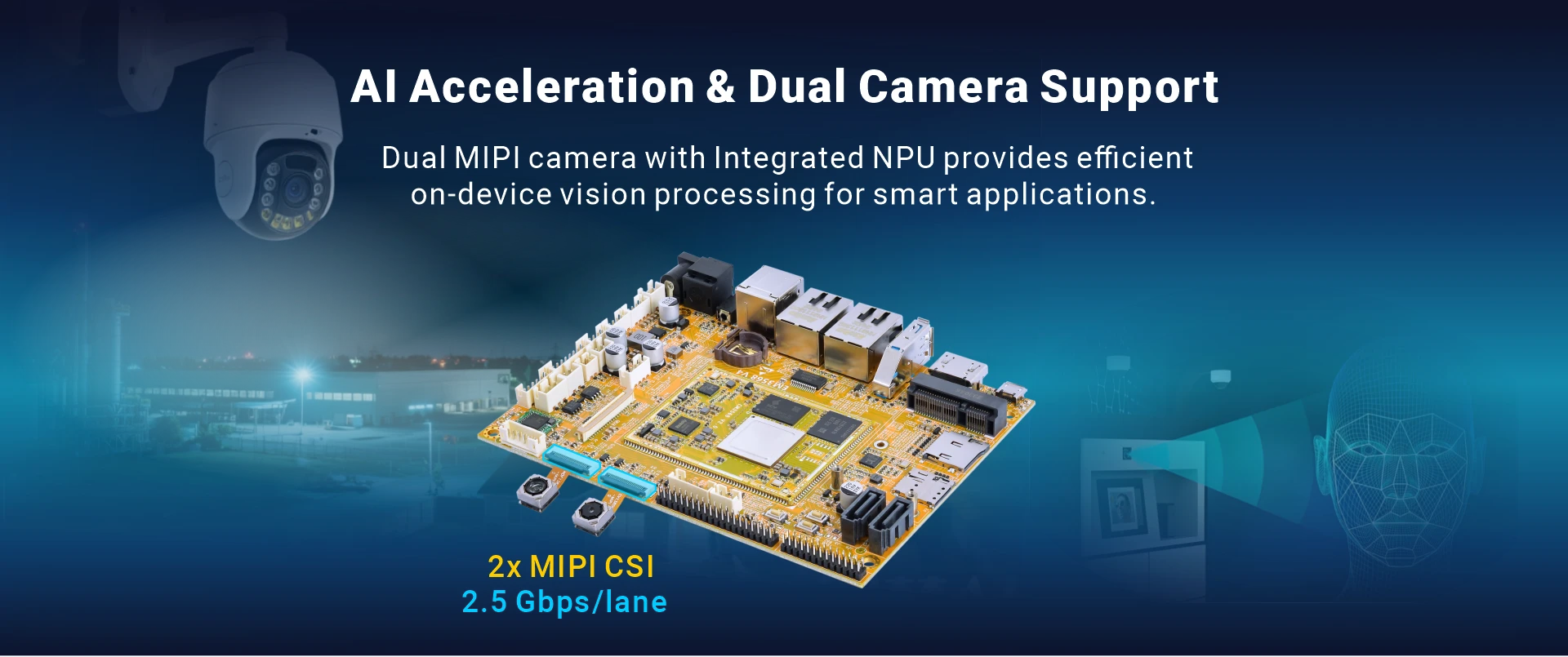

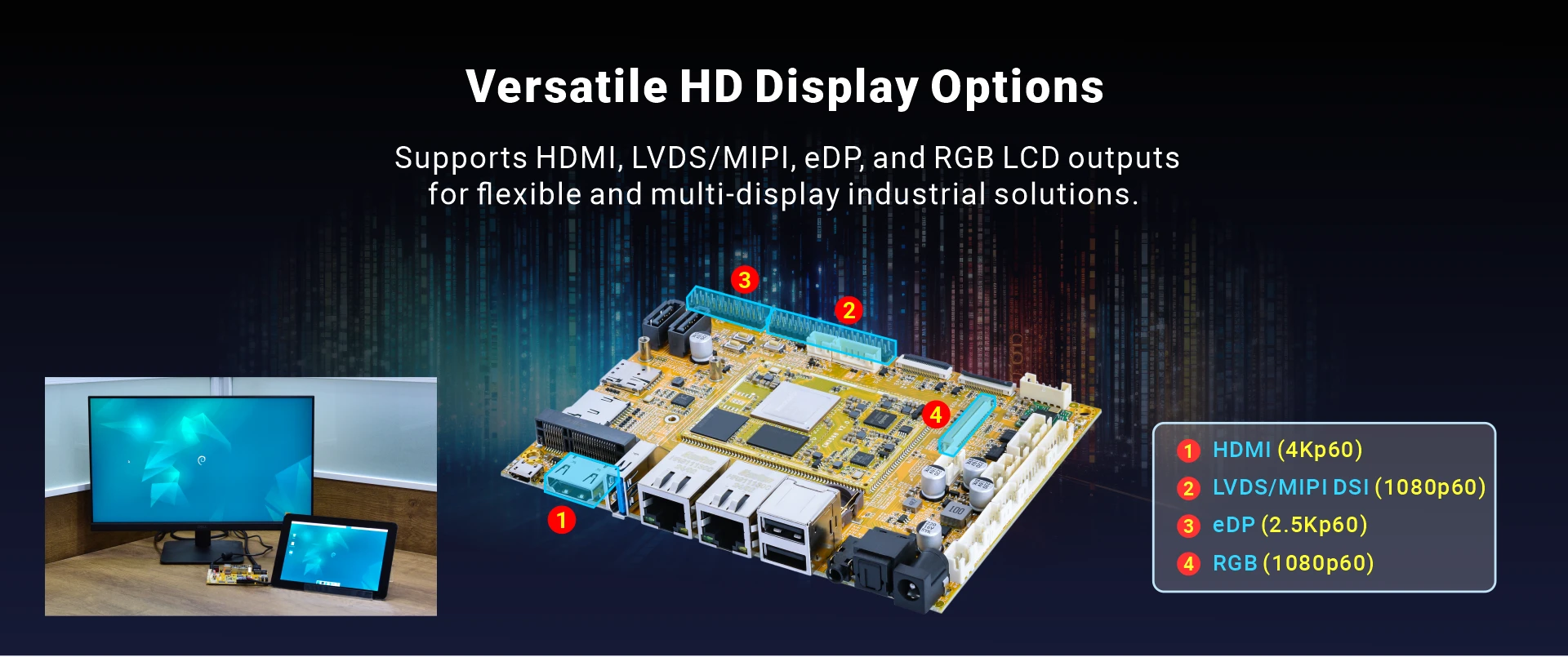

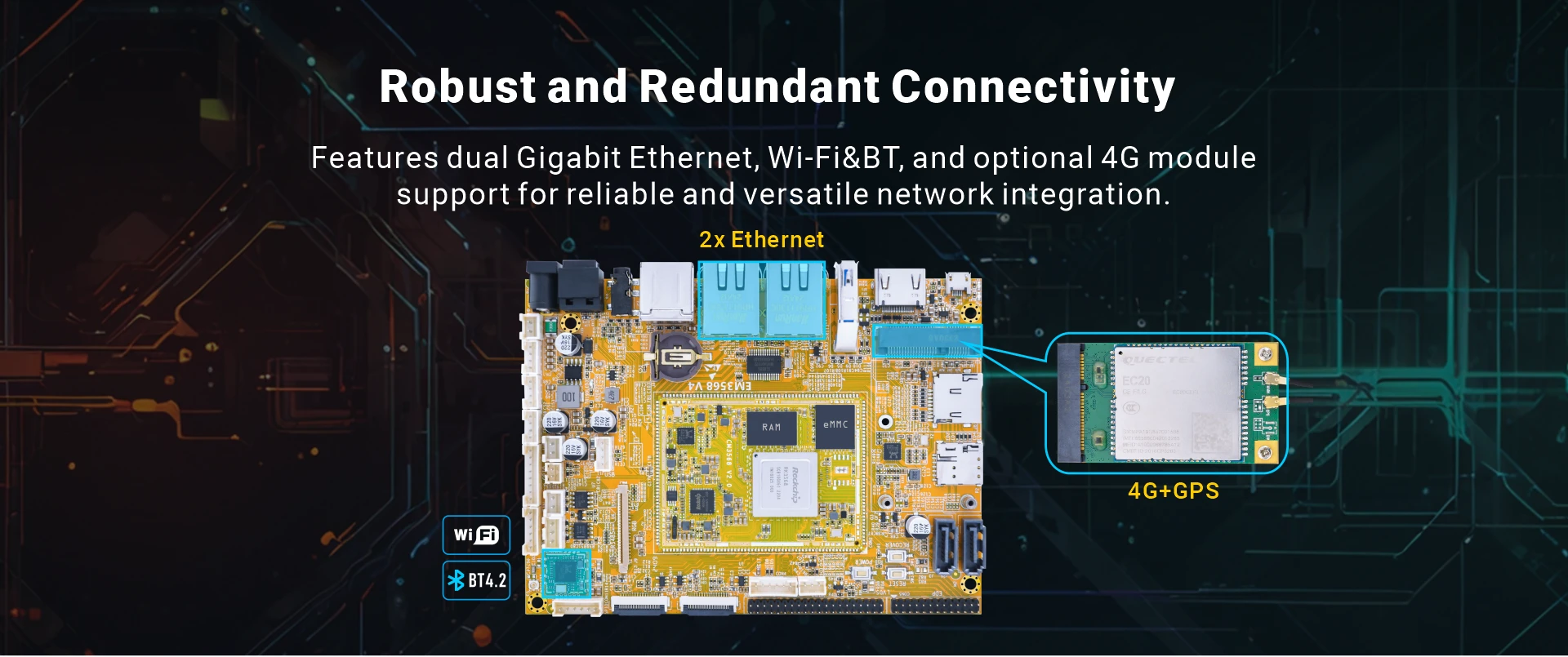

Interfaces: 3x UART, Debug, CAN, RS485, USB3.0 Host, 3x USB2.0 Host, USB2.0 OTG, 2x Gigabit Ethernet, HDMI, SATA3.0, MIPI DSI/LVDS, LCD(RGB), eDP, 2x MIPI Camera, GPIO, SD, PCIe, Audio I/O, etc.
Operating System: Android 14, Debian 12, Buildroot
Dimensions: 135 x 100 mm
Operating Temperature: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
OV13850
PureCel™ image sensor
1.12 μm x 1.12 μm pixel
optical size of 1/3.06"
13.2MP at 30 fps -
10.1-inch LVDS
1280 x 800 pixels
16.7M colors
LVDS interface -
7-inch LVDS
1024 x 600 pixels
262K colors
LVDS interface
