Home > Products > Card Size Board > Compact3566

Card Size Board

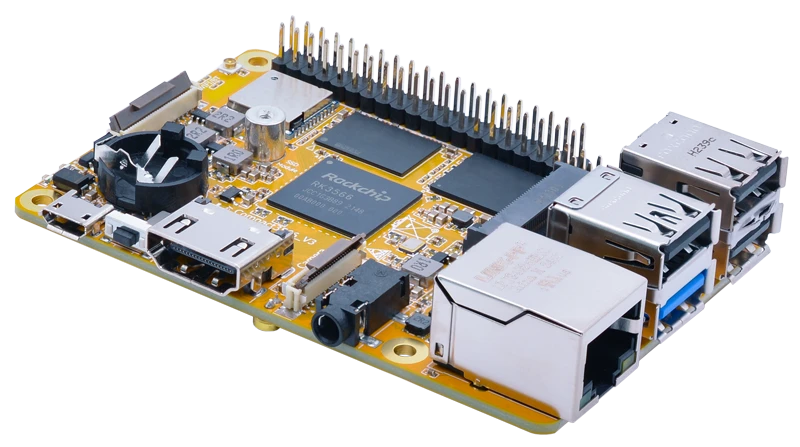

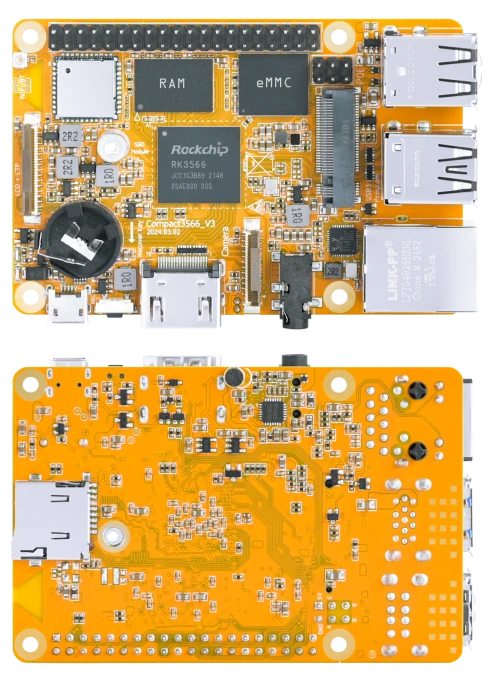

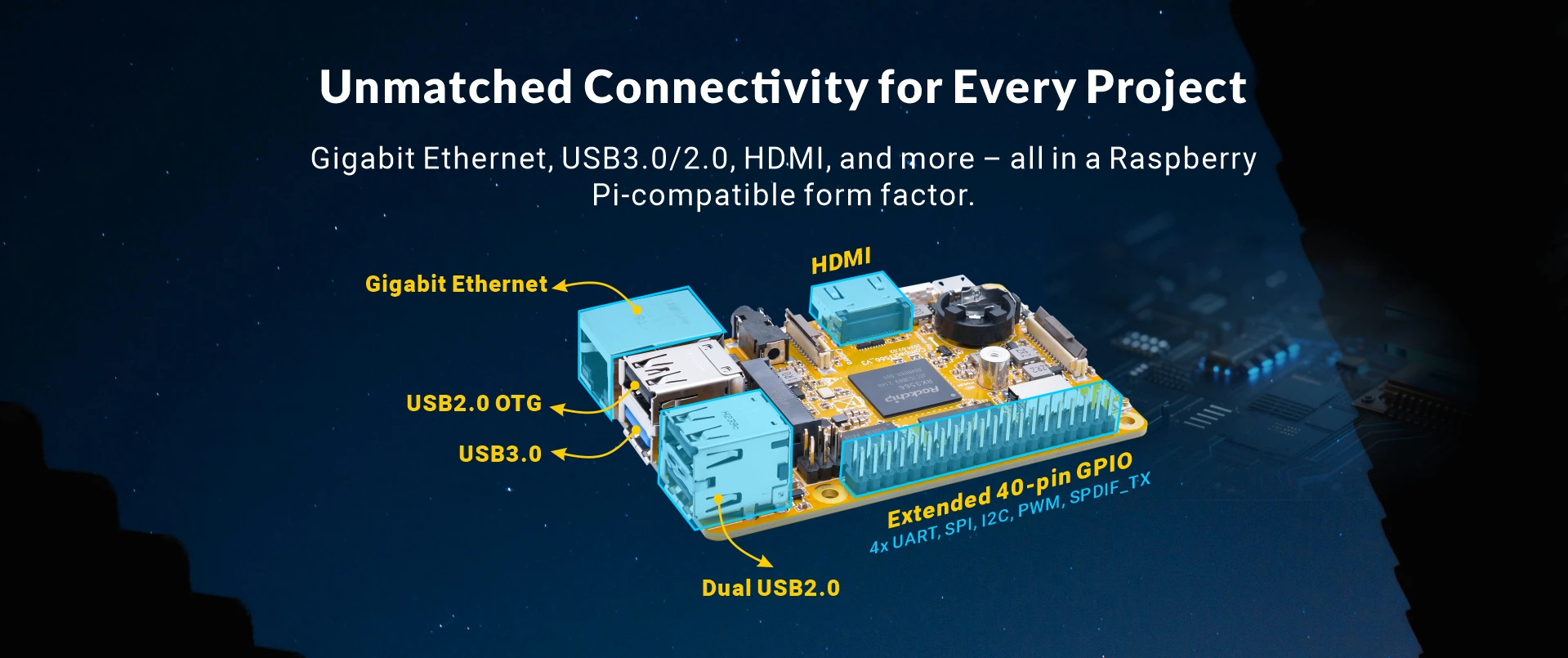

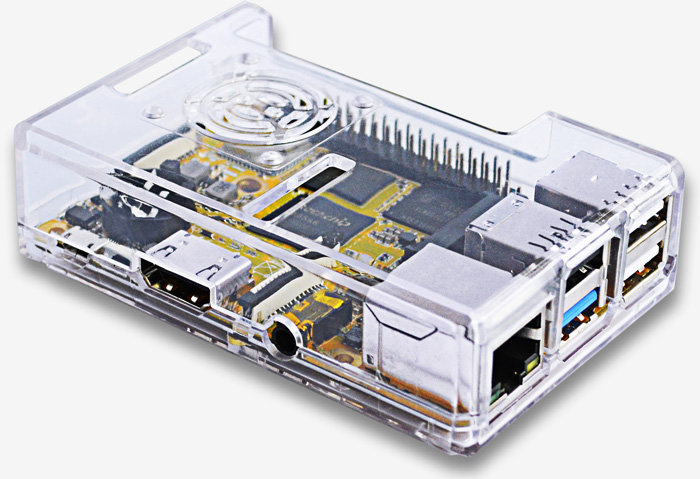

Compact3566

Highlight

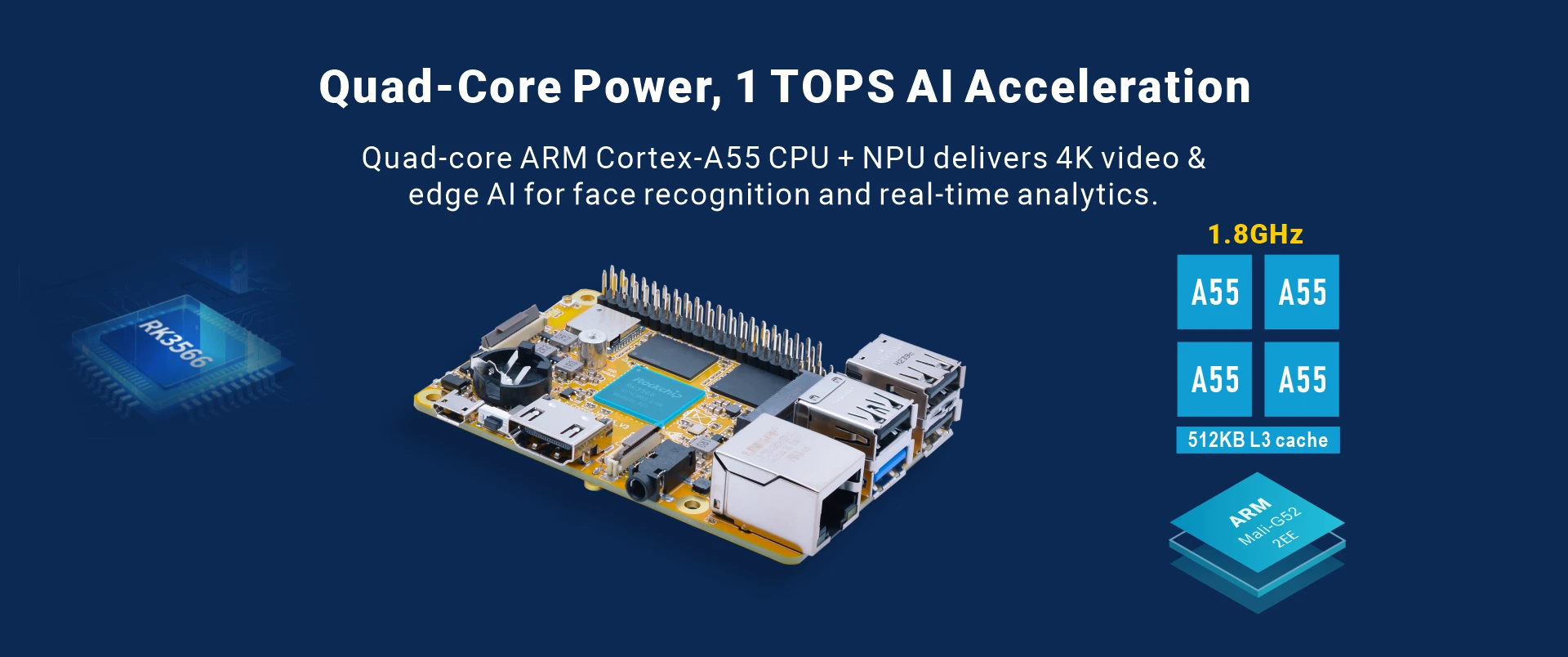

Processor: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
NPU: 1 TOPS
RAM: 2GB/4GB/8GB
Storage: 8GB/16GB/32GB/64GB/128GB
Interfaces: 4x UART, 2x USB2.0 Host, USB3.0, USB2.0 OTG, LVDS/MIPI_DSI, MIPI_CSI, Ethernet, HDMI, Audio I/O, SD, M.2, GPIO, SPI, I2C, etc.
Operating System: Android 14, Debian 12, Buildroot
Dimensions: 85 x 56 mm
Operating Temperature: 0° to + 70° C

Contact Us

Overview Hardware Software Resources Support Accessories

Compact3566

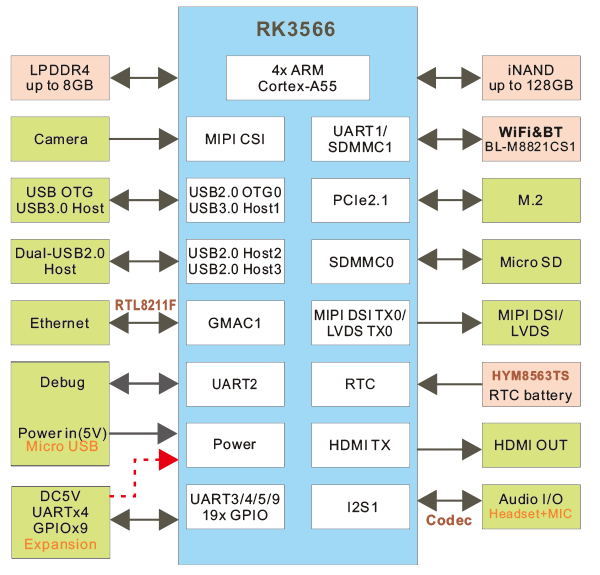

Specifications
SoC	Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz
GPU	ARM Mali-G52 2EE GPU with support for OpenGL ES 1.1/2.0/3.2. OpenCL 2.0. Vulkan 1.1
NPU	1 TOPS
Memory	2GB/4GB/8GB LPDDR4 or LPDDR4X
Storage	8GB/16GB/32GB/64GB/128GB eMMC M.2 PCIe 2.0 socket for SSD (NGFF) MicroSD card slot
Power Supply	5V/2A via Micro USB
USB	1x USB2.0 OTG (USB-AF) 2x USB2.0 Host 1x USB 3.0
Networking	Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller 2.4G/5G WiFi(802.11 a/b/g/n/ac) with Bluetooth 4.2
Debugging	Micro USB
Display	MIPI DSI/LVDS, HDMI2.0 output
Audio	1x 3.5mm audio I/O jack, 1x differential MIC
Camera(optional)	MIPI CSI Camera, 15-pin FPC connector.
Expansion	4x UART, SPI, I2C, PWM, SPDIF_TX and GPIO via 40-pin header
Misc	1x Recovery, 2x LED, RTC
Weight	50 gram
Operating Temperature	0° to + 70° C

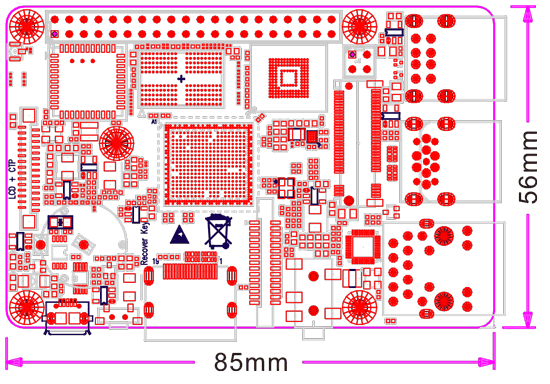

Dimensions	85 x 56 mm (Raspberry Pi 3-like form factor)

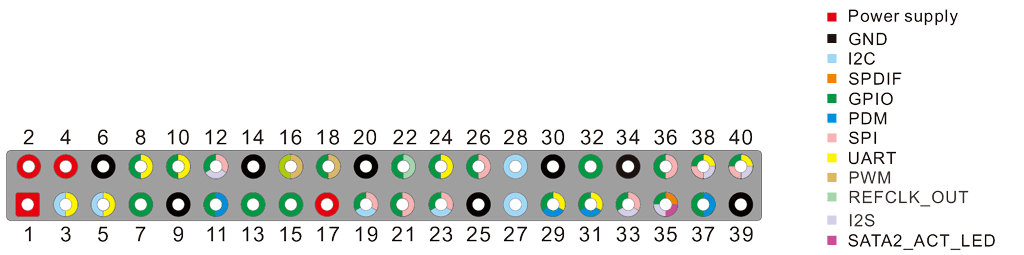

Pin Definition
Pin	Signal	Pin	Signal	Pin	Signal	Pin	Signal
1	VCC3V3_SYS	11	GPIO1_B1_d/ PDM_SDI2_M0	21	GPIO0_C5_d/ SPI0_MISO_M0	31	GPIO1_A4_d/ UART4_RX_M0/ PDMCLK1_M0
2	VCC5V_SYS	12	GPIO4_C3_d/ SPI3_MOSI_M1/ I2S3_SCLK_M1	22	GPIO0_A0_d/ REFCLK_OUT	32	GPIO0_C7_d
3	I2C3_SDA_M0/ UART3_RX_M0	13	GPIO0_A5_d	23	GPIO0_B5_u/ SPI0_CLK_M0/ I2C2_SCL_M0	33	GPIO4_C2_d/ SPI3_CLK_M1/ I2S3_MCLK_M1
4	VCC5V_SYS	14	GND	24	GPIO0_C6_d/ SPI0_CS0_M0	34	GND
5	I2C3_SCL_M0/ UART3_TX_M0	15	GPIO0_A6_d	25	GND	35	GPIO4_C4_d/ SPDIF_TX_M2/ I2S3_LRCK_M1/ SATA2_ACT_LED
6	GND	16	GPIO0_B7_d/ PWM0_M0	26	GPIO0_C4_d/ SPI0_CS1_M0	36	GPIO4_D1_u/ SPI3_CS1_M1
7	GPIO0_A3_u	17	VCC3V3_SYS	27	I2C1_SDA	37	GPIO1_B2_d/ PDM_SDI1_M0
8	GPIO3_C2_d/ UART5_TX_M1	18	GPIO0_C2_d/ PWM3_IR	28	I2C1_SCL	38	GPIO4_C6_d/ UART9_RX_M1/ SPI3_CS0_M1/ I2S3_SDI_M1
9	GND	19	GPIO0_B6_u/ SPI0_MOSI_M0/ I2C2_SDA_M0	29	GPIO1_A6_d/ UART4_TX_M0/ PDMCLK0_M0	39	GND
10	GPIO3_C3_d/ UART5_RX_M1	20	GND	30	GND	40	GPIO4_C5_d/ UART9_TX_M1/ SPI3_MISO_M1/ I2S3_SDO_M1

OS	Item	Feature	Description
Android 14	Boot	U-Boot 2017.09	rk356x_spl_loader_v1.23.114.bin
Kernel	Version	Linux 6.1.99
Drivers	eMMC	eMMC 5.1
HDMI	Support 4K, 1080P, 720P, 480Presolution
LCD&TP	10.1-inch LVDS LCD with touch screen
Audio	Headphone input/ output, MIC
SD card	Micro SD card
SSD	NVME SSD (M.2)
USB2.0	2x USB2.0 Host
USB3.0	USB3.0 Host
OTG	USB2.0 OTG (default Device)
Ethernet	10/100/1000 Mbps Ethernet
WiFi	802.11a/b/g/n/ac. RTL8821CS
Bluetooth	Bluetooth 4.2. RTL8821CS
Camera	MIPI camera. OV13850
Serial port	4x UART, 1x Debug
RTC	Real time keeping
IR	Support
SPI	Support
GPIO	Support
Cross-compiler Environment	Ubuntu 22.0

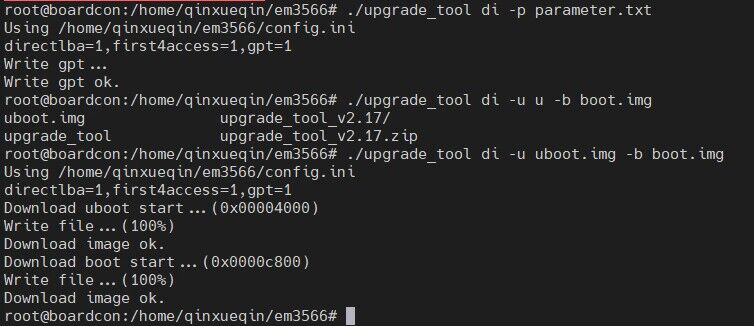

Debug Tools	SecureCRT, AndroidTool.exe, ADB

OS	Item	Feature	Description
Debian12 Buildroot	Boot	U-Boot 2017.09	rk356x_spl_loader_v1.23.114.bin
Kernel	Version	Linux 6.1.99
Drivers	eMMC	eMMC 5.1
HDMI	Support 4K, 1080P, 720P, 480P resolution
LCD&TP	10.1-inch LVDS LCD with touch screen
Audio	Headphone input/ output, MIC
SD card	Micro SD card
SSD	NVME SSD (M.2)
USB2.0	2x USB2.0 Host
USB3.0	USB3.0 Host
OTG	USB2.0 OTG (default Device)
Ethernet	10/100/1000 Mbps Ethernet
WiFi	802.11a/b/g/n/ac. RTL8821CS
Bluetooth	Bluetooth 4.2. RTL8821CS
Camera	MIPI camera. OV13850
Serial port	4x UART, 1x Debug
RTC	Real time keeping
IR	Support
SPI	Support
GPIO	Support
Cross-compiler Environment	Ubuntu 22.04
Debug Tools	SecureCRT, AndroidTool.exe, ADB

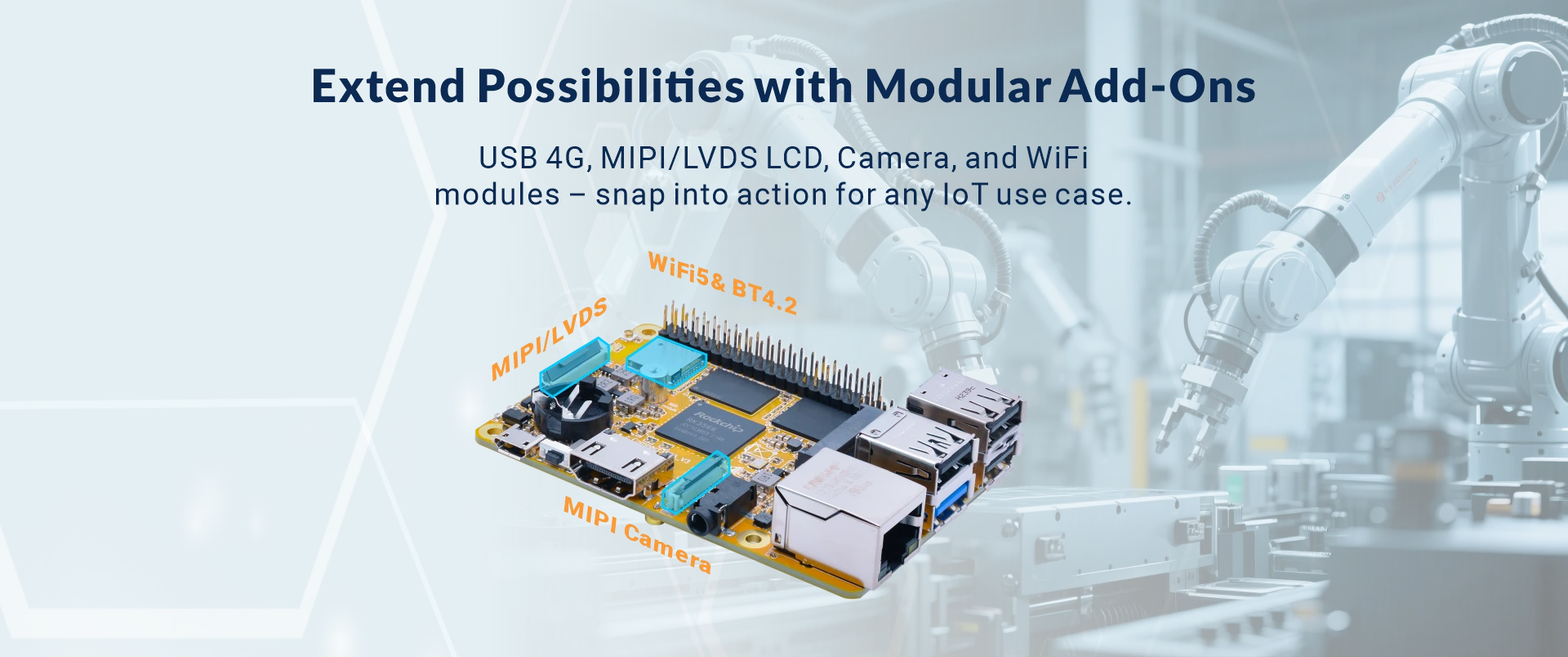

Expansion Module	Module Detail	Android	Debian	Buildroot

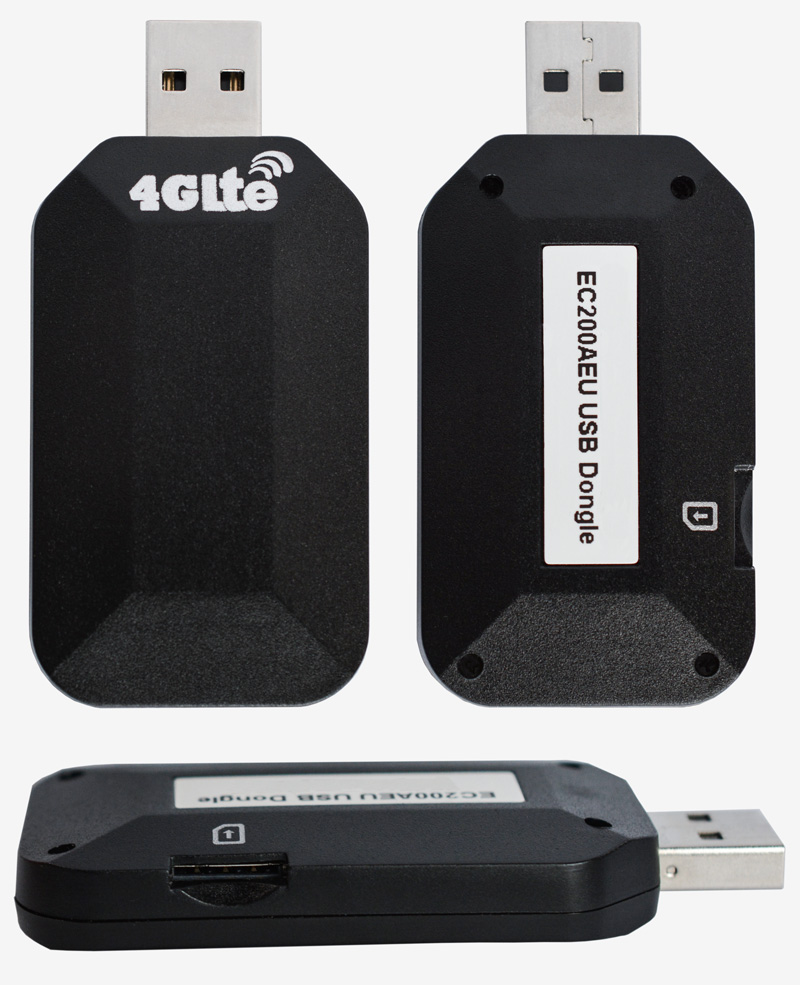

USB 4G module	USB 4G module. Quectel EC20X	√	√	√

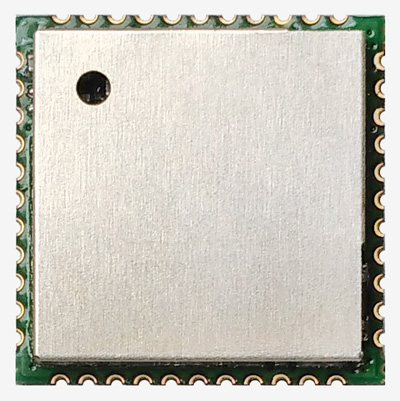

WiFi module	BL-M8821CS1 module. 2.4/5G WiFi + Bluetooth 4.2	√	√	√

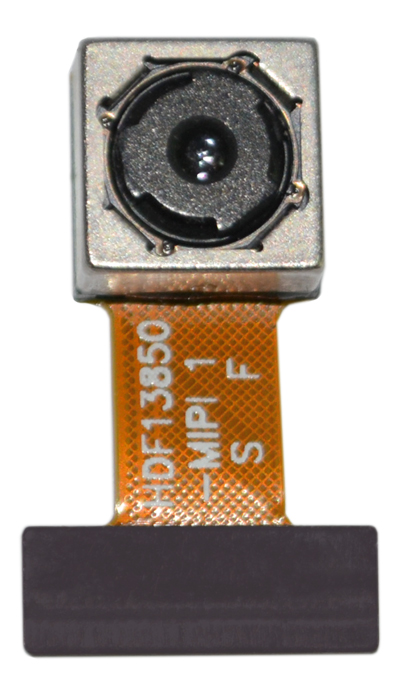

Camera	OV13850 module, 13-Megapixel	√	√	√

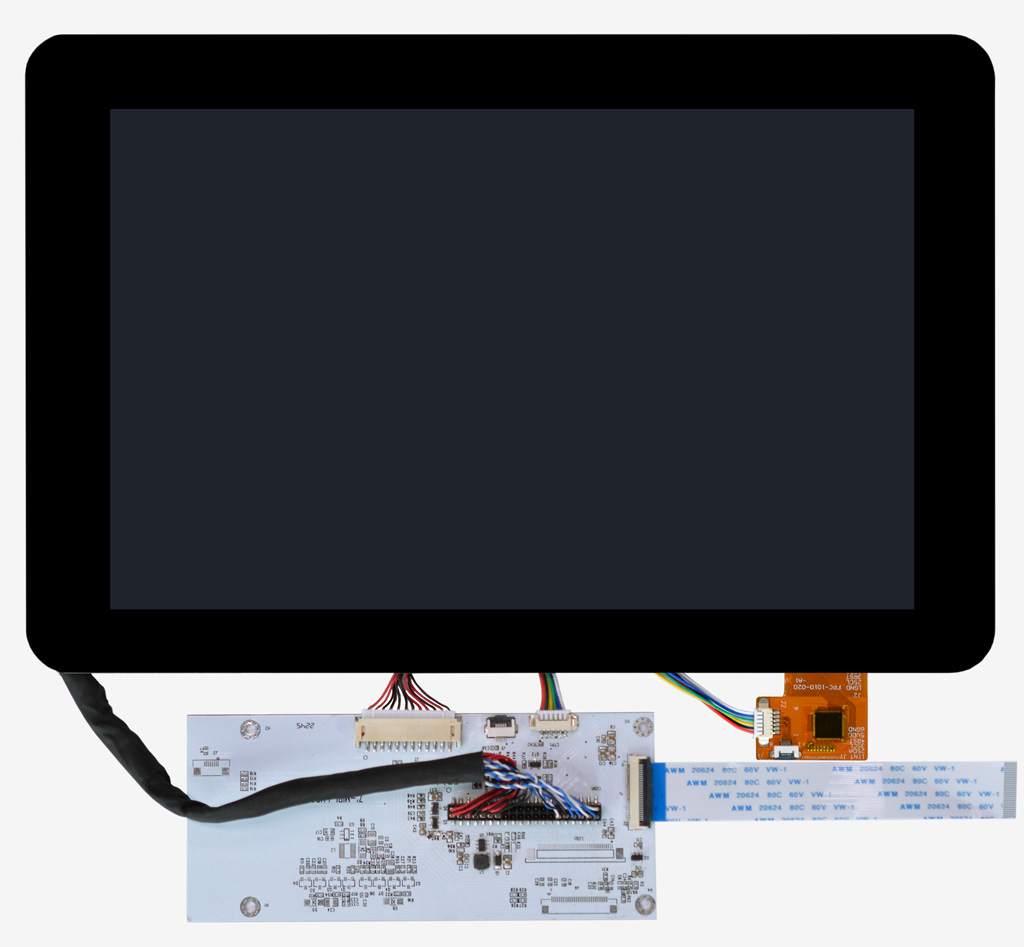

10.1-inch LCD	1280*800 Pixels. LVDS interface	√	√	√
