| OS | Item | Feature | Description |
|---|
| WinCE 6.0 | Boot | Stepldr | Providing Source code and STEPLDR.bin |
|---|
| Eboot | Providing Source code and EBOOT.bin
Eboot main functions:
1. Ethernet download: Set static IP, HDCP gets Dynamic IP, Mac address setting, download kernel automatically by Ethernet when the system starts.
2. USB download: update the image via USB OTG 2.0
3. Format Nand Flash
4. Format BinFS
5. Low-level Format
6. Set boot-up delayed time
7. Booting process bar |
| Sdboot | 1. SD Card boot-up and download Image via USB (can replace JTAG)
2. Replace booting LOGO |

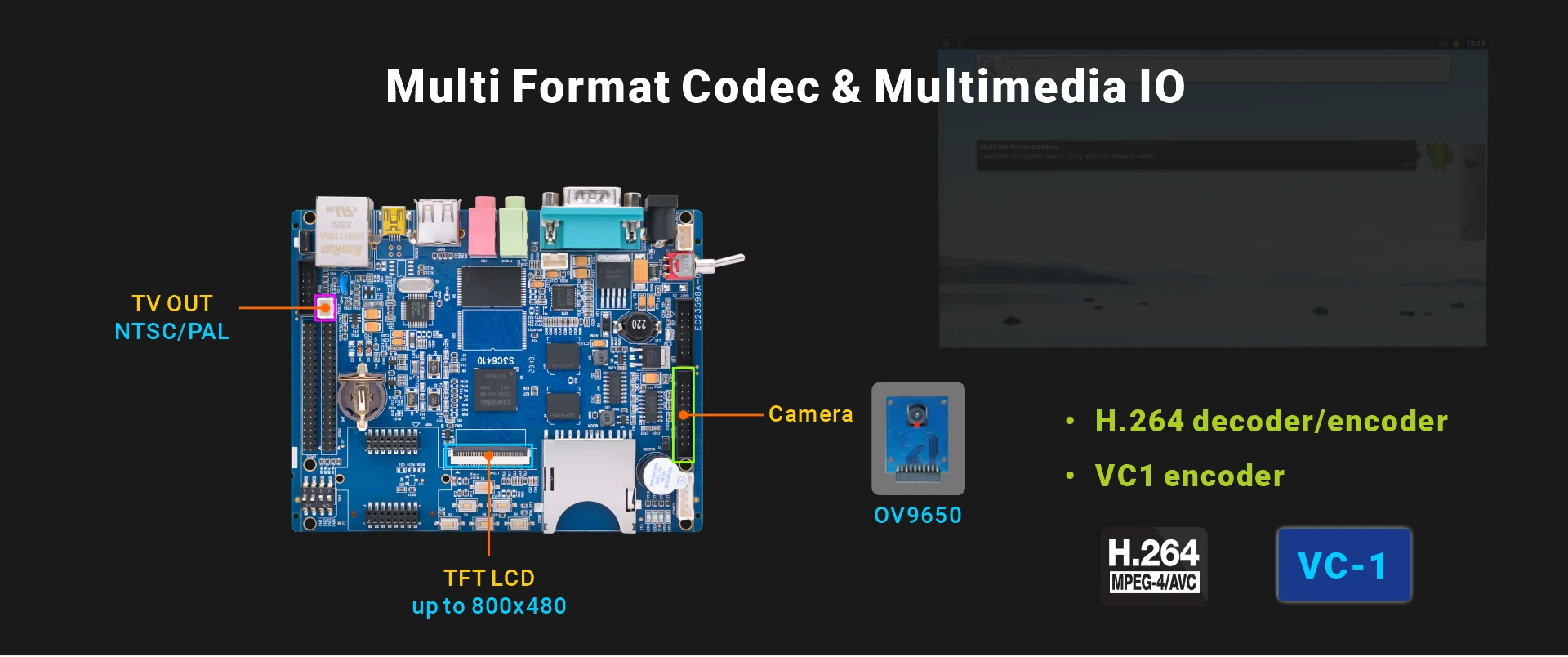

| System | Driver | 1. 4.3" and 7" LCD including Touch Screen, TVOUT, LEDs
2. Supporting 16/18/24Bpp
3. Supporting LCD display rotate |

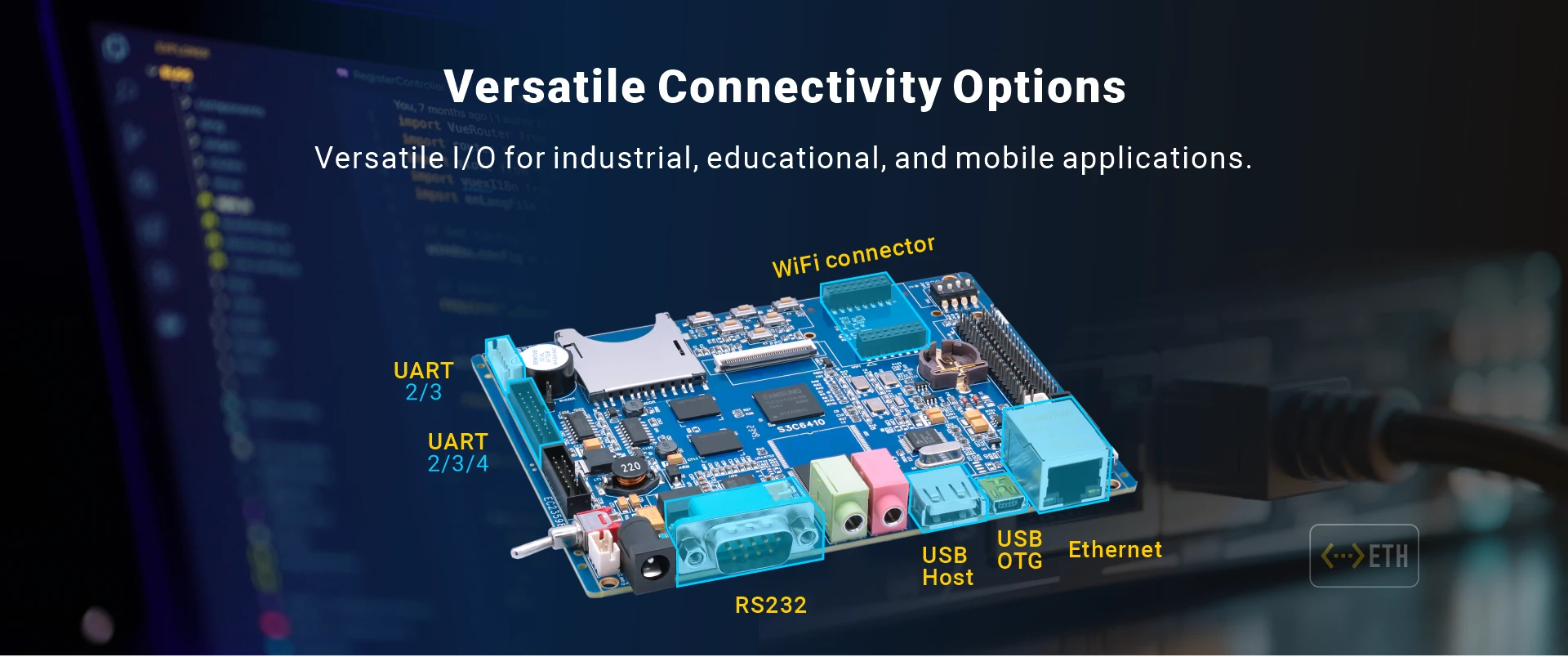

| SD card, High speed SD card, SPI, AC97, Camera, Ethernet, USB Host, USB Device, Serial ports, RTC, GPS, WIFI, IIC, JPEG, SPI, Keyboard, NandFlash, wavedev, CF_ATA, CMM, DMA, DrvLib, MFC, Powerbutton, Powercontrol, UA0 |

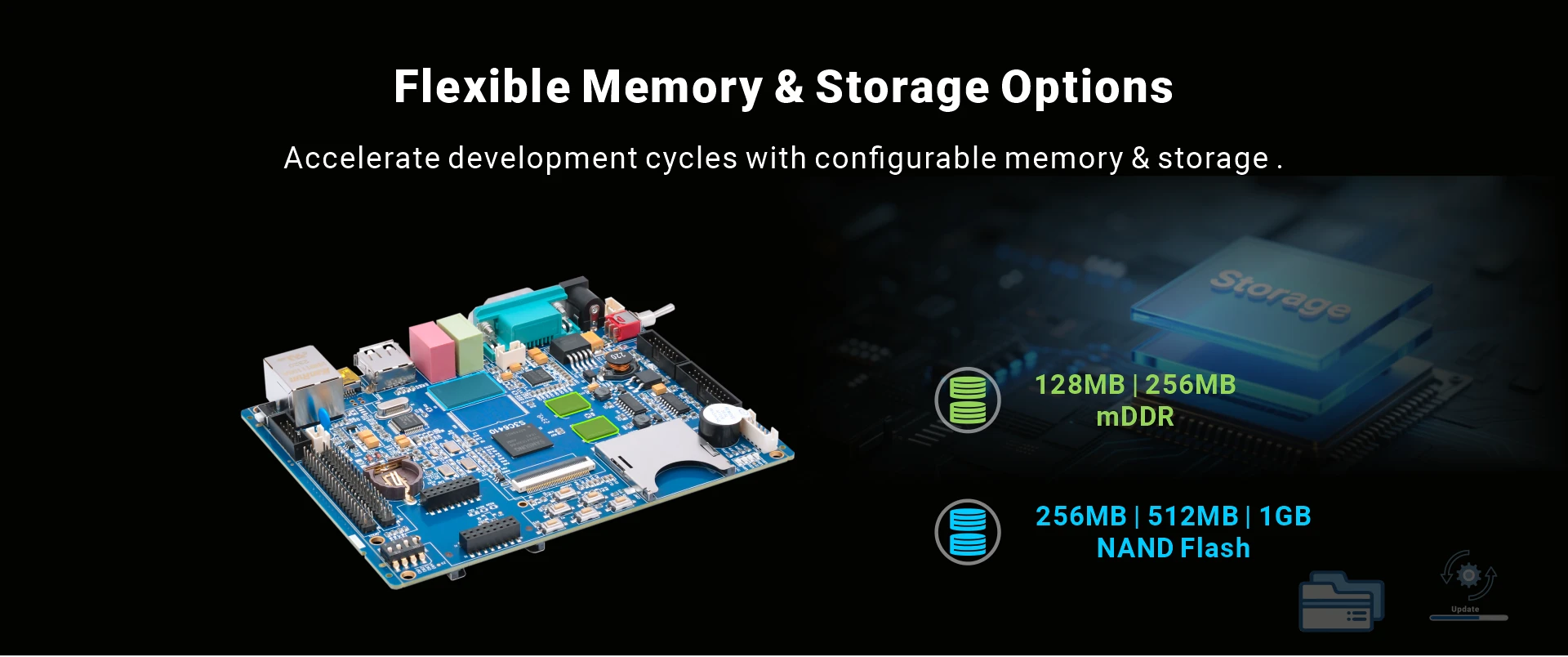

| Function | 220MB NAND Flash for user |
| Power Management (backlight drive, battery-driven, sleep/wake-up function), Hive registry support, ROM file system support |
| Application | MFC Video
Encode/decode | Providing Source Code and user manual, supporting MPEG-4/H264/H263/VC-1 and API operation manual |
| DirectShow Filter | Providing Source Code including:
AACDecoderFilter, FrameExtractFilter, MFCDecoderFilter, MP4testcode, mpeg4ip_mp4v2, SsapMP4Parser |
| JPEG | JPEG/JPG encoding and decoding, providing driver and test program. |
| OpenGL | OpenGL ES1.1&2.0, providing source code and user manual |
| Camera | Supporting CMOS Image sensor-ov9650/9653/9655 |
| TCPMP | Hardware decode MPEG-4/H263/H264/VC-1, supporting avi, mp4, m4v, mov, 3gp, flv, MPG.
Supporting DIVX, XVID
Supporting MP1, MP2, MP3, AC3, AAC more audio kinds. |
| OFFICE | Word, Excel, PowerPoint, PDF, txt, Skype |
