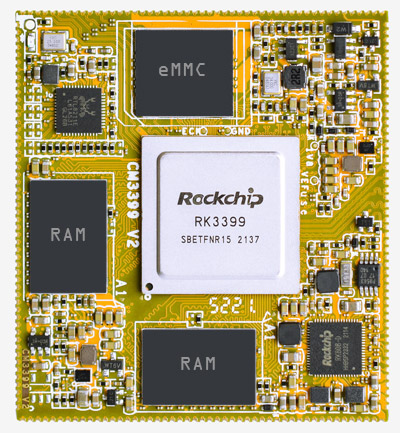

Processor: Rockchip RK3399(K). Dual-core Cortex-A72 @ 1.8GHz + Quad-core Cortex-A53 @1.4GHz

RAM: 1GB/2GB/4GB

Storage: 8GB/16GB/32GB/64GB/128GB

Pin out: 2x UART, 2x USB2.0 Host, 2x Type-C, MIPI TX/RX, MIPI TX, MIPI RX, HDMI TX, eDP, GbE, PCIe2.1, SDIO, SDMMC, SPI, I2C, I2S, PWM, ADC, GPIO.

Operating System: Android 7.1.2, Debian 11, Buildroot

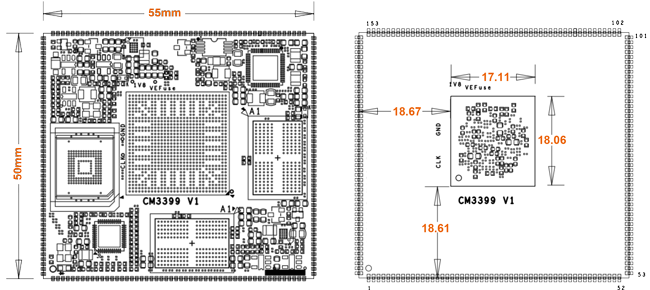

Dimensions: 55 x 50 mm

Package: 202-pin, 1.0mm pitch QFN

Operating Temperature: Commercial 0° to + 80° C; Extended Commercial -20° to +85° C

CE Certificate
