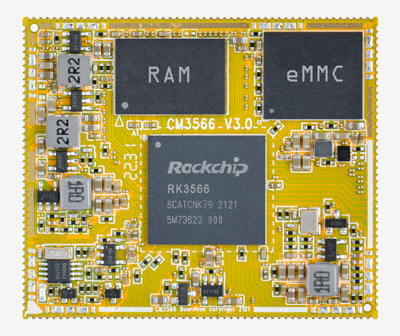

Processor: Rockchip RK3566. Quad-core Cortex-A55, 1.8GHz

NPU: 1 TOPS

RAM: 1GB/2GB/4GB/8GB

Storage: 8GB/16GB/32GB/64GB/128GB

Pin out: 5x UART, 2x USB2.0 Host, USB3.0 Host, USB2.0 OTG, LVDS/MIPI DSI, eDP, MIPI CSI, HDMI TX, CIF, GbE, PCIe2.1, 2x SDMMC, I2C, SPI, PWM, ADC, I2S, SPDIF, VOP, GPIO

Operating System: Android 14, Debian 12, Buildroot

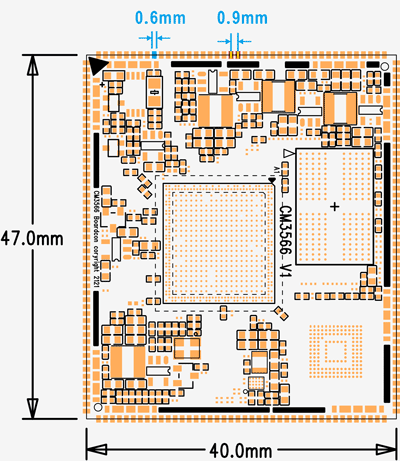

Dimensions: 47 x 40 mm

Package: 186-pin, 0.9mm pitch QFN

Operating Temperature: 0° to + 80°

CE Certificate, RoHS, REACH
