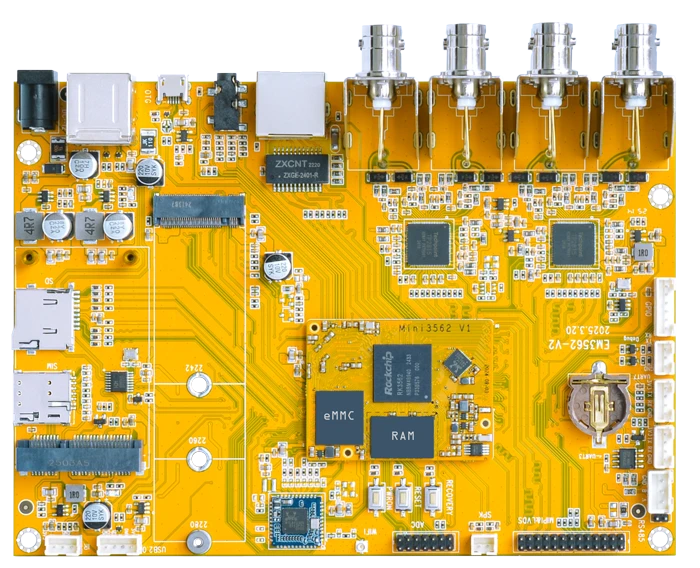

Single Board Computer
EM3562
Highlight

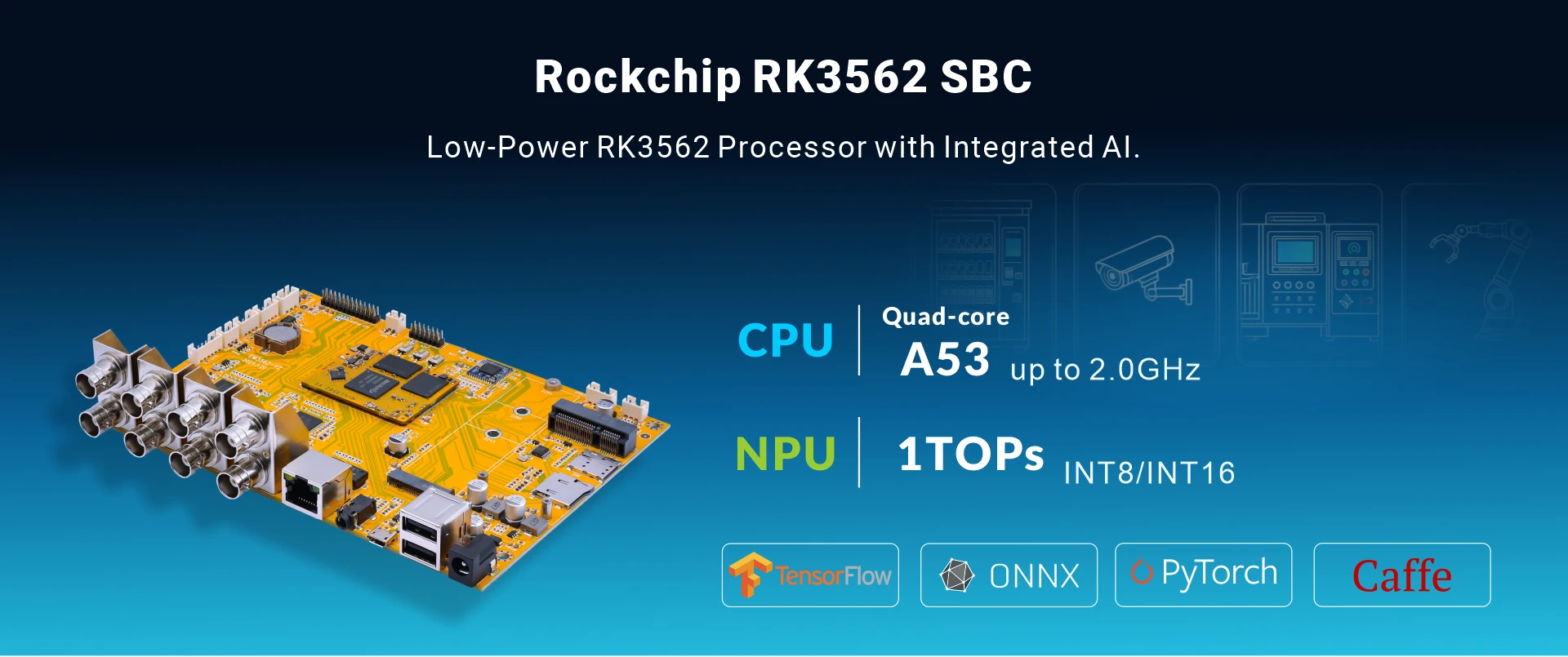

Processor: Rockchip RK3562. Quad-core Cortex-A53, up to 2.0 GHz
NPU: 1 TOPS
RAM: 2GB/4GB/8GB
Storage: 8GB/16GB/32GB/64GB/128GB

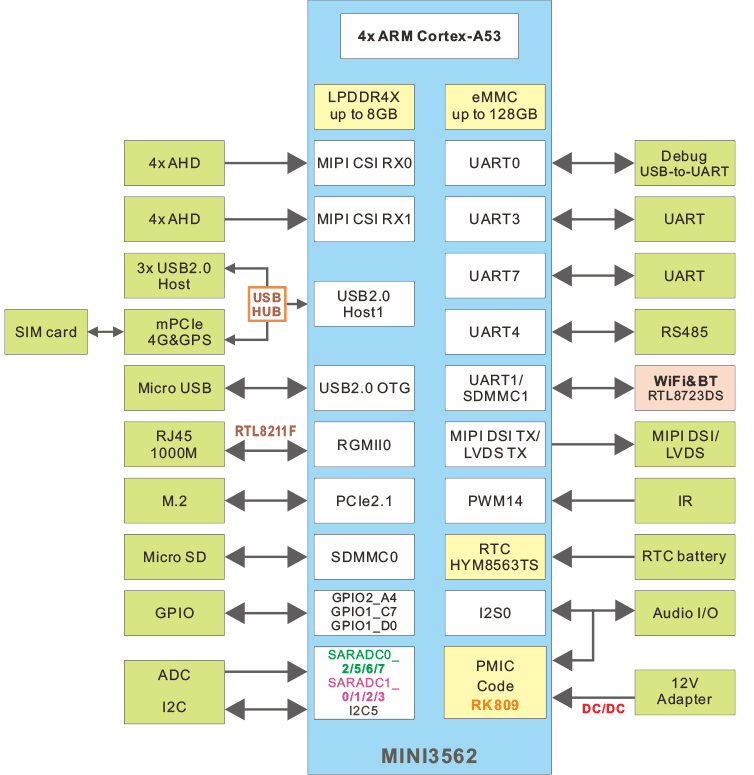

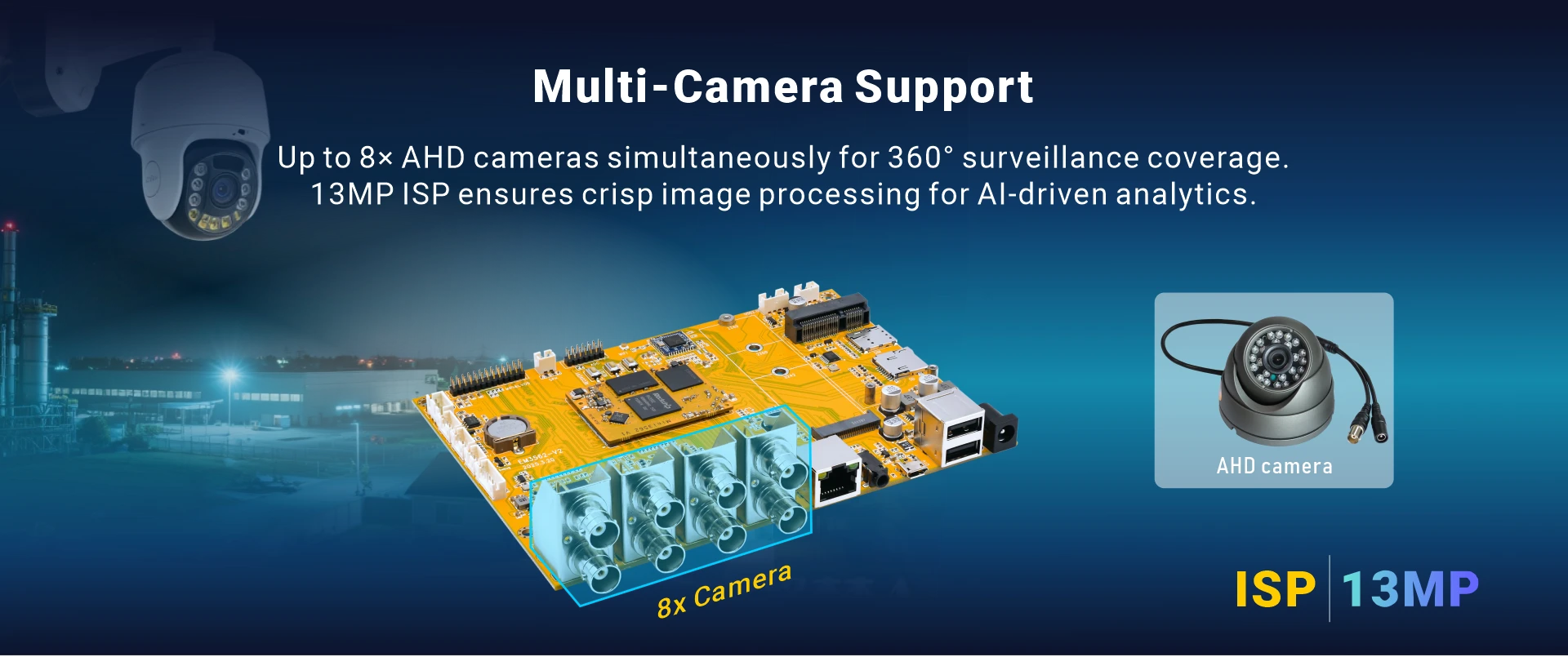

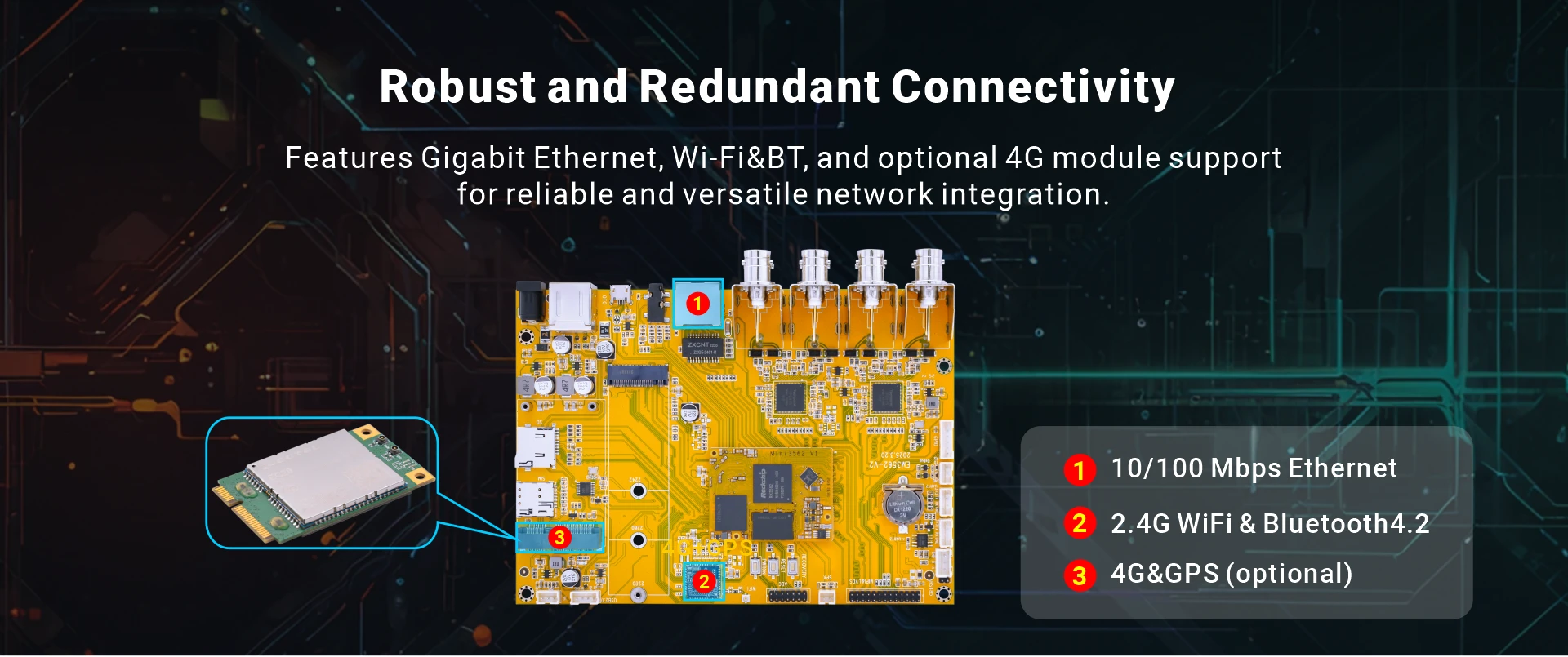

Interfaces: 2x UART, Debug, RS485, 3x USB2.0 Host, USB2.0 OTG, MIPI DSI/LVDS, 8x AHD(Camera), Gigabit Ethernet, M.2, Micro SD, mPCIe, Audio I/O, ADC, GPIO, IR, RTC, etc.
Operating System: Android 14, Debian 12, Buildroot

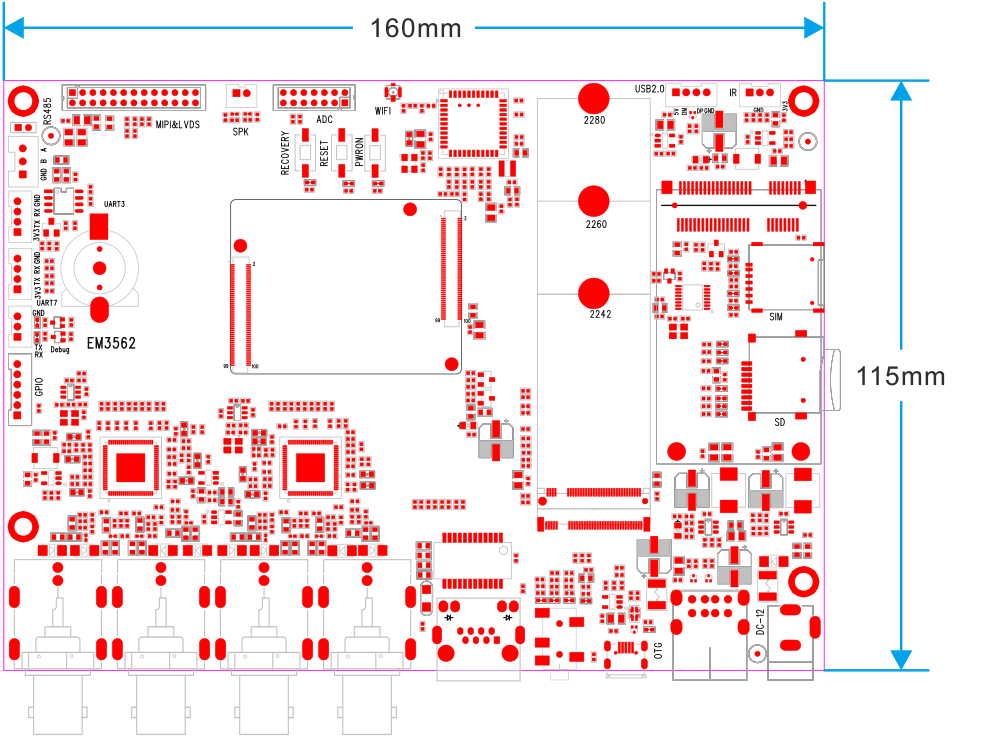

Dimensions: 160 x 115 mm
Operating Temperature: 0° to + 70° C
Accessories
-
EC20
Mini PCIe Multi-mode LTE Module
30.0 × 51.0 × 4.9 mm
-40° to +80° C -
Power Adapter 12V EU
12V / 3A Output
EU Plug -
Power Adapter 12V US
12V / 3A Output
US Plug
36W -
10.1-inch MIPI
800 x 1280 pixels
16.7M colors
MIPI Interface -
SW-MA2024HP
CMOS image sensor
1920×1080@30fps
3.6mm Type 1/3"
BNC interface
