| Specifications |
|---|

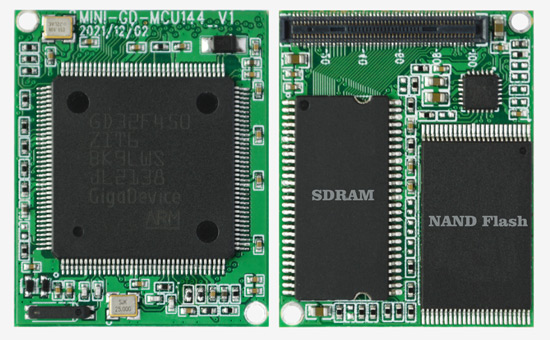

| MCU | GD32F450ZIT6. ARM Cortex-M4 32-bit SoC @ 200MHz.
On-chip 2MB Flash memory and 512KB SRAM memory |
| Memory | 32MB SDRAM |
| Storage | 128MB NADN flash
MicroSD card slot |
| Power Supply | 5V/2A DC input jack |
| USB | USB2.0 Host |
| Ethernet | 10/100Mbit Ethernet RJ45 port via LAN8720A controller |
| Serial | 1x RS232, DB9 connector
1x UART, 6-pin connector
1x RS485, 3-pin connector or 2-pin header |
| Display | 24-bit RGB, 40-pin FPC connector |
| Audio | 3.5mm audio out jack |
| Camera(optional) | 8-bit to 14-bit parallel interface, 20-pin header |
| Keys | Reset, Wake_up |
| Connector | Base board: DF40C-100DP-0.4V; CPU module: DF40C-100DS-0.4V |
| Other features | RTC with battery connector, GPIO, CAN, IR, Boot mode selection, MCU SWD, USB/UART/LCD selection |
| Operating Temperature | 0° to + 70° C |

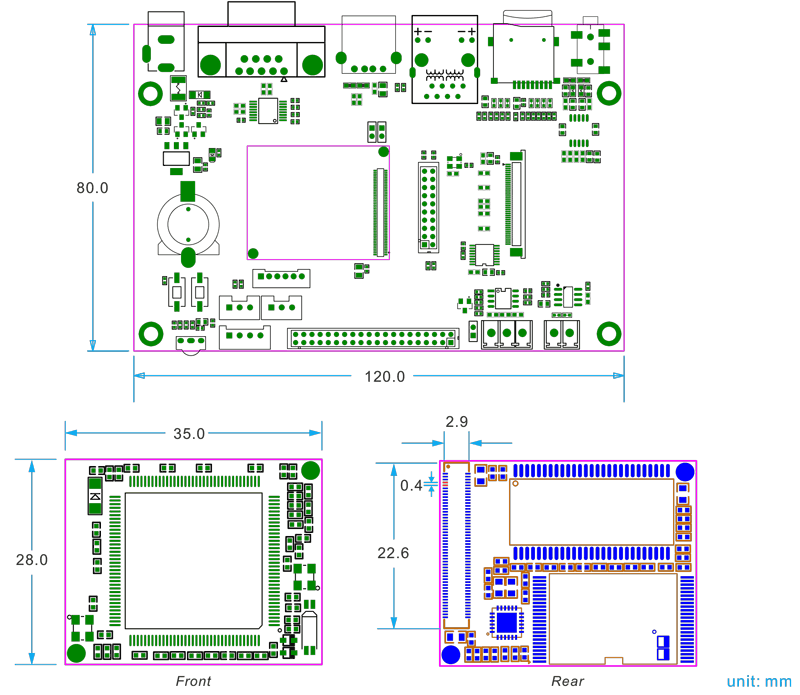

| Dimensions | Based board - 120 x 80 mm; CPU module - 35 x 28 mm |
