| Specifications |
|---|

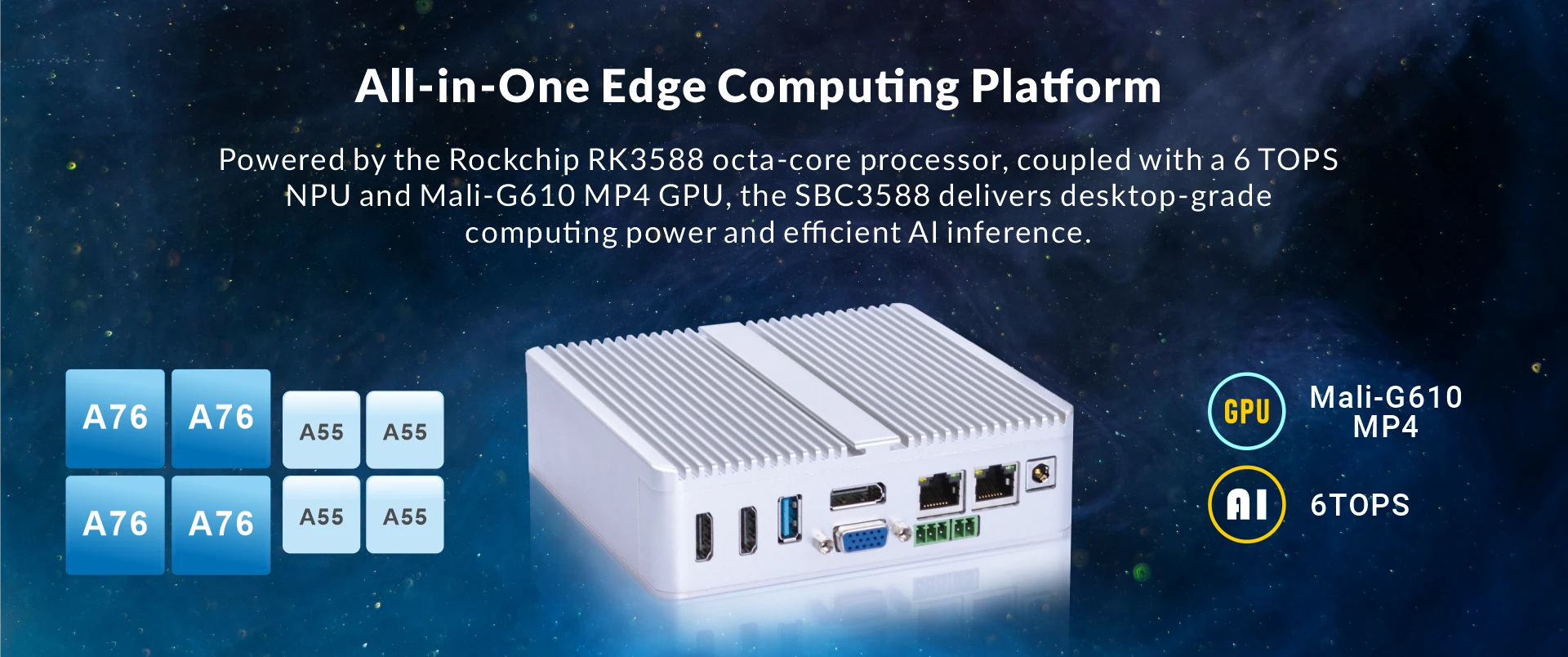

| SoC | Rockchip RK3588. Quad-core Cortex-A76 + Quad-core Cortex-A55 |
| GPU | ARM Mali-G610 MP4 with support for OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 |
| NPU | 6 TOPS |
| Memory | 8GB/16GB LPDDR4X |

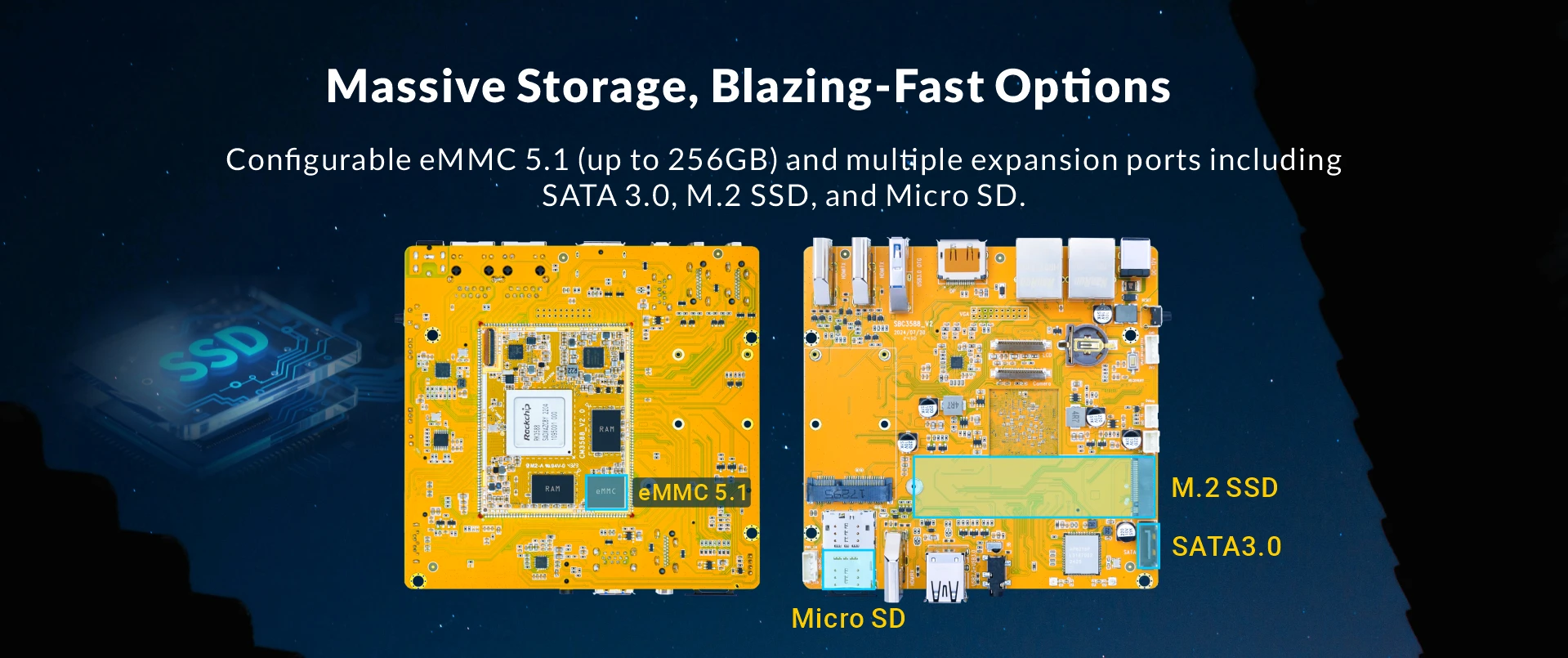

| Storage | 32GB/64GB/128GB/256GB eMMC
MicroSD card slot
1x SATA3.0 socket
1x M.2 SSD socket |
| Power Supply | 12V/3A DC input jack |
| USB | 1x USB2.0+USB3.0 Host, dual-USB
1x USB3.0 Host/OTG, single-USB |
| Connectivity | Gigabit Ethernet RJ45 port via Realtek RTL8211F-CG controller
2.4G/5G 2T2R WiFi (802.11 a/b/g/n/ac/ax) with Bluetooth5.1
Mini PCIe socket with Nano SIM card port to support 4G LTE Modem |
| Serial | 1x Serial port for debug, 3-pin connector
1x UART, 4-pin connector |

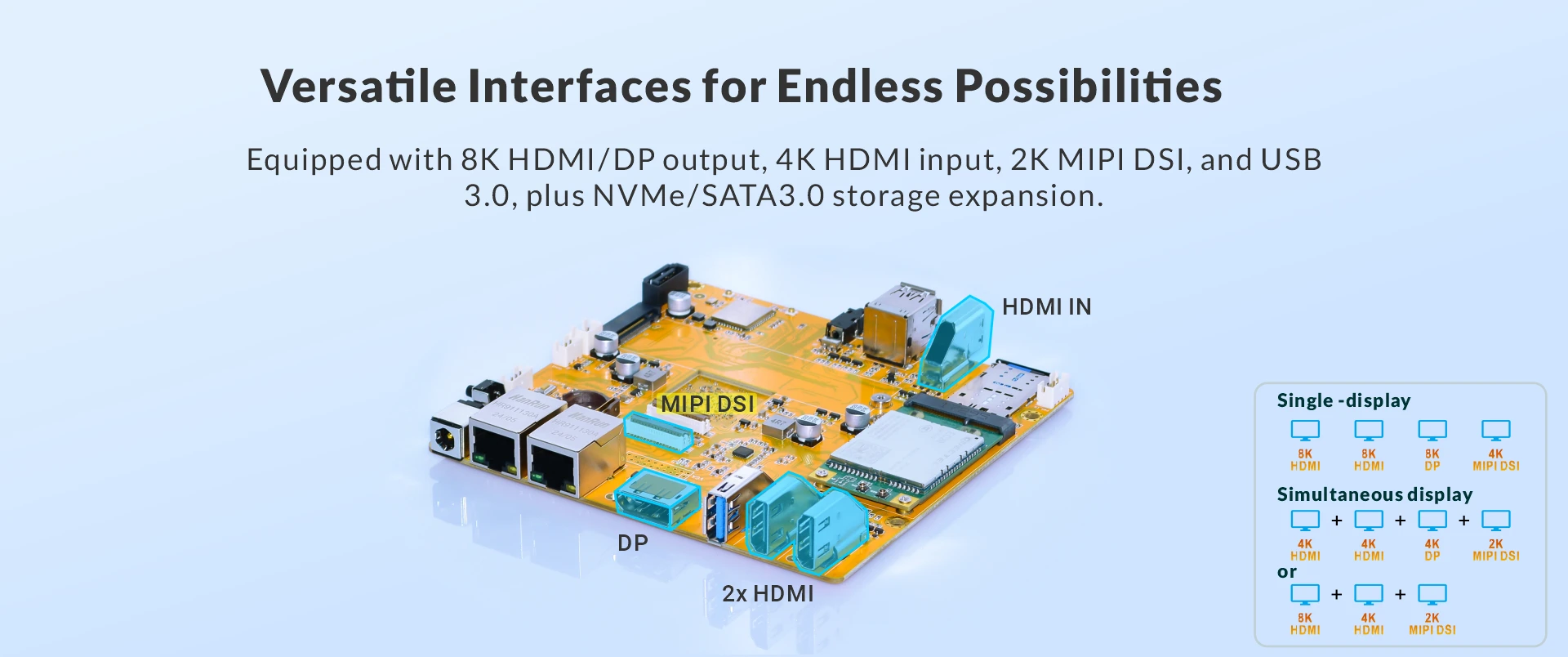

| Video | Output | HDMI 2.1, up to 8Kp60
MIPI DSI, up to 4Kp60
DisplayPort 1.4, up to 8Kp30 |
| Input | HDMI2.0 input, up to 4Kp60
MIPI CSI |
| Audio | 3.5mm audio I/O jack
8-channel audio via HDMI |
| Camera | 1x MIPI Camera, 30-pin FPC connector |
| Keys | Recover, Reset, Power(4-pin header) |
| Other features | RTC with battery connector; IR receiver; 20-pin header with VGA(or RS232), CAN, RS485(or Relay) |
| Operating Temperature | 0° to + 70° C |
| Dimensions | Based board -125.0 x 121.7 mm; CPU module - 67 x 53 mm |
