| Specifications |
|---|

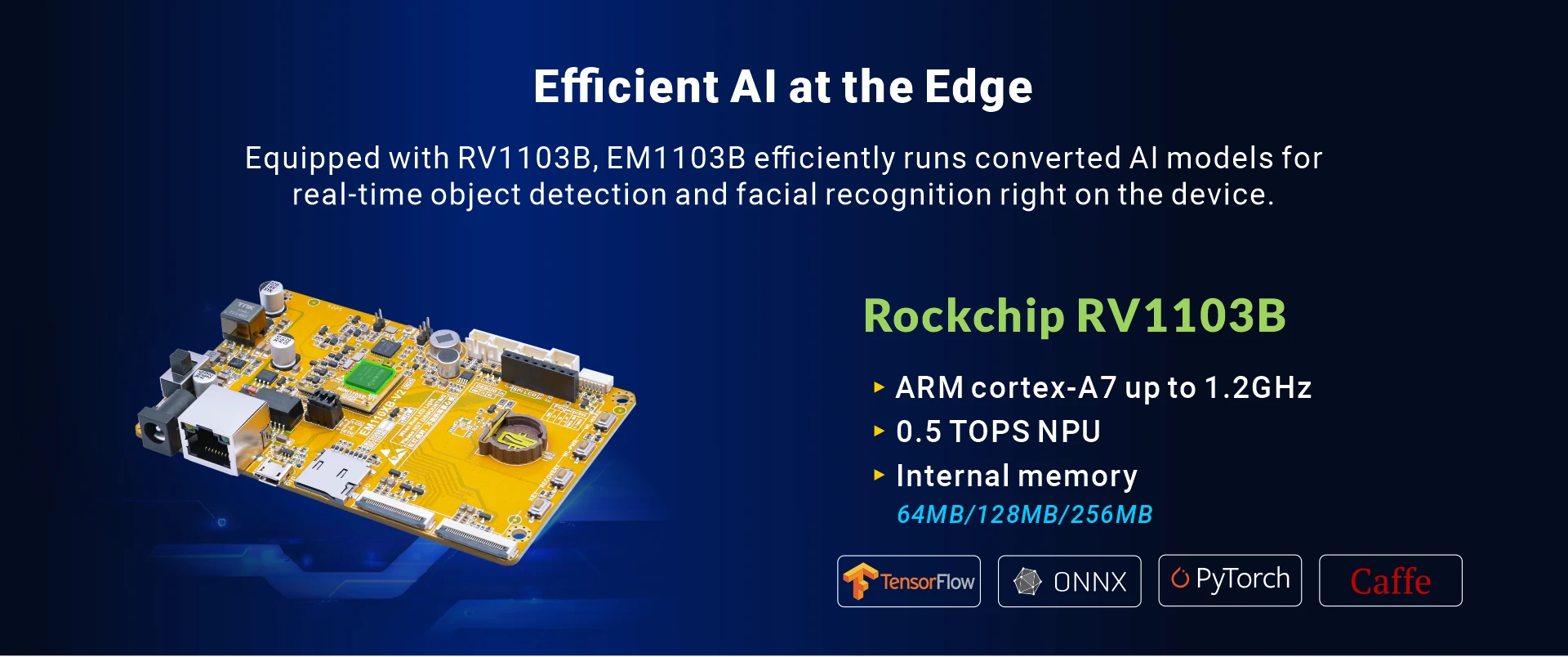

| SoC | Rockchip RV1103B processor.
- ARM Cortex-A7 core, 1.2GHz
- RISC-V |
| NPU | 0.5 TOPS (int8) |
| Memory | Embedded 64MB/128MB/256MB |
| Storage | 8GB/16GB/32GB eMMC
Micro SD slot |
| Power Supply | 5V/3A DC input jack
POE |
| USB | 1x USB2.0 OTG, Micro USB |

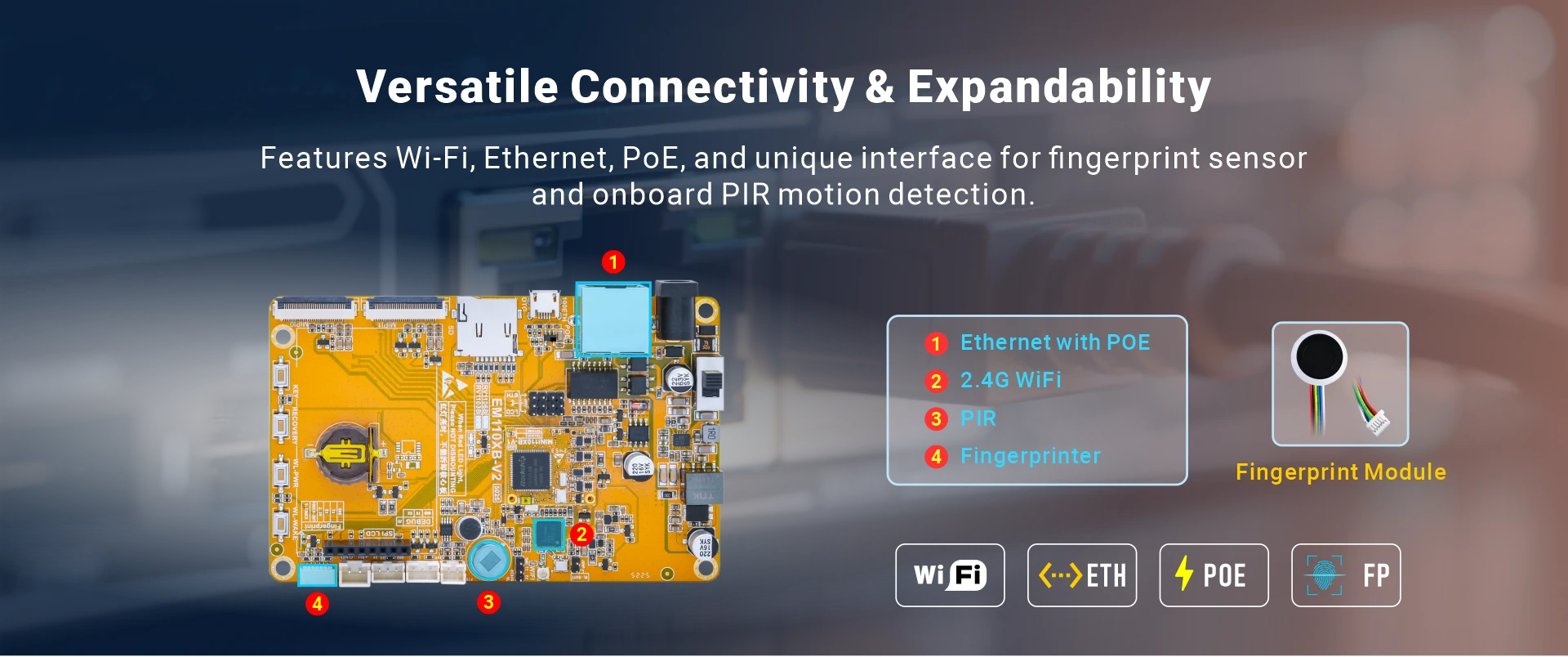

| Connectivity | 1x 10/100 Mbps Ethernet RJ45 port
2.4G WiFi (802.11b/g/n) with 512KB SRAM and 2MB SPI Flash |
| Serial Port | 1x Debug, 3-pin connector
1x WiFi_Debug, 3-pin header |
| Fingerprint | Requires separate FPM383C module. 6-pin connector |
| Audio | 1x differential MIC
1x Speaker, 2-pin connector |

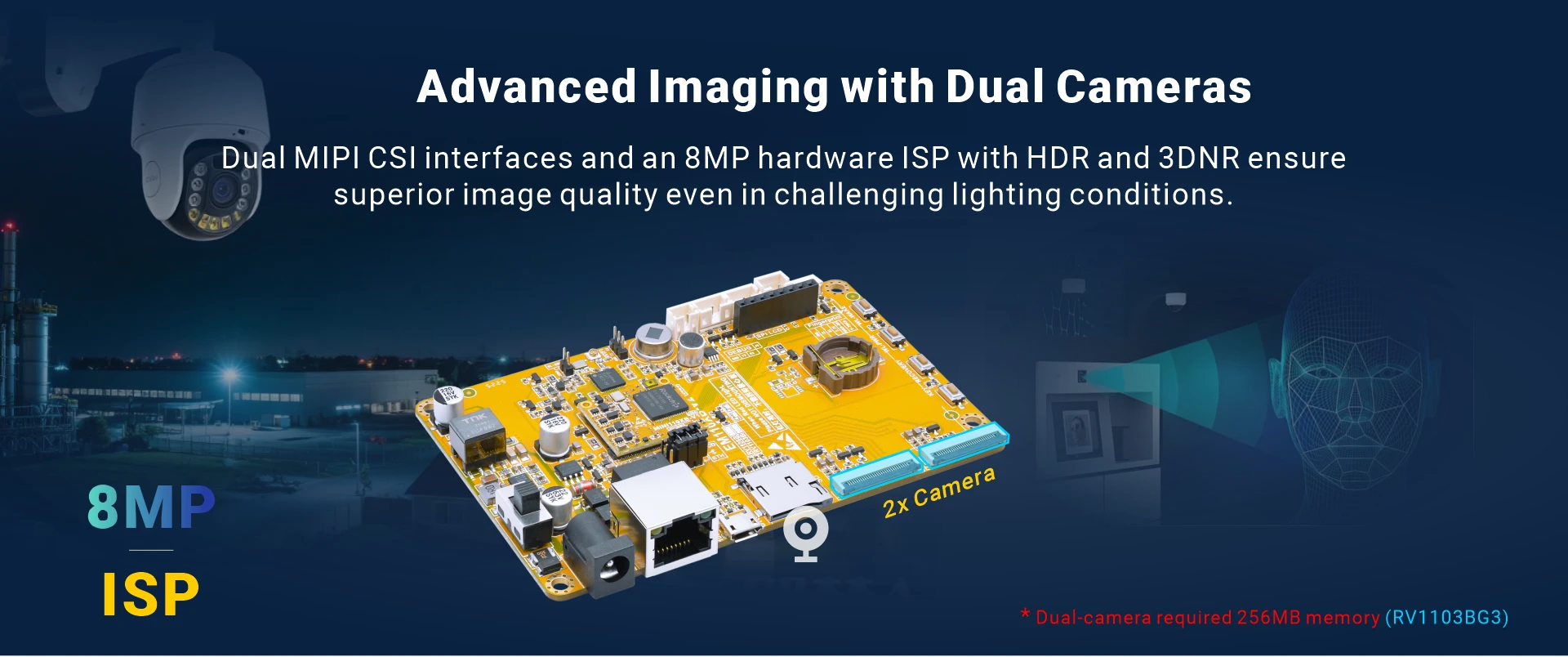

| Camera | 2x 2-lane MIPI CSI, 24-pin FPC connector |
| Keys & Switch | Maskrom(on CPU module), Recovery, ADC_IN, WiFi_Power, WiFi_Wakeup, Power switch |
| Other features | RTC with battery connector, GPIO, WiFi boot/download select, PIR, +5V output |
| Operating Temperature | 0° to + 70° C |

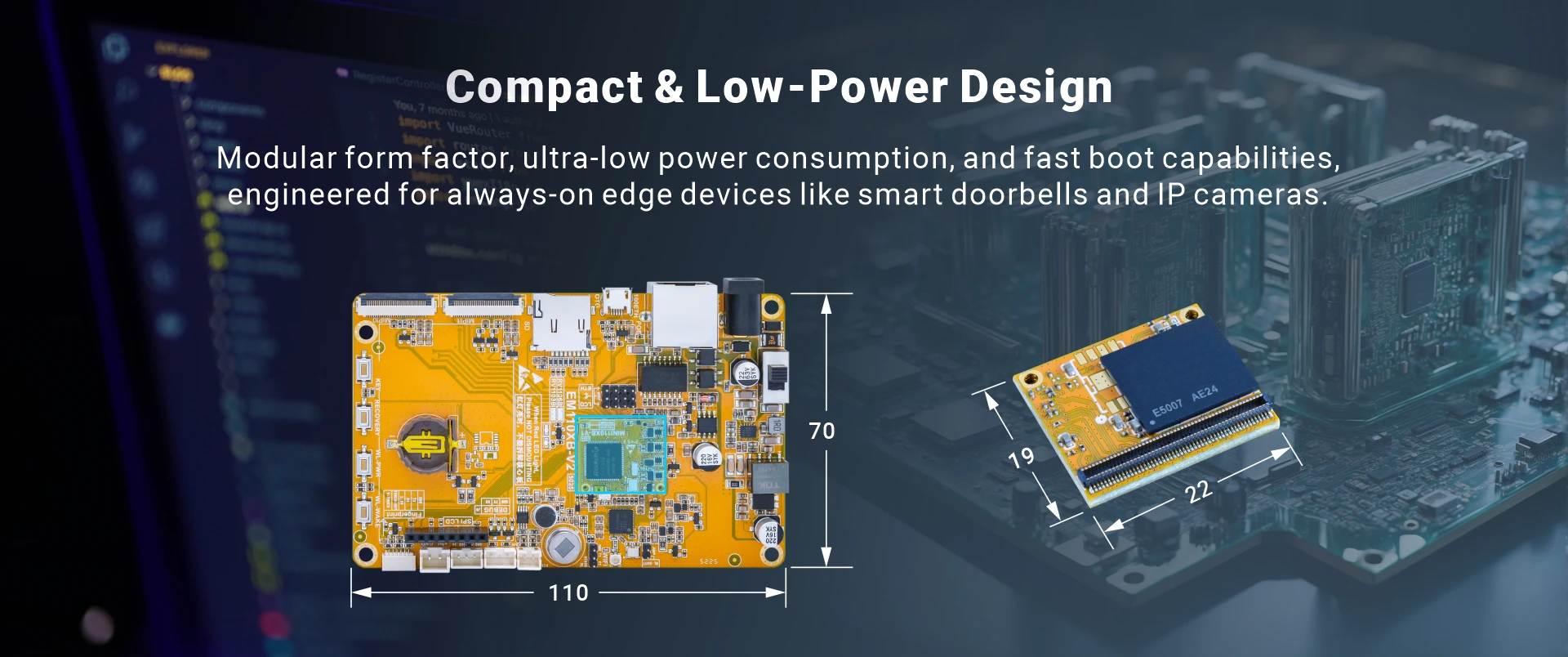

| Dimension | Based board - 110 x 70 mm; CPU module - 22 x 19 mm |
