Home > Products > Card Size Board > Compact3128

Card Size Board

Compact3128

Highlight

Processor: Rockchip RK3128. Quad-Core Cortex-A7, 1.2GHz
RAM: 512MB/1GB
Storage: 4GB/8GB/16GB/32GB
Interfaces: 4x USB Host, 1x USB OTG, 1x debug, LCD(LVDS/MIPI), Ethernet, HDMI, Audio/CVBS(AV) out, SD, GPIO, Camera, battery connector
Operating System: Android 6.0
Dimensions: 85 x 56 mm
Operating Temperature: 0° to + 70° C

Contact Us

Overview Hardware Software Resources Support Accessories

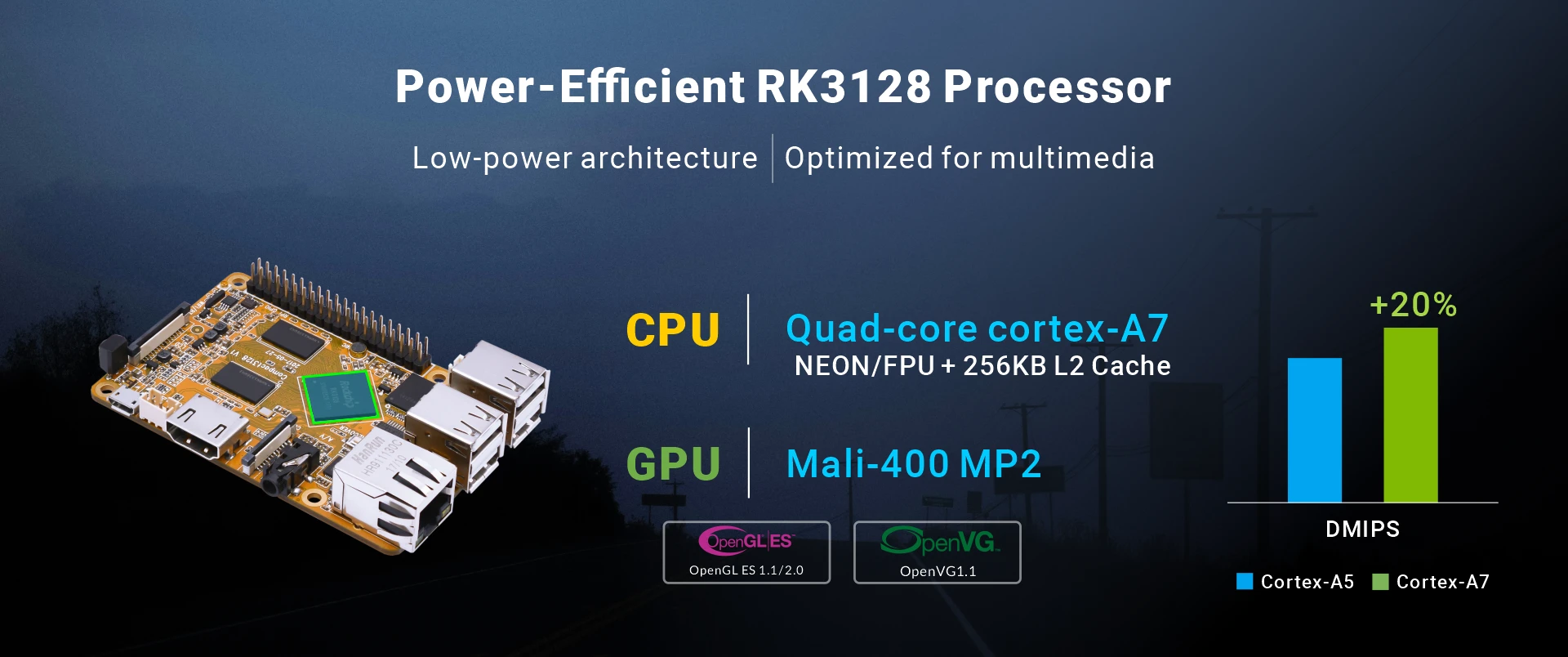

Overview_Compact3128_soc

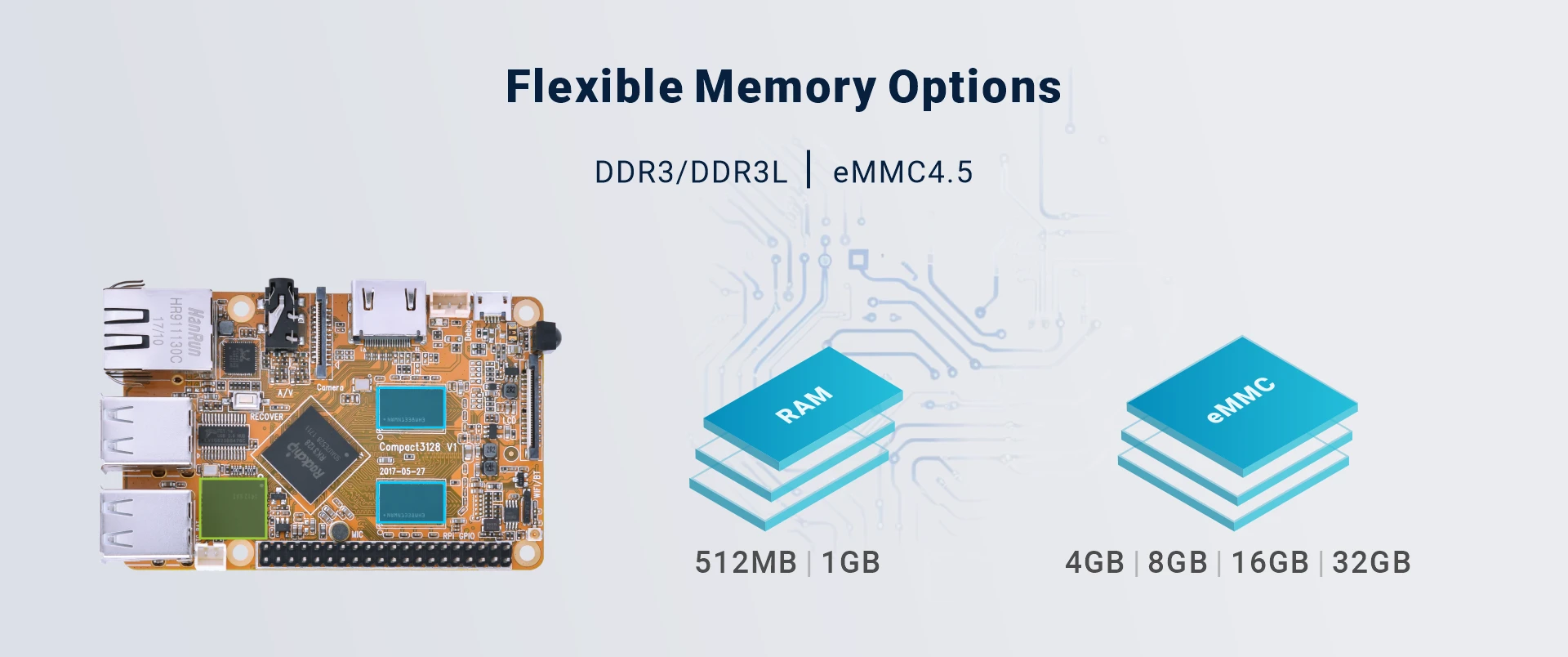

Overview_Compact3128_memory

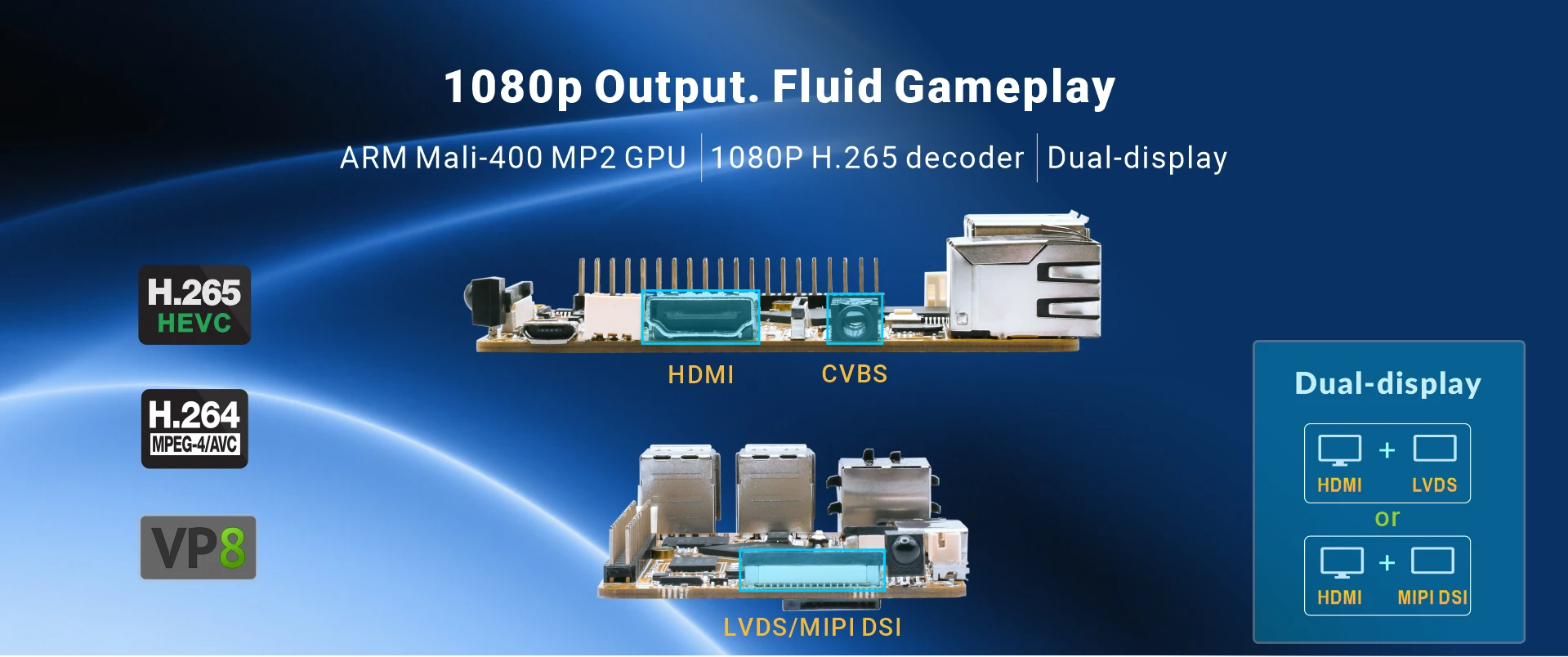

Overview_Compact3128_multimedia

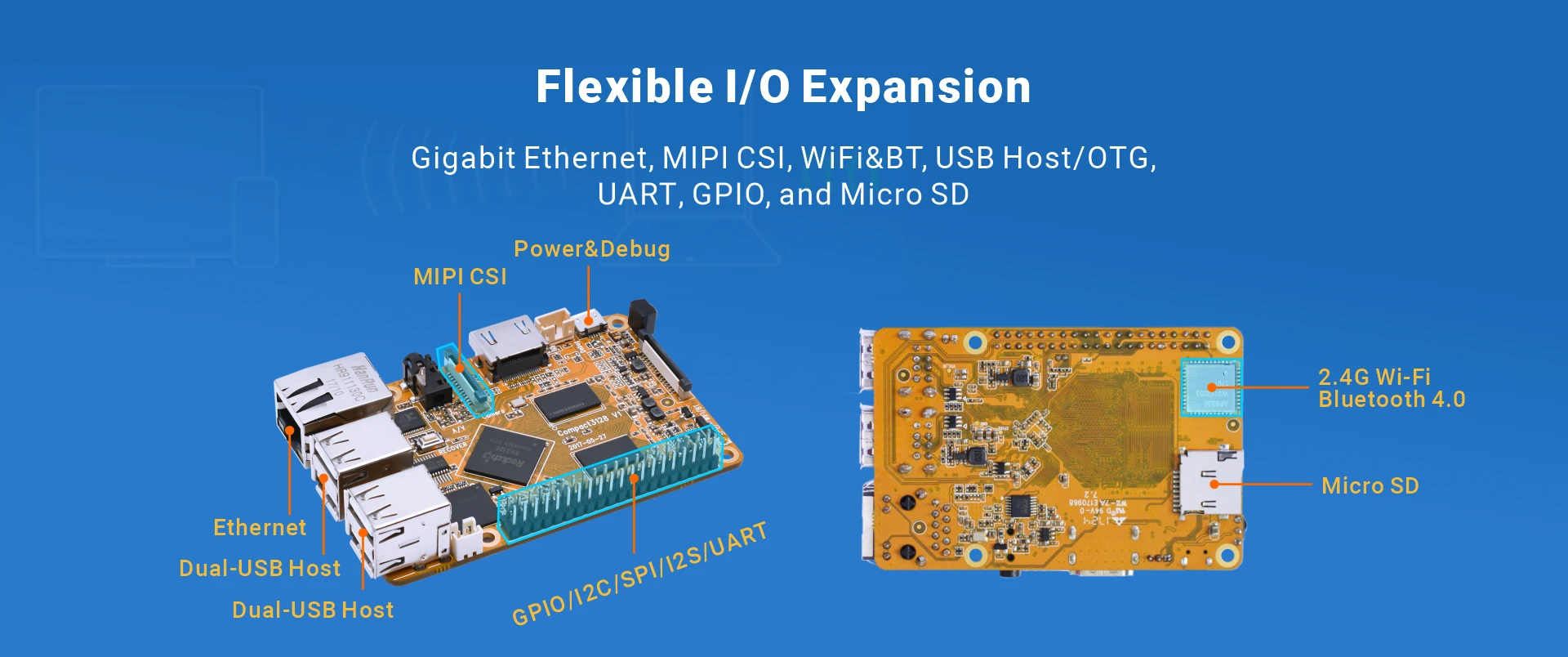

Overview_Compact3128_IO

Specifications
SoC	Rockchip RK3128 quad core ARM Cortex A7 @ 1.2GHz
GPU	Mali-400MP2 GPU, support OpenGL ES1.1/2.0 High performance dedicated 2D processor
Memory	512MB/1GB DDR3
Storage	4GB/8GB/16GB/32GB eMMC
Power	5V/2A via USB OTG (Require USB power adapter)
Ethernet	Gigabit Ethernet, RJ45 interface. RTL8211E-VB-CG controller
USB	4x USB2.0 Host, 1x USB2.0 OTG
HDMI	HDMI V1.4, support 1080P
UART	2-CH UARTs. UART1 lead out from the 40-pin header(GPIO) UART2 for debug, 3-pin connector
SD card	1x Micro SD card slot
Audio/CVBS(AV) output	3.5mm audio jack. The CVBS supports 480i/576i resolution. TPF632 audio codec
MIC	MIC1.3
RTC	2-Pin connector for external battery (3V)
LCD	1x 30pin FPC connector for LVDS/MIPI Cap-touch panel (required adapter)
GPIO	1x 40-pin header. Lead out signals include GPIO0~4, 2-CH I2C, SPI/I2S, UART1
Button	Recover
WiFi&BT (optional)	2.4GHz WiFi + Bluetooth 4.0, support 802.11 a/b/g/n/ac (AP6335 module)
Camera (optional)	24-pin FPC connector. OV5640 model, 5 Megapixels.
IR	IR Receiver
Operating Temperature	0° to + 70° C
Dimensions	85 x 56 mm

OS	Item	Feature	Description
Android 6.0	Boot	Bootloader	RK3128MiniLoaderAll_V2.31.bin
Kernel	Version	Linux 3.10.0
Drivers	HDMI	Support 1080P, 720P resolution
Audio	Audio out, MIC
SD card	Micro SD card
USB	4x USB2.0 Host and 1x USB2.0 OTG
Ethernet	10/100/1000 Mbit/s Ethernet
Camera	5 Megapixels, OV5640 model
CVBS	Support 480i/576i resolution
Buttons	Recover, Power on/off (system)
Serial Port	1x RS232 serial port for debugging
IR Remote control	Support IR Remote control
GPIOS	1x 40Pin(2.0mm pitch) connector for GPIOS and power
Embedded GUI	Android6.0.1	Support Alarm Clock, Browser, Gallery, Calculator, Camera, Email, ES File Explorer, video player, Music etc.
Cross-compiler Environment	VMware V7+ ubuntu-12.04, java-7-openjdk-amd64.tar.bz2
Debug Tools	SecureCRT, AndroidTool.exe, ADB
